JLLN-015 - Littelfuse 15 Amp 300V AC Class T Fast Acting Fuse Compact Design

JLLN-015

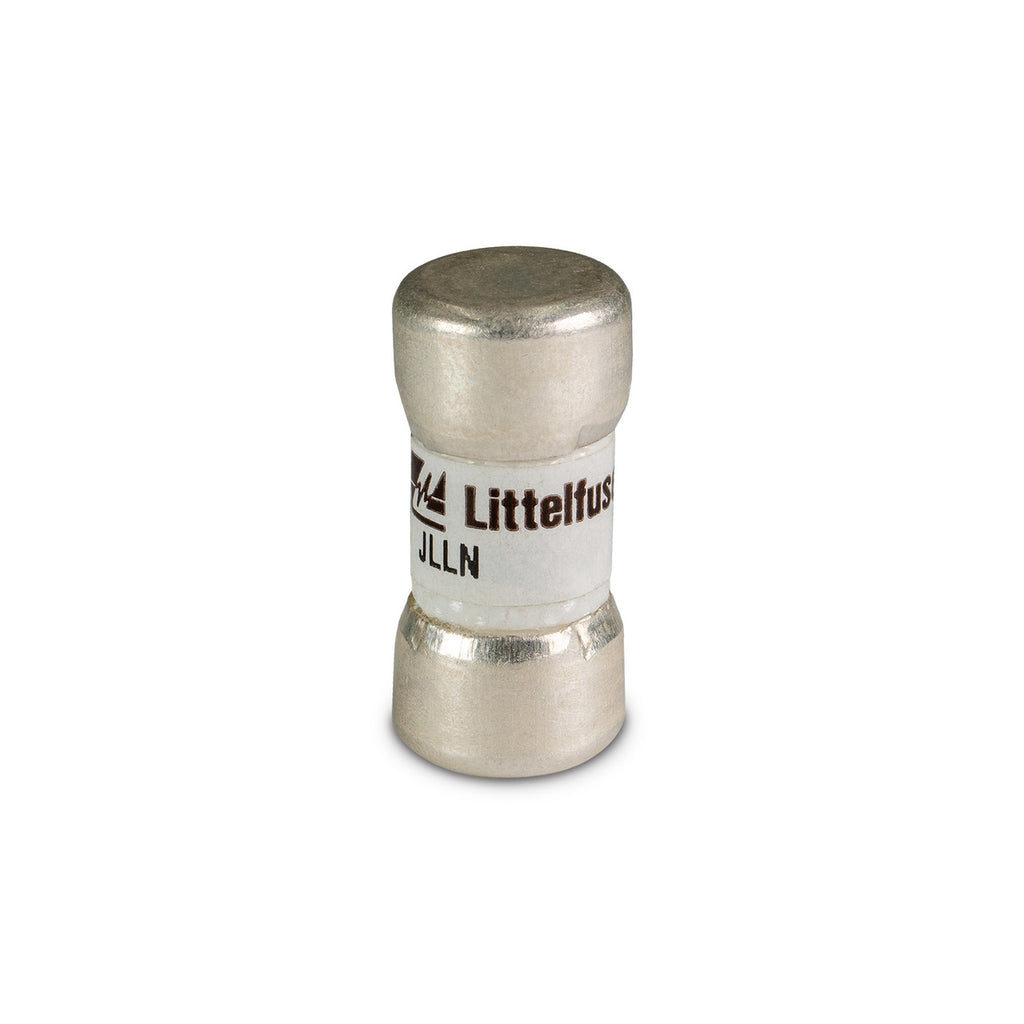

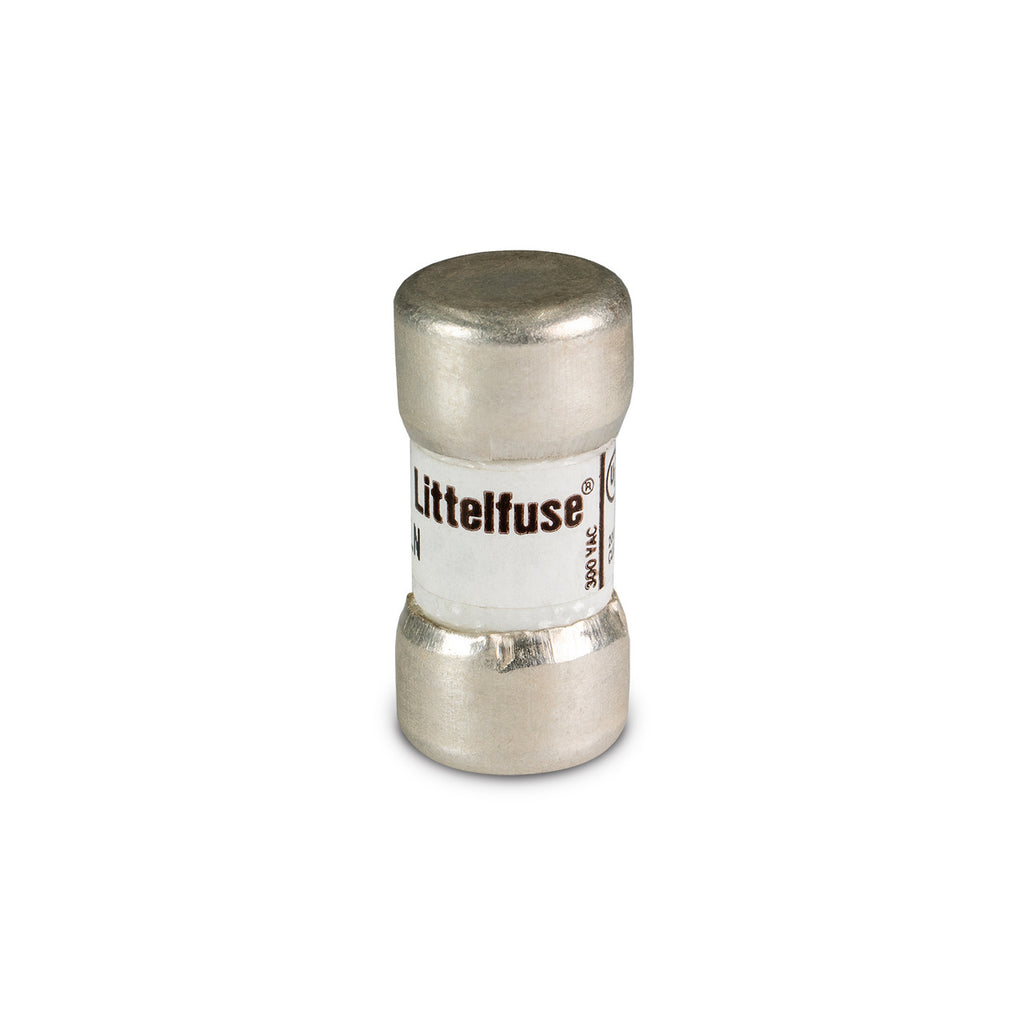

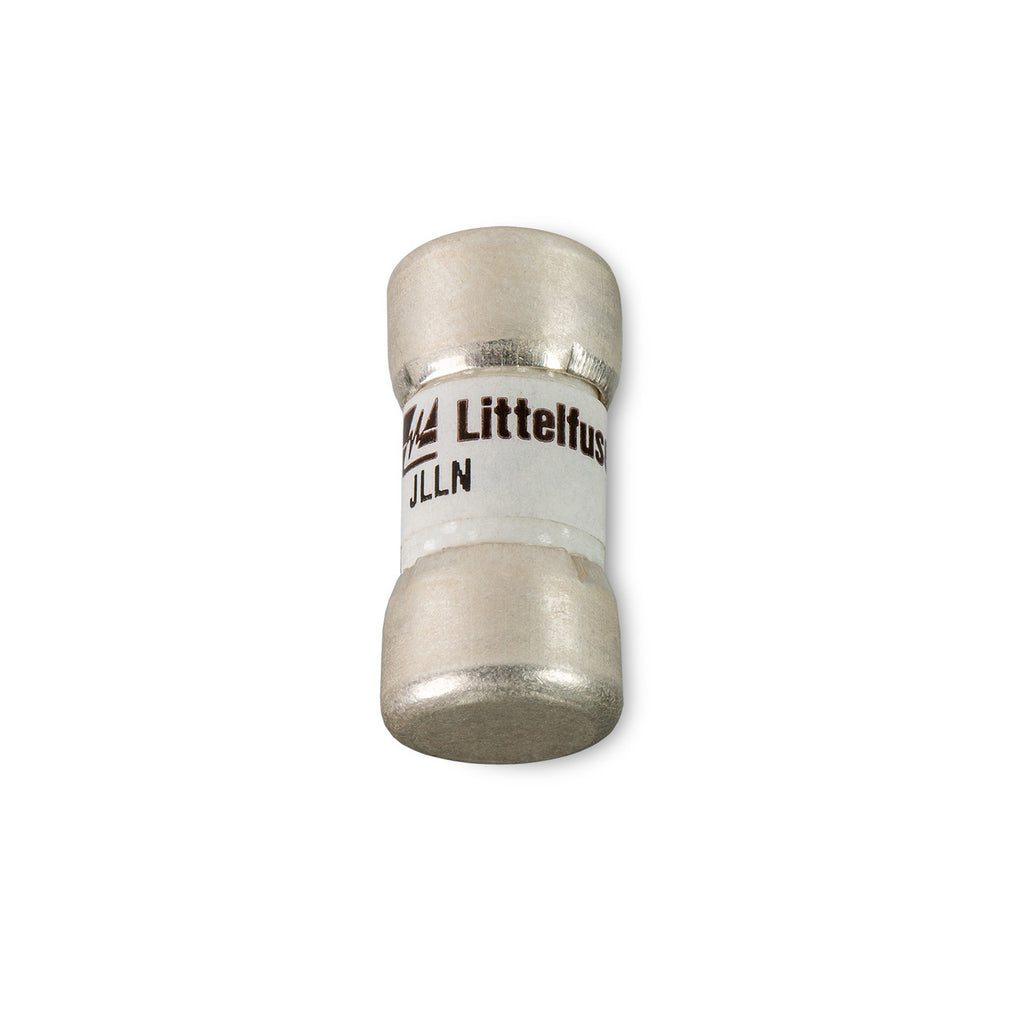

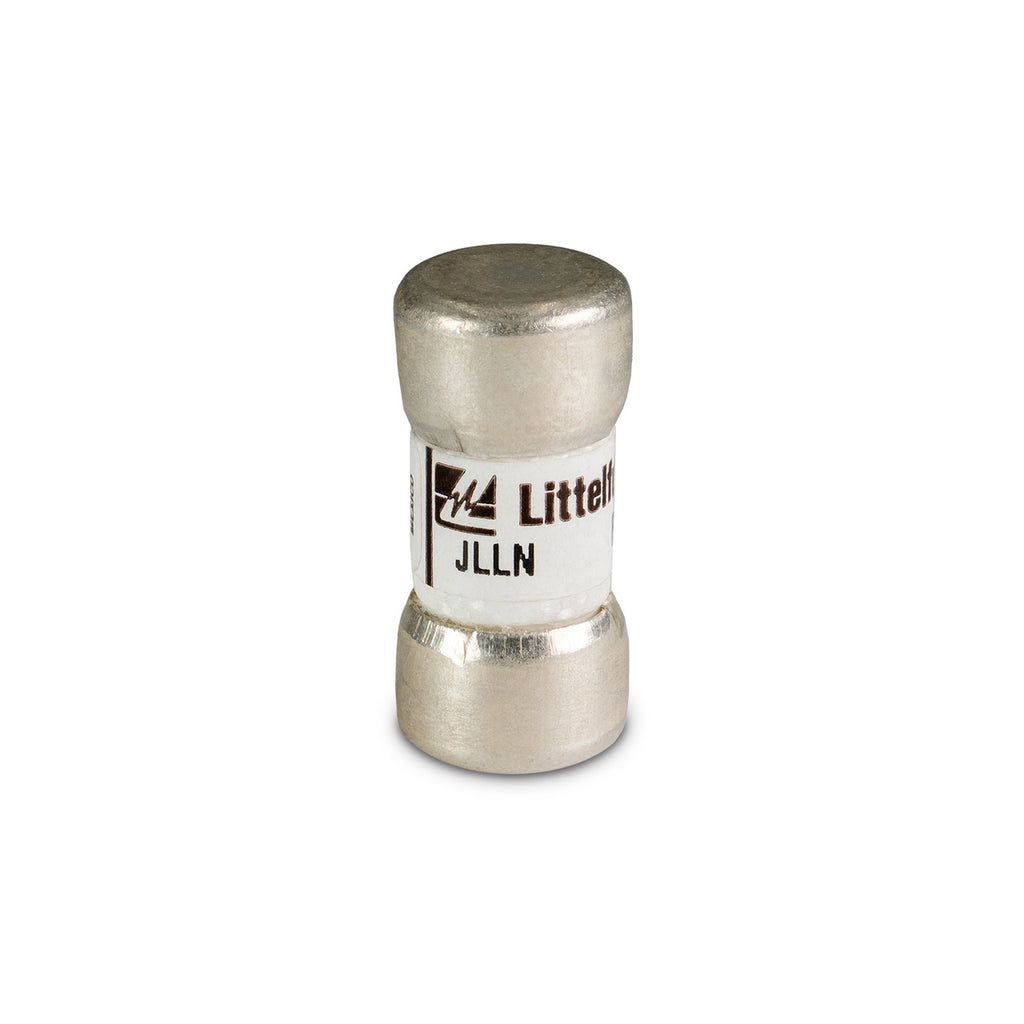

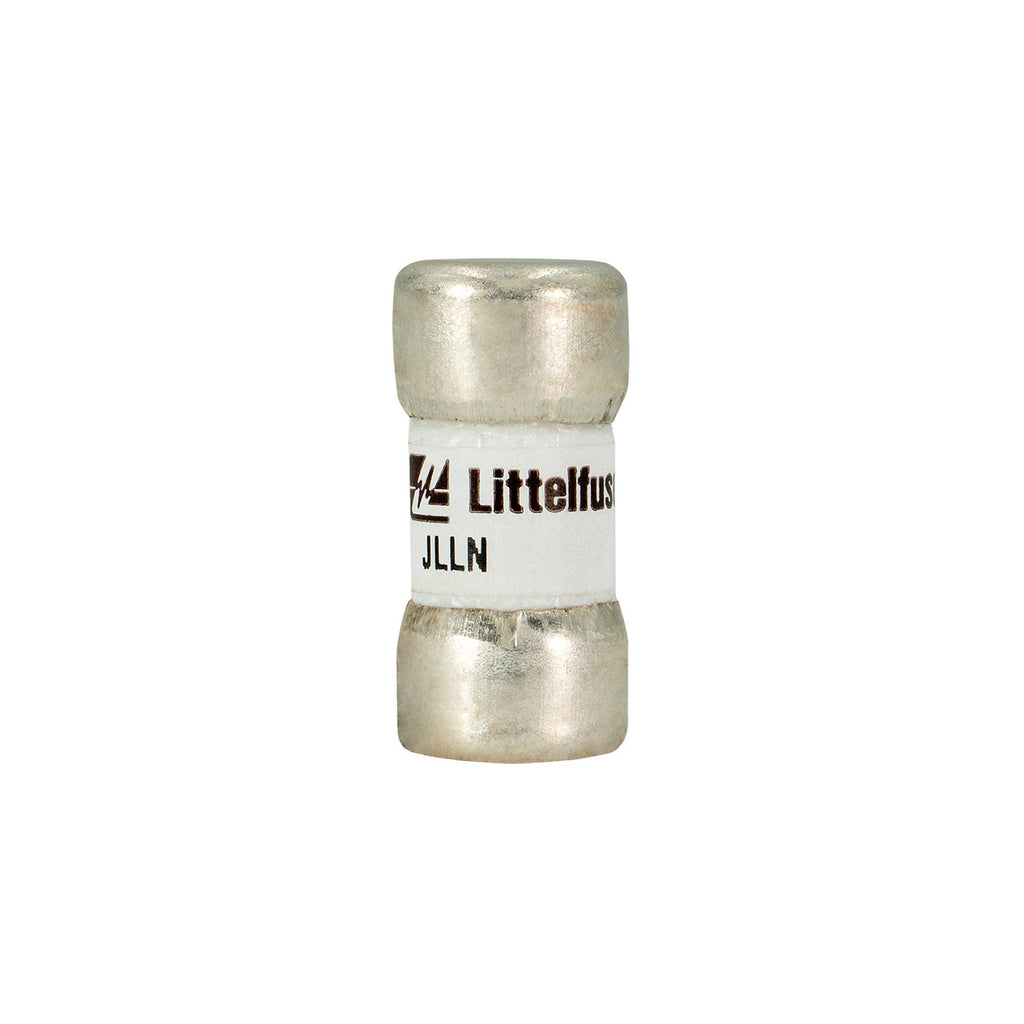

JLLN-015 is a Littelfuse Class T fast acting fuse rated for 15 amps and 300 volts AC, designed for compact and reliable circuit protection.This fuse features a very fast acting characteristic with current limiting capabilities, suitable for variable speed drive protection. It has an interrupting rating of 200,000 AIC at 300 VAC and 20,000 AIC at 160 VDC. The physical size is 13/32" x 7/8", making it one of the most compact fuses in its class. It is UL Listed, CSA Certified, RoHS compliant, and constructed with a melamine body and bronze caps for 1–30 A ratings.

• Amperage: 15 A
• Voltage Rating: 300 V AC, 160 V DC
• Fuse Class: Class T
• Interrupting Rating: 200,000 AIC AC, 20,000 AIC DC
• Fast Acting (Very Fast)
• Current Limiting
• Physical Size: 13/32" x 7/8"
• Mounting: Fuse Block / Clip / Holder
• Certifications: UL Listed (E81895), CSA Certified (LR29862)
• RoHS Compliant
• Compact Design for Variable Speed Drive Protection

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: JLLN-015
• Manufacturer : Littelfuse
• Brand : Littelfuse
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Family : Powr-Gard
• Type : JLLN
• Voltage : 300
• Amperage : 15
• AIC rating : 200kA@300V
• Diameter : 0.41
• Class Rating : T
• Barrels : 1

Product Data

• UPC : 07945818068
• GTIN : 00079458180688
• Weight : 0.08
