Product Info
- Manufacturer:Littelfuse
- Sub-Category:Low Voltage Fuse
Description
JLLN-010

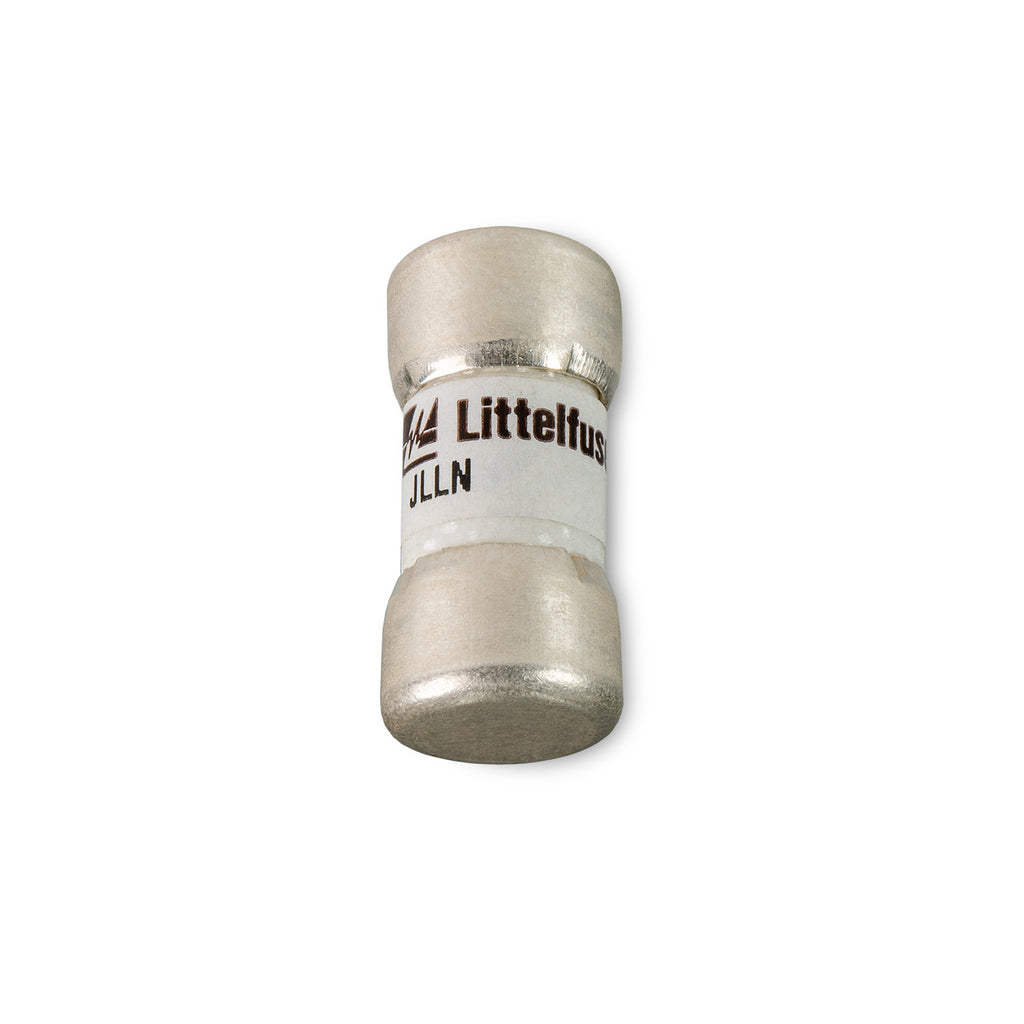

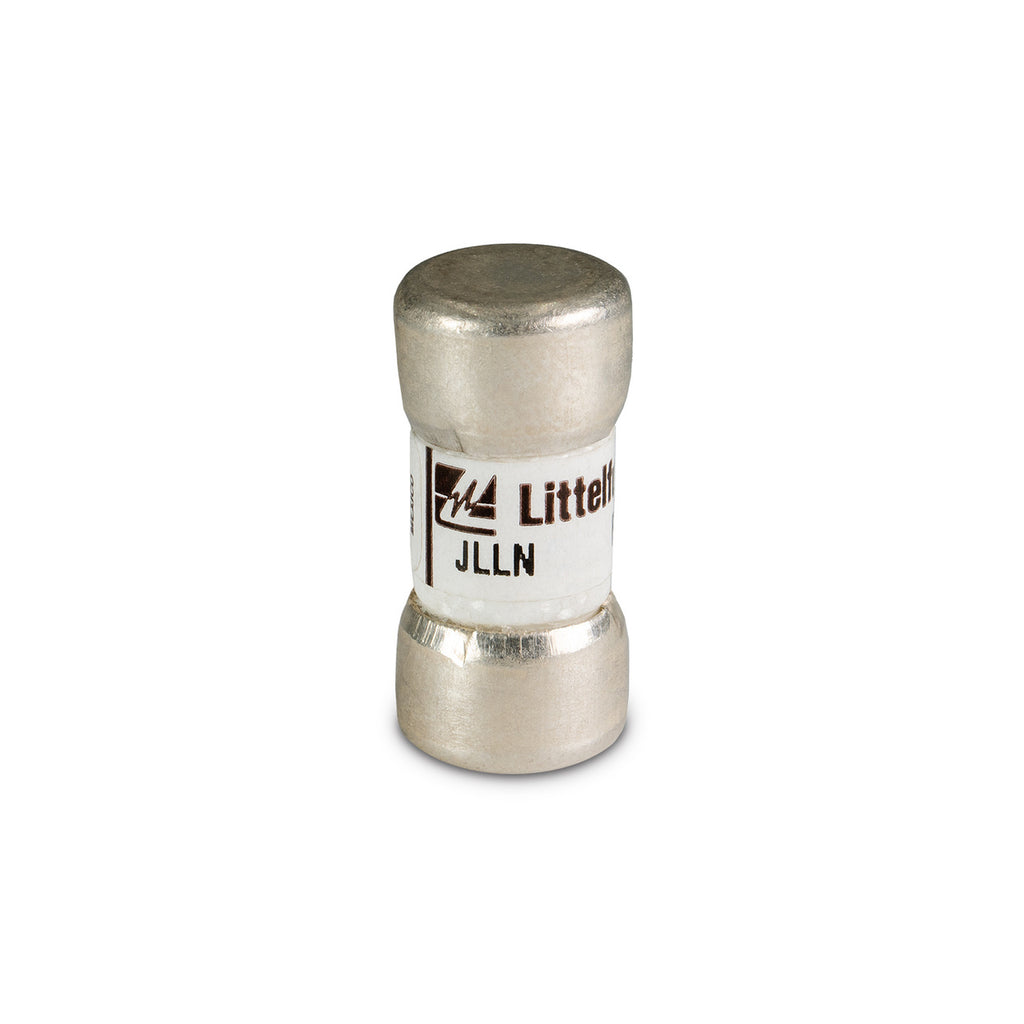

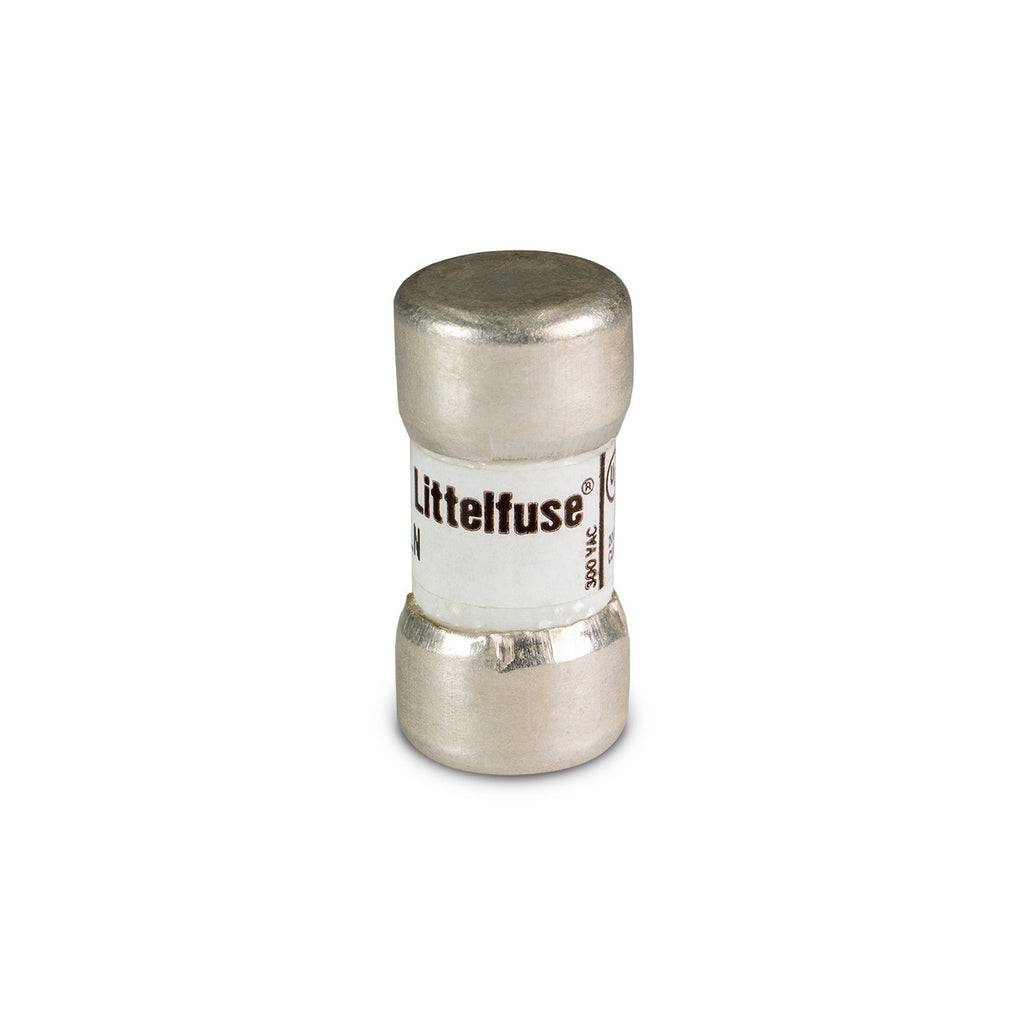

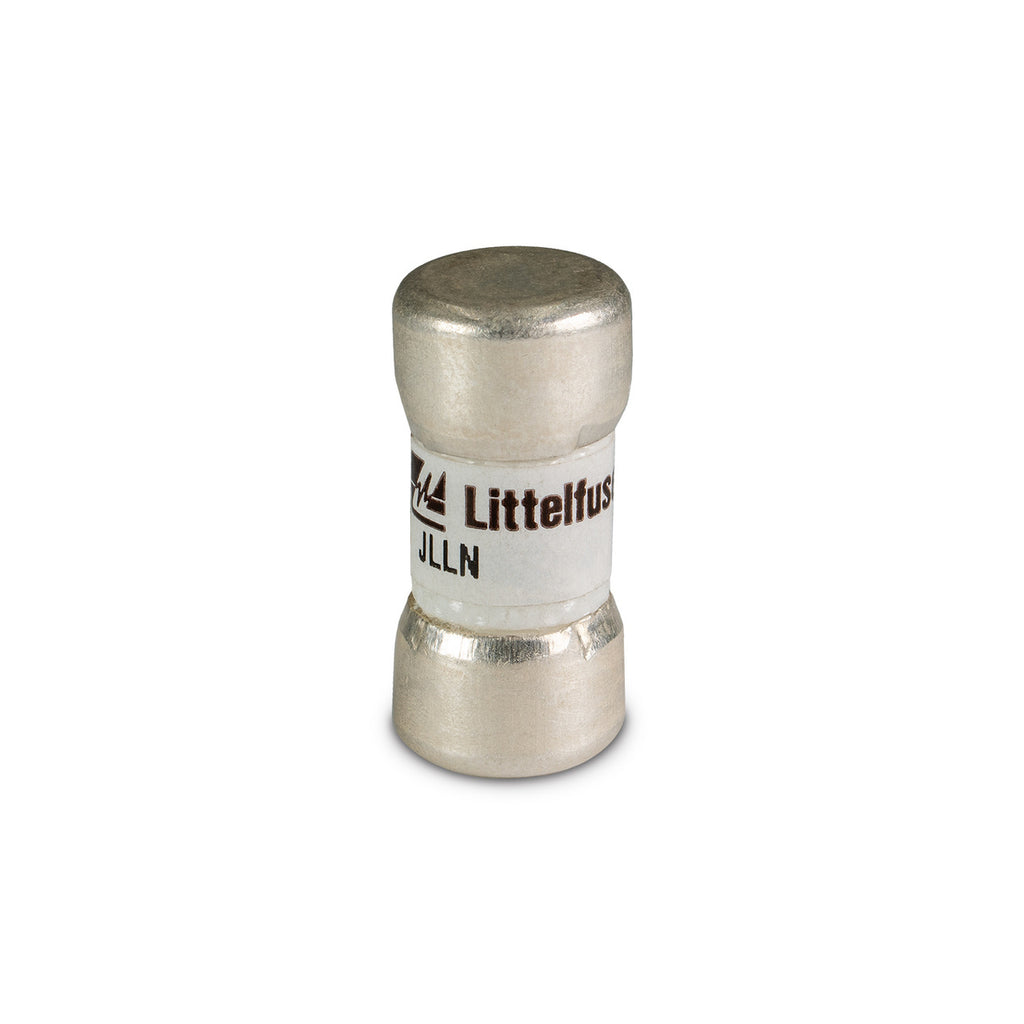

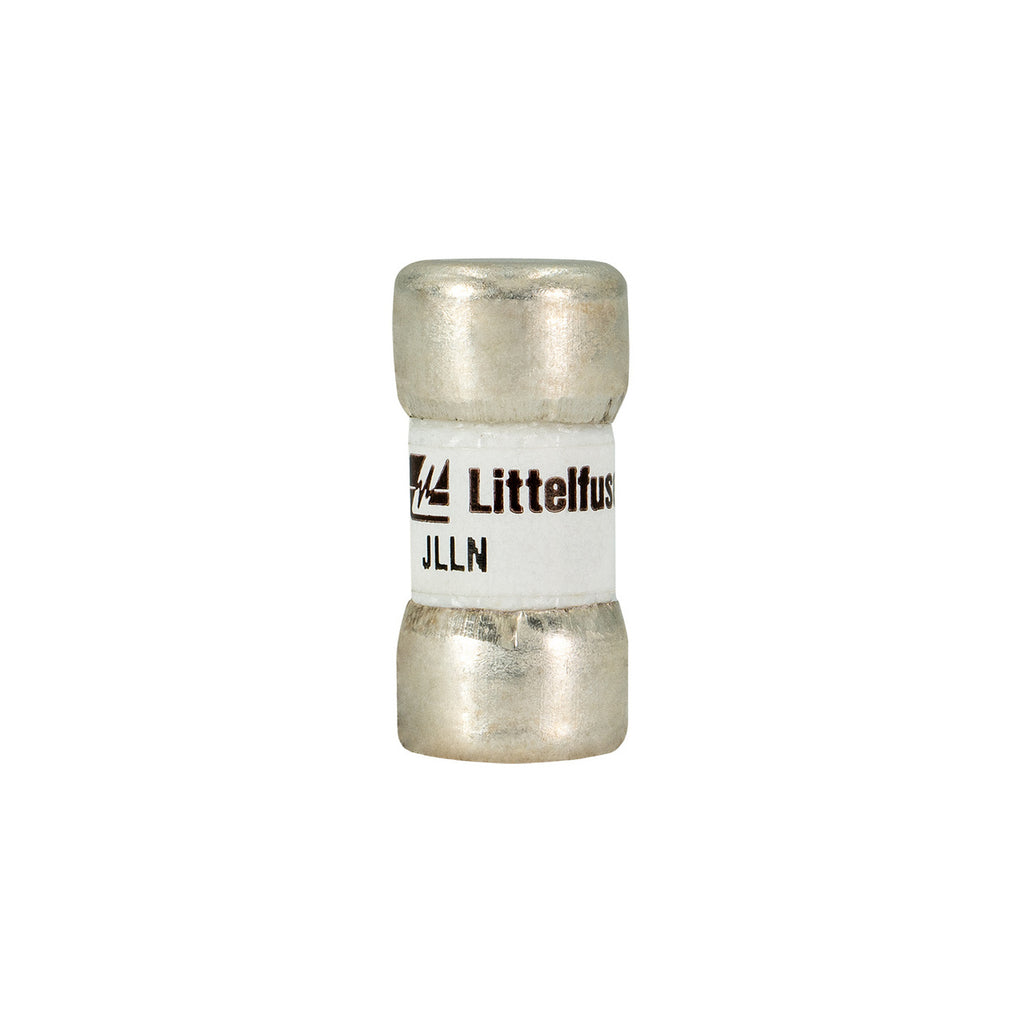

JLLN-010 is a Littelfuse Class T fast-acting fuse rated for 10 amps and 300 volts AC designed for compact industrial cartridge applications.This fuse features a melamine cylindrical body with bronze caps, providing a high interrupting rating of 200kA at 300V AC and 50kA at 160V DC. It is non-indicating, UL 248-15 Class T listed, CSA certified, CE compliant, and RoHS 2011/65/EU compliant. The fuse is suitable for variable speed drive protection and fits non-rejection fuse blocks.
- Key Specifications
- Amperage: 10A
- Voltage Rating: 300V AC, 160V DC
- Fuse Class: T
- Fuse Speed: Fast-Acting
- Interrupting Rating: 200kA AC, 50kA DC
- Body Style: Cylindrical Cartridge
- Body Material: Melamine with bronze caps
- Dimensions: 7/8 in length x 13/32 in diameter
- Visual Indication: Non-Indicating
- Certifications: UL Listed, CSA Certified, CE Compliant, RoHS
- Mounting Type: Fits non-rejection fuse blocks
Specifications
- Part Number: JLLN-010
- Manufacturer : Littelfuse
- Brand : Littelfuse
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : Powr-Gard
- Type : JLLN
- Voltage : 300
- Amperage : 10
- AIC rating : 200kA@300V
- Diameter : 0.41
- Class Rating : T
- Barrels : 1
Product Data
- UPC : 07945818065
- GTIN : 00079458180657
- Weight : 5.19
