Product Info
- Manufacturer:Littelfuse
- Sub-Category:Low Voltage Fuse
Description
JLLN-006

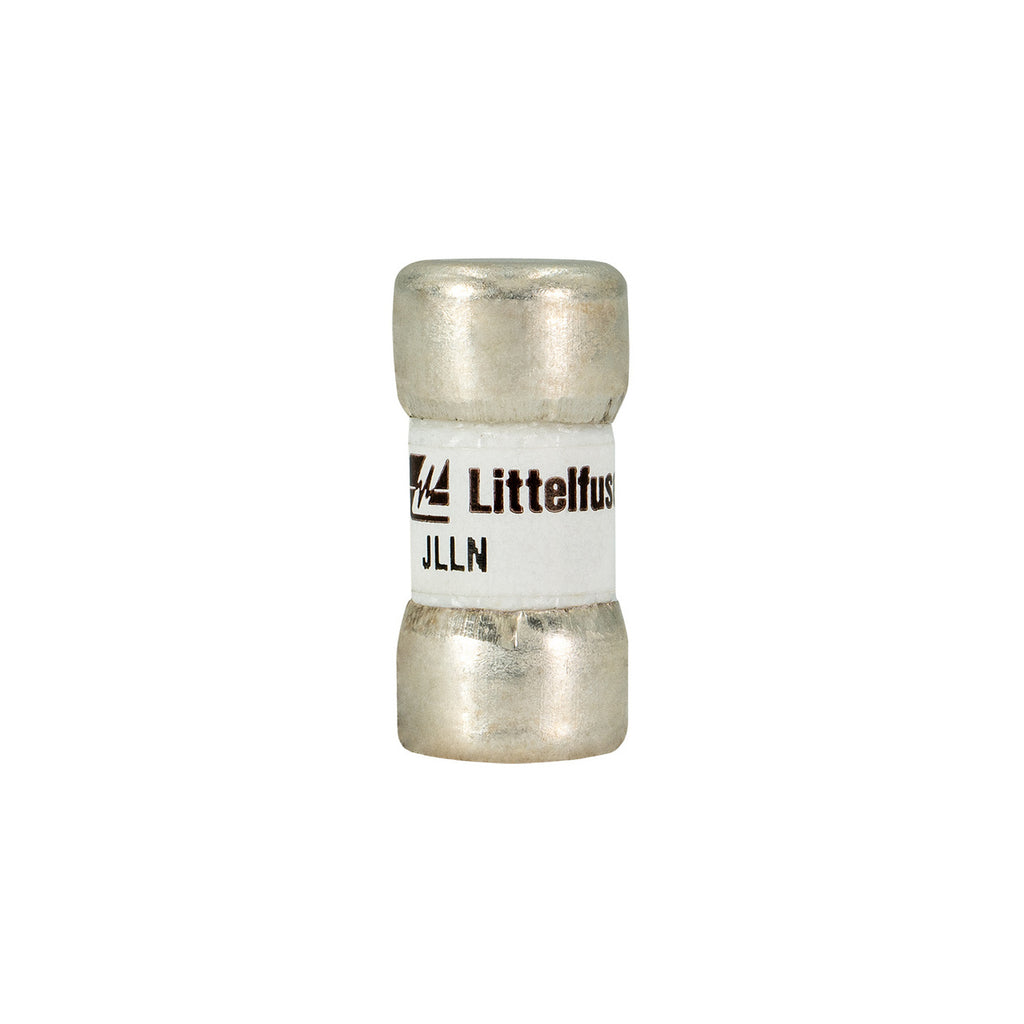

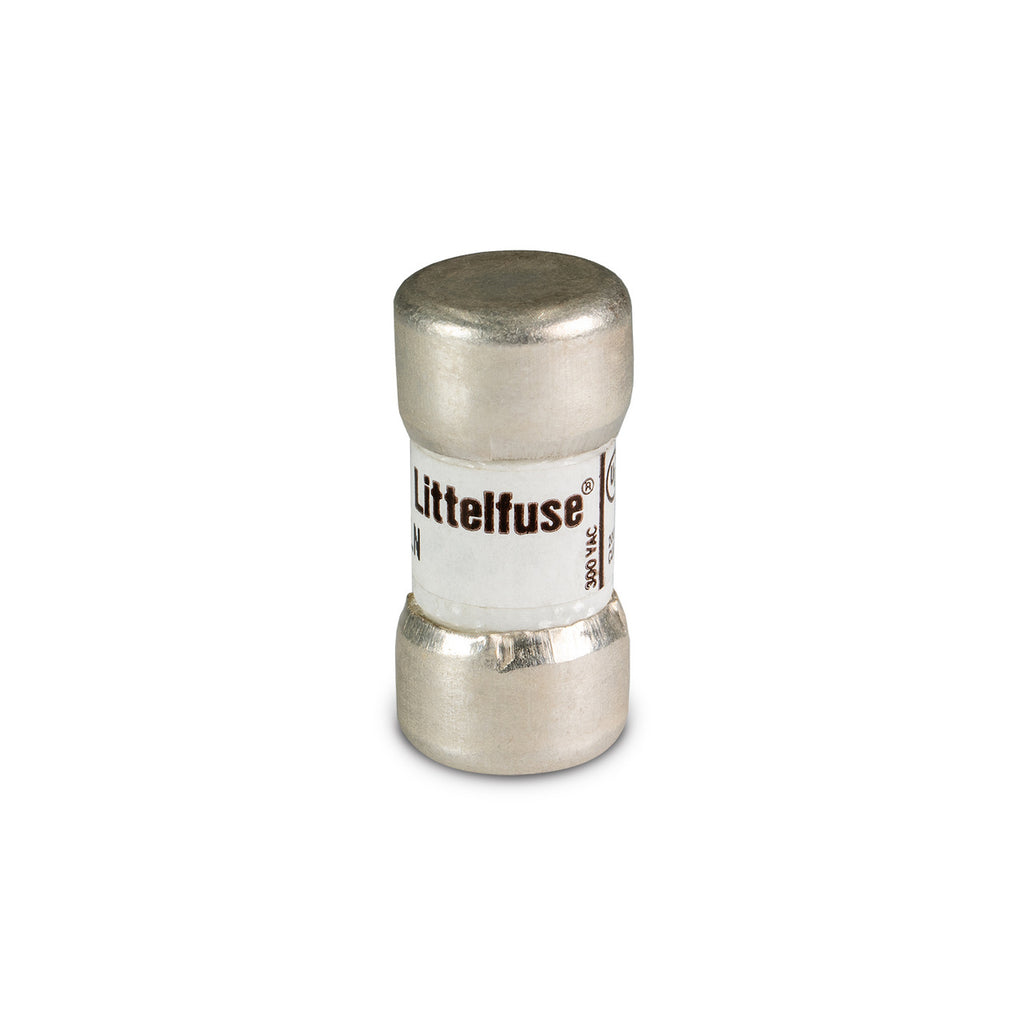

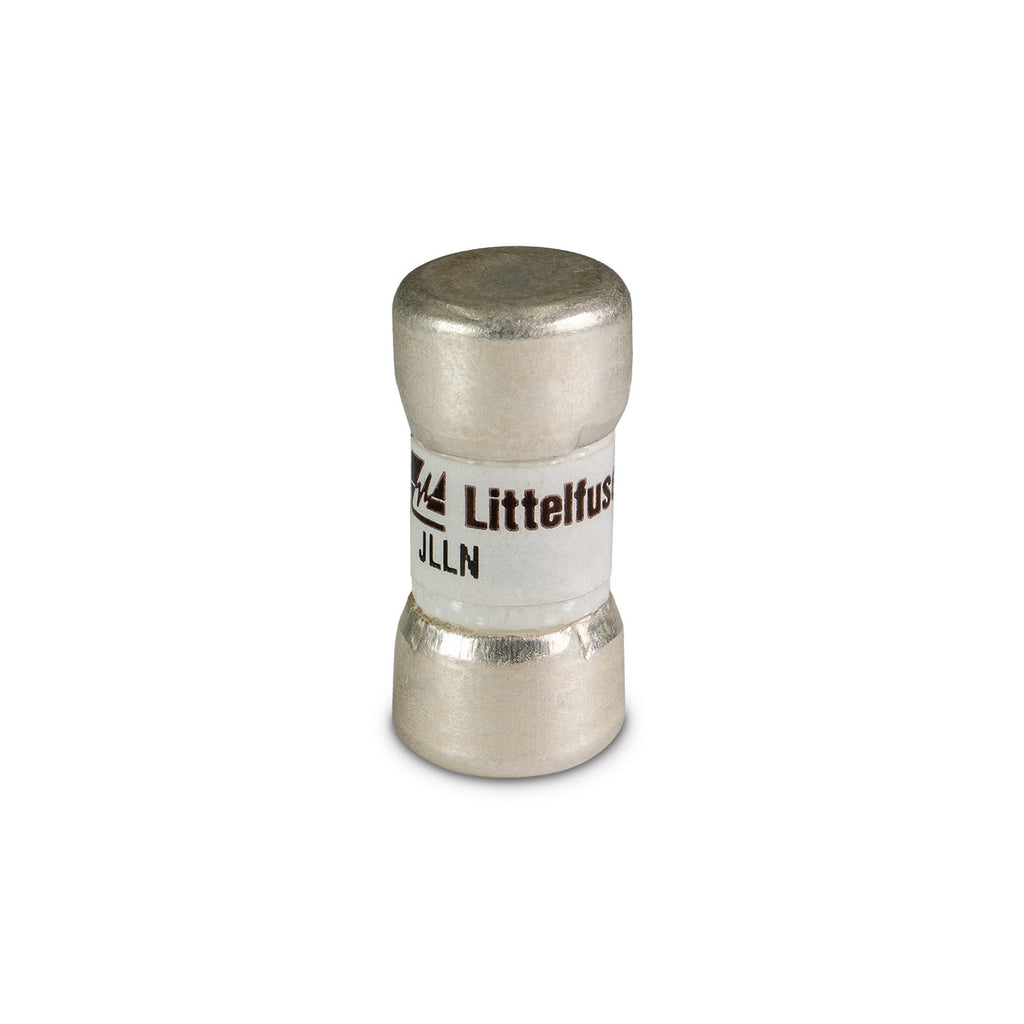

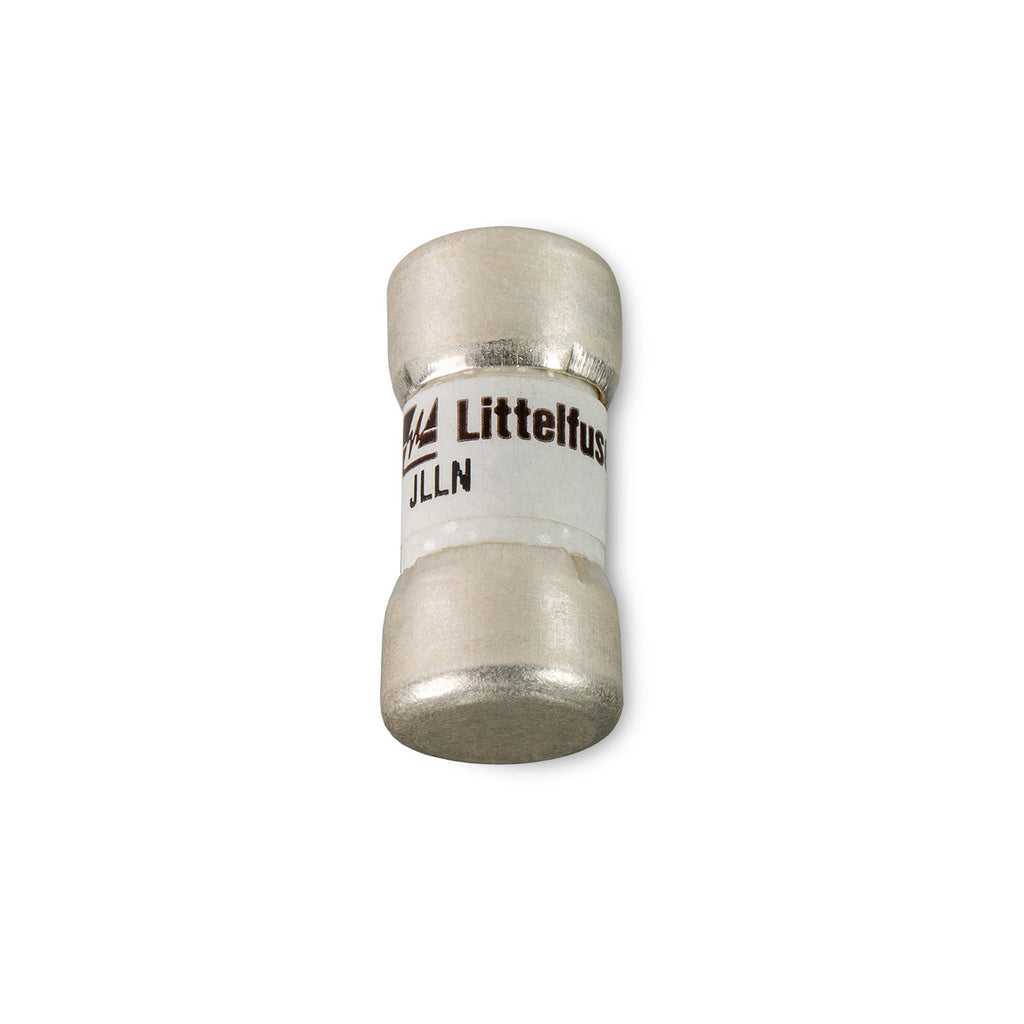

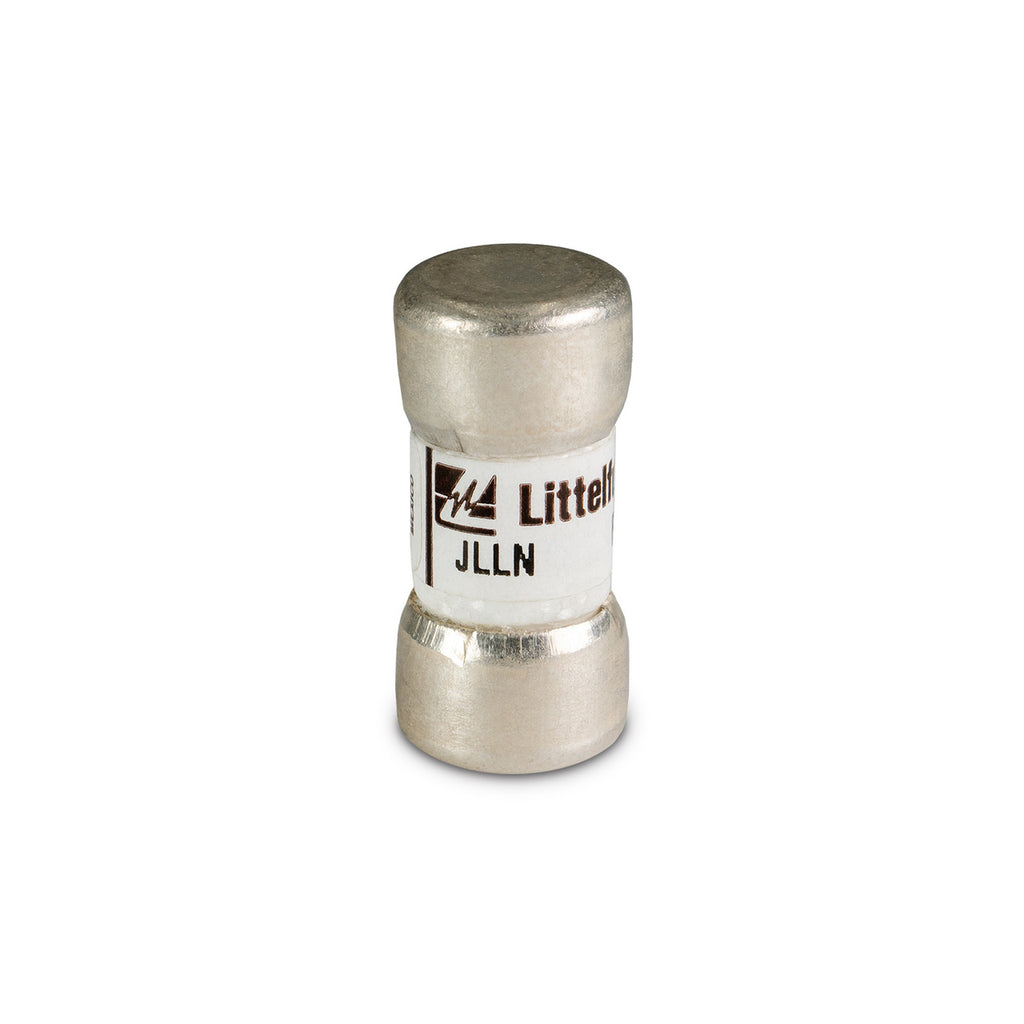

JLLN-006 is a Littelfuse Class T fast-acting fuse rated for 6 amps and 300 volts AC, designed for compact industrial power protection.This fuse features a very fast-acting, current-limiting design with a compact cartridge size of 13/32" diameter by 7/8" length. It is UL listed and CSA certified, suitable for variable speed drive protection and other industrial applications. The fuse has an interrupting rating of 200,000 AIC at 300 VAC and 50,000 AIC at 160 VDC, ensuring reliable protection against overcurrent conditions. It is RoHS compliant and mounts in fuse blocks or holders.
- Key Specifications
- Amperage: 6 Amps
- Voltage Rating: 300 V AC / 160 V DC
- Fuse Class: Class T
- Speed: Very Fast Acting
- Interrupting Rating: 200,000 AIC @ 300 VAC, 50,000 AIC @ 160 VDC
- Size: 13/32" diameter x 7/8" length
- Mounting Type: Fuse Block / Clip / Holder
- Certifications: UL Listed (File E81895), CSA Certified (File LR29862), RoHS Compliant
- Current Limiting
- Compact Industrial Cartridge Design
Specifications
- Part Number: JLLN-006
- Manufacturer : Littelfuse
- Brand : Littelfuse
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : Powr-Gard
- Type : JLLN
- Voltage : 300
- Amperage : 6
- AIC rating : 200kA@300V
- Diameter : 0.41
- Class Rating : T
- Barrels : 1
Product Data
- UPC : 07945818058
- GTIN : 00079458180589
- Weight : 0.08
