Product Info
- Manufacturer:Littelfuse
- Sub-Category:Low Voltage Fuse
Description
JLLN-002

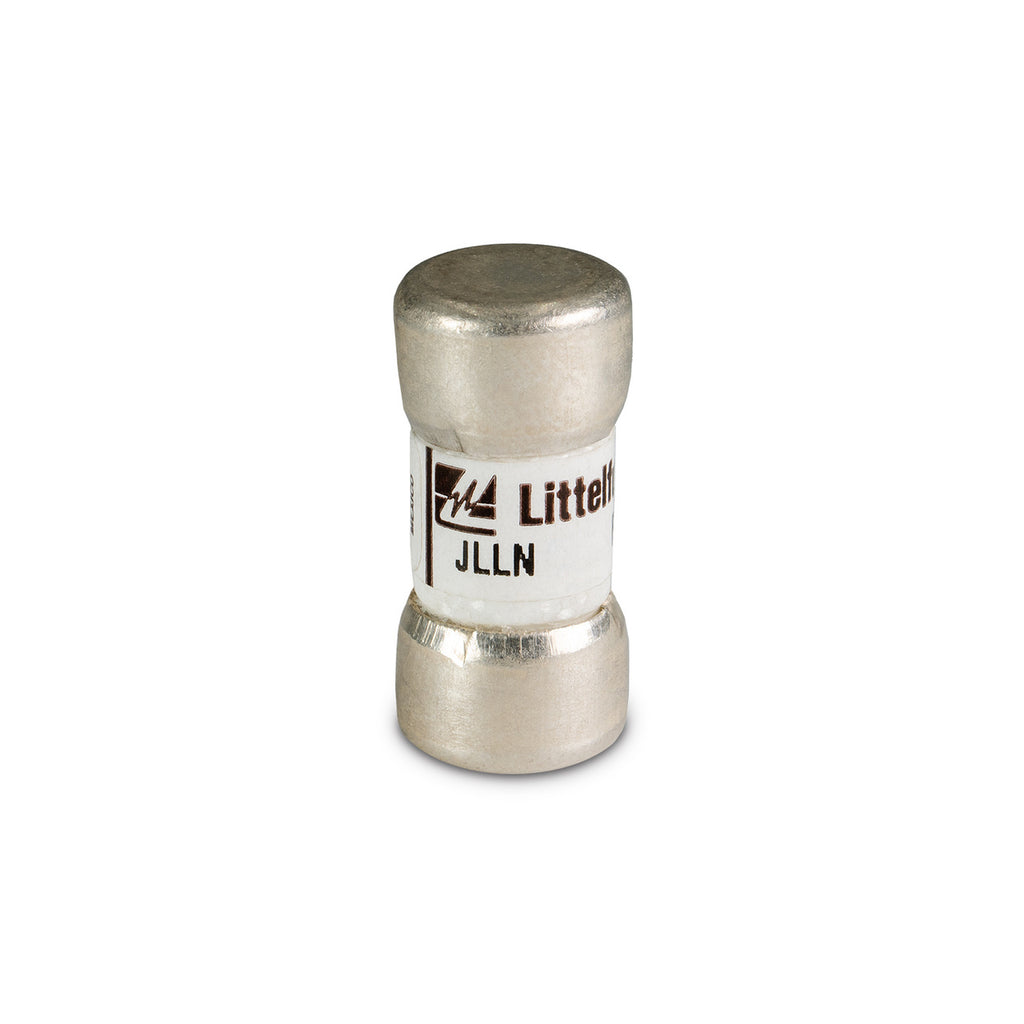

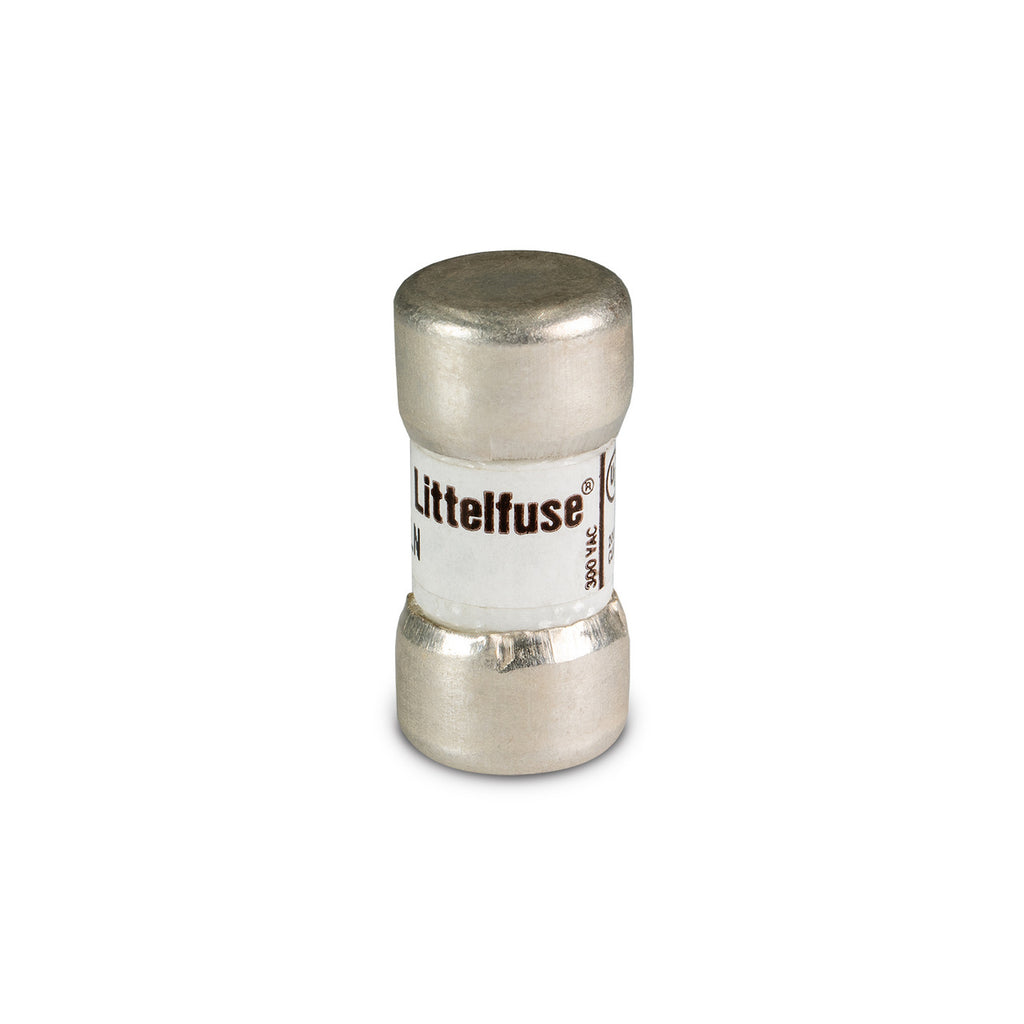

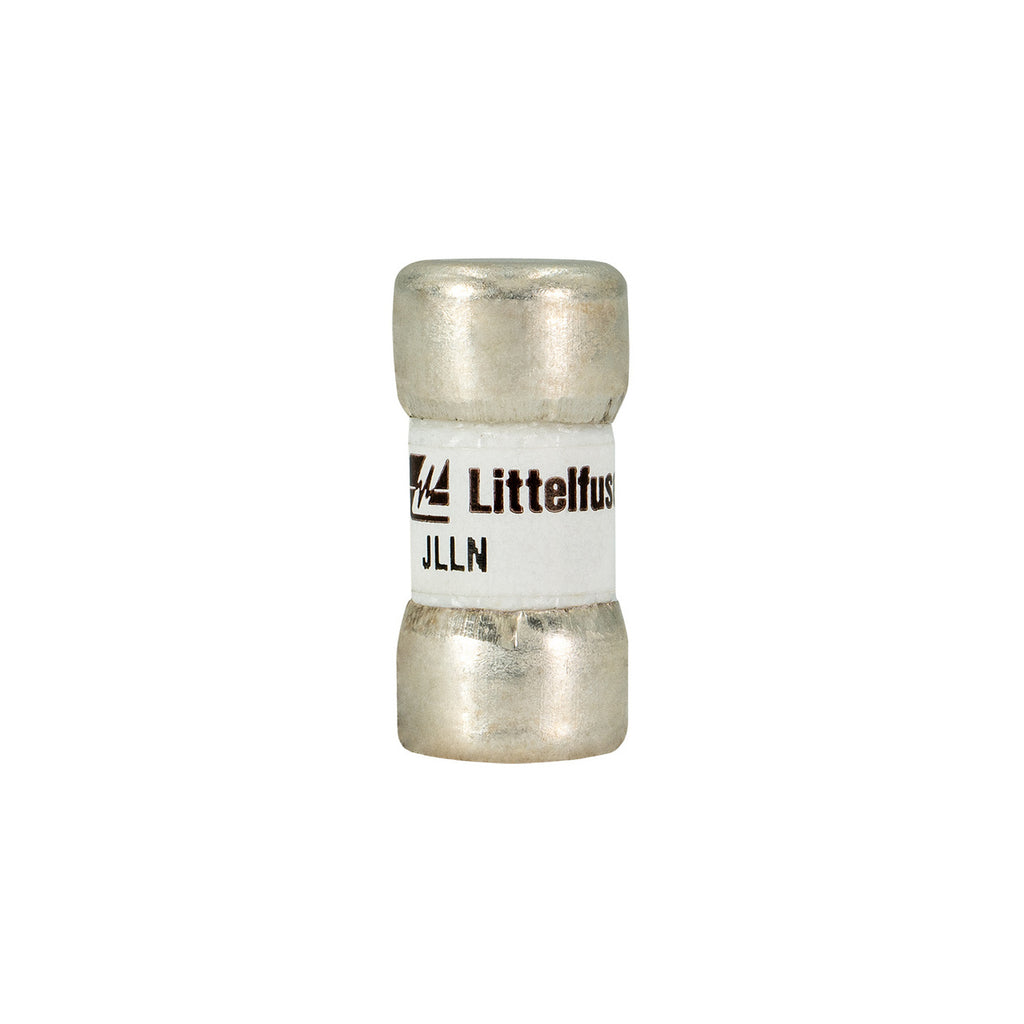

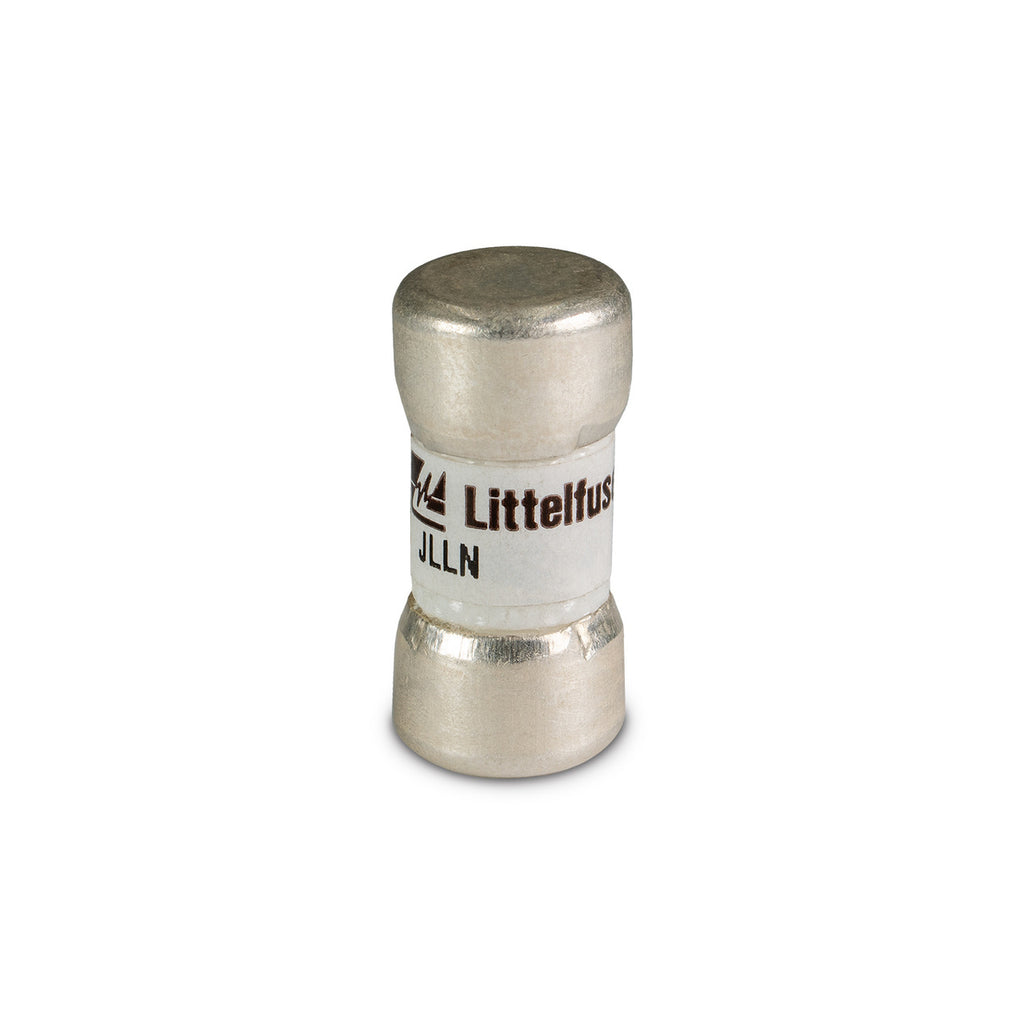

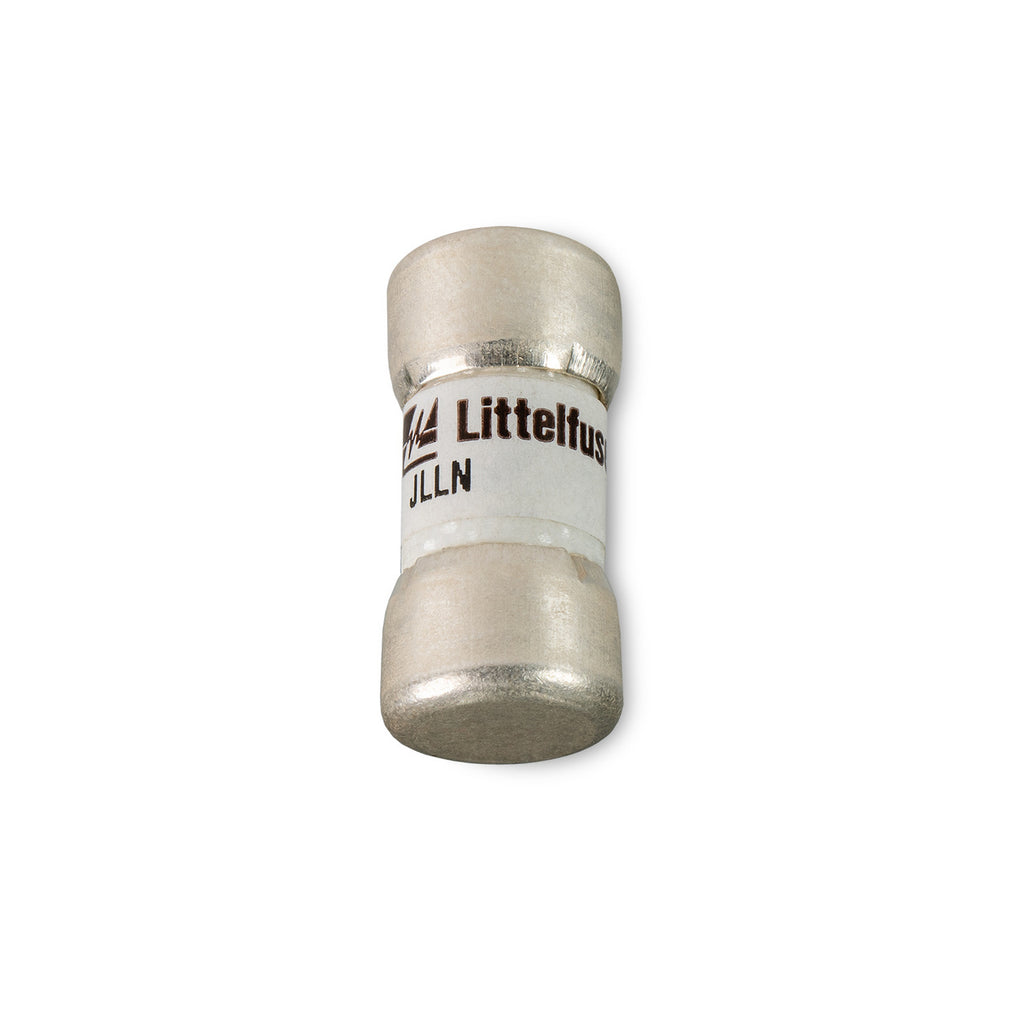

JLLN-002 is a Littelfuse Class T fast acting fuse rated for 2 amperes and 300 volts AC, designed for compact and reliable circuit protection.JLLN-002 features a fast blow response with a 200kA interrupting rating at 300V AC, suitable for industrial power applications and variable speed drive protection. It complies with UL 248-15, CSA, and CE certifications and is RoHS compliant. The fuse has a melamine body with bronze caps and is manufactured in Mexico.
- Current Rating: 2 Amps
- Voltage Rating: 300 VAC, 160 VDC
- Fuse Type: Class T, Fast Acting
- Interrupting Rating: 200,000 Amps AC
- Body Material: Melamine
- Cap Material: Bronze
- Dimensions: 0.406 inch diameter x 0.875 inch length
- Certifications: UL Listed, CSA Certified, CE Compliant
- RoHS Compliant
- Compact Size for Space Saving
- Application: Industrial Power, Variable Speed Drives
Specifications
- Part Number: JLLN-002
- Manufacturer : Littelfuse
- Brand : Littelfuse
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : Powr-Gard
- Type : JLLN
- Voltage : 300
- Amperage : 2
- AIC rating : 200kA@300V
- Diameter : 0.41
- Class Rating : T
- Barrels : 1
Product Data
- UPC : 07945818041
- GTIN : 00079458180411
- Weight : 0.08
