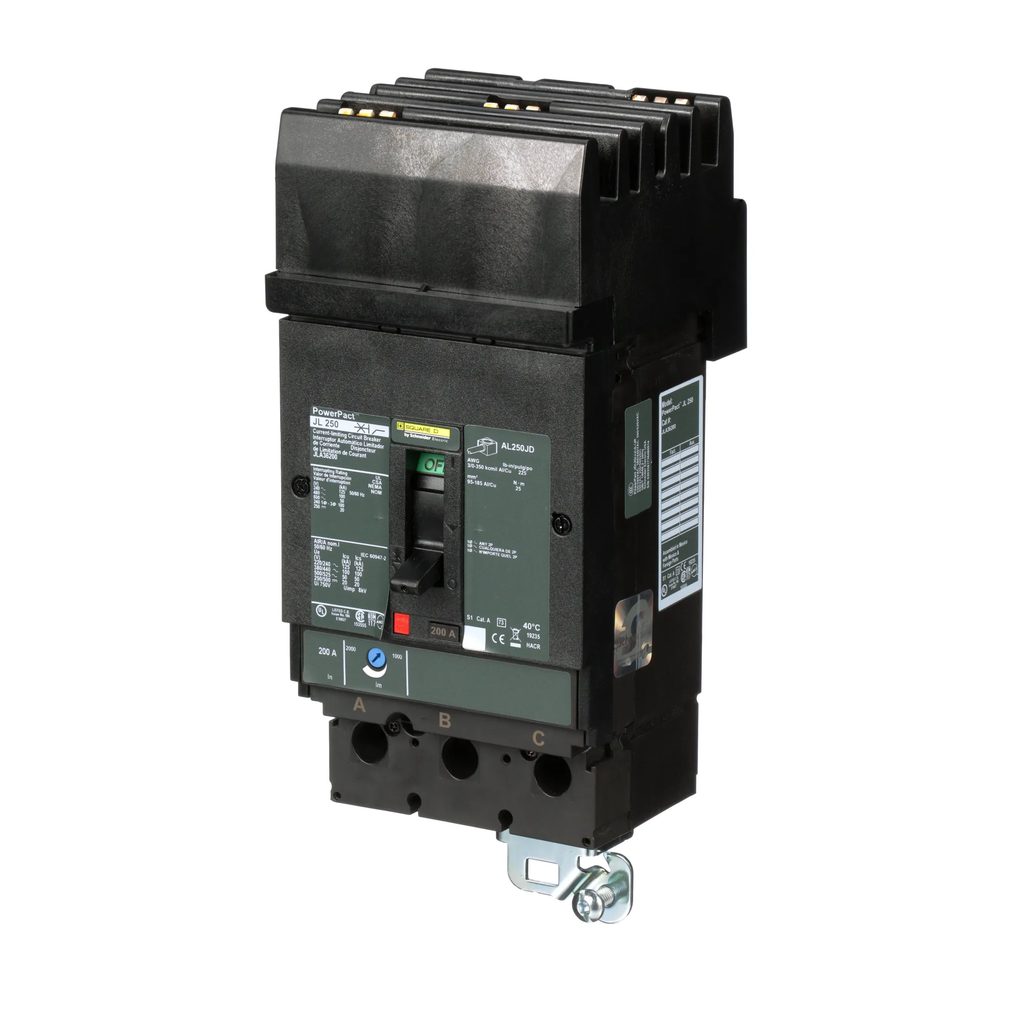

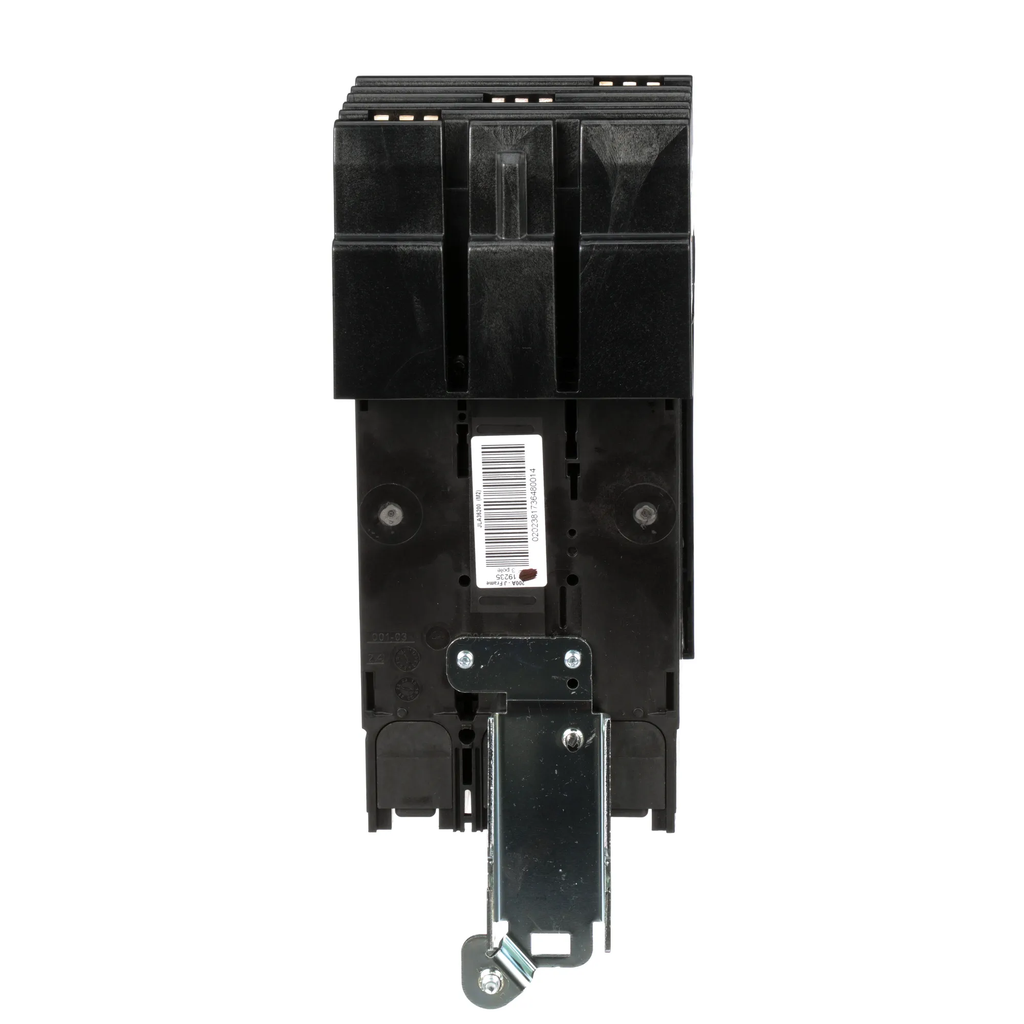

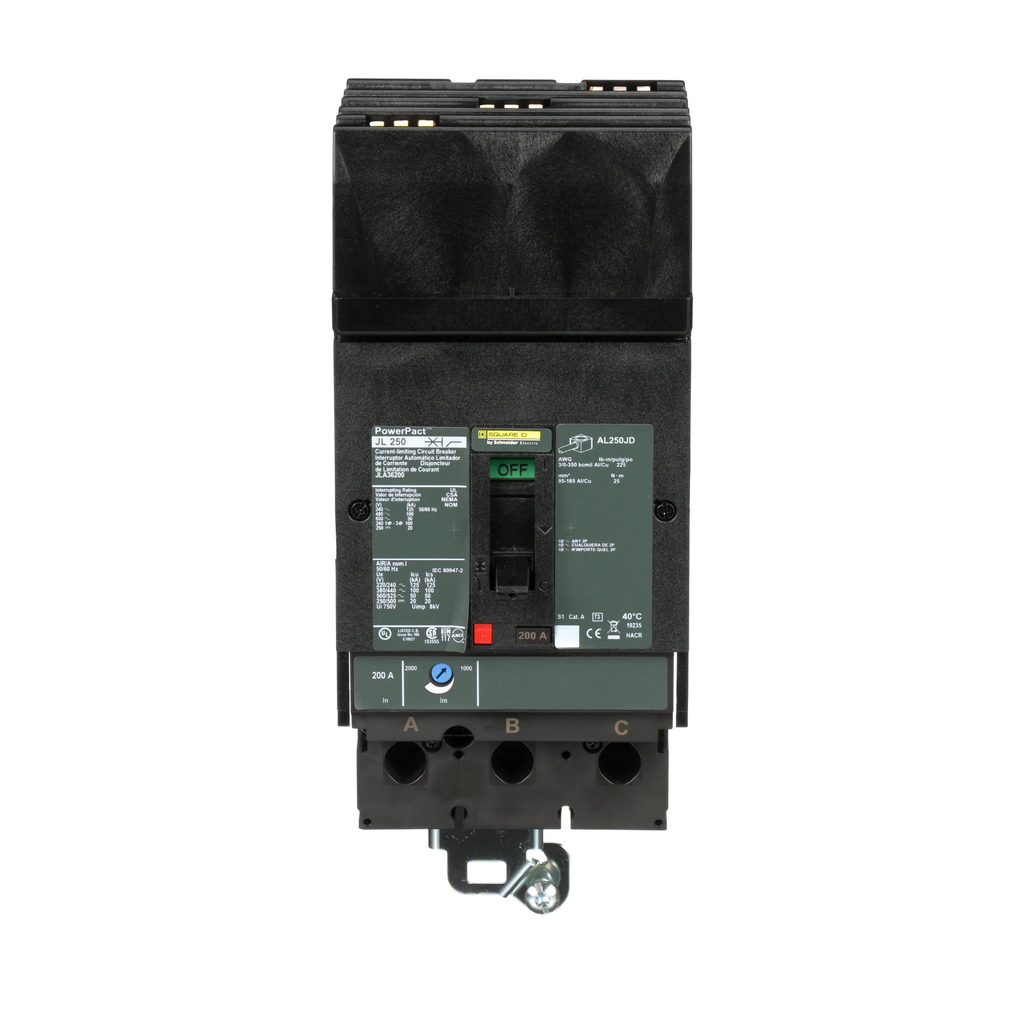

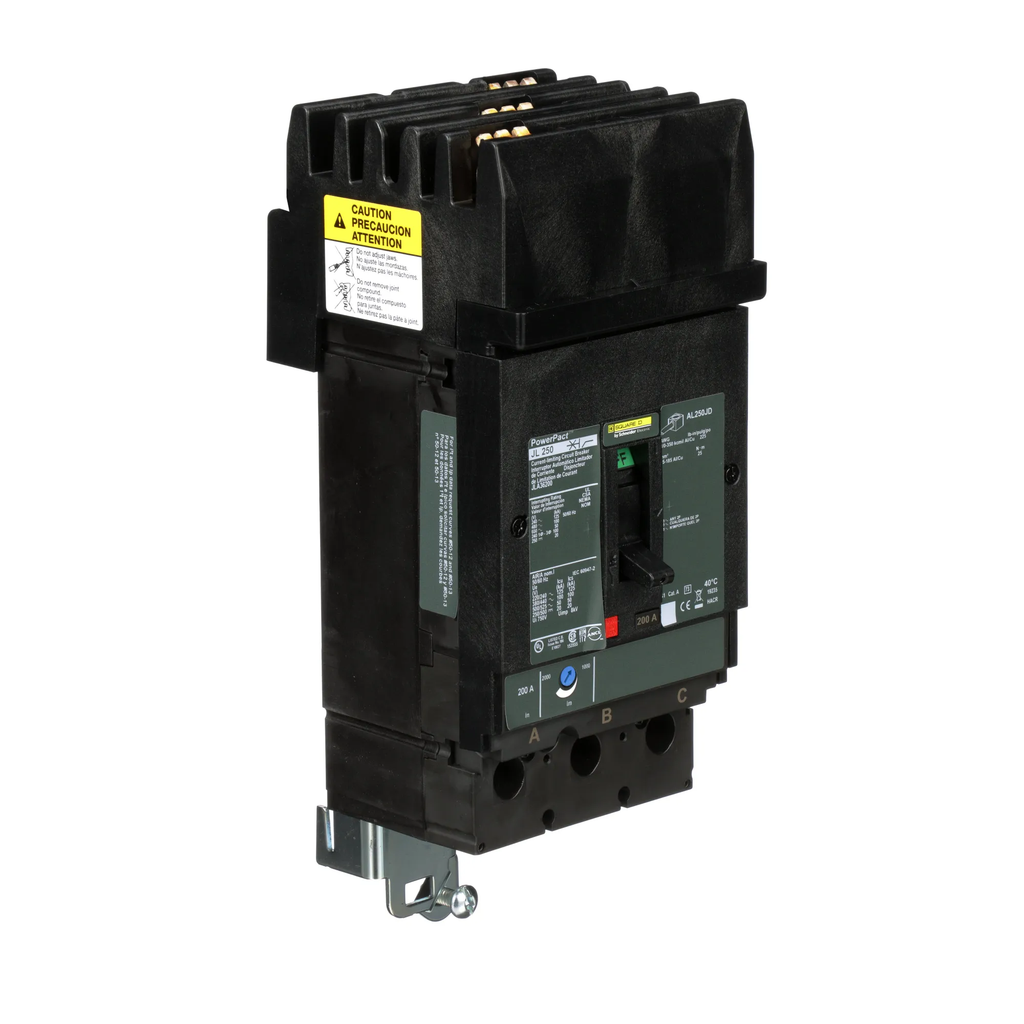

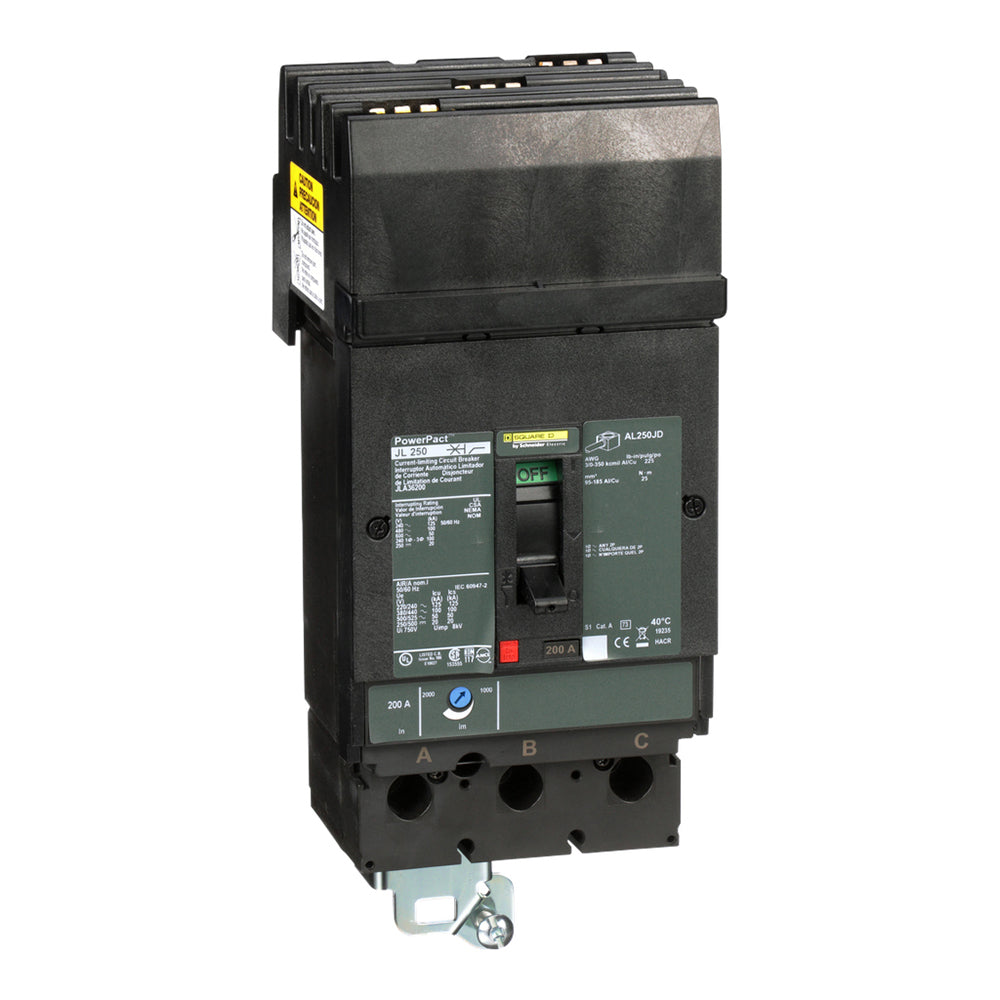

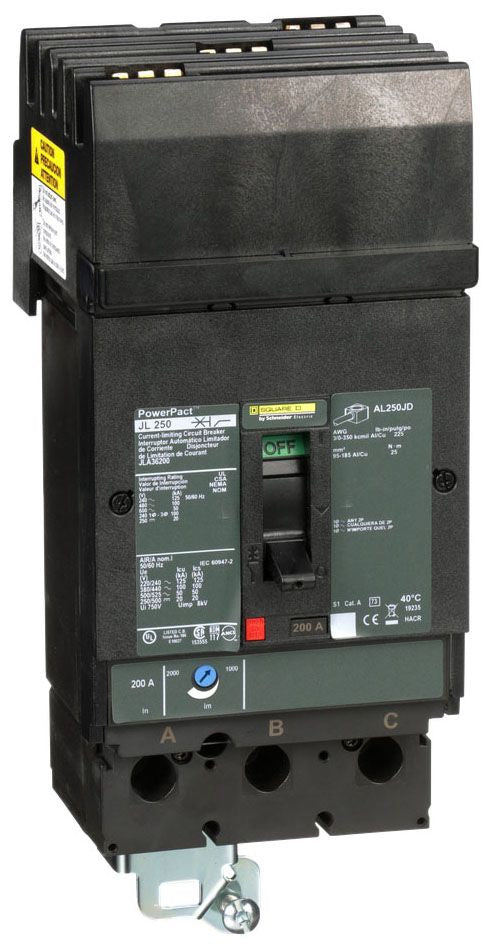

JLA36200 - Square D Powerpact J-Frame 3P 200A 600V I-Line Plug-In Circuit Breaker Thermal Magnetic

Save $4,139.07
SKU: JLA36200-New
Condition: New
Price:
$3,159.93 $7,299.00
Stock:
Low inventory, please call for stock check

Same-Day Shipping

Most items ship same-day if ordered by 12:30 PM PST.

2 Year Warranty Guaranteed

All items both Re-Certified, and New sold by Essential Electric include a 30 day return policy and a 2-year full warranty. This means that they are guaranteed to be free from defects for a full 2 years from the date that the product was shipped from our warehouse.

Product Questions? Contact Us

Product Info

JLA36200 - Square D I-Line Style Plug-In 200 Amp 3 Pole Circuit Breaker - Essential Electric Supply
JLA36200 - Square D I-Line Style Plug-In 600V 200A 3 pole circuit breaker 100kA@480V - Essential Electric Supply
JLA36200 - Square D Powerpact J-Frame 3P 200A 600V I-Line Plug-In Circuit Breaker Thermal Magnetic - Essential Electric Supply
JLA36200 - Square D Powerpact J-Frame 3P 200A 600V I-Line Plug-In Circuit Breaker Thermal Magnetic - Essential Electric Supply
JLA36200 - Square D Powerpact J-Frame 3P 200A 600V I-Line Plug-In Circuit Breaker Thermal Magnetic - Essential Electric Supply
JLA36200 - Square D Powerpact J-Frame 3P 200A 600V I-Line Plug-In Circuit Breaker Thermal Magnetic - Essential Electric Supply
JLA36200 - Square D Powerpact J-Frame 3P 200A 600V I-Line Plug-In Circuit Breaker Thermal Magnetic - Essential Electric Supply
Roll over image to zoom in Click on image to zoom Images are for reference only
JLA36200 - Square D I-Line Style Plug-In 200 Amp 3 Pole Circuit Breaker - Essential Electric Supply
JLA36200 - Square D I-Line Style Plug-In 600V 200A 3 pole circuit breaker 100kA@480V - Essential Electric Supply
JLA36200 - Square D Powerpact J-Frame 3P 200A 600V I-Line Plug-In Circuit Breaker Thermal Magnetic - Essential Electric Supply
JLA36200 - Square D Powerpact J-Frame 3P 200A 600V I-Line Plug-In Circuit Breaker Thermal Magnetic - Essential Electric Supply
JLA36200 - Square D Powerpact J-Frame 3P 200A 600V I-Line Plug-In Circuit Breaker Thermal Magnetic - Essential Electric Supply
JLA36200 - Square D Powerpact J-Frame 3P 200A 600V I-Line Plug-In Circuit Breaker Thermal Magnetic - Essential Electric Supply
JLA36200 - Square D Powerpact J-Frame 3P 200A 600V I-Line Plug-In Circuit Breaker Thermal Magnetic - Essential Electric Supply

Description

JLA36200


JLA36200 is a Square D Powerpact J-Frame 3-pole 200A 600V I-Line plug-in molded case circuit breaker with thermal magnetic trip unit for reliable overload and short-circuit protection. This Powerpact J-Frame circuit breaker features I-Line style plug-in mounting for easy installation and removal, ABC phase connection, and is suitable for reverse fed applications. It provides long-time and instantaneous trip functions, current limiting, and is UL listed for safety and compliance. The breaker is designed for use in commercial and industrial power distribution systems requiring robust protection and easy maintenance.
  • Part Number: JLA36200
  • Manufacturer: Square D
  • Series/Frame: Powerpact J-Frame
  • Poles: 3
  • Amperage: 200A
  • Voltage: 600V AC
  • Mounting Type: I-Line Plug-In
  • Interrupt Rating: 100kA @ 480V
  • Trip Unit: Thermal Magnetic (LI)
  • Protection: Overload and Short-Circuit
  • Certifications: UL Listed
  • Application: Reverse Fed Compatible
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

  • Part Number: JLA36200
  • Manufacturer : Schneider Electric
  • Brand : Square D
  • Category : Circuit Breaker
  • Item Subcategory : Molded Case
  • Family : Powerpact
  • Type : JLA
  • Voltage : 600
  • Amperage : 200
  • Phase : 3
  • Poles : 3
  • AIC rating : 100kA@480V
  • Connection : I-Line Style Plug-In
  • Functions : LI - Long-Time and Instantaneous Trip
  • Terminal Connection : I-Line, Lug
  • Frame Size : L
  • Temp Rating : -13–158 °F (-25–70 °C)
  • MCM Size : Min. Wire Size 3/0 AWG (Cu/Al) Max. Wire Size 350 kcmil (Cu/Al)
  • Protection : Thermal Magnetic
  • Phase Connection : ABC

Product Data

  • UPC : 785901673101
  • GTIN : 00785901673101
  • Country of Origin : Mexico

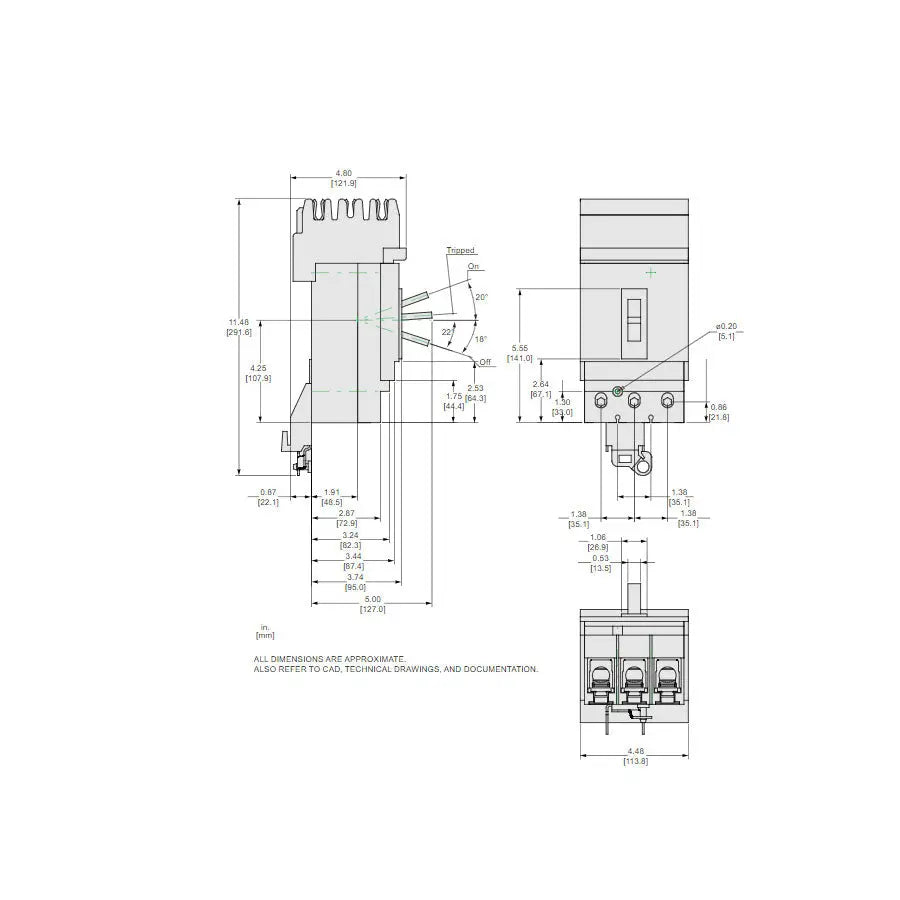

  • Dimensions : 7.5 in (191 mm) x 4.09 in (104 mm) x 3.4 in (86 mm) (Height x Width x Depth)
  • Weight : 6.601
  • Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
  • Certification : UL, CSA, NOM
  • Wire Size : AWG 3/0...350 kcmil aluminium/copper terminals
