JLA36175 - Square D 175A 600V 3-Pole PowerPact J-Frame I-Line Circuit Breaker Thermal Magnetic

Save $3,335.01
SKU: JLA36175-New
Condition: New
Price:
$3,963.99 $7,299.00
Stock:
Low inventory, please call for stock check

Same-Day Shipping

Most items ship same-day if ordered by 1:30 PM PST.

2 Year Warranty Guaranteed

All items both Re-Certified, and New sold by Essential Electric include a 30 day return policy and a 2-year full warranty. This means that they are guaranteed to be free from defects for a full 2 years from the date that the product was shipped from our warehouse.

Product Questions? Contact Us

Product Info

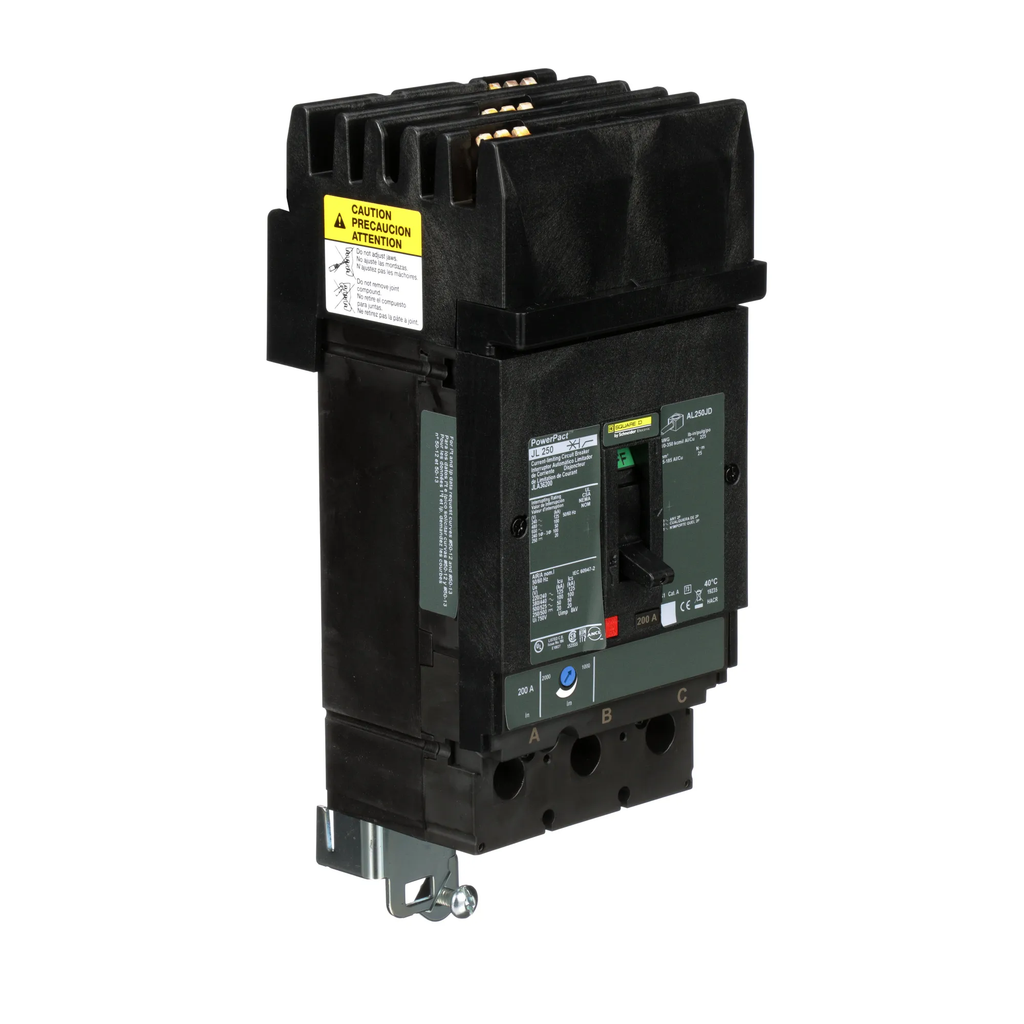

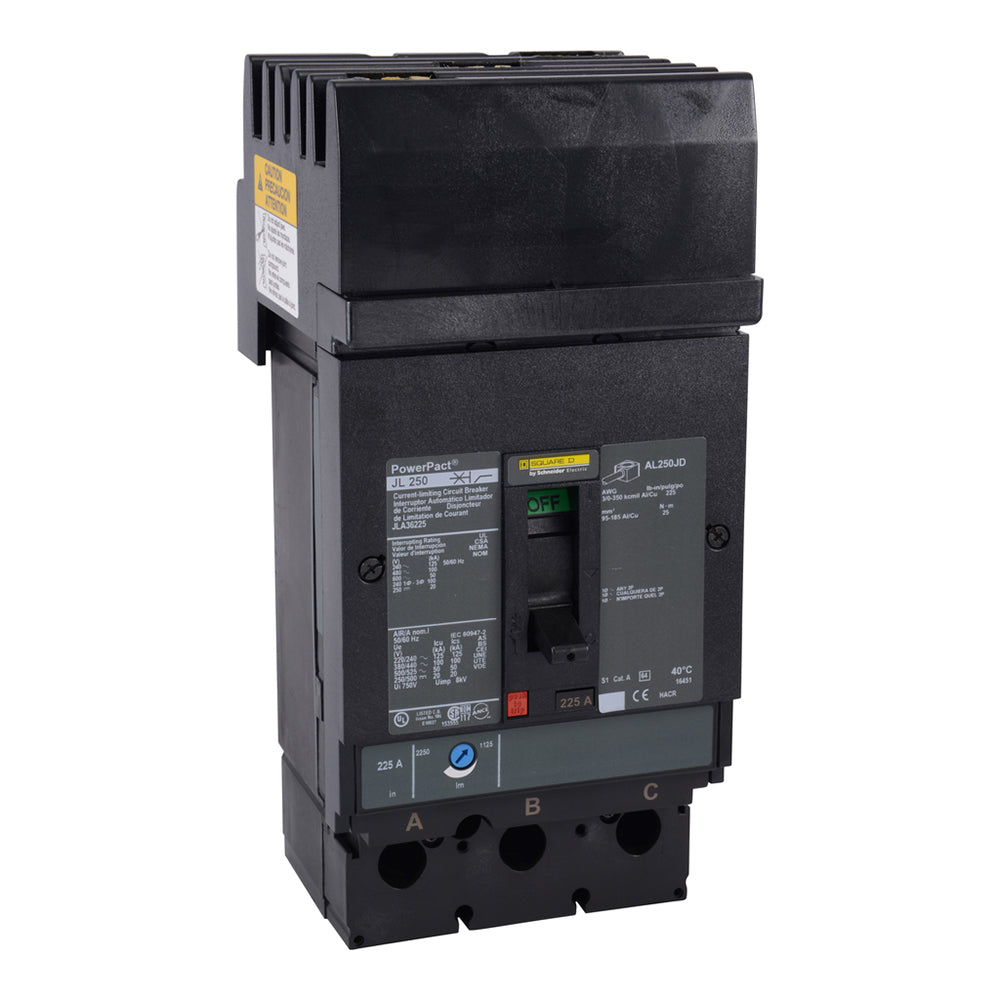

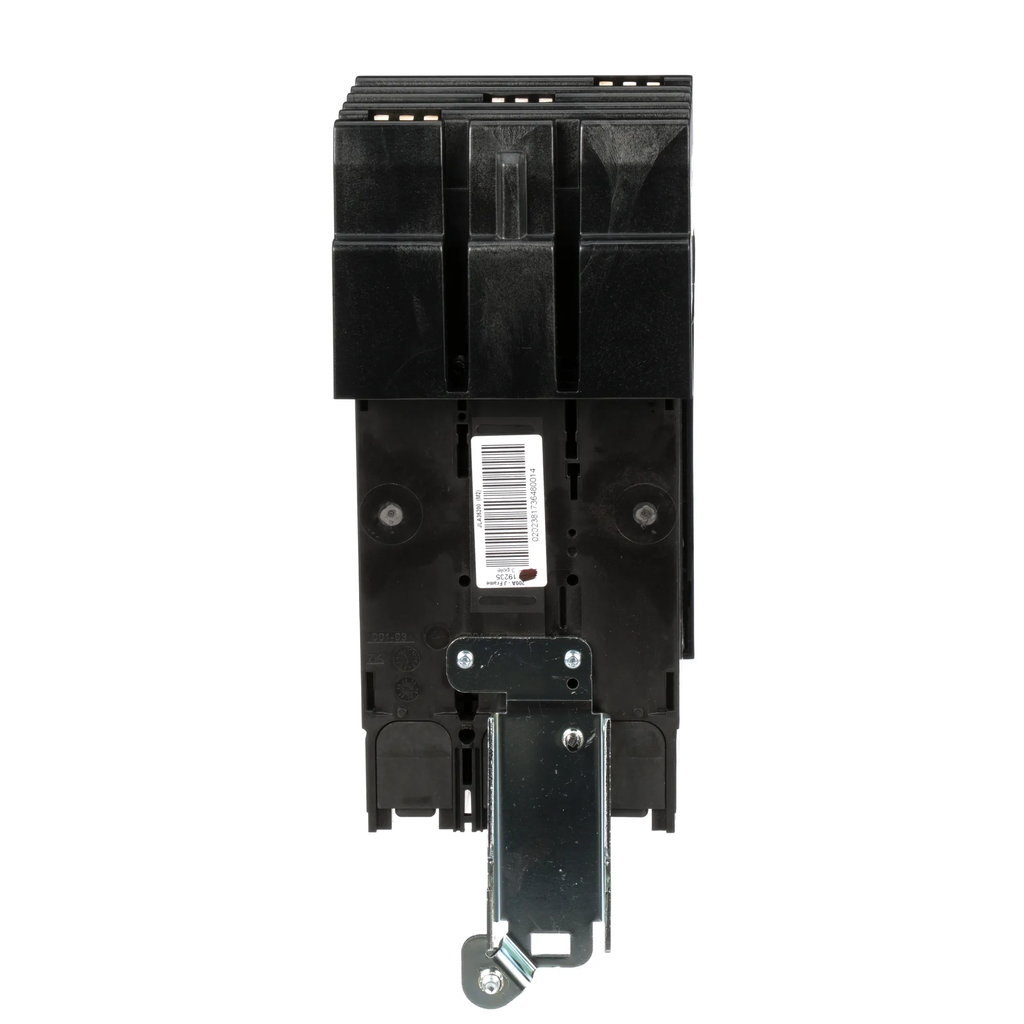

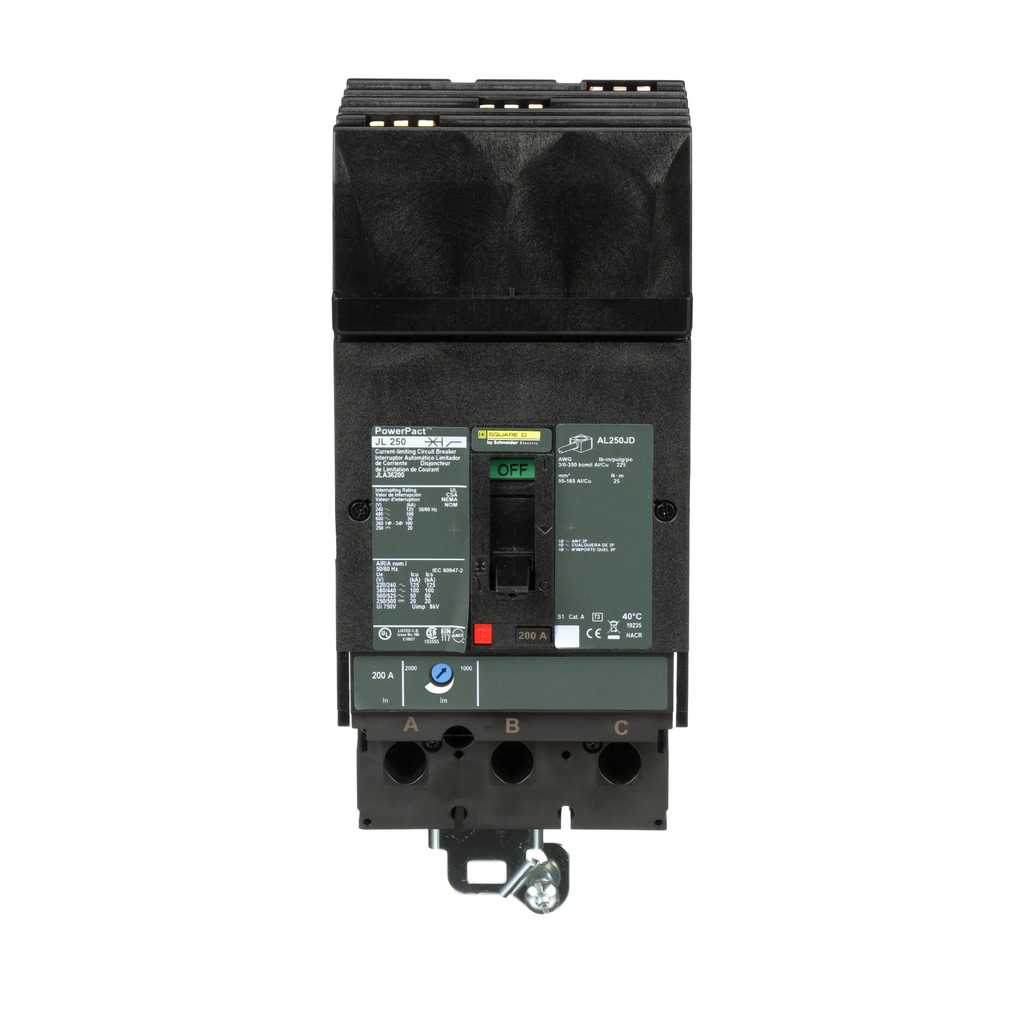

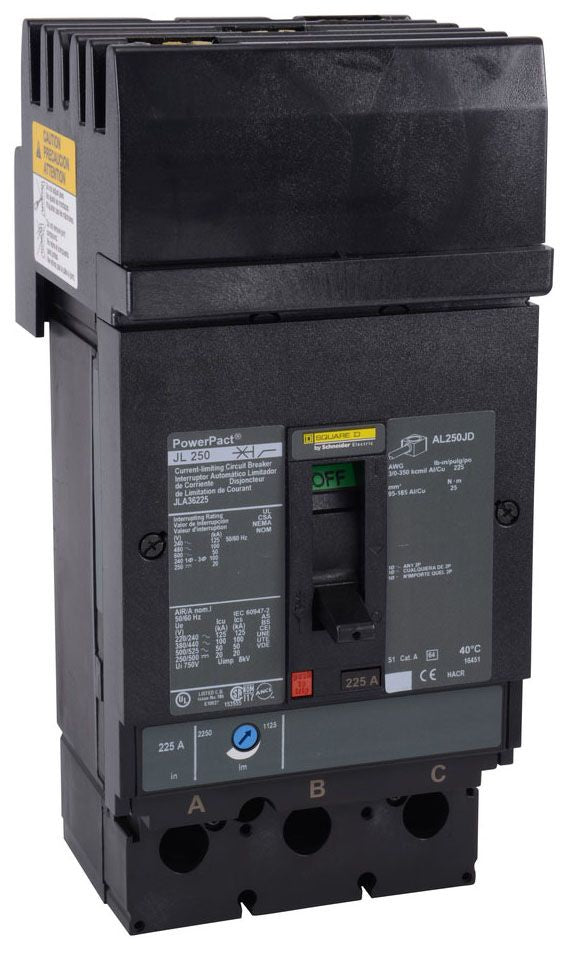

JLA36175 - Square D I-Line Style Plug-In 175 Amp 3 Pole Circuit Breaker - Essential Electric Supply
JLA36175 - Square D I-Line Style Plug-In 600V 175A 3 pole circuit breaker 100kA@480V - Essential Electric Supply
JLA36175 - Square D 175A 600V 3-Pole PowerPact J-Frame I-Line Circuit Breaker Thermal Magnetic - Essential Electric Supply
JLA36175 - Square D 175A 600V 3-Pole PowerPact J-Frame I-Line Circuit Breaker Thermal Magnetic - Essential Electric Supply
JLA36175 - Square D 175A 600V 3-Pole PowerPact J-Frame I-Line Circuit Breaker Thermal Magnetic - Essential Electric Supply
JLA36175 - Square D 175A 600V 3-Pole PowerPact J-Frame I-Line Circuit Breaker Thermal Magnetic - Essential Electric Supply
Roll over image to zoom in Click on image to zoom Images are for reference only
JLA36175 - Square D I-Line Style Plug-In 175 Amp 3 Pole Circuit Breaker - Essential Electric Supply
JLA36175 - Square D I-Line Style Plug-In 600V 175A 3 pole circuit breaker 100kA@480V - Essential Electric Supply
JLA36175 - Square D 175A 600V 3-Pole PowerPact J-Frame I-Line Circuit Breaker Thermal Magnetic - Essential Electric Supply
JLA36175 - Square D 175A 600V 3-Pole PowerPact J-Frame I-Line Circuit Breaker Thermal Magnetic - Essential Electric Supply
JLA36175 - Square D 175A 600V 3-Pole PowerPact J-Frame I-Line Circuit Breaker Thermal Magnetic - Essential Electric Supply
JLA36175 - Square D 175A 600V 3-Pole PowerPact J-Frame I-Line Circuit Breaker Thermal Magnetic - Essential Electric Supply

Description

JLA36175


JLA36175 is a Square D PowerPact J-Frame molded case circuit breaker with 175 ampere rating, designed for I-Line panelboards and switchboards.This 3-pole circuit breaker provides reliable overcurrent protection with a thermal-magnetic trip unit. It supports voltage ratings up to 600 VAC and 500 VDC, with interrupt ratings up to 125 kA at 240 VAC and 50 kA at 600 VAC. The breaker features a plug-in mounting type compatible with I-Line systems and is UL 489 listed, CSA and CE approved, ensuring compliance with industry safety standards.
    Key Specifications
    • Amperage: 175 A
    • Voltage Rating: 600 VAC / 500 VDC
    • Poles: 3
    • Frame Type: J-Frame
    • Mounting Type: I-Line Plug-In
    • Interrupt Rating: 125 kA at 240 VAC, 100 kA at 480 VAC, 50 kA at 600 VAC
    • Trip Unit: Thermal Magnetic
    • Certifications: UL 489, CSA, CE
    • Compatible with Class 611/612 I-Line Panelboards
    • Terminal Wire Size: 4 to 4/0 AWG Aluminum/Copper
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

  • Part Number: JLA36175
  • Manufacturer : Schneider Electric
  • Brand : Square D
  • Category : Circuit Breaker
  • Item Subcategory : Molded Case
  • Family : Powerpact
  • Type : JLA
  • Voltage : 600
  • Amperage : 175
  • Phase : 3
  • Poles : 3
  • AIC rating : 100kA@480V
  • Connection : I-Line Style Plug-In
  • Functions : LI - Long-Time and Instantaneous
  • Terminal Connection : I-Line, Lug
  • Frame Size : L
  • Temp Rating : 28-158 °F (-2-70 °C)
  • MCM Size : Min. Wire Size 3/0 AWG (Cu/Al) Max. Wire Size 350 kcmil (Cu/Al)
  • Protection : Thermal Magnetic
  • Phase Connection : ABC

Product Data

  • UPC : 785901673088
  • GTIN : 00785901673088
  • Country of Origin : United States

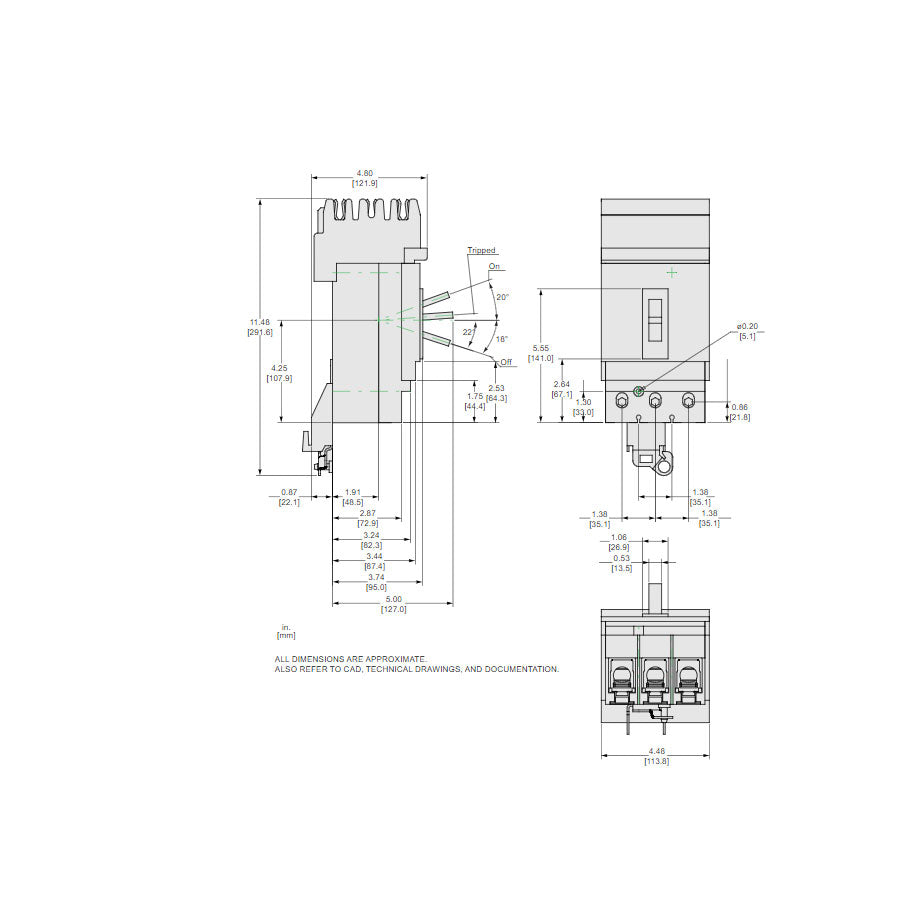

  • Dimensions : 7.5 in (191 mm) x 4.09 in (104 mm) x 3.4 in (86 mm) (Height x Width x Depth)
  • Weight : 6.074
  • Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
  • Certification : UL, CSA, NOM
  • Wire Size : AWG 4...AWG 4/0 aluminium/copper terminal
