Product Info
- Manufacturer:Eaton
- Sub-Category:Low Voltage Fuse
Description
JKS-80

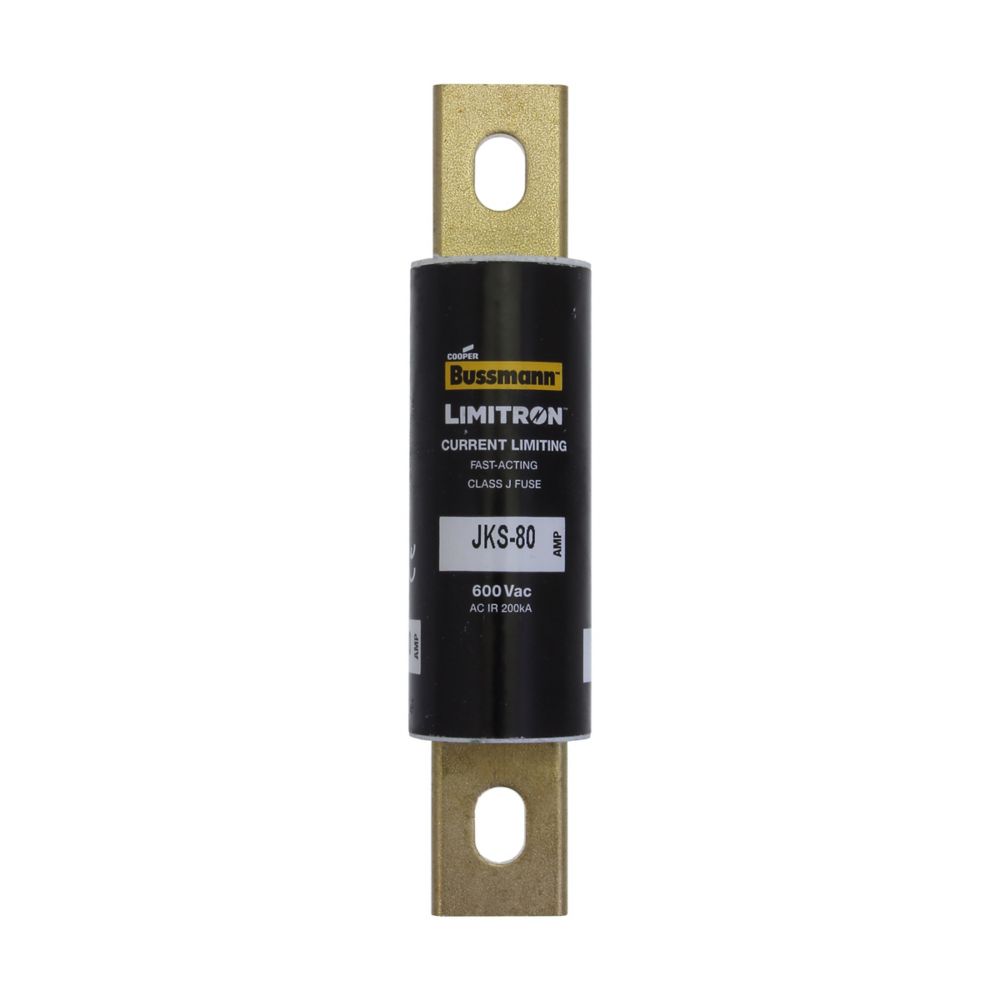

JKS-80 is a Bussmann Eaton Class J fast-acting, current-limiting fuse designed for reliable circuit protection in industrial and commercial applications. This fuse features a 80A amperage rating, 600VAC voltage rating, and a 200kA interrupting rating, making it suitable for use in power panelboards and machinery disconnects. The bolted blade end connection ensures secure installation, and the non-indicating design provides straightforward operation.
- Part Number: JKS-80
- Manufacturer: Bussmann, Eaton
- Amperage Rating: 80A
- Voltage Rating: 600VAC
- Interrupt Rating: 200kAIC at 600VAC
- Class: Class J
- Series: Limitron
- Mounting Type: Bolted Blade End x Bolted Blade End
- Fuse Indicator: Non-Indicating
- Number of Elements: 1
- Compliance: CE Marked, RoHS Compliant
- Special Features: Fast-Acting, Current-Limiting, Rejection Style
Specifications
- Part Number: JKS-80
- Manufacturer : Eaton
- Brand : Bussmann
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : Limitron
- Type : JKS
- Voltage : 600
- Amperage : 80
- AIC rating : 200kA@600V
- Diameter : 1.13
- Class Rating : J
- Barrels : 1
Product Data
- UPC : 051712630801
- GTIN : 00051712630801
- Country of Origin : China
- Dimensions : 4.63 in x 1.13 in x 1.13 in (Length/Depth x Height x Width)
- Weight : 0.29
- Certification : CE/UL-248-8 Guide JDDZ/CSA Class 1422-02
