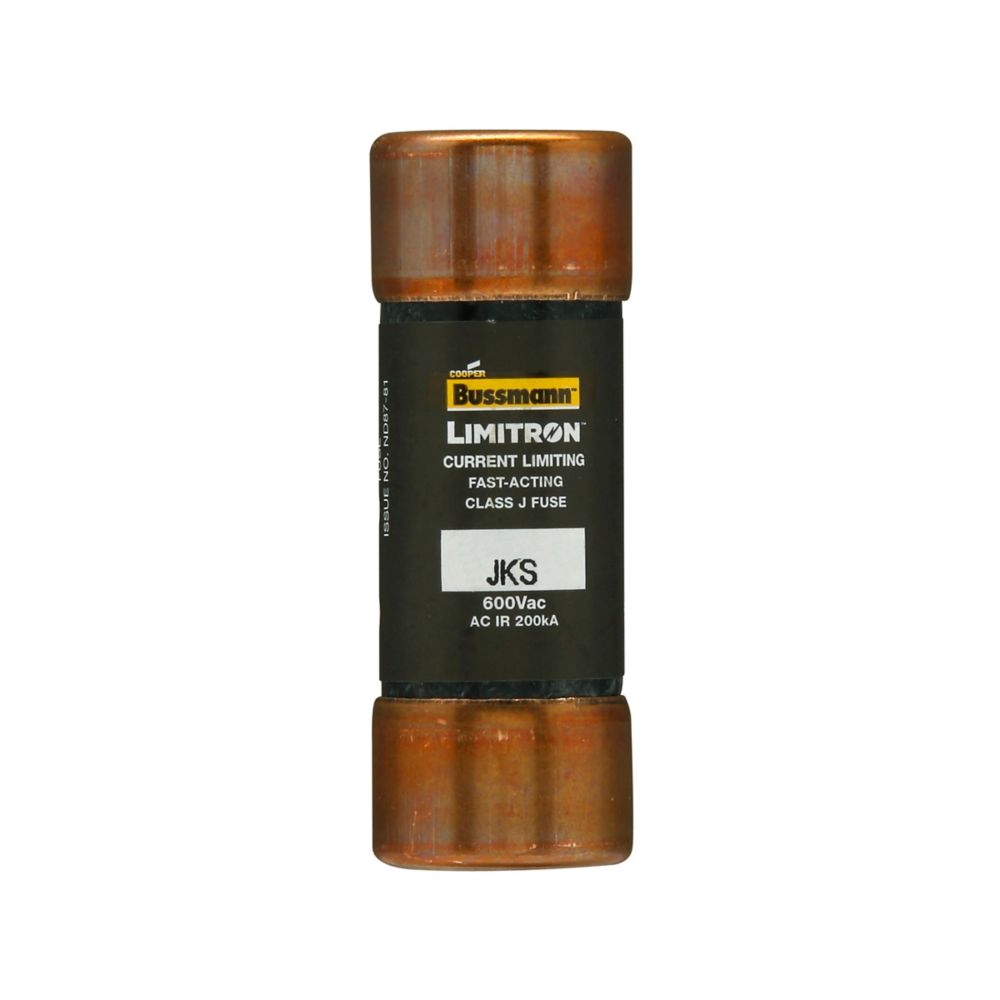

JKS-8 - Eaton Bussmann Class J Fast-Acting Fuse 8A 600V 1-Pole 200kA Interrupt Rating

JKS-8

JKS-8 is an Eaton Bussmann Class J fast-acting, current-limiting fuse rated for 8 amperes and 600 volts AC.This JKS series fuse features a 1-pole, rejection style design with a high interrupting rating of 200kA at 600 VAC. It is non-indicating with ferrule end connections and complies with CE and RoHS standards.

• Amperage Rating: 8 A
• Voltage Rating: 600 V AC
• Interrupting Rating: 200 kA at 600 VAC
• Class: Class J
• Poles: 1
• Mounting Type: Rejection style fuse
• Connection: Ferrule end x ferrule end
• Fuse Indicator: Non-indicating
• Compliance: CE Marked, RoHS Compliant
• Dimensions: 2.25 in length, 0.81 in diameter
• Weight: 1.15 lb

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: JKS-8
• Manufacturer : Eaton
• Brand : Bussmann
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Family : LIMITRON
• Type : JKS
• Voltage : 600
• Amperage : 8
• AIC rating : 200kA@600V
• Diameter : 0.81
• Class Rating : J
• Barrels : 1

Product Data

• UPC : 051712174770
• GTIN : 00051712174770
• Dimensions : 2.25 in x 0.81 in x 0.81 in (Length/Depth x Height x Width)
• Weight : 1.15
• Certification : UL, CSA, CE
