Description

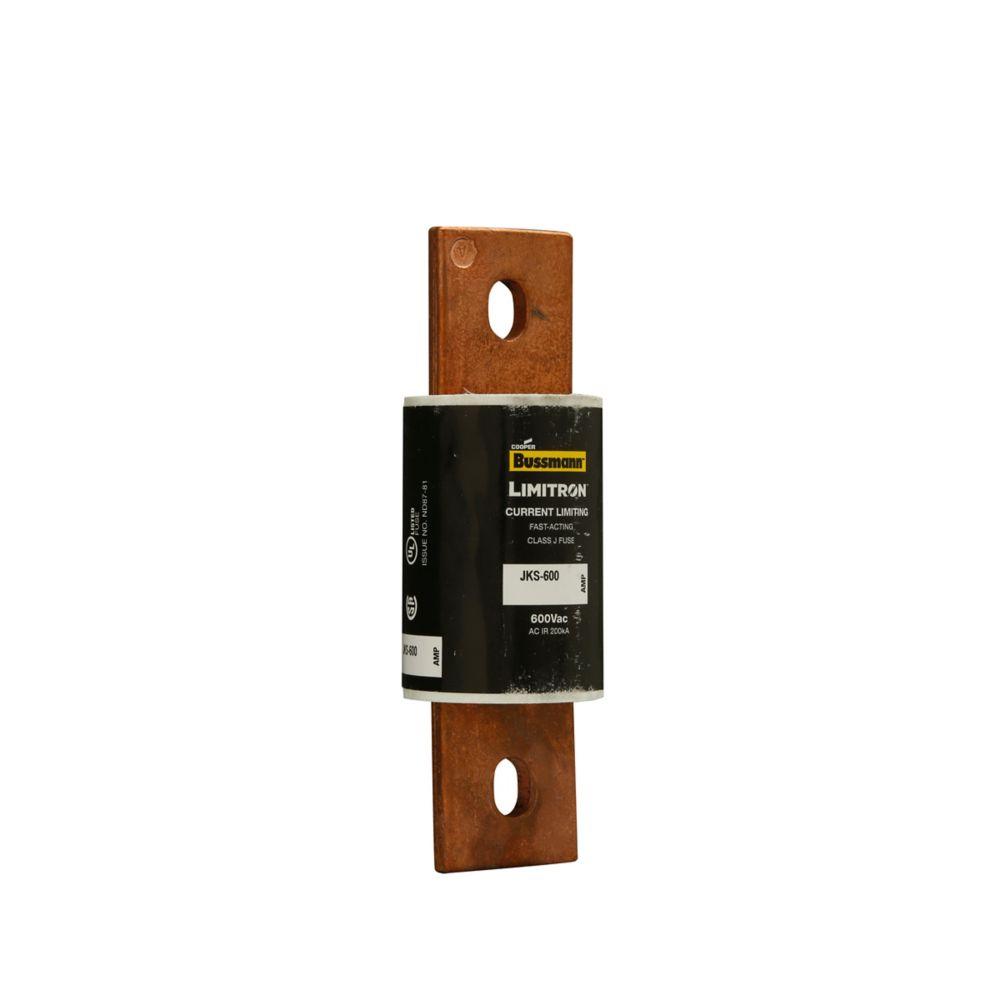

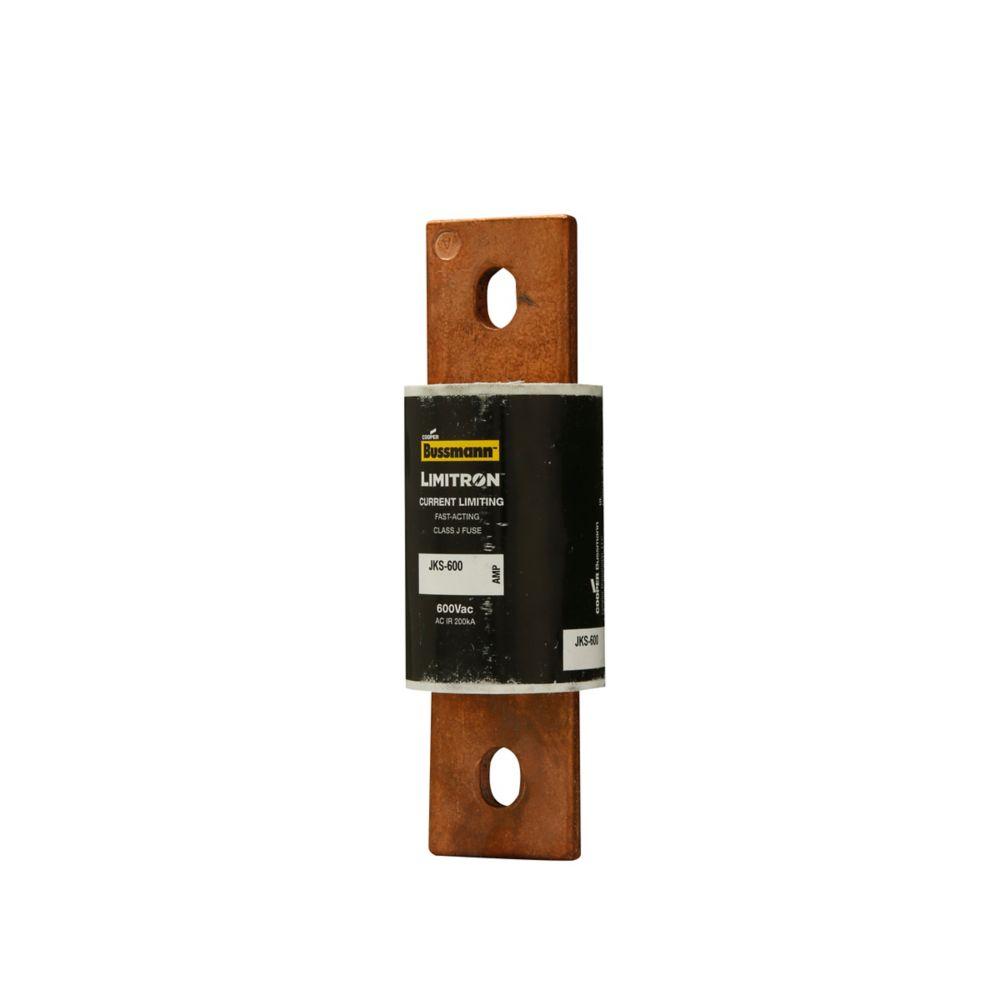

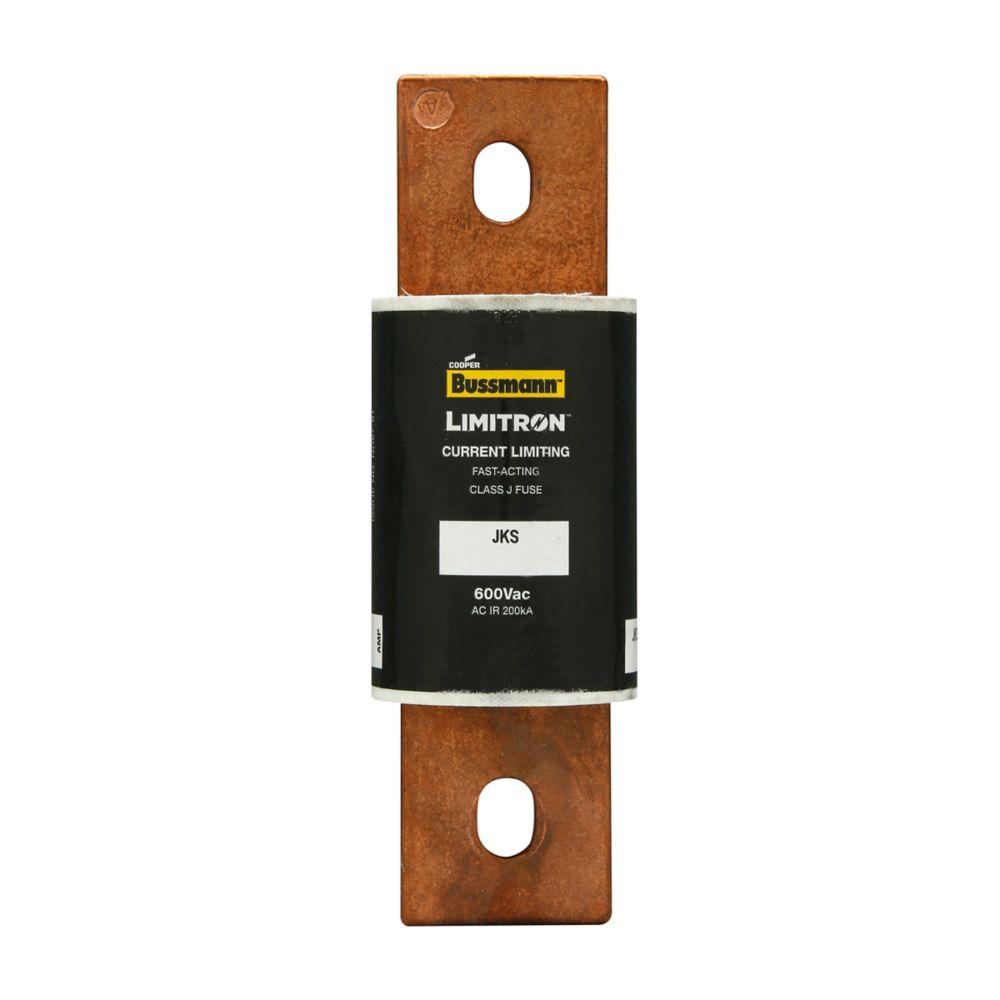

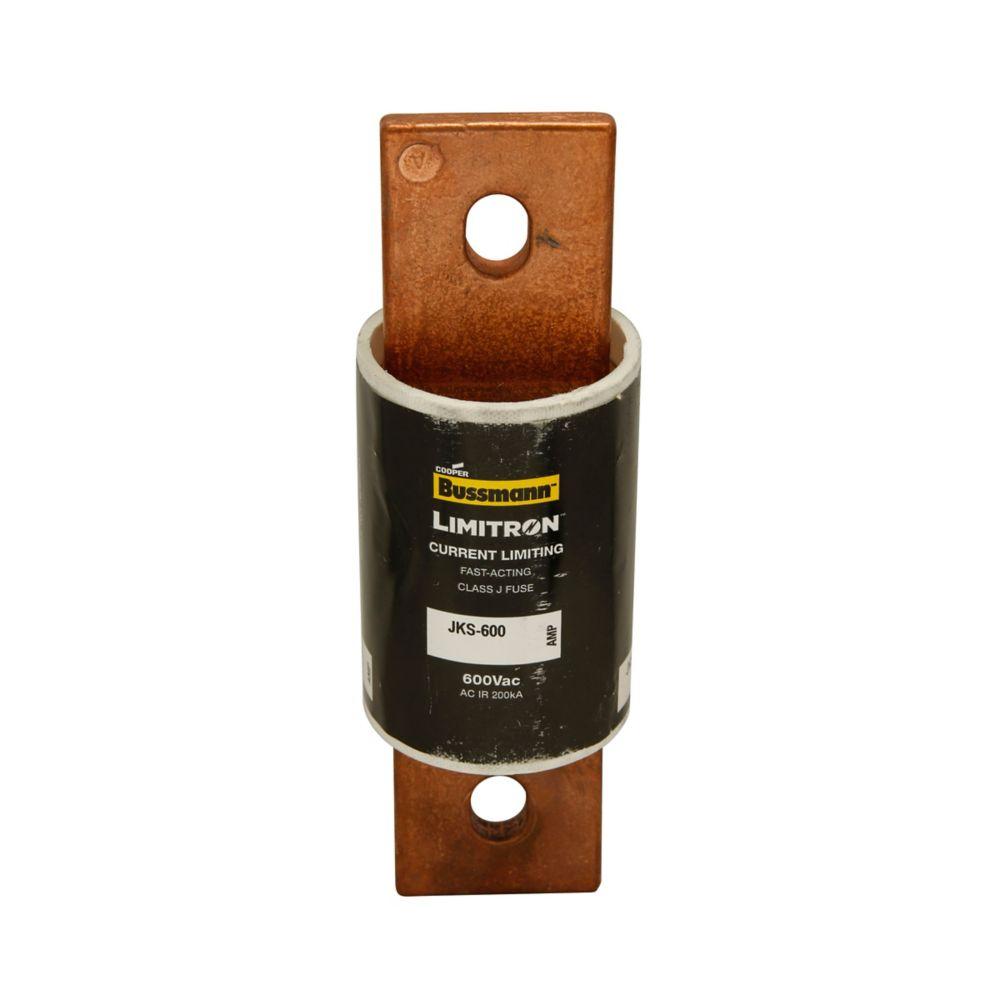

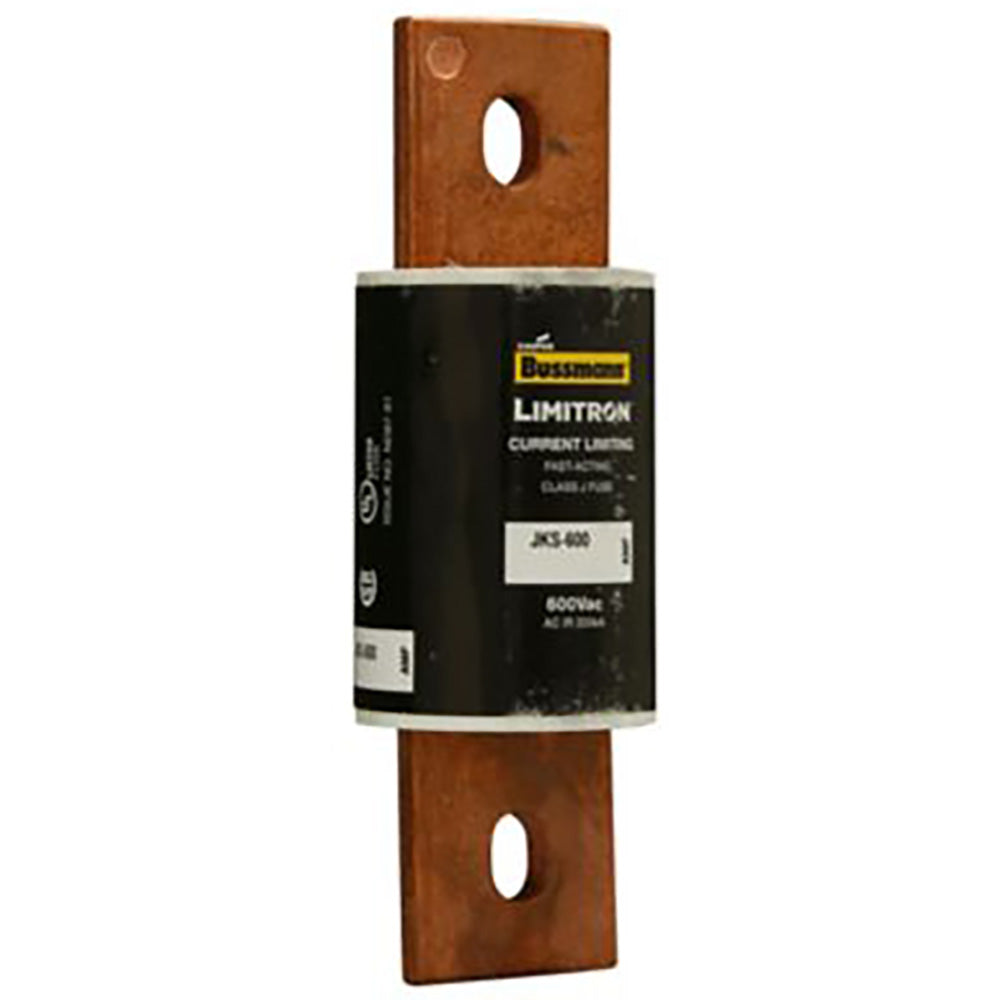

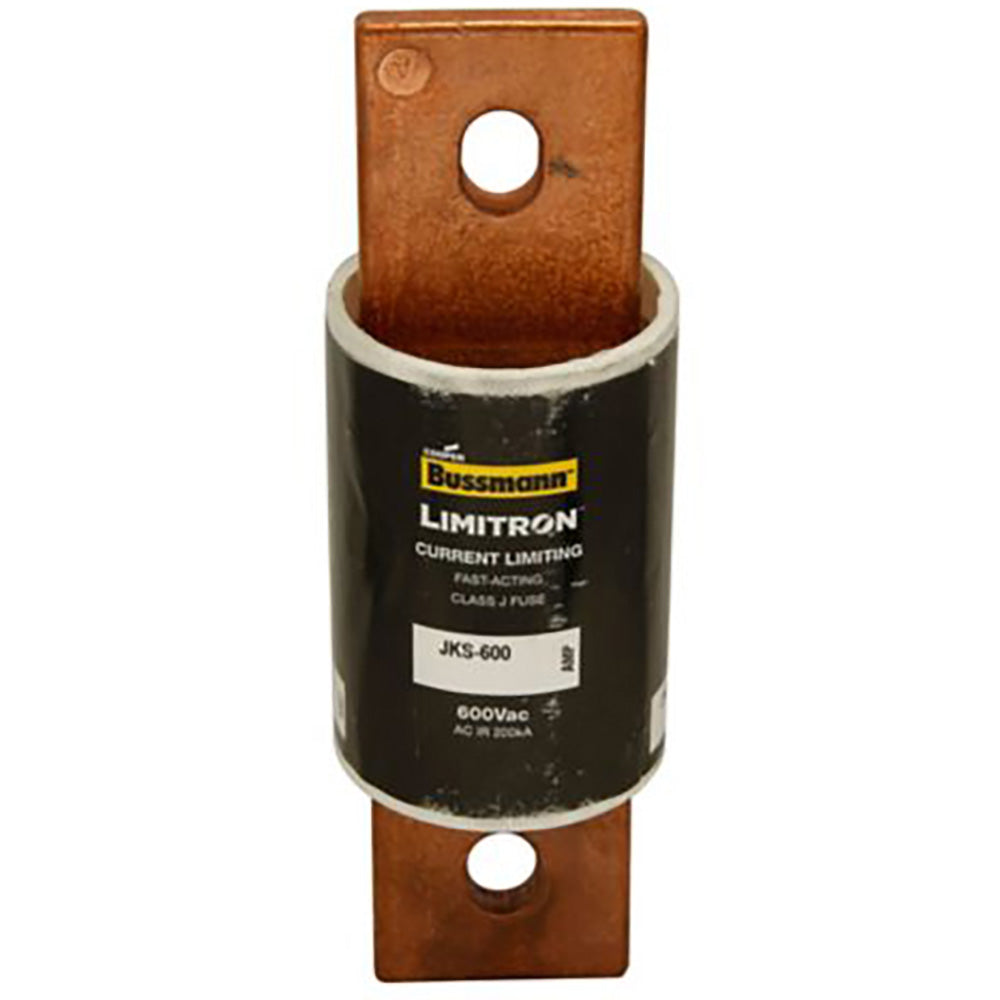

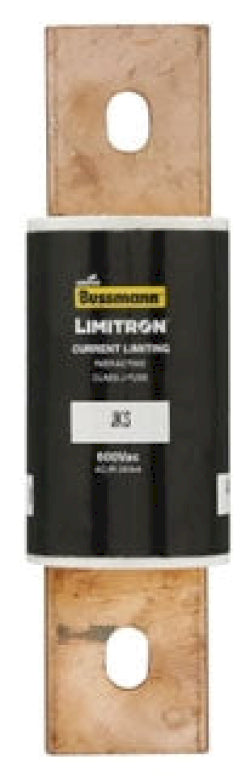

JKS-600
JKS-600 is a fast-acting Class J fuse from Eaton Bussmann designed for high-performance circuit protection.
This 600 amp, 600 volt AC fuse features current-limiting technology with a 200 kA interrupting rating, suitable for protecting power panelboards and machinery disconnects. It is a single-pole, rejection style fuse that meets UL 248-8 and CSA Class 1422-02 certifications, ensuring reliable and safe operation in industrial and commercial electrical systems.
- Key Specifications
- Amperage: 600 A
- Voltage Rating: 600 VAC
- Poles: 1
- Fuse Type: Class J, Fast Acting
- Interrupting Rating: 200 kA RMS Symmetrical
- Mounting Type: Rejection style fuse
- Current Limiting: Yes
- Certifications: UL Listed, CSA Certified, CE Marked
- Series: Bussmann JKS
- Part Number: JKS-600
- Manufacturer : Eaton
- Brand : Bussmann
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : Limitron
- Type : JKS
- Voltage : 600
- Amperage : 600
- AIC rating : 200kA@600V
- Diameter : 2.6
- Class Rating : J
- Barrels : 1
- UPC : 051712636001
- GTIN : 00051712636001
- Country of Origin : Mexico
- Dimensions : 8 in x 2.5 in x 2.5 in (Length/Depth x Height x Width)
- Weight : 3.25
- Certification : CE/UL-248-8 Guide JDDZ/CSA Class 1422-02
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
