Product Info
- Manufacturer:Eaton
- Sub-Category:Low Voltage Fuse
Description
JKS-60

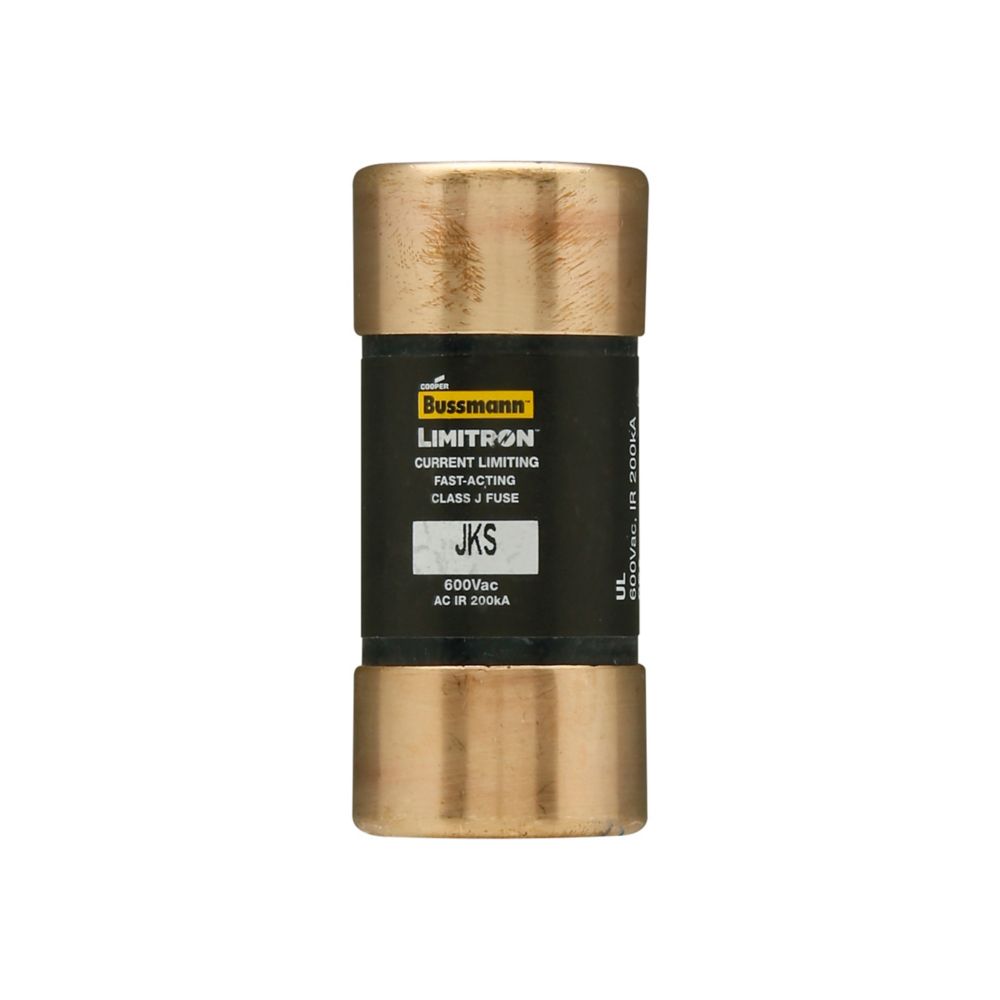

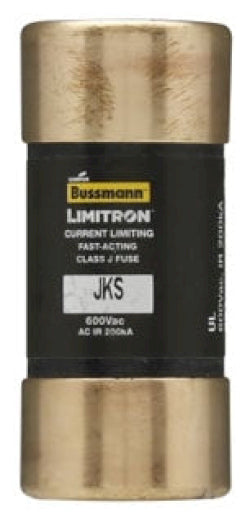

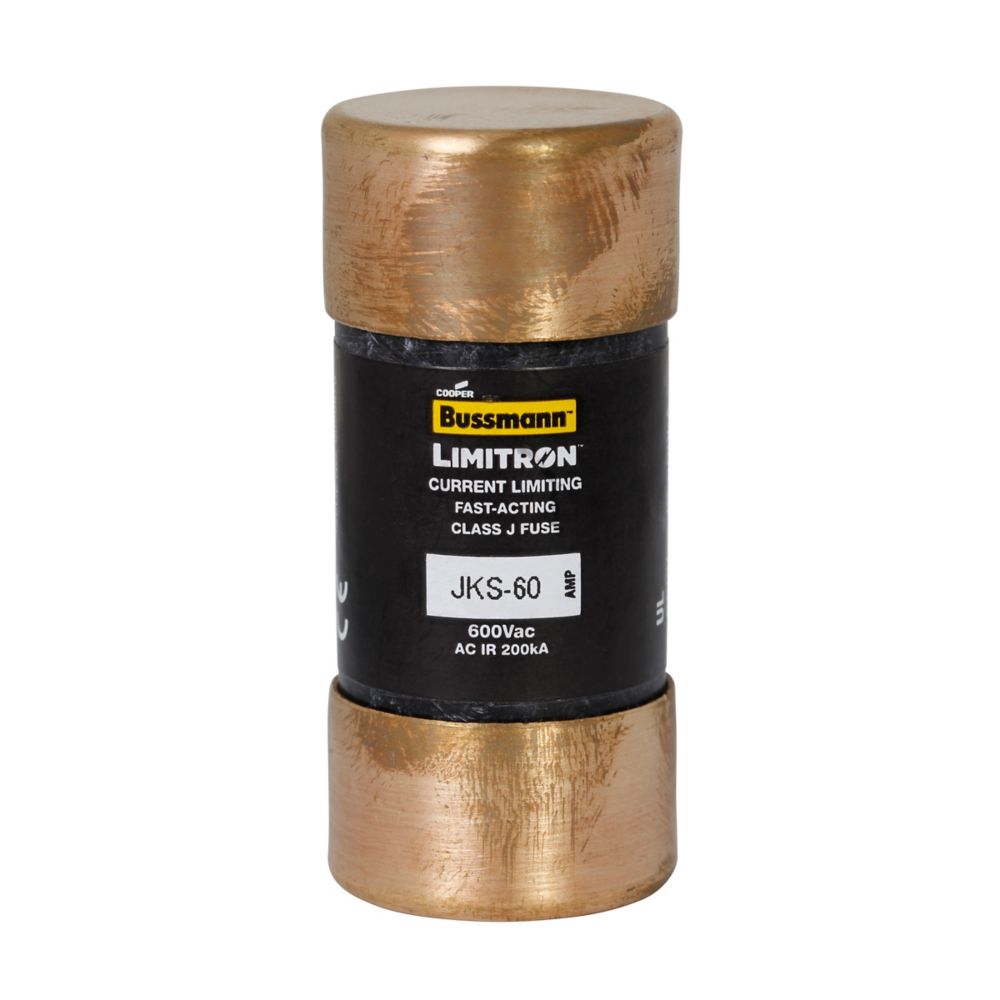

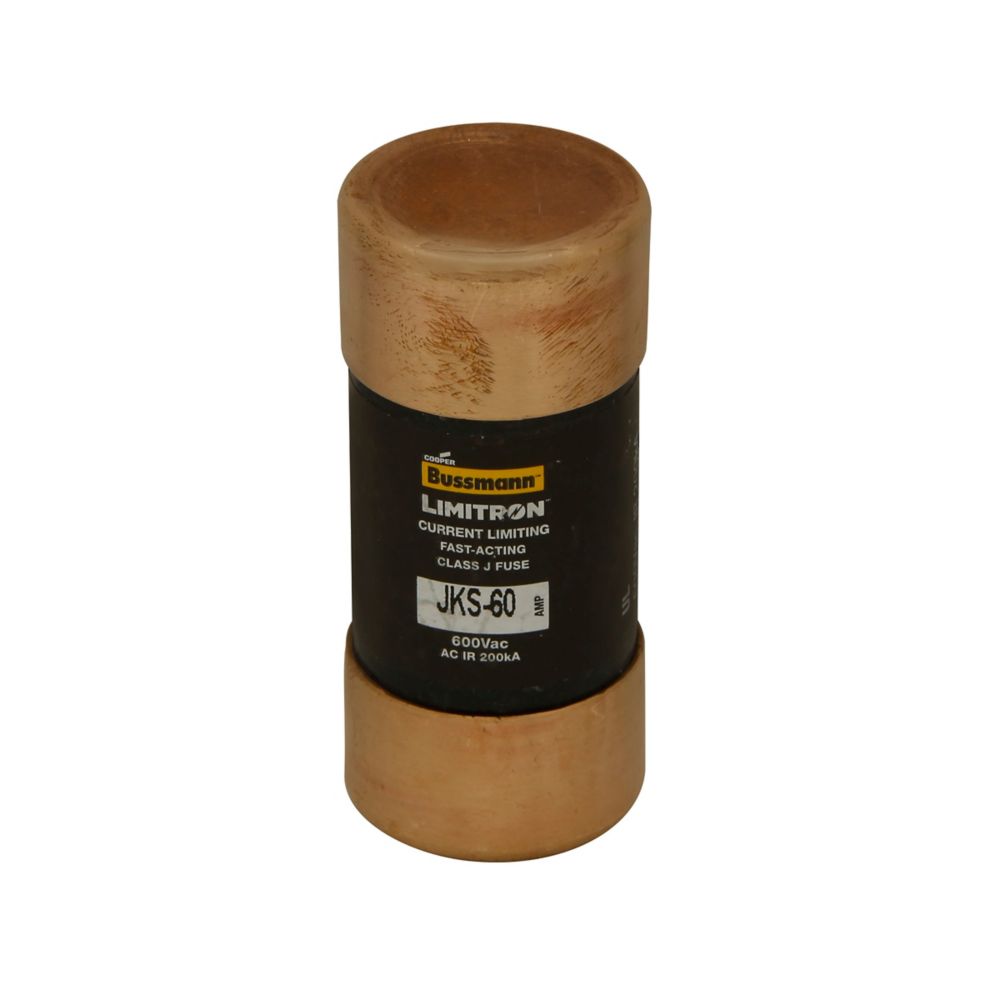

JKS-60 is a Bussmann Eaton Class J fast-acting, current-limiting fuse designed for reliable circuit protection in power panelboards and machinery disconnects. This fuse features a 60A current rating, 600V AC voltage rating, and a 200kA interrupting rating for robust performance in high-fault current circuits. The non-indicating ferrule end x ferrule end design ensures secure installation and compatibility with standard fuse holders. UL Listed and CSA Certified for safety and compliance.
- Manufacturer: Bussmann, Eaton
- Part Number: JKS-60
- Series: JKS
- Amperage Rating: 60A
- Voltage Rating: 600V AC
- Interrupt Rating: 200kA RMS Sym.
- Class: Class J
- Mounting Type: Ferrule end x ferrule end
- Indicating: Non-indicating
- Agency Approvals: UL Listed, CSA Certified, CE Marked, RoHS Compliant
- Typical Applications: Power panelboards, machinery disconnects
- Weight: 0.18 lb
Specifications
- Part Number: JKS-60
- Manufacturer : Eaton
- Brand : Bussmann
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : Limitron
- Type : JKS
- Voltage : 600
- Amperage : 60
- AIC rating : 200kA@600V
- Diameter : 1.06
- Class Rating : J
- Barrels : 1
Product Data
- UPC : 051712630603
- GTIN : 00051712630603
- Country of Origin : Mexico
- Dimensions : 2.38 in x 1 in x 1 in (Length/Depth x Height x Width)
- Weight : 0.18
- Certification : CE/UL-248-8 Guide JDDZ/CSA Class 1422-02
