Product Info
- Manufacturer:Eaton
- Sub-Category:Low Voltage Fuse
Description
JKS-50

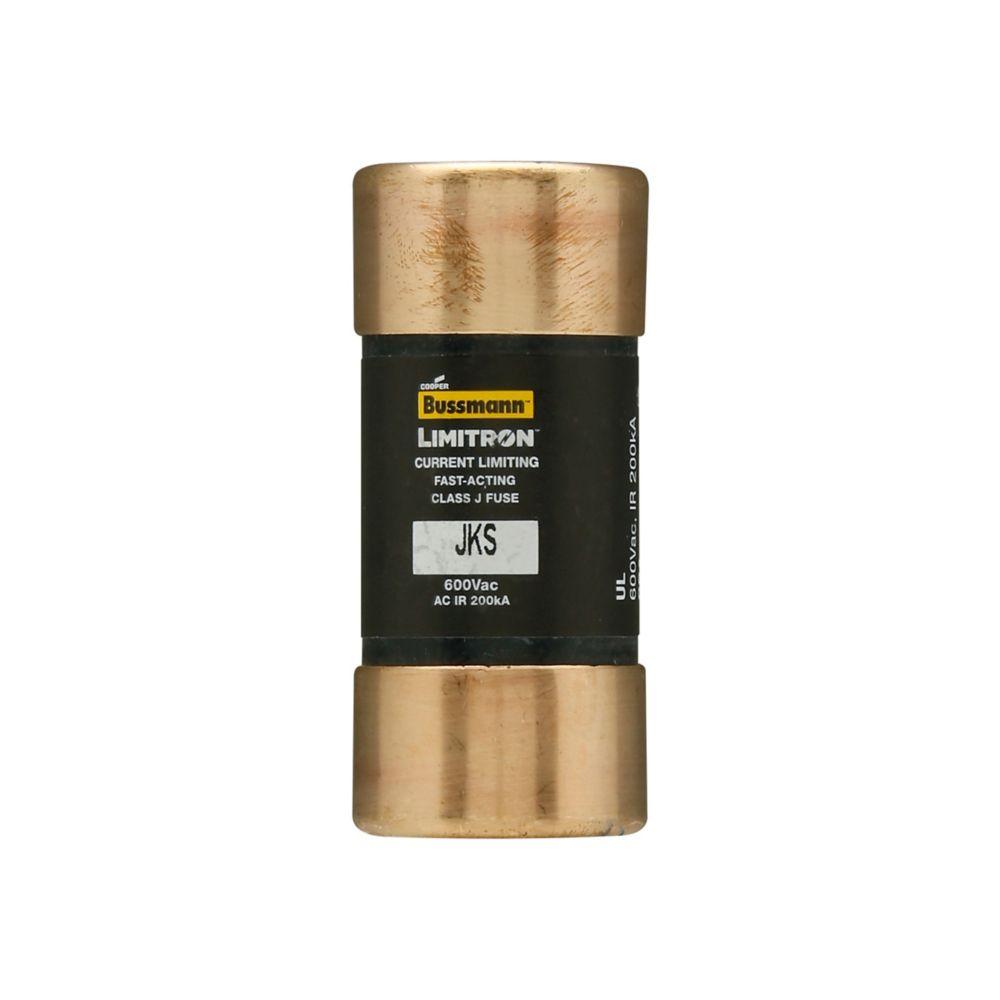

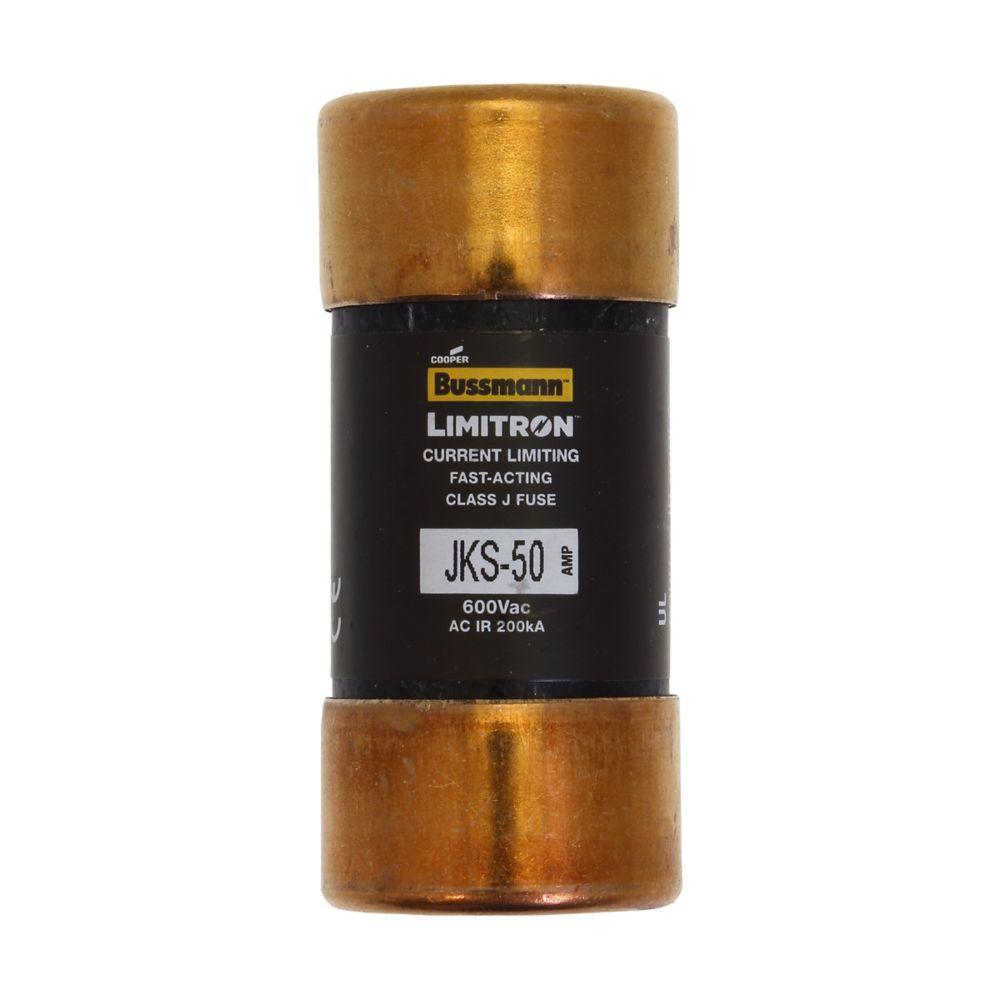

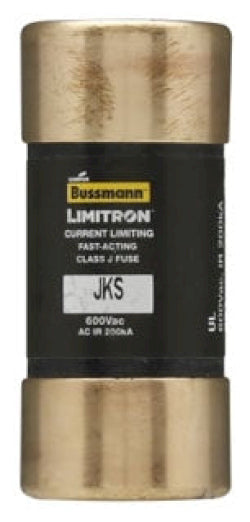

JKS-50 is a fast-acting, current limiting Class J fuse from Eaton Bussmann designed for reliable circuit protection.This 50 amp, 600 volt fuse features a rejection style design with a 1-pole configuration and a high interrupting rating of 200kA at 600Vac. It is non-indicating and connects ferrule end to ferrule end. The fuse complies with CE marking and RoHS standards, making it suitable for power panelboards and machinery disconnects requiring fast-acting protection.
- Key Specifications
- Amperage Rating: 50 A
- Voltage Rating: 600 V AC
- Interrupting Rating: 200 kA at 600 Vac
- Class: Class J
- Poles: 1
- Fuse Type: Fast-Acting, Current Limiting
- Mounting Type: Rejection Style
- Connection: Ferrule End x Ferrule End
- Fuse Indicator: Non-Indicating
- Certifications: CE Marked, RoHS Compliant
- Product Dimensions: 2.38 in length, 1 in height, 1 in width
Specifications
- Part Number: JKS-50
- Manufacturer : Eaton
- Brand : Bussmann
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : Limitron
- Type : JKS
- Voltage : 600
- Amperage : 50
- AIC rating : 200kA@600V
- Diameter : 1.06
- Class Rating : J
- Barrels : 1
Product Data
- UPC : 051712630504
- GTIN : 00051712630504
- Country of Origin : Mexico
- Dimensions : 2.38 in x 1 in x 1 in (Length/Depth x Height x Width)
- Weight : 0.15
- Certification : CE/UL-248-8 Guide JDDZ/CSA Class 1422-02
