JKS-5 - Eaton 5 Amp 600 VAC Class J Fast-Acting Fuse 1 Pole 200kA Interrupt Rating

JKS-5

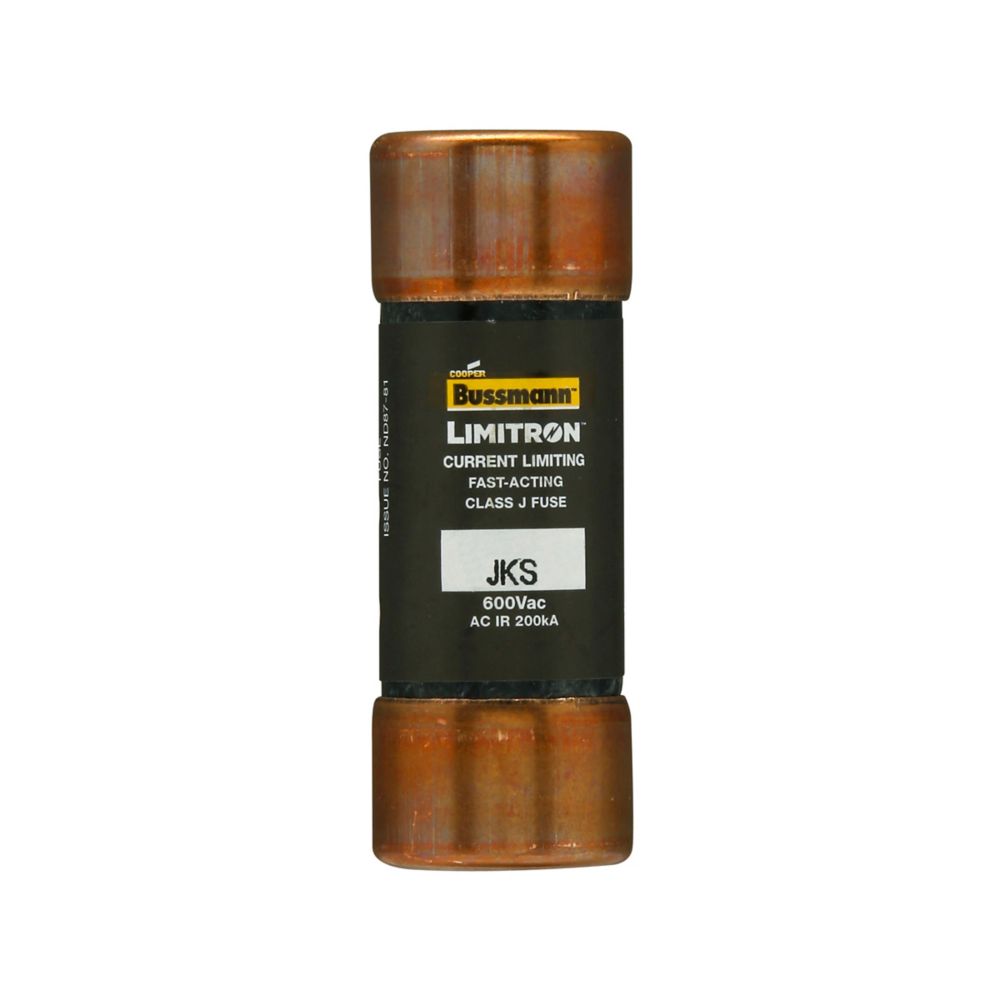

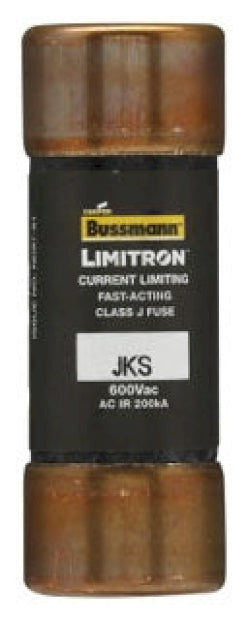

JKS-5 is a Eaton Class J fast-acting fuse rated for 5 amps and 600 VAC voltage. It provides reliable circuit protection with a high interrupting rating.JKS-5 fuse features a 1-pole cartridge design with a 200,000 amp interrupting rating at 600 VAC, making it suitable for power panelboards and machinery disconnects. This fuse offers fast-acting current limitation to protect circuits from short circuits and ground faults. It is non-indicating with ferrule ends and meets UL 248-8 and CSA Class J certifications.

• Amperage: 5 A
• Voltage Rating: 600 VAC
• Poles: 1
• Interrupting Rating: 200 kA
• Fuse Type: Fast-Acting (Limitron)
• Mounting Type: Cartridge
• Series: Bussmann JKS
• Certifications: UL Listed, CSA Certified
• Non-Indicating
• Ferrule End Terminals

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: JKS-5
• Manufacturer : Eaton
• Brand : Bussmann
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Family : LIMITRON
• Type : JKS
• Voltage : 600
• Amperage : 5
• AIC rating : 200kA@600V
• Diameter : 0.81
• Class Rating : J
• Barrels : 1

Product Data

• UPC : 051712630054
• GTIN : 00051712630054
• Country of Origin : Mexico
• Dimensions : 0.81 in x 2.25 in x 0.81 in (Length/Depth x Height x Width)
• Weight : 1.15
• Certification : CE/UL-248-8 Guide JDDZ/CSA Class 1422-02
