Product Info
- Manufacturer:Eaton
- Sub-Category:Low Voltage Fuse
Description
JKS-400

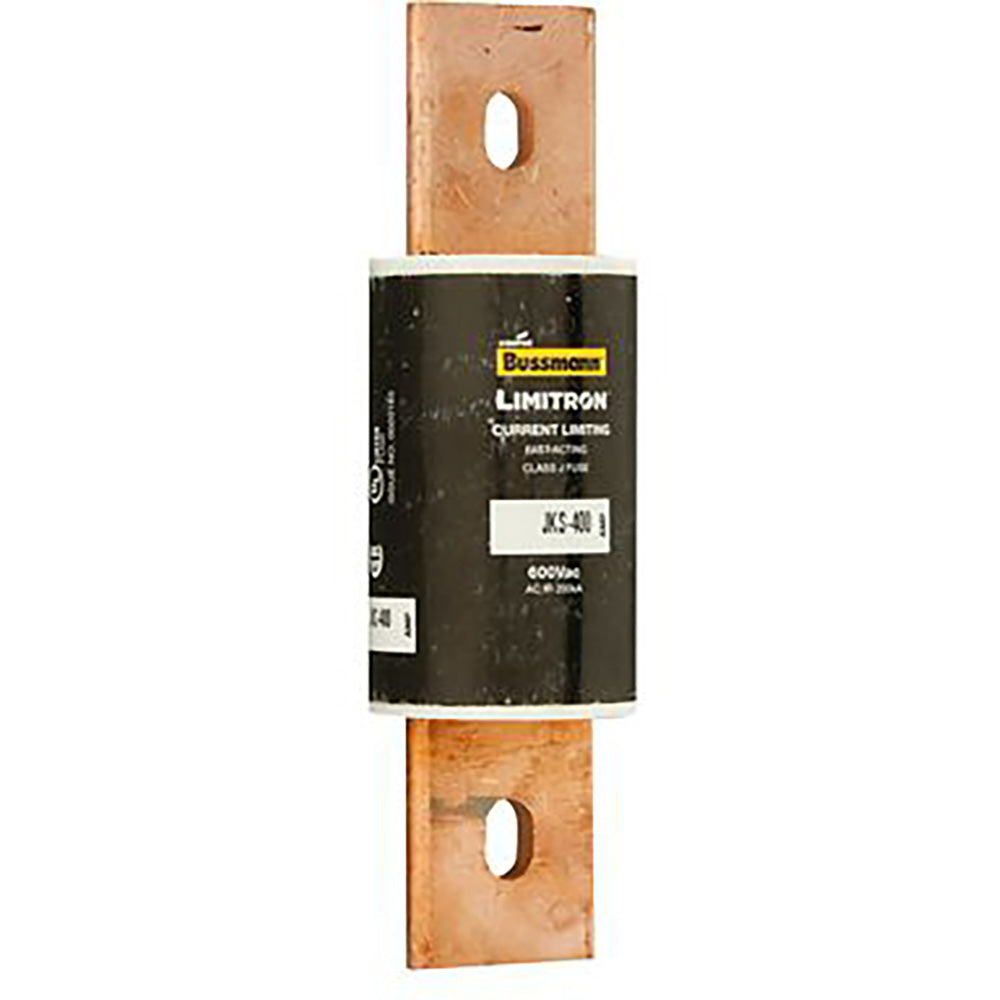

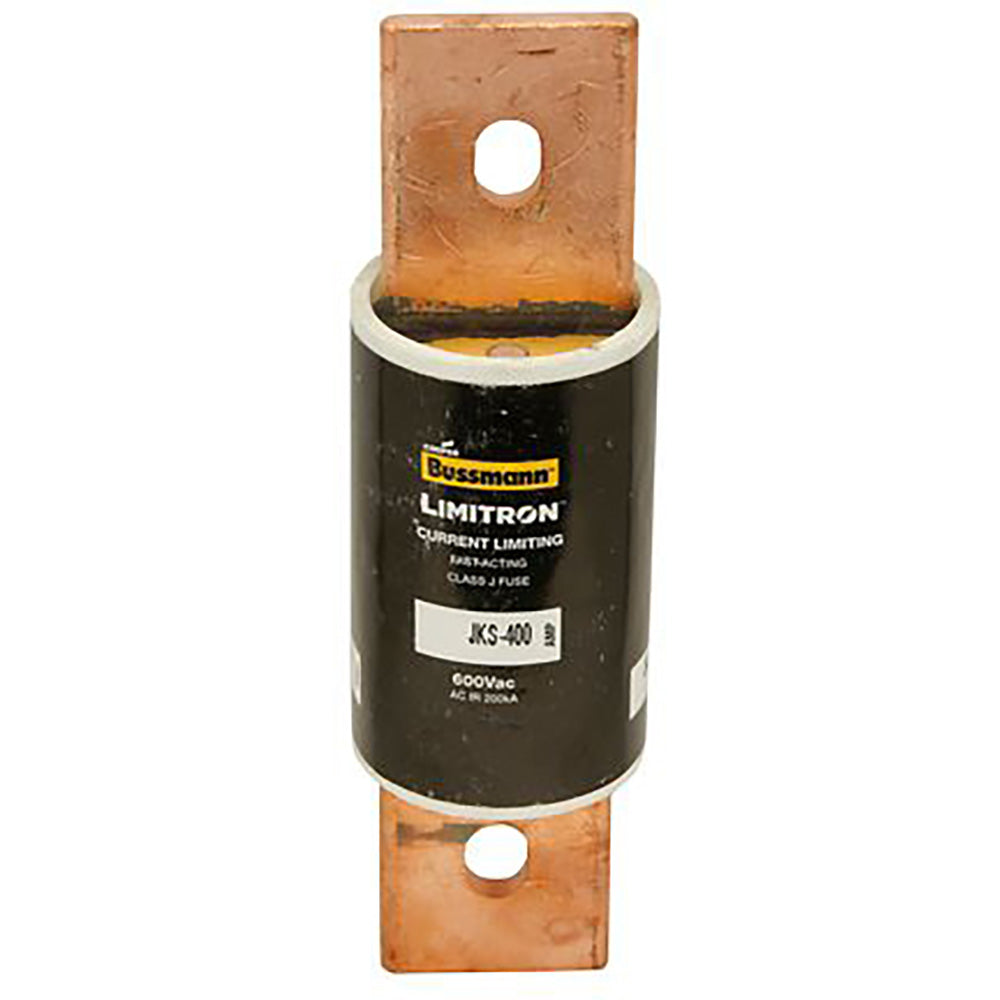

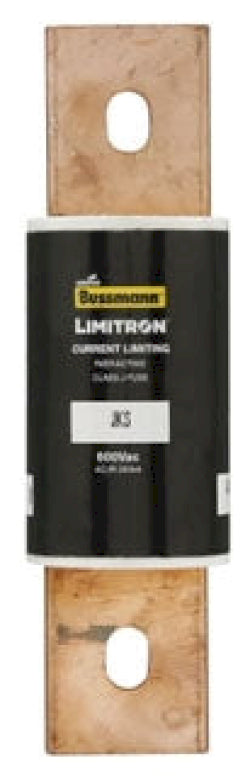

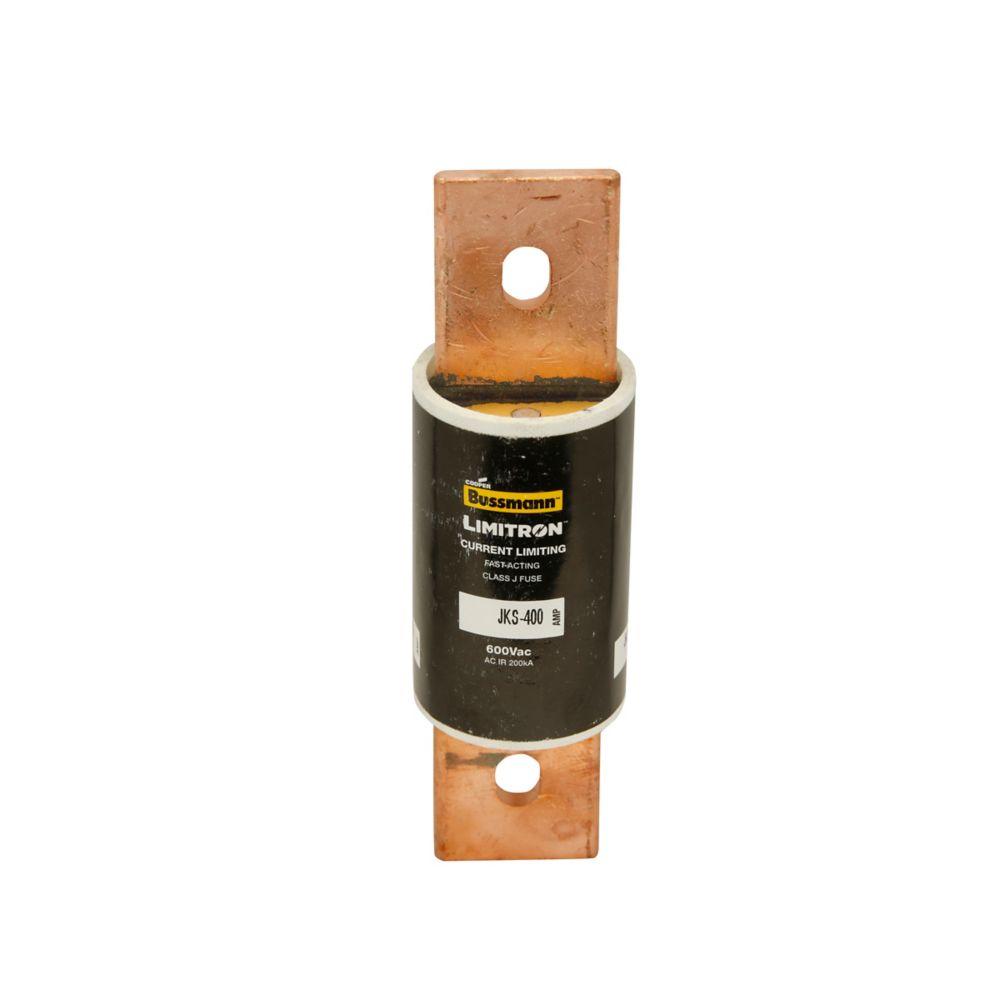

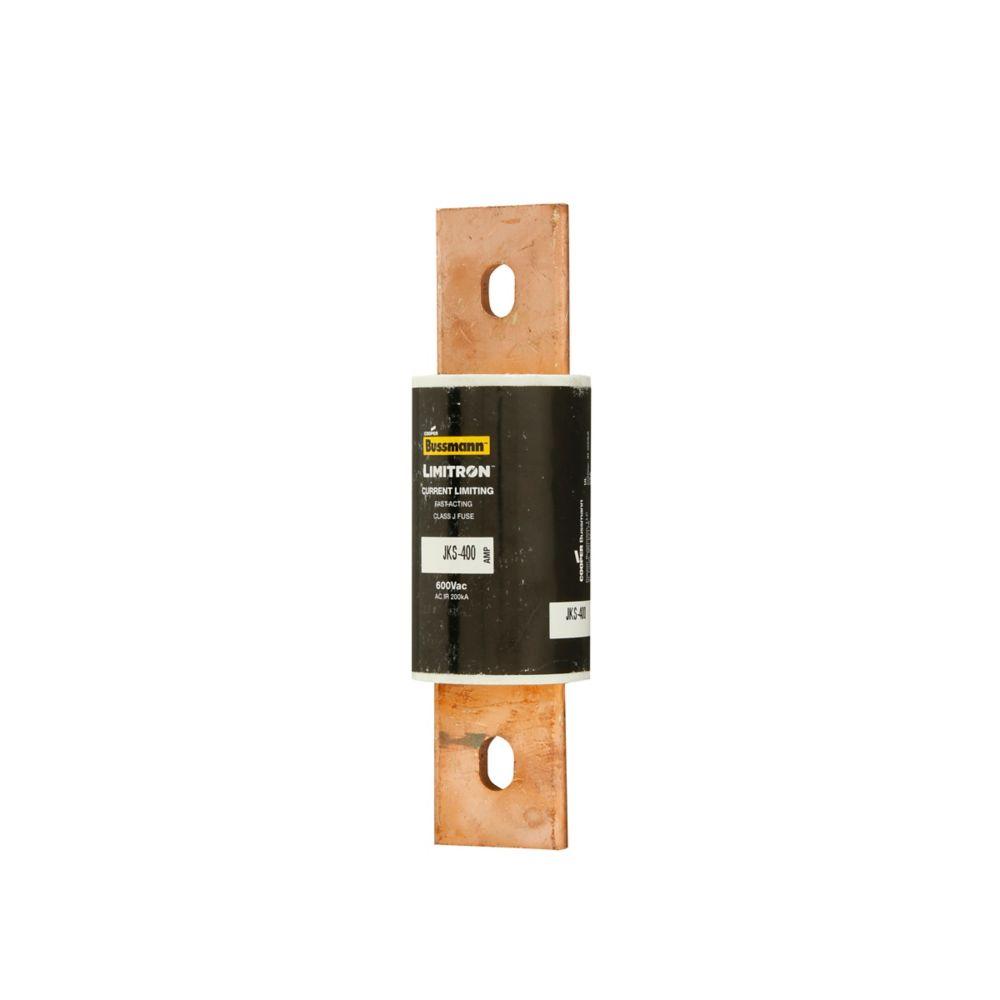

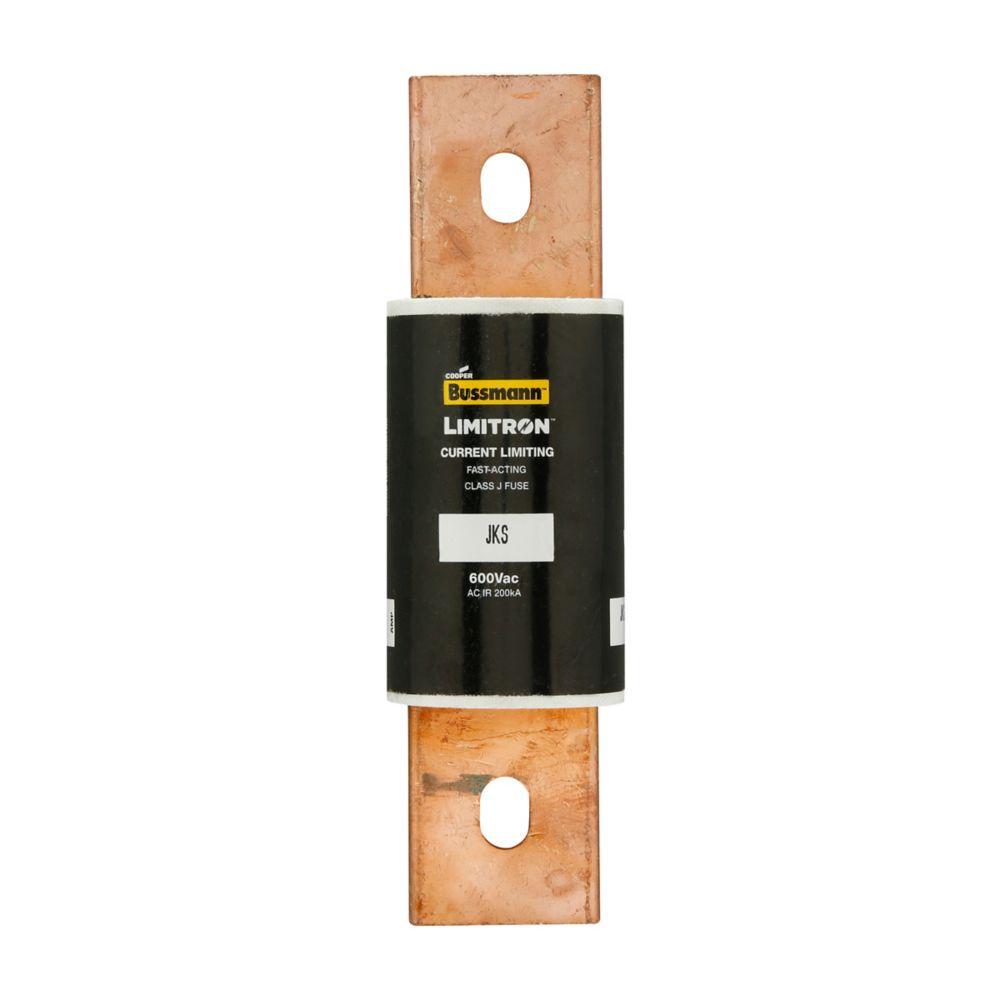

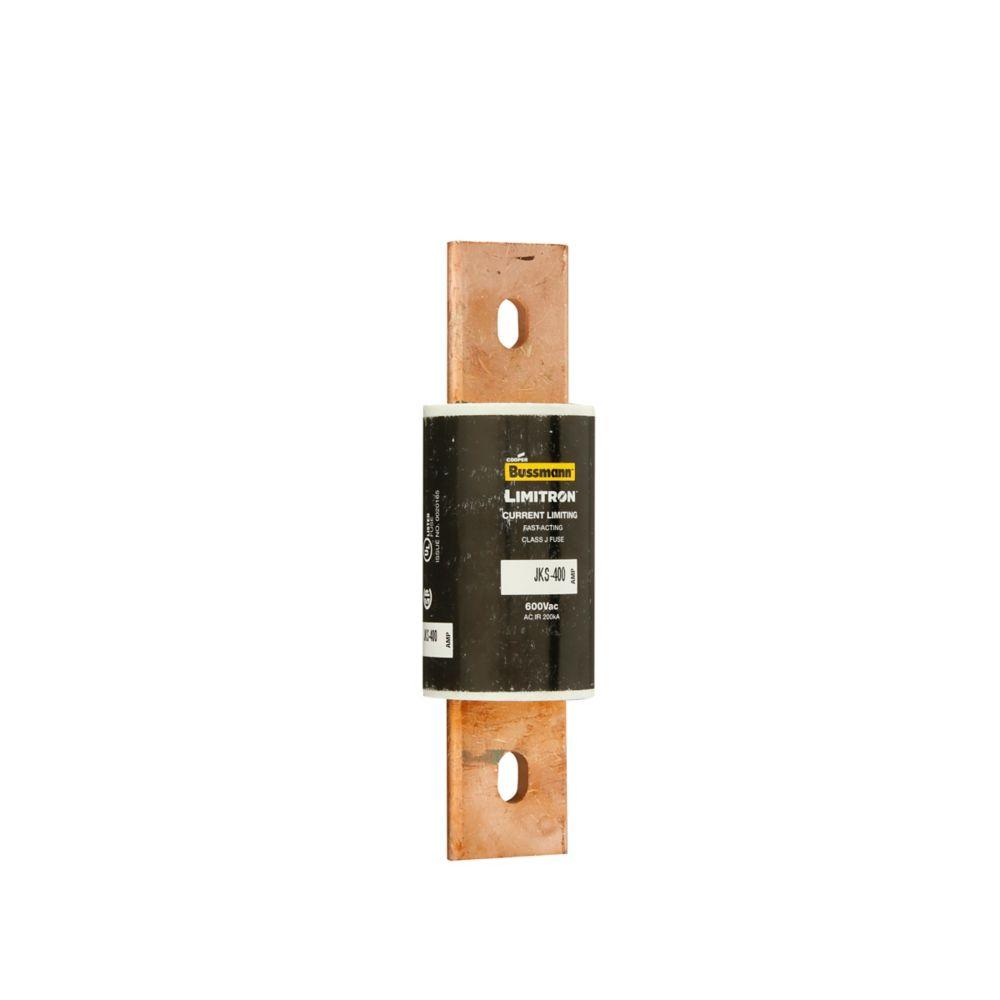

JKS-400 is an Eaton Bussmann Series Class J fast-acting fuse rated for 400 amperes and 600 volts AC.
This single-pole, current-limiting fuse features a bolted blade end connection and a high interrupting rating of 200 kA at 600 Vac. It is designed for use in power panelboards and machinery disconnects, providing reliable overcurrent protection with a non-indicating, rejection style design.
- Key Specifications
- Amperage Rating: 400 A
- Voltage Rating: 600 V AC
- Interrupting Rating: 200 kA at 600 Vac
- Number of Poles: 1
- Fuse Class: Class J
- Fuse Type: Fast-Acting, Current Limiting
- Connection Type: Bolted Blade End x Bolted Blade End
- Fuse Indicator: Non-Indicating
- Physical Dimensions: 7.13 in length, 2 in height, 2 in width
- Weight: 1.85 lb
- Packaging: Standard
- Series: Bussmann JKS
- Part Number: JKS-400
- Manufacturer : Eaton
- Brand : Bussmann
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : LIMITRON
- Type : JKS
- Voltage : 600
- Amperage : 400
- AIC rating : 200kA@600V
- Diameter : 2.11
- Class Rating : J
- Barrels : 1
- UPC : 051712634007
- GTIN : 00051712634007
- Country of Origin : Mexico
- Dimensions : 7.13 in x 2 in x 2 in (Length/Depth x Height x Width)
- Weight : 1.85
- Certification : CE/UL-248-8 Guide JDDZ/CSA Class 1422-02
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
