Product Info
- Manufacturer:Eaton
- Sub-Category:Low Voltage Fuse
Description
JKS-350

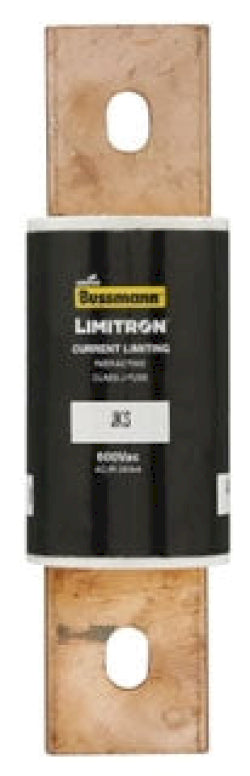

JKS-350 is a 350 amp, 600 volt Class J Limitron fast-acting fuse from Eaton Bussmann designed for advanced circuit protection.This JKS series fuse features current-limiting, fast-acting characteristics with a 200kA interrupt rating at 600 VAC. It is a single-pole, bolt-on style fuse suitable for power panelboards and machinery disconnects. The fuse is UL listed, CSA certified, and CE marked, ensuring compliance with major safety standards.
- Amperage: 350 A
- Voltage Rating: 600 VAC
- Interrupt Rating: 200 kA RMS Symmetrical
- Fuse Type: Limitron Class J Fast-Acting
- Poles: 1
- Mounting Type: Bolt-On
- Series: JKS
- Non-indicating
- Agency Certifications: UL Listed, CSA Certified, CE Marked
Specifications
- Part Number: JKS-350
- Manufacturer : Eaton
- Brand : Bussmann
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : Limitron
- Type : JKS
- Voltage : 600
- Amperage : 350
- AIC rating : 200kA@600V
- Diameter : 2.11
- Class Rating : J
- Barrels : 1
Product Data
- UPC : 051712633505
- GTIN : 00051712633505
- Country of Origin : Mexico
- Dimensions : 7.13 in x 2 in x 2 in (Length/Depth x Height x Width)
- Weight : 1.85
- Certification : CE/UL-248-8 Guide JDDZ/CSA Class 1422-02
