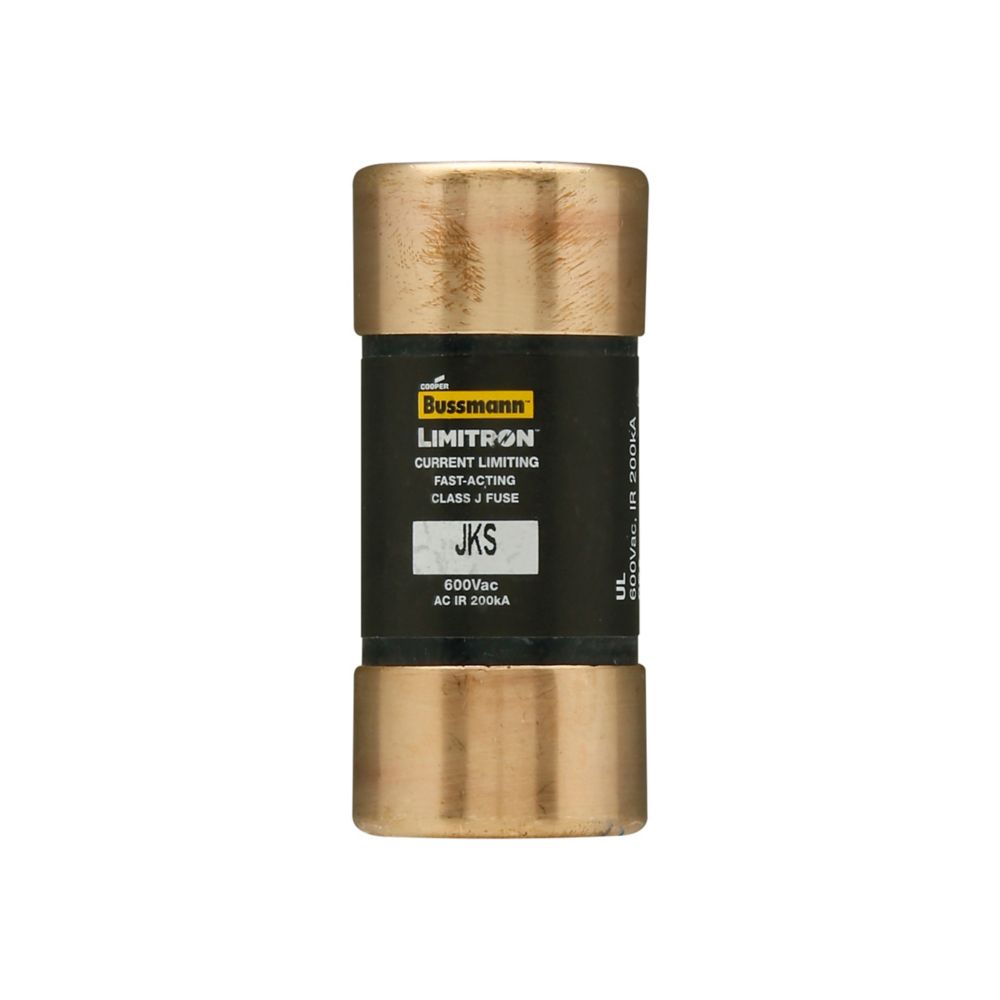

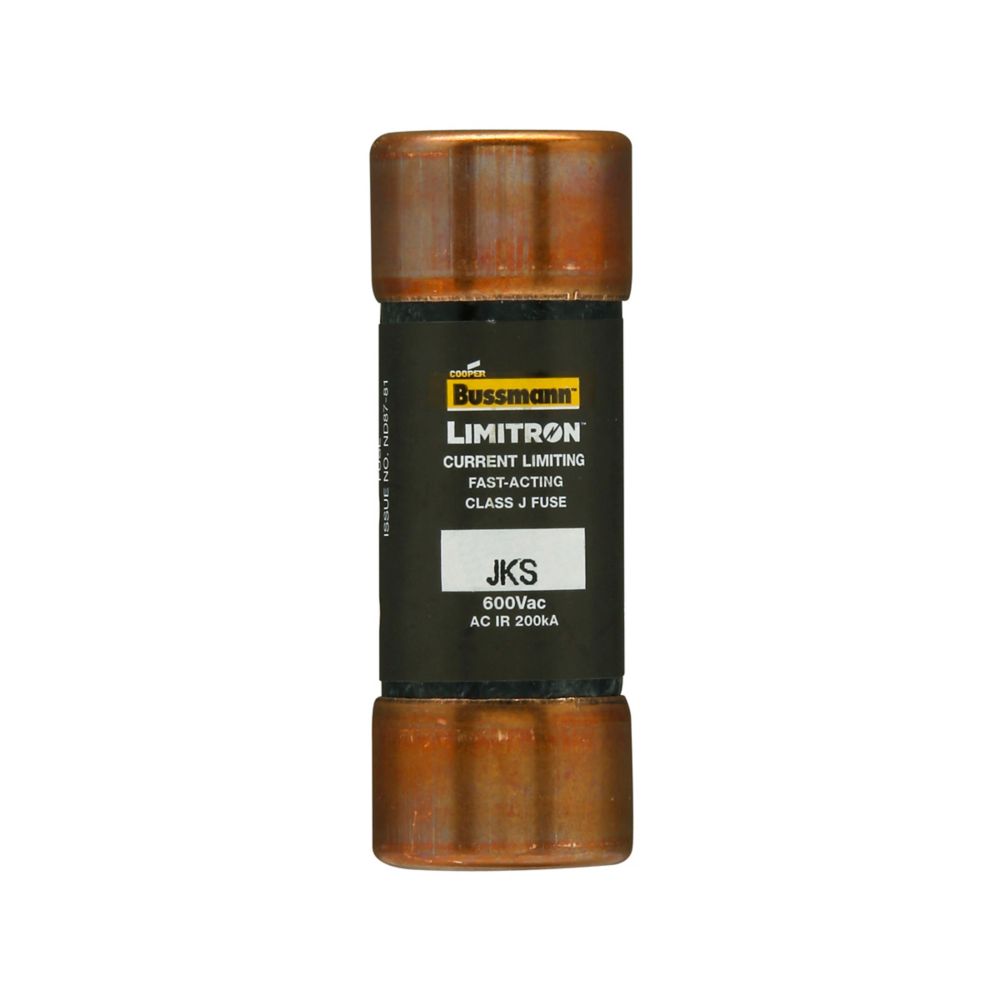

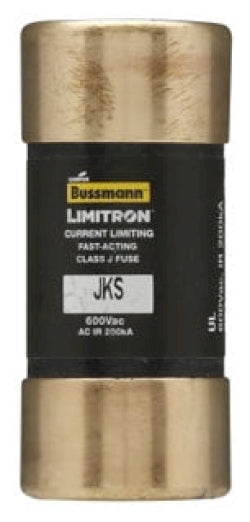

JKS-35 - Eaton Bussmann Class J Fast-Acting Fuse 35A 600V 1-Pole 200kA Interrupt Rating

JKS-35

JKS-35 is an Eaton Bussmann Class J fast-acting fuse designed for reliable circuit protection.This 35 amp, 600 volt fuse features a single pole with ferrule end connections and a high interrupting rating of 200kA at 600 VAC. It is a current-limiting, rejection style fuse suitable for power panelboards and machinery disconnects. The fuse is non-indicating and complies with CE and RoHS standards.

• Amperage: 35 A
• Voltage Rating: 600 V AC
• Poles: 1
• Interrupting Rating: 200 kA at 600 VAC
• Fuse Type: Fast-Acting, Current Limiting
• Connection: Ferrule end x ferrule end
• Class: Class J
• Fuse Indicator: Non-indicating
• Compliance: CE Marked, RoHS Compliant
• Dimensions: 2.38 in length, 1.06 in width and height
• Weight: 0.18 lb

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: JKS-35
• Manufacturer : Eaton
• Brand : Bussmann
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Family : LIMITRON
• Type : JKS
• Voltage : 600
• Amperage : 35
• AIC rating : 200kA@600V
• Diameter : 1.06
• Class Rating : J
• Barrels : 1

Product Data

• UPC : 051712630351
• GTIN : 00051712630351
• Country of Origin : Mexico
• Dimensions : 2.38 in x 1.06 in x 1.06 in (Length/Depth x Height x Width)
• Weight : 0.18
• Certification : CE/UL-248-8 Guide JDDZ/CSA Class 1422-02
