Product Info
- Manufacturer:Eaton
- Sub-Category:Low Voltage Fuse
Description

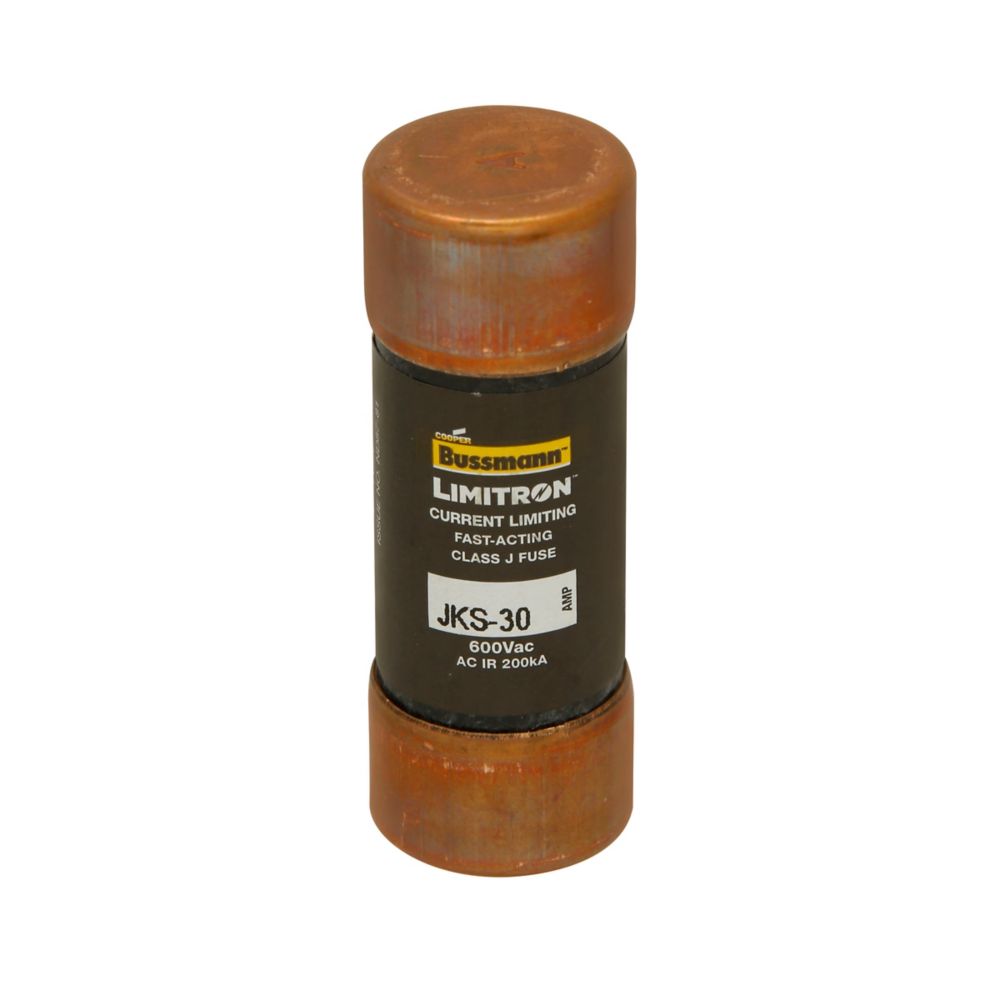

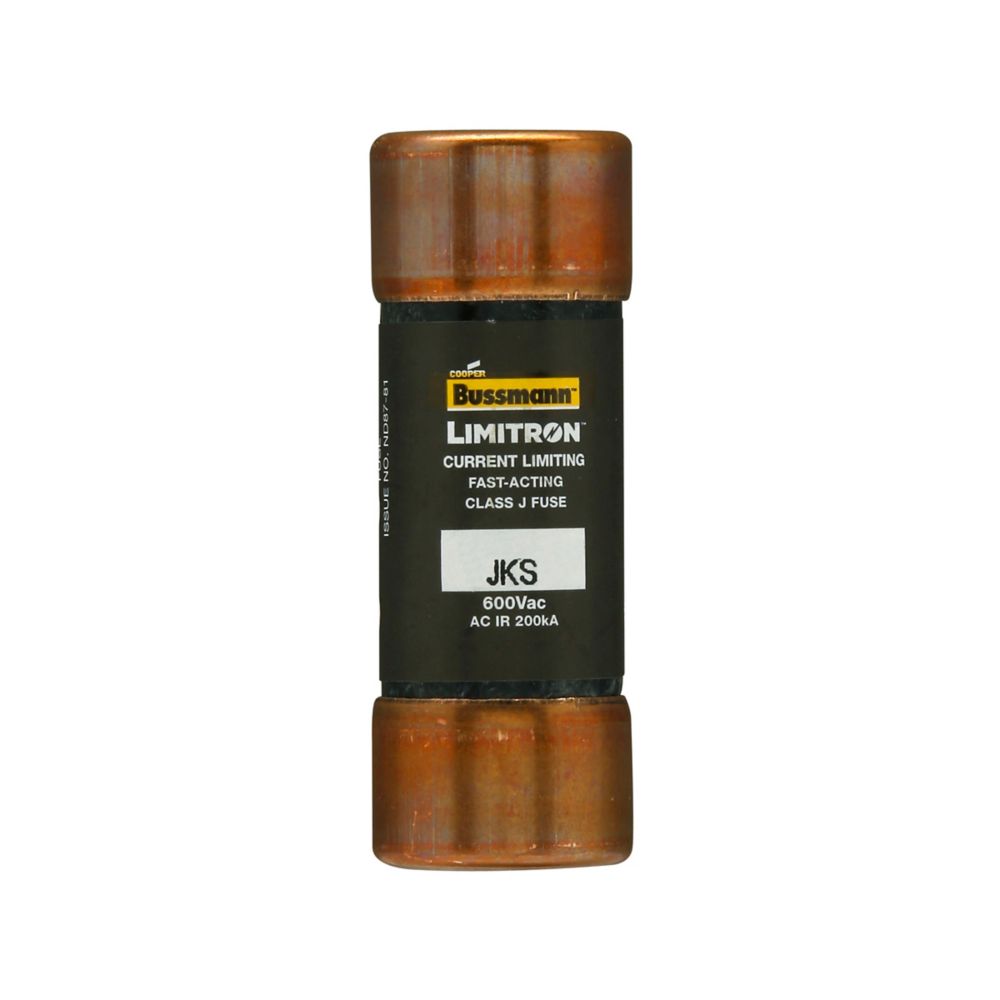

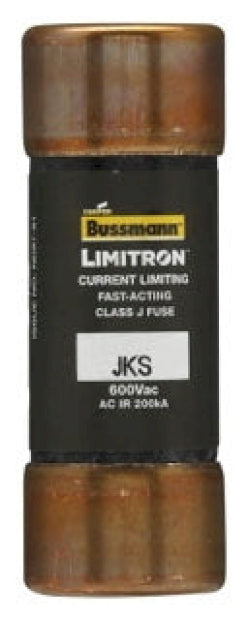

JKS-30
JKS-30 is a fast-acting Class J fuse from Eaton Bussmann designed for reliable circuit protection with a 30 ampere rating and 600 volt capacity.This fuse features current-limiting technology providing 10X better current limitation to protect equipment from short-circuit damage. It has a 200kA interrupting rating at 600Vac, making it suitable for power panelboards and machinery disconnects. The JKS-30 is a single-pole, rejection style fuse compliant with UL and CSA certifications.
- Amperage: 30A
- Voltage Rating: 600 Vac
- Poles: 1
- Interrupting Rating: 200,000 A
- Fuse Type: Fast-Acting, Current Limiting
- Series: Bussmann JKS
- Mounting: Rejection style fuse holder
- Certifications: UL Listed, CSA Certified
- Typical Applications: Power panelboards, machinery disconnects
Specifications
- Part Number: JKS-30
- Manufacturer : Eaton
- Brand : Bussmann
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : Limitron
- Type : JKS
- Voltage : 600
- Amperage : 30
- AIC rating : 200kA@600V
- Diameter : 0.81
- Class Rating : J
- Barrels : 1
Product Data
- UPC : 051712630306
- GTIN : 00051712630306
- Country of Origin : Mexico
- Dimensions : 2.25 in x 0.81 in x 0.81 in (Length/Depth x Height x Width)
- Weight : 1.15
- Certification : CE/UL-248-8 Guide JDDZ/CSA Class 1422-02
