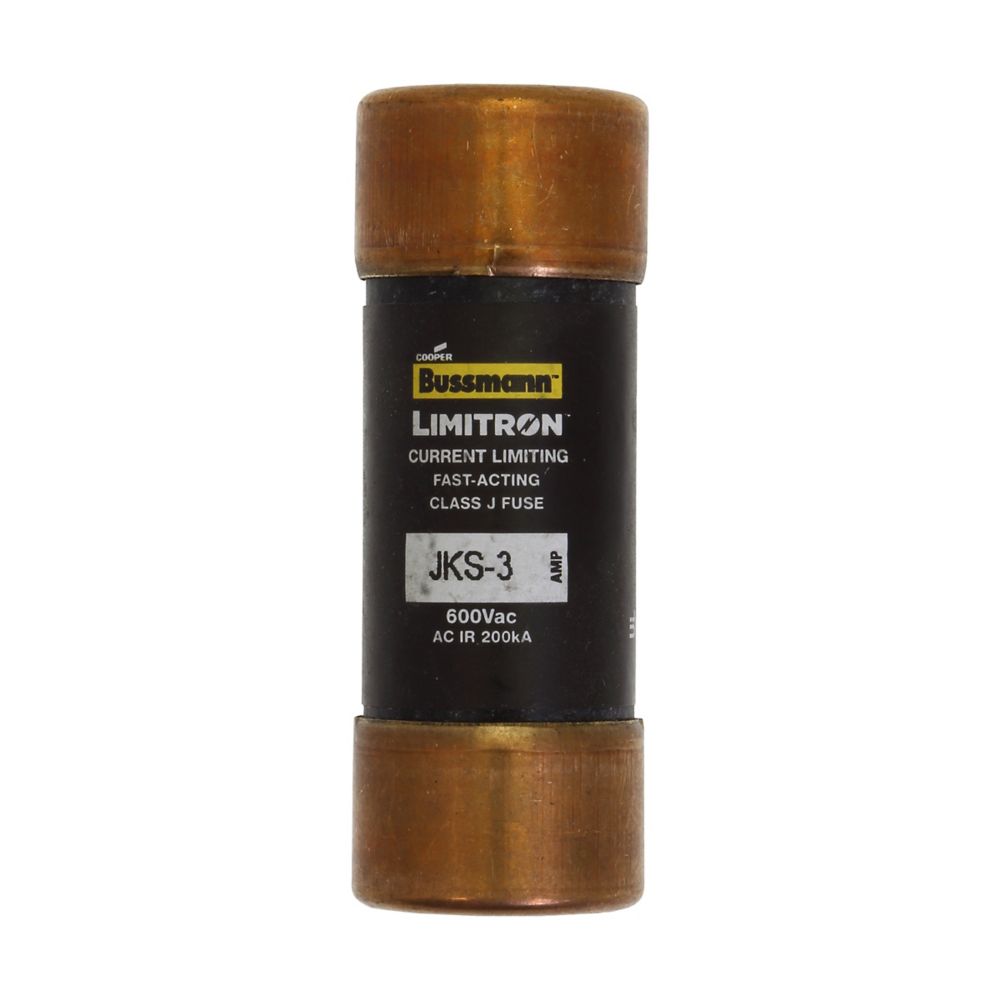

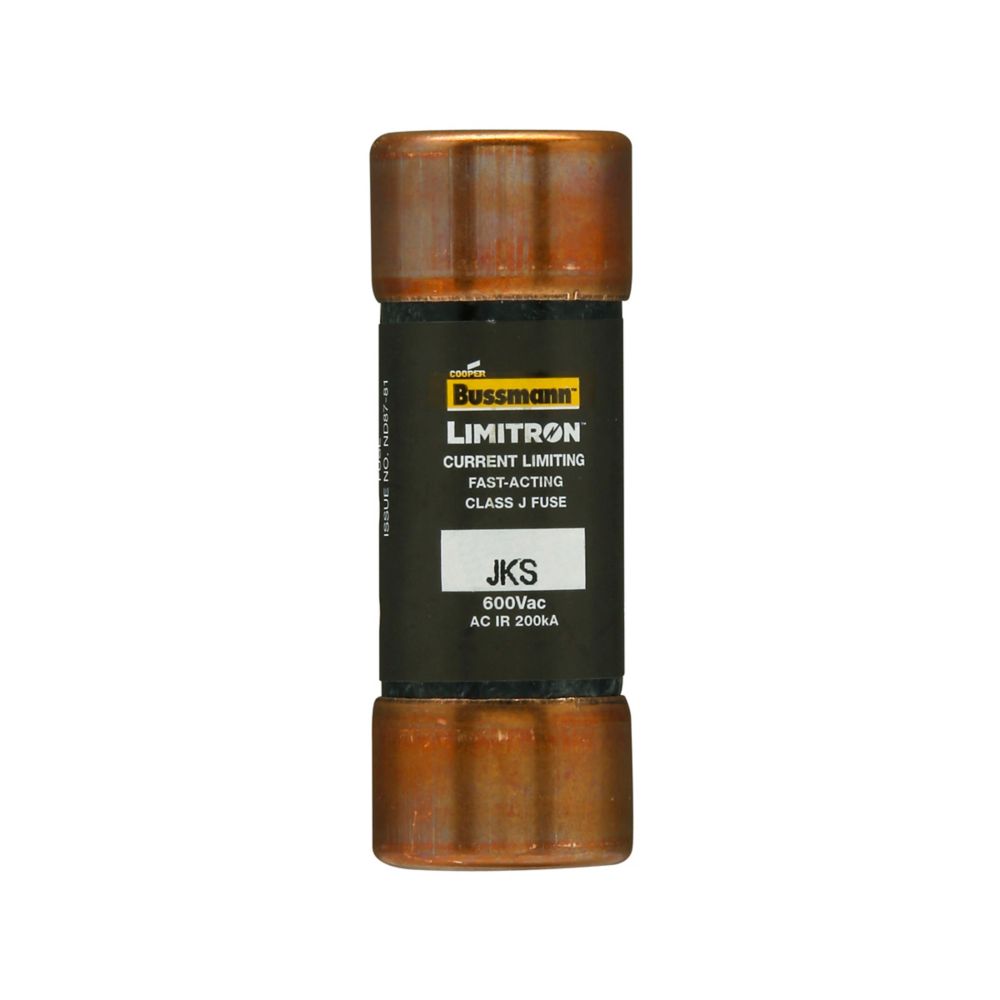

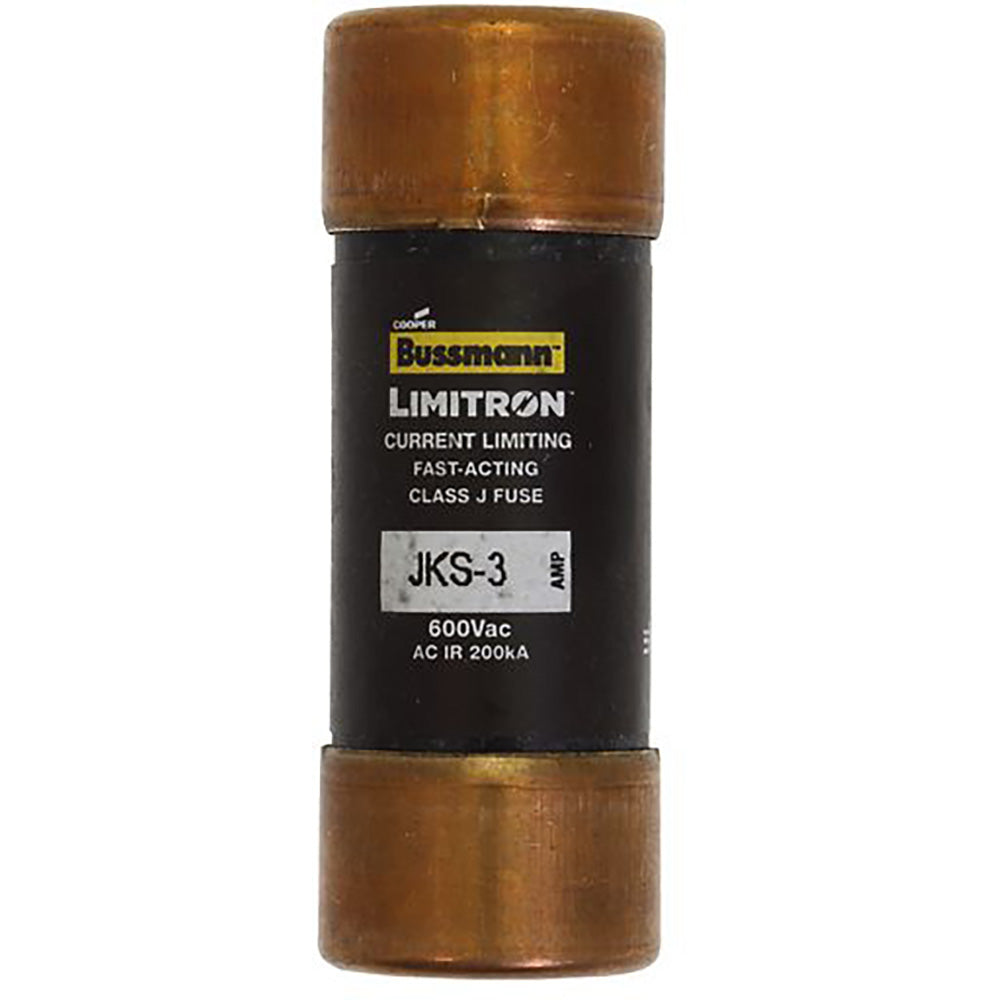

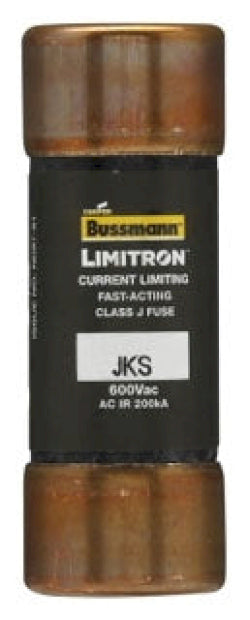

JKS-3 - Eaton Bussmann 3 Amp 600 Volt Class J Fast-Acting Fuse with 200kA Interrupt Rating

JKS-3

JKS-3 is a 3 Amp, 600 Volt AC Class J fast-acting fuse from Eaton Bussmann designed for reliable circuit protection.This JKS series fuse features current-limiting technology with a 200,000 A interrupting rating at 600 VAC, suitable for power panelboards and machinery disconnects. It has a ferrule end connection type and complies with UL 248-8 and CSA C22.2 No. 248.8 standards.

• Amperage: 3 Amps
• Voltage Rating: 600 Volts AC
• Fuse Type: Class J, Fast-Acting
• Interrupting Rating: 200,000 AIC at 600 VAC
• Connection Type: Ferrule end x ferrule end
• Physical Size: 0.81" x 2.25"
• UL Listed, Std. 248-8, Guide JDDZ, File E4273
• CSA Certified, C22.2 No. 248.8, File 53787
• Current Limiting
• Single Pole

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: JKS-3
• Manufacturer : Eaton
• Brand : Bussmann
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Family : Limitron
• Type : JKS
• Voltage : 600
• Amperage : 3
• AIC rating : 200kA@600V
• Diameter : 0.81
• Class Rating : J
• Barrels : 1

Product Data

• UPC : 051712630030
• GTIN : 00051712630030
• Country of Origin : Mexico
• Dimensions : 2.25 in x 0.81 in x 0.81 in (Length/Depth x Height x Width)
• Weight : 0.1
• Certification : CE/UL-248-8 Guide JDDZ/CSA Class 1422-02
