2 Year Warranty Guaranteed
All items both Re-Certified, and New sold by Essential Electric include a 30 day return policy and a 2-year full warranty. This means that they are guaranteed to be free from defects for a full 2 years from the date that the product was shipped from our warehouse.
Product Questions? Contact Us
Product Info
- Manufacturer:Eaton
- Sub-Category:Low Voltage Fuse
Description
JKS-250

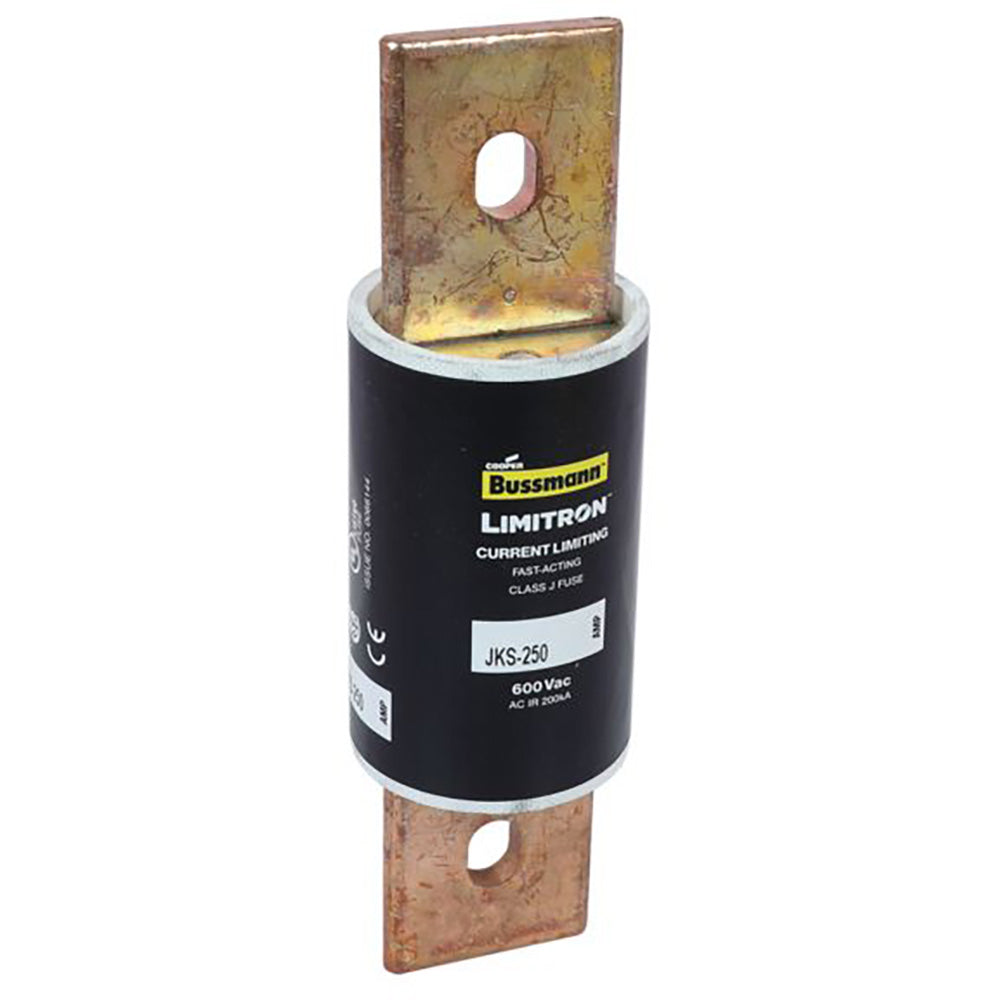

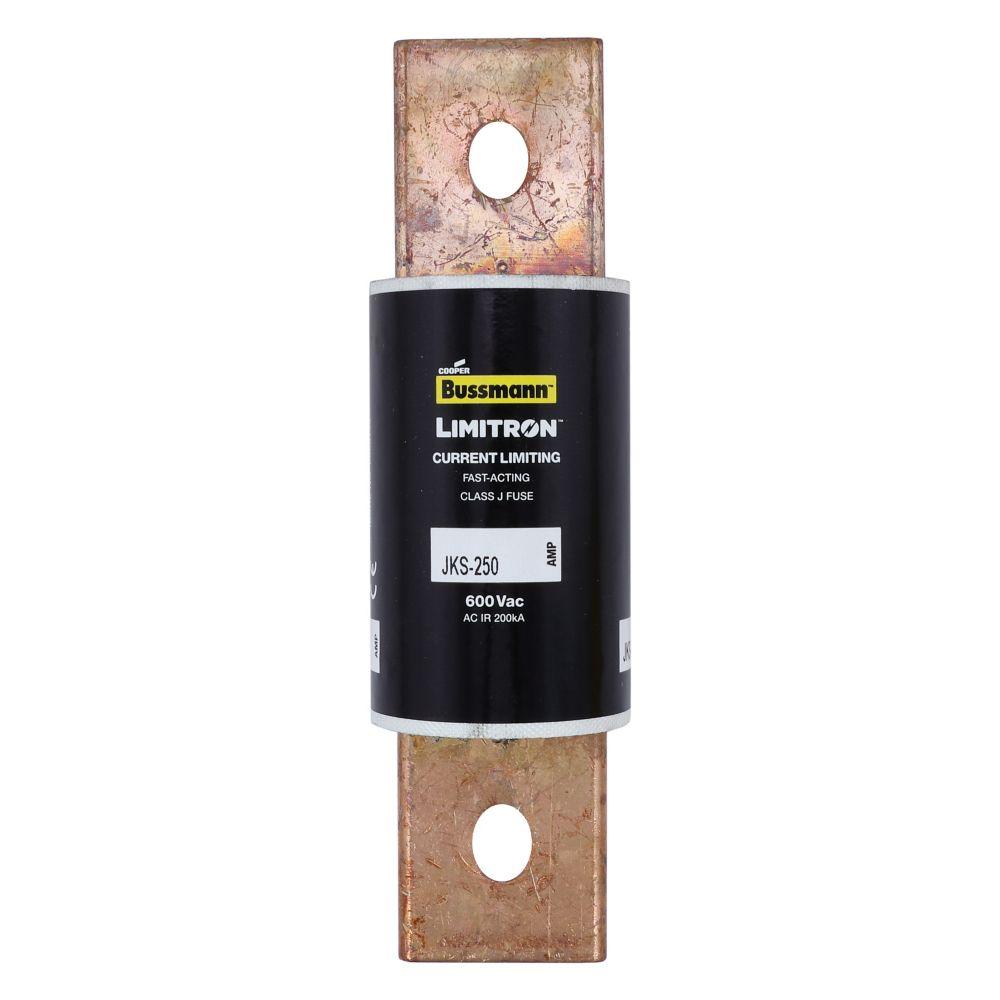

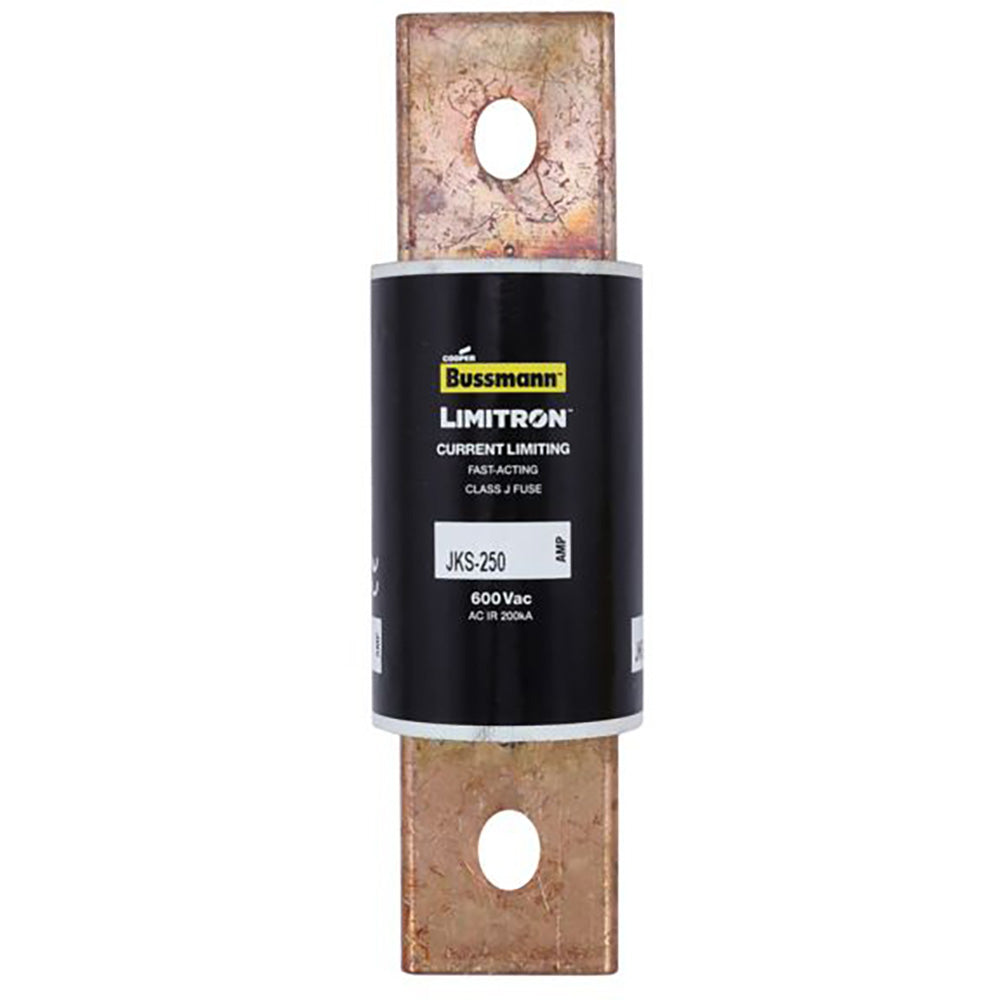

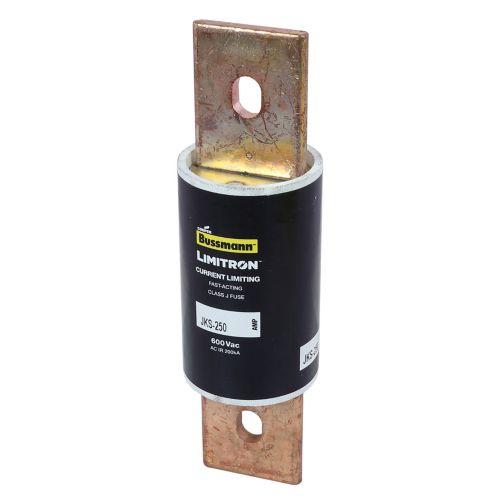

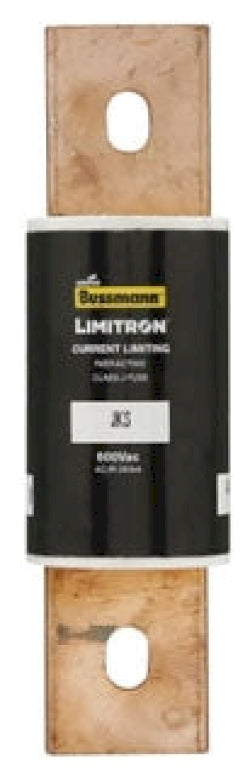

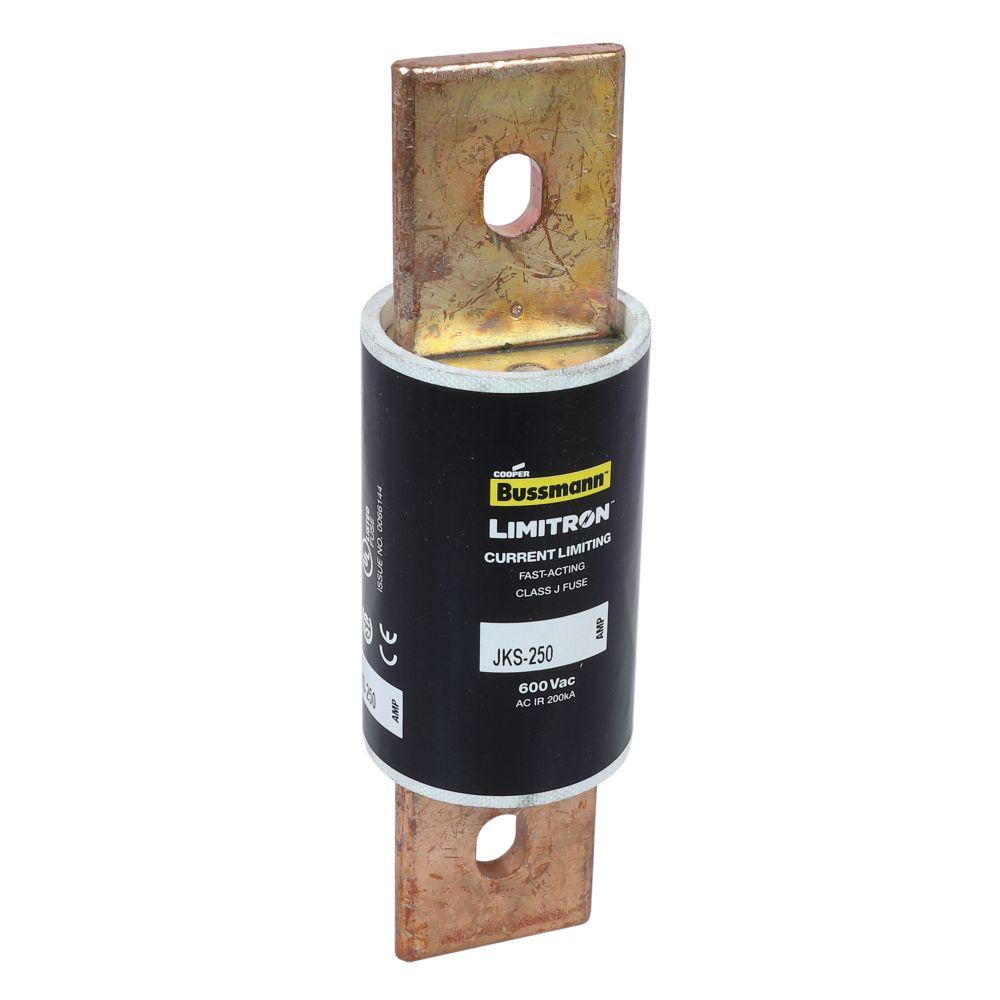

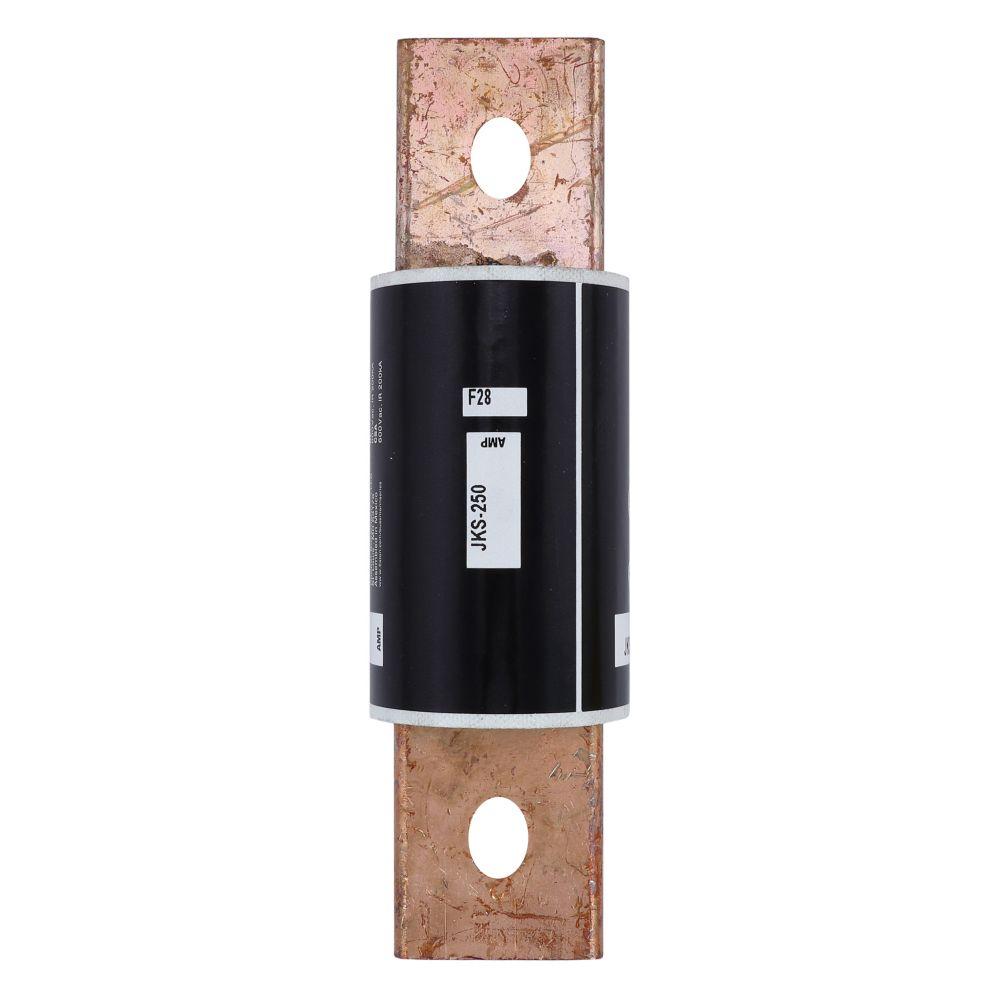

JKS-250 is a fast-acting Class J fuse from Eaton Bussmann designed for reliable circuit protection at 250 amps and 600 volts.This JKS series fuse features a current-limiting design with a 200kA interrupt rating at 600 VAC, suitable for low voltage power distribution and machinery disconnect applications. It has a single pole, bolted blade end connections, and meets UL 248-8 and CSA Class J standards for safety and performance.
- Amperage: 250 A
- Voltage Rating: 600 VAC
- Interrupt Rating: 200 kA RMS Symmetrical
- Fuse Type: Class J, Fast-Acting
- Poles: 1
- Mounting: Bolted blade end x bolted blade end
- Series: Limitron JKS
- Certifications: UL Listed, CSA Certified, CE
- Dimensions: Approximately 7.13 x 2 x 2 inches
- Weight: 1.85 lbs
Specifications
- Part Number: JKS-250
- Manufacturer : Eaton
- Brand : Bussmann
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : LIMITRON
- Type : JKS
- Voltage : 600
- Amperage : 250
- AIC rating : 200kA@600V
- Diameter : 2.11
- Class Rating : J
- Barrels : 1
Product Data
- UPC : 051712632508
- GTIN : 00051712632508
- Country of Origin : Mexico
- Dimensions : 7.13 in x 2 in x 2 in (Length/Depth x Height x Width)
- Weight : 1.85
- Certification : CE/UL-248-8 Guide JDDZ/CSA Class 1422-02
