Product Info
- Manufacturer:Eaton
- Sub-Category:High Voltage Fuse
Description
JKS25

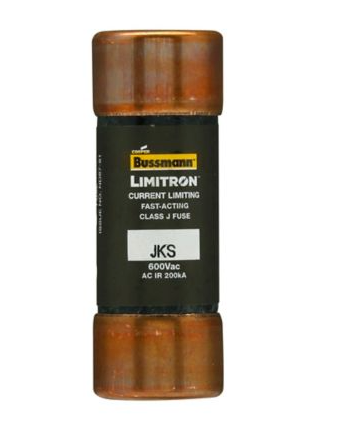

JKS-25 is an Eaton Bussmann Class J fast-acting fuse rated for 25 amps and 600 volts AC, designed for reliable circuit protection.This JKS series fuse features a current limiting, fast-acting design with a rejection style ferrule end connection. It has a high interrupting rating of 200kA at 600 VAC, suitable for industrial and commercial applications requiring Class J fuse protection. The fuse is non-indicating and single-pole, compliant with CE and RoHS standards.
- Amperage: 25 A
- Voltage Rating: 600 VAC
- Interrupting Rating: 200 kA at 600 VAC
- Fuse Class: Class J
- Poles: 1
- Connection Type: Ferrule end x ferrule end
- Fuse Type: Fast-acting, current limiting
- Fuse Indicator: Non-indicating
- Compliance: CE Marked, RoHS Compliant
- Packaging: Standard
- Series: JKS
- Dimensions: 2.25 in length, 0.81 in width and height
Specifications
- Part Number: JKS25
- Manufacturer : Eaton
- Brand : Bussmann
- Category : Fuse
- Item Subcategory : High Voltage Fuse
- Family : Class J
- Type : JKS
- Voltage : 600
- Amperage : 25
Product Data
- UPC : 051712630252
- GTIN : 00051712630252
- Weight : 0.08
