JKS-25 - Eaton Bussmann 25 Amp 600V Class J Fast-Acting Current Limiting Fuse, 200kA Interrupt Rating, Non-Indicating, Ferrule End

Save $1,964.45
SKU: JKS-25-New
Condition: New
Price:
$22.85 $1,987.30
Stock:
30 In stock, ready to be shipped

Same-Day Shipping

Most items ship same-day if ordered by 12:30 PM PST.

2 Year Warranty Guaranteed

All items both Re-Certified, and New sold by Essential Electric include a 30 day return policy and a 2-year full warranty. This means that they are guaranteed to be free from defects for a full 2 years from the date that the product was shipped from our warehouse.

Product Questions? Contact Us

Product Info

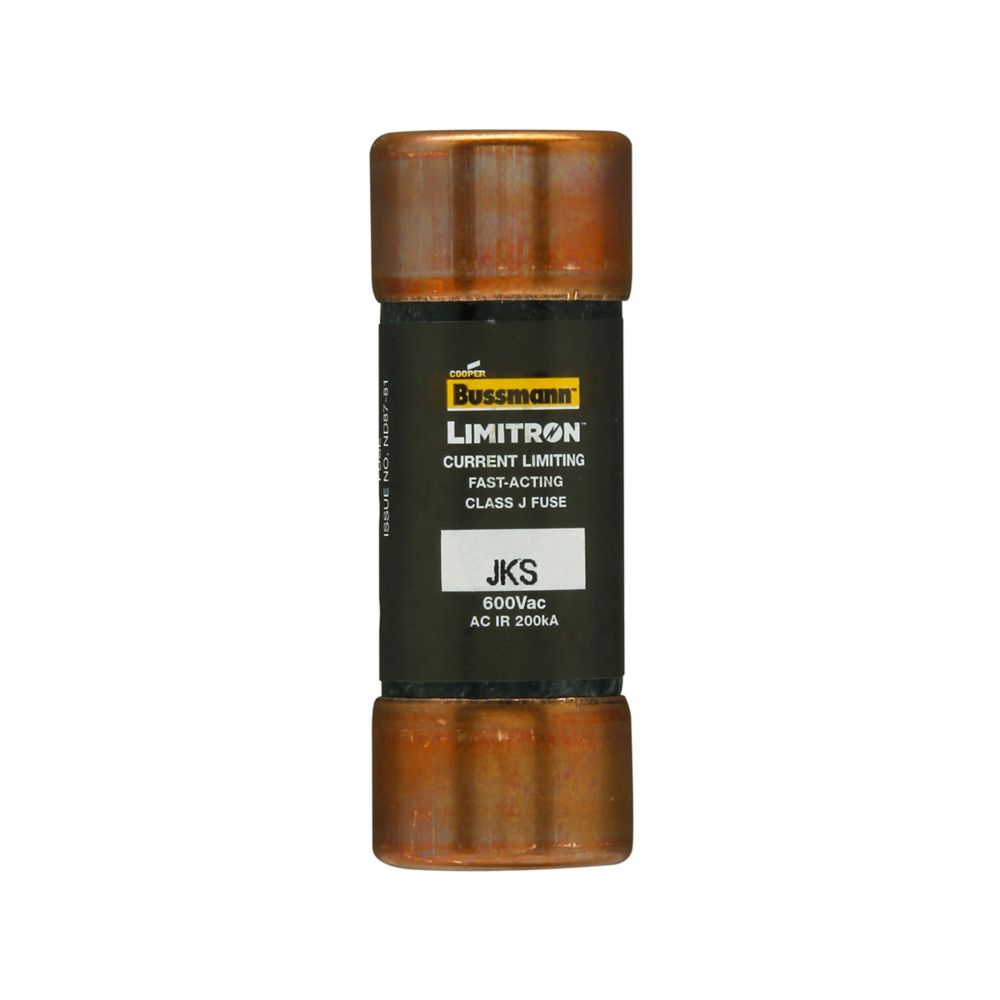

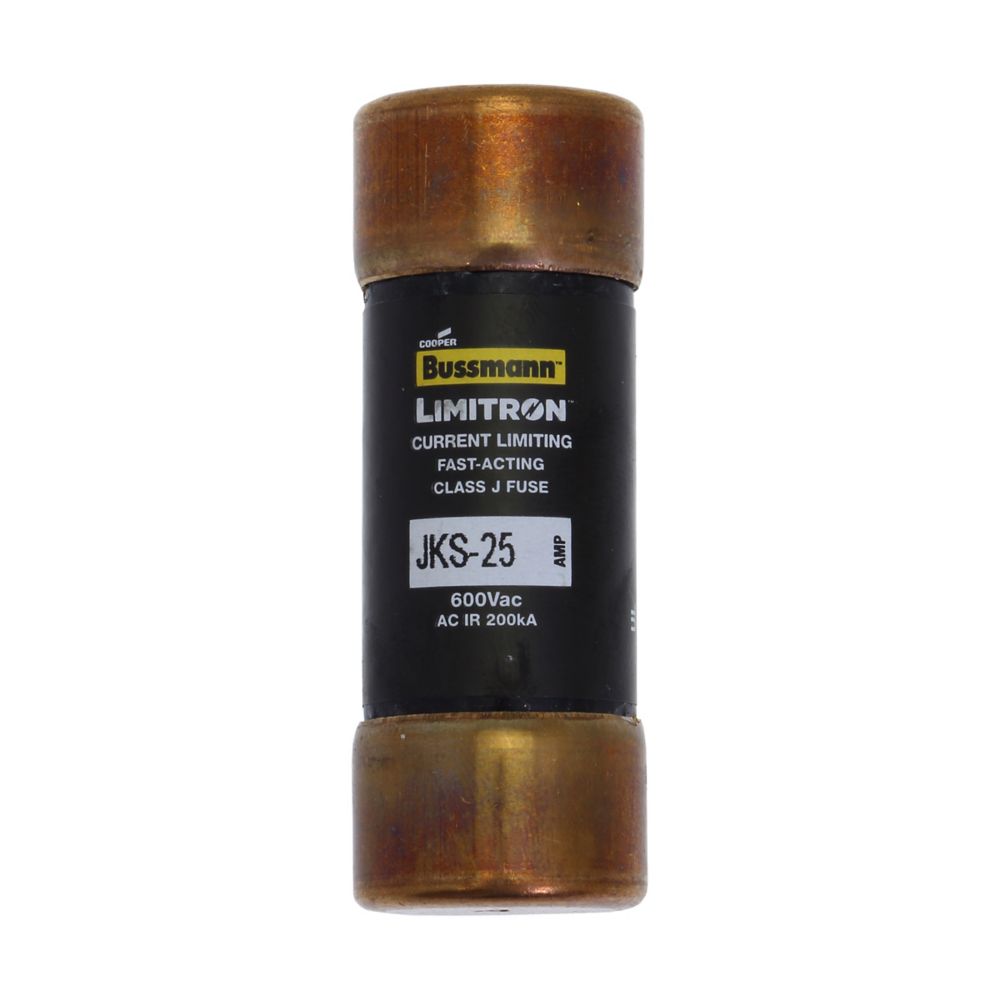

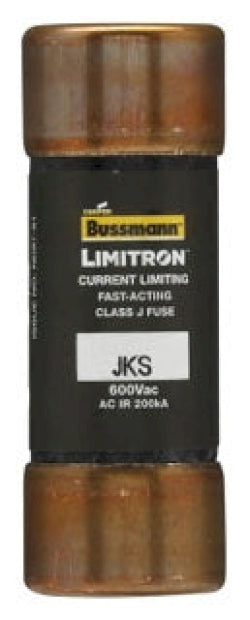

Cooper Bussmann JKS-25 Low Voltage LIMITRON 600V 25A Fuse - Essential Electric Supply
JKS-25 - Eaton Bussmann 25 Amp 600V Class J Fast-Acting Current Limiting Fuse, 200kA Interrupt Rating, Non-Indicating, Ferrule End - Essential Electric Supply
JKS-25 - Eaton Bussmann 25 Amp 600V Class J Fast-Acting Current Limiting Fuse, 200kA Interrupt Rating, Non-Indicating, Ferrule End - Essential Electric Supply
JKS-25 - Eaton Bussmann 25 Amp 600V Class J Fast-Acting Current Limiting Fuse, 200kA Interrupt Rating, Non-Indicating, Ferrule End - Essential Electric Supply
Roll over image to zoom in Click on image to zoom Images are for reference only
Cooper Bussmann JKS-25 Low Voltage LIMITRON 600V 25A Fuse - Essential Electric Supply
JKS-25 - Eaton Bussmann 25 Amp 600V Class J Fast-Acting Current Limiting Fuse, 200kA Interrupt Rating, Non-Indicating, Ferrule End - Essential Electric Supply
JKS-25 - Eaton Bussmann 25 Amp 600V Class J Fast-Acting Current Limiting Fuse, 200kA Interrupt Rating, Non-Indicating, Ferrule End - Essential Electric Supply
JKS-25 - Eaton Bussmann 25 Amp 600V Class J Fast-Acting Current Limiting Fuse, 200kA Interrupt Rating, Non-Indicating, Ferrule End - Essential Electric Supply

Description

JKS-25


JKS-25 is a 25 Amp, 600V, Class J, fast-acting, current limiting fuse designed for reliable circuit protection in demanding electrical applications.

This Eaton Bussmann JKS series fuse features a 200,000 Amp interrupting rating at 600V AC, providing superior protection against short circuits and overloads. It is a non-indicating, rejection style fuse with ferrule ends, suitable for power panelboards and machinery disconnects up to 700V AC. The JKS-25 is engineered for high-fault current environments and offers 10X better current limitation compared to standard fuses.

Key Specifications

  • Amperage: 25A
  • Voltage: 600V AC (700V AC version available)
  • Poles: 1
  • Mounting Type: Ferrule end (non-indicating)
  • Interrupt Rating: 200,000 AIC RMS at 600V AC
  • Series/Frame: JKS, Class J
  • Trip Unit: Fast-acting, current limiting
  • Certifications: CSA Component Acceptance C22.2 No 248.13, Class 1422-30
  • Dimensions: 2.25 in L x 0.81 in D
  • Typical Applications: Power panelboards, machinery disconnects
  • Rejection Style: Yes
  • Current Limitation: 10X better than standard fuses

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Specifications

  • Part Number: JKS-25
  • Manufacturer : Eaton
  • Brand : Bussmann
  • Category : Fuse
  • Item Subcategory : Low Voltage Fuse
  • Family : Limitron
  • Type : JKS
  • Voltage : 600
  • Amperage : 25
  • AIC rating : 200kA@600V
  • Diameter : 0.81
  • Class Rating : J
  • Barrels : 1

Product Data

  • UPC : 051712630252
  • GTIN : 00051712630252
  • Country of Origin : Mexico
  • Dimensions : 2.25 in x 0.81 in x 0.81 in (Length/Depth x Height x Width)
  • Weight : 1.15
  • Certification : CE/UL-248-8 Guide JDDZ/CSA Class 1422-02
