Product Info
- Manufacturer:Eaton
- Sub-Category:Low Voltage Fuse
Description
JKS-225

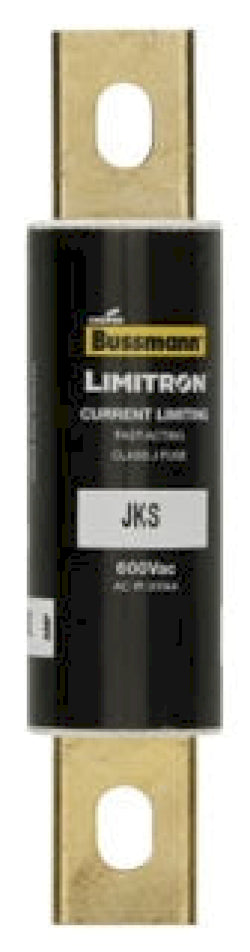

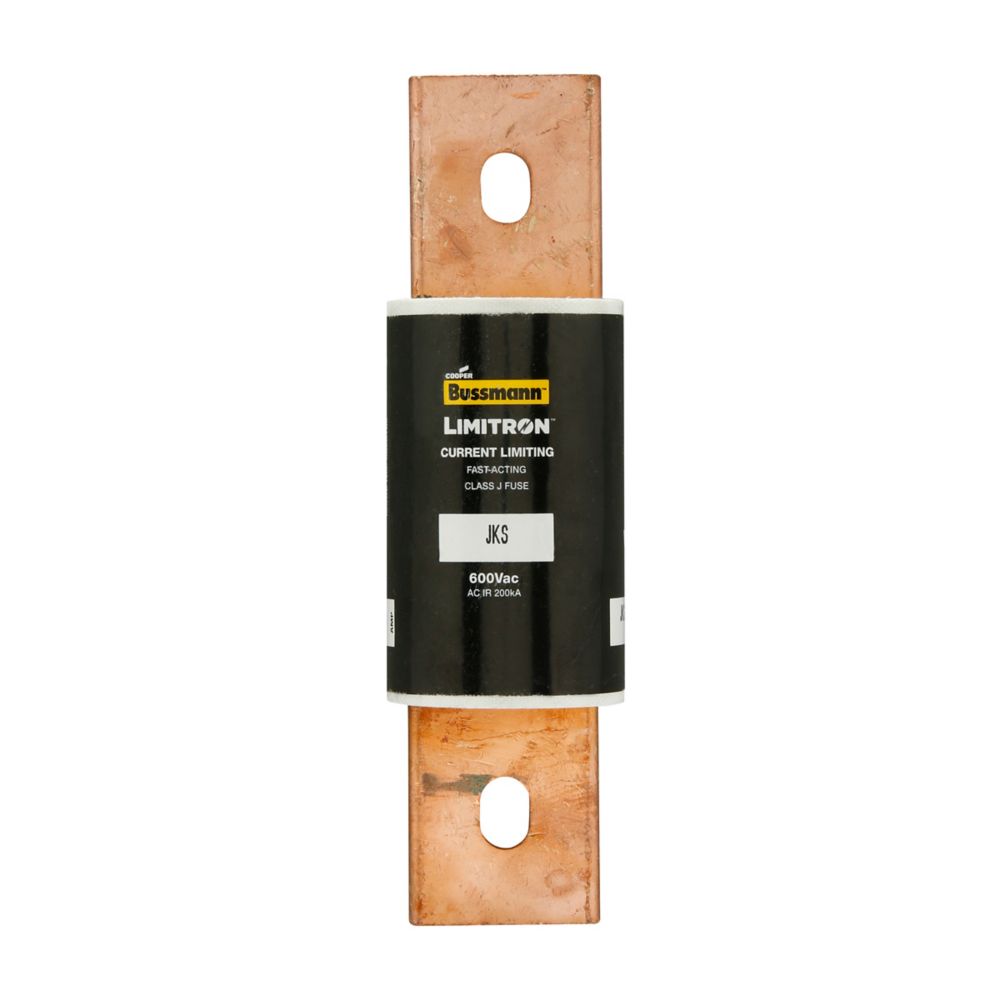

JKS-225 is a 225A, 600V Class J fast-acting, current limiting fuse designed for reliable circuit protection in industrial and commercial applications. This Bussmann Limitron series fuse features a bolt-on mounting style and high interrupting capacity for demanding environments. The JKS-225 fuse is UL Listed and CSA Certified, meeting safety standards for use in a wide range of electrical systems. Its rejection style design prevents incorrect fuse installation, ensuring proper protection and compliance.
- Part Number: JKS-225
- Manufacturer: Bussmann, Cooper Bussmann, Eaton
- Amperage: 225A
- Voltage: 600V AC
- Class: J
- Mounting Type: Bolt-On
- Interrupting Rating: 200,000AIC
- Series: Limitron
- Acting Type: Fast-Acting
- Current Limiting: Yes
- Rejection Style: Yes
- Certifications: UL Listed, CSA Certified
Specifications
- Part Number: JKS-225
- Manufacturer : Eaton
- Brand : Bussmann
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : LIMITRON
- Type : JKS
- Voltage : 600
- Amperage : 225
- AIC rating : 200kA@600V
- Diameter : 2.11
- Class Rating : J
- Barrels : 1
Product Data
- UPC : 051712632256
- GTIN : 00051712632256
- Dimensions : 7.13 in x 2 in x 2 in (Length/Depth x Height x Width)
- Weight : 1.85
- Certification : Ul Listed Csa Certified Ce Marked
