JKS-2 - Eaton Bussmann Series Class J Fast-Acting Fuse 2A 600V 200kA Interrupt Rating

JKS-2

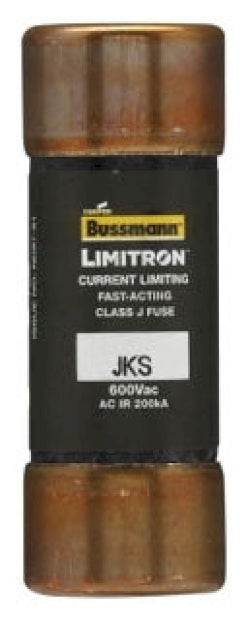

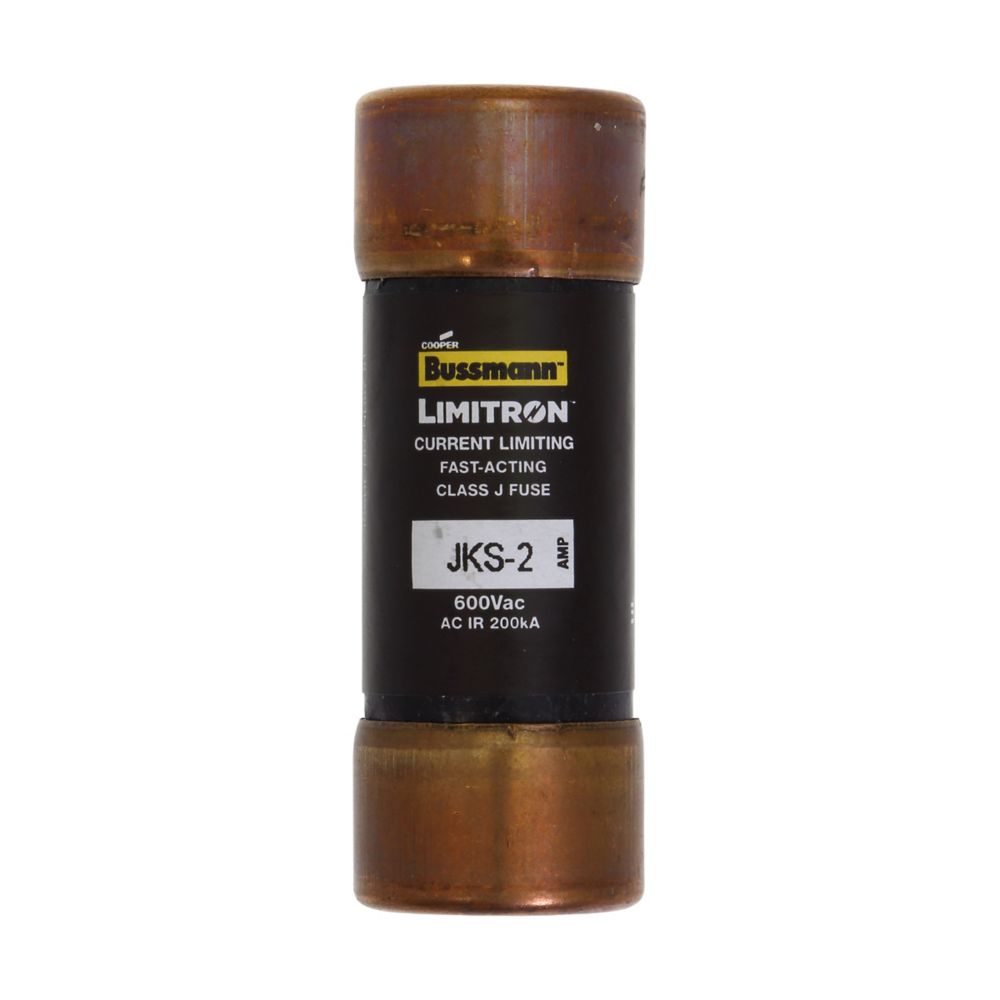

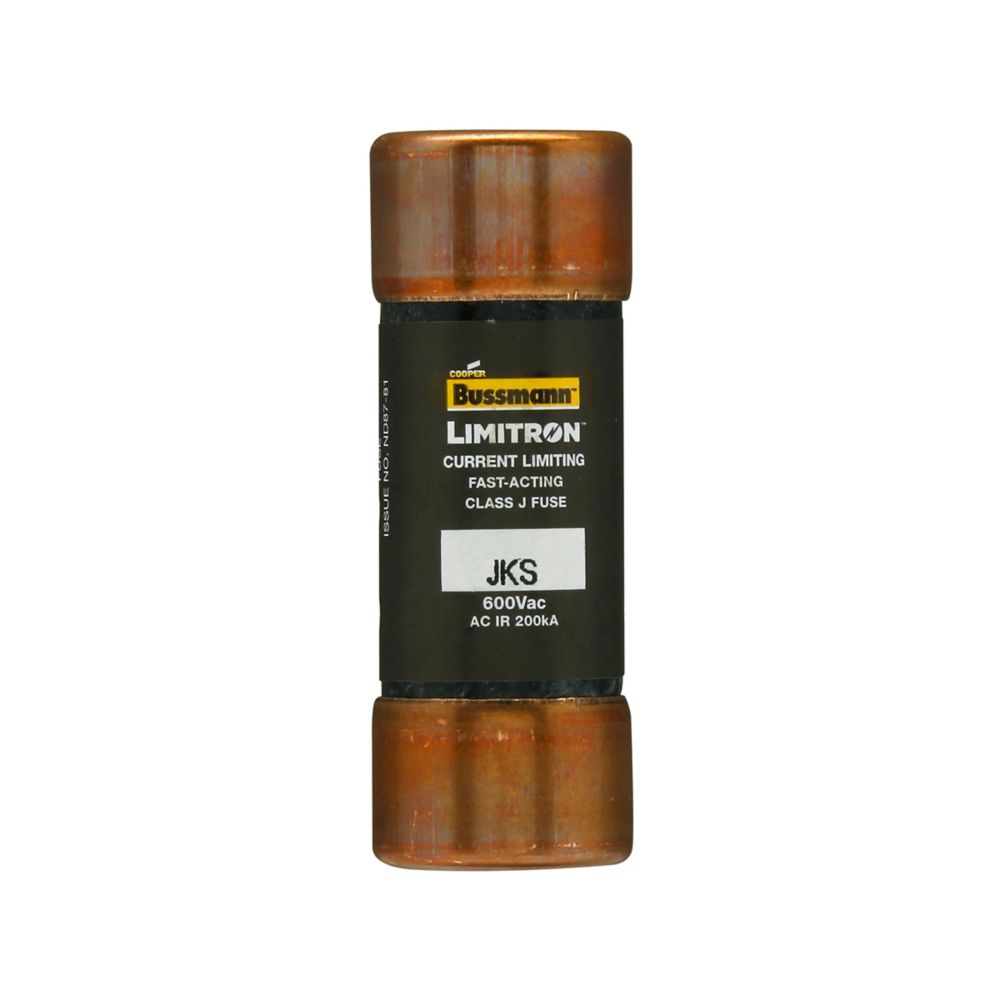

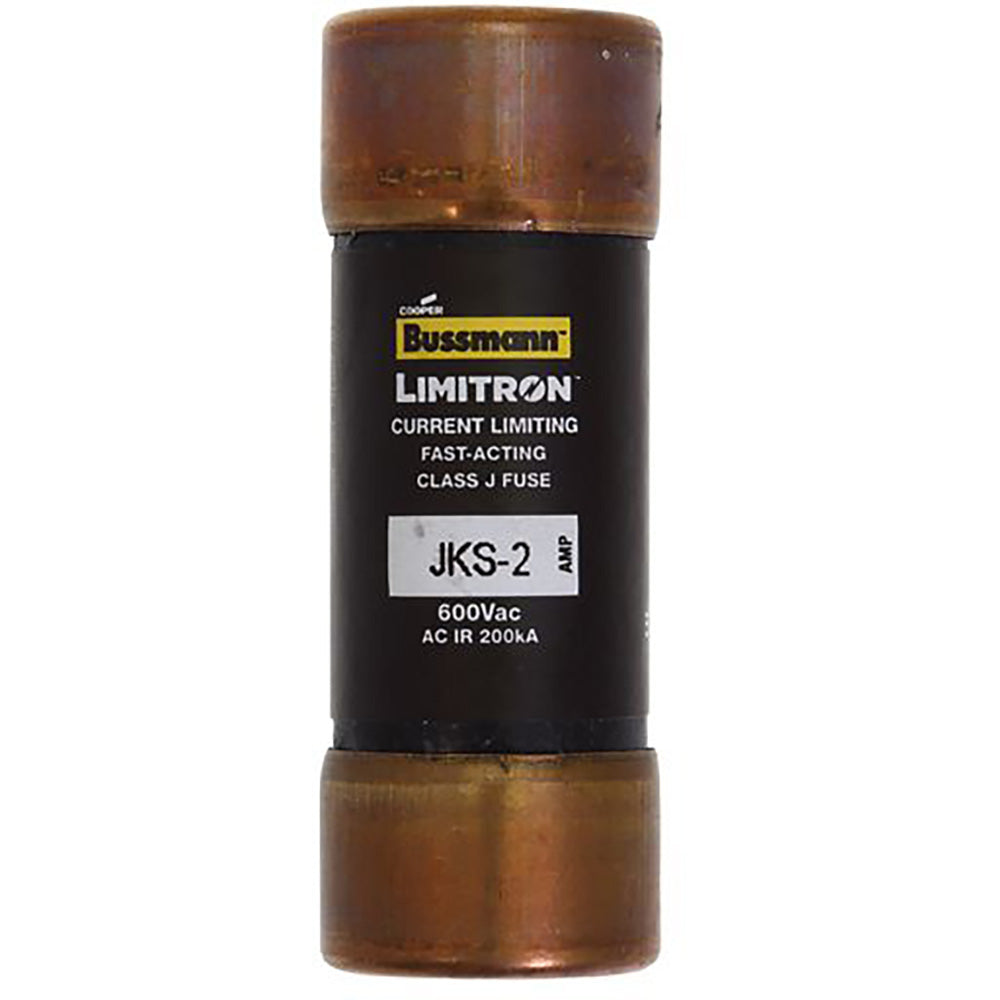

JKS-2 is a Eaton Bussmann series Class J fast-acting fuse rated for 2 amps and 600 volts with a 200kA interrupt rating.This fuse provides current-limiting protection for power panelboards and machinery disconnects up to 600 VAC. It features a ferrule end x ferrule end connection type, is non-indicating, and complies with CE marking and RoHS standards. The JKS-2 fuse is designed for high fault current circuits with a compact size of 0.81 x 2.25 x 0.81 inches and weighs approximately 1.15 lb.

• Amperage: 2 A
• Voltage Rating: 600 V AC
• Interrupting Rating: 200 kA at 600 VAC
• Fuse Type: Class J Fast-Acting
• Connection Type: Ferrule end x ferrule end
• Dimensions (HxWxD): 0.81 x 2.25 x 0.81 inches
• Weight: 1.15 lb
• Certifications: CE Marked, RoHS Compliant
• Non-indicating fuse
• Series: Bussmann JKS

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: JKS-2
• Manufacturer : Eaton
• Brand : Bussmann
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Family : LIMITRON
• Type : JKS
• Voltage : 600
• Amperage : 2
• AIC rating : 200kA@600V
• Diameter : 0.81
• Class Rating : J
• Barrels : 1

Product Data

• UPC : 051712630023
• GTIN : 00051712630023
• Dimensions : 0.81 in x 2.25 in x 0.81 in (Length/Depth x Height x Width)
• Weight : 1.15
• Certification : UL, CSA, CE
