Product Info
- Manufacturer:Eaton
- Sub-Category:Low Voltage Fuse
Description
JKS-175

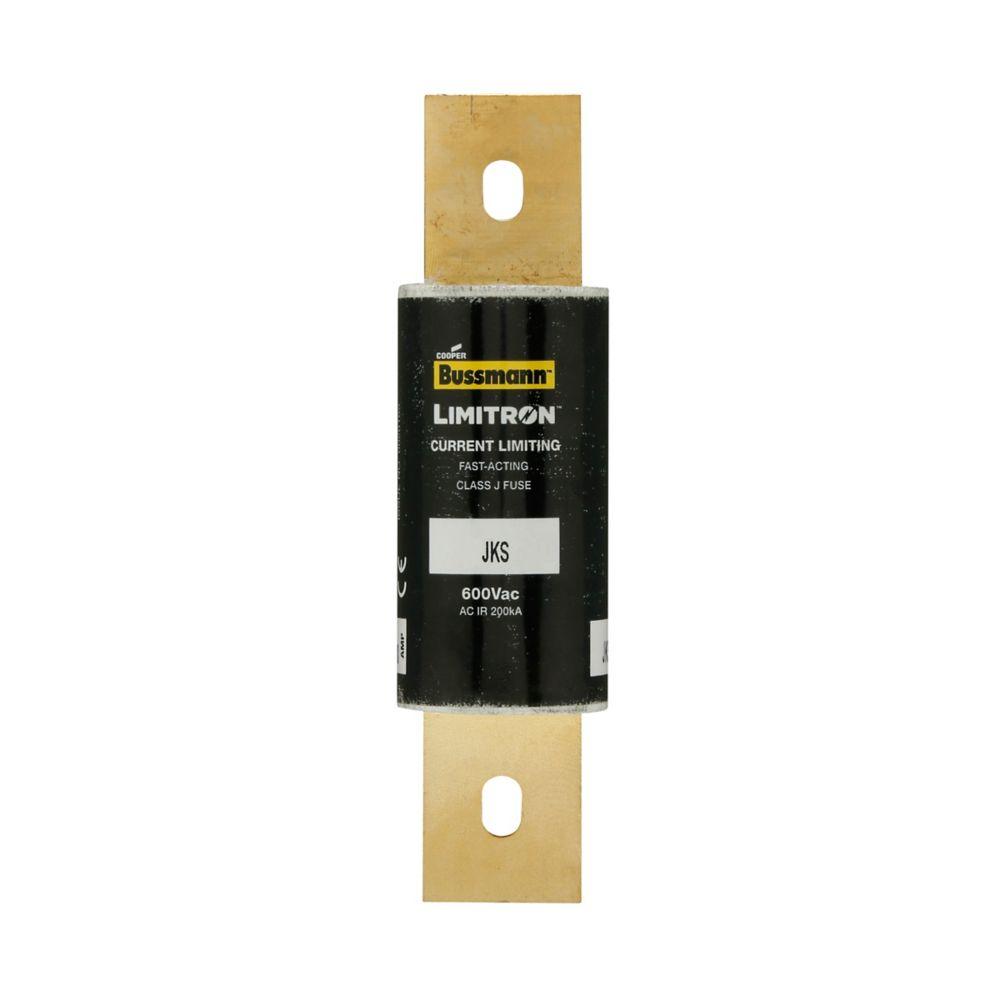

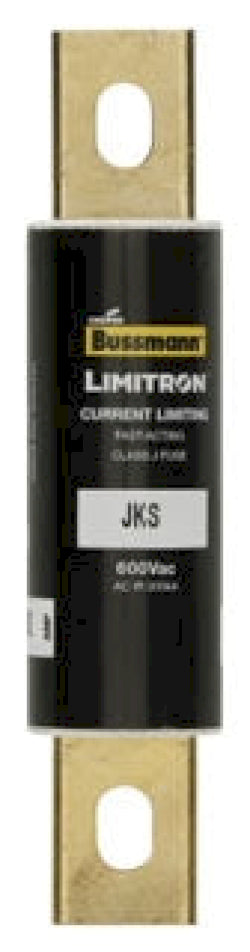

JKS-175 is a Class J fast-acting, current limiting fuse from Eaton Bussmann, designed for reliable circuit protection in power panelboards and machinery disconnects.
This non-indicating, rejection style fuse features a bolted blade end connection and is engineered for high interrupting capacity applications. It is part of the Bussmann Series LIMITRON line, offering robust performance and safety in demanding electrical environments.
-
Key Specifications
- Amperage: 175A
- Voltage: 600V
- Poles: 1
- Mounting Type: Bolted blade end x bolted blade end
- Interrupt Rating: 200kAIC at 600V AC
- Series/Frame: Bussmann Series JKS, Class J
- Trip Unit: Non-indicating (no visual trip indicator)
- Certifications: RoHS Compliant
- Product Length: 5.75 in
- Product Width: 1.5 in
- Product Height: 1.5 in
- Weight: 0.855 lb
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Specifications
- Part Number: JKS-175
- Manufacturer : Eaton
- Brand : Bussmann
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : Limitron
- Type : JKS
- Voltage : 600
- Amperage : 175
- AIC rating : 200kA@600V
- Diameter : 1.5
- Class Rating : J
- Barrels : 1
Product Data
- UPC : 051712631754
- GTIN : 00051712631754
- Country of Origin : China
- Dimensions : 5.75 in x 1.5 in x 1.5 in (Length/Depth x Height x Width)
- Weight : 0.855
- Certification : CE/UL-248-8 Guide JDDZ/CSA Class 1422-02
