Product Info
- Manufacturer:Eaton
- Sub-Category:Low Voltage Fuse
Description
JKS-150

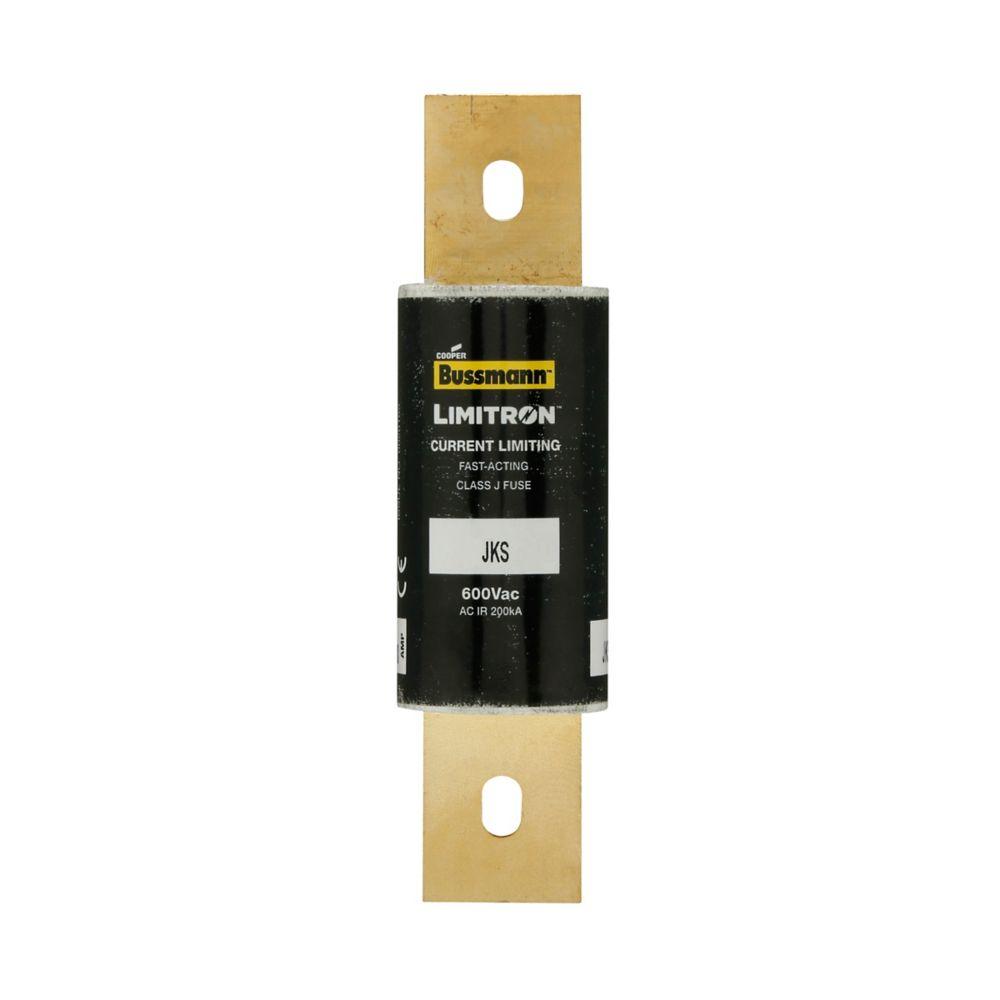

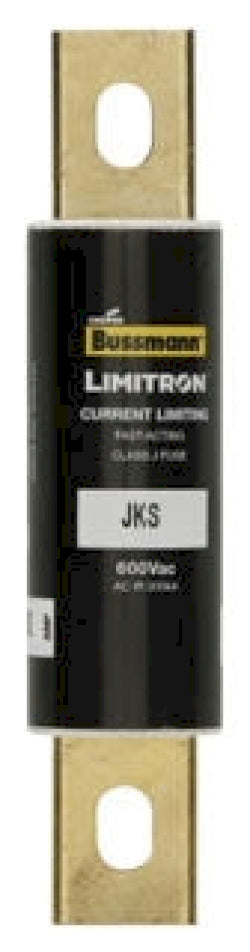

JKS-150 is a fast-acting, Class J fuse from Eaton Bussmann designed for reliable circuit protection.This JKS series fuse features a 150 ampere rating, 600 volt AC voltage rating, and a high interrupting rating of 200kA at 600Vac. It is a current-limiting, rejection style fuse with bolted blade end connections and a non-indicating design, suitable for industrial and commercial applications requiring fast response to overcurrent conditions.
- Key Specifications
- Amperage Rating: 150 A
- Voltage Rating: 600 V AC
- Interrupting Rating: 200 kAIC at 600 Vac
- Class: Class J
- Fuse Type: Fast-Acting, Current Limiting
- Connection: Bolted blade end x bolted blade end
- Fuse Indicator: Non-indicating
- Mounting Type: Rejection style
- Length: 5.75 inches
- Diameter: 1.5 inches
- Certifications: UL 248-8, CSA, CE
- Part Number: JKS-150
- Manufacturer : Eaton
- Brand : Bussmann
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : LIMITRON
- Type : JKS
- Voltage : 600
- Amperage : 150
- AIC rating : 200kA@600V
- Diameter : 1.5
- Class Rating : J
- Barrels : 1
- UPC : 051712631501
- GTIN : 00051712631501
- Country of Origin : China
- Dimensions : 5.75 in x 1.5 in x 1.5 in (Length/Depth x Height x Width)
- Weight : 0.855
- Certification : CE/UL-248-8 Guide JDDZ/CSA Class 1422-02
