Product Info
- Manufacturer:Eaton
- Sub-Category:Low Voltage Fuse
Description
JKS-15

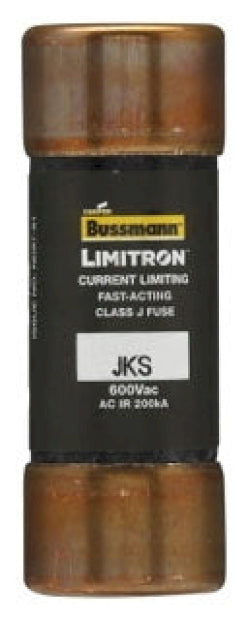

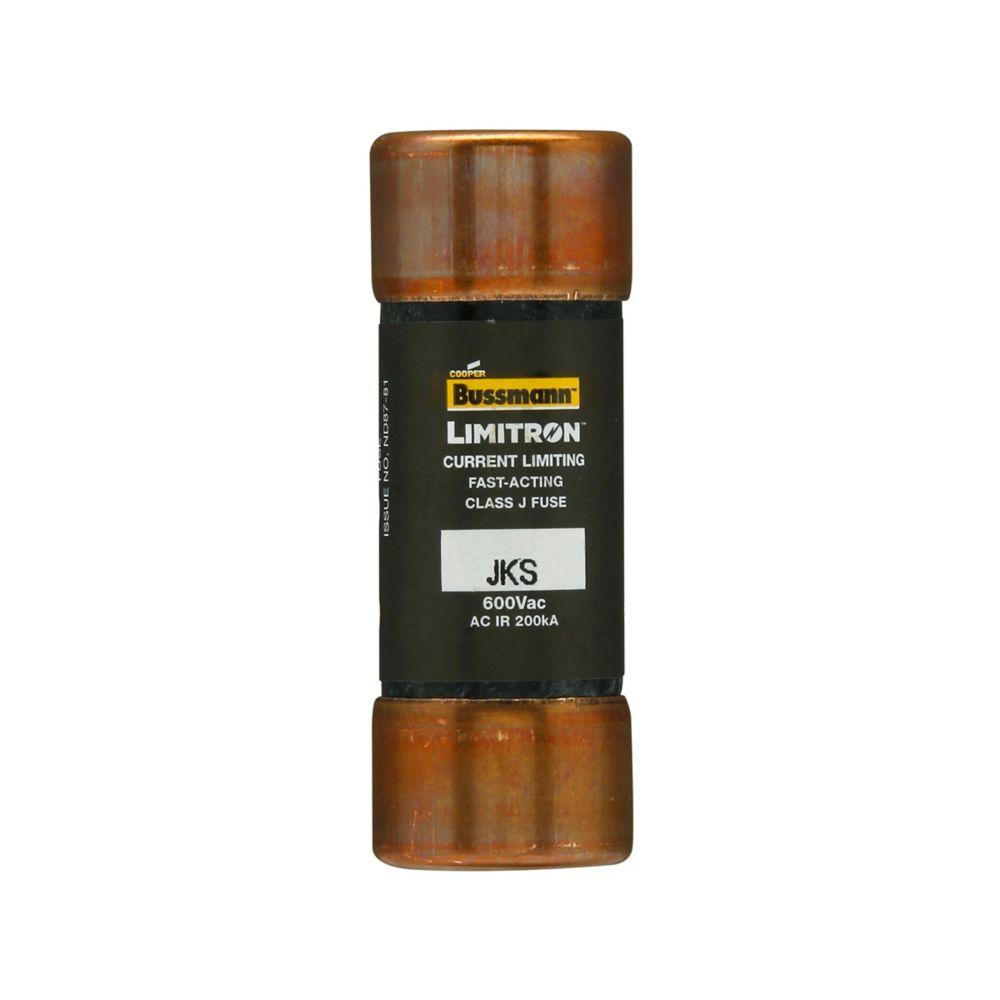

JKS-15 is a fast-acting, current-limiting Class J fuse from Eaton Bussmann designed for reliable circuit protection.This 15 ampere fuse features a 600 VAC voltage rating and a high interrupting rating of 200 kA, suitable for power panelboards and machinery disconnects. It is a rejection style fuse ensuring proper fit and safety compliance with CE marking and RoHS standards.
- Amperage: 15 A
- Voltage Rating: 600 VAC
- Interrupting Rating: 200 kA
- Fuse Type: Fast-Acting, Current Limiting
- Class: J
- Body Style: Cartridge, Rejection Style
- Mounting Type: Panelboard and machinery disconnect compatible
- Certifications: CE Marked, RoHS Compliant
- Series: Bussmann Limitron
Specifications
- Part Number: JKS-15
- Manufacturer : Eaton
- Brand : Bussmann
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : Limitron
- Type : JKS
- Voltage : 600
- Amperage : 15
- AIC rating : 200kA@600V
- Diameter : 0.81
- Class Rating : J
- Barrels : 1
Product Data
- UPC : 051712630153
- GTIN : 00051712630153
- Country of Origin : Mexico
- Dimensions : 2.25 in x 0.81 in x 0.81 in (Length/Depth x Height x Width)
- Weight : 1.15
- Certification : CE/UL-248-8 Guide JDDZ/CSA Class 1422-02
