2 Year Warranty Guaranteed
All items both Re-Certified, and New sold by Essential Electric include a 30 day return policy and a 2-year full warranty. This means that they are guaranteed to be free from defects for a full 2 years from the date that the product was shipped from our warehouse.
Product Questions? Contact Us
Product Info
- Manufacturer:Eaton
- Sub-Category:Low Voltage Fuse
Description
JKS-125

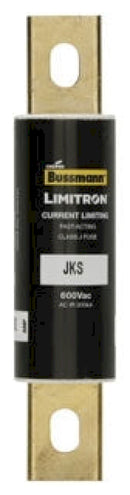

JKS-125 is a 125 amp, 600 volt Class J fast-acting fuse from Eaton Bussmann designed for advanced circuit protection.This LIMITRON series fuse features a current-limiting design with a 200 kA interrupting rating at 600 VAC. It is a single-pole fuse with bolted blade terminals for secure mounting in power panelboards and machinery disconnects. The JKS-125 is UL Listed, CSA Certified, and CE marked, ensuring compliance with key safety standards.
- Amperage: 125 A
- Voltage Rating: 600 VAC
- Poles: 1
- Mounting Type: Bolted blade terminals
- Interrupting Rating: 200,000 A RMS Symmetrical
- Fuse Type: Class J, Fast-Acting
- Series: LIMITRON JKS
- Non-indicating fuse
- Length: 5.75 inches
- Diameter: 1.63 inches
- Certifications: UL Listed, CSA Certified, CE Marked
Specifications
- Part Number: JKS-125
- Manufacturer : Eaton
- Brand : Bussmann
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : LIMITRON
- Type : JKS
- Voltage : 600
- Amperage : 125
- AIC rating : 200kA@600V
- Diameter : 1.5
- Class Rating : J
- Barrels : 1
Product Data
- UPC : 051712631259
- GTIN : 00051712631259
- Country of Origin : China
- Dimensions : 5.75 in x 1.5 in x 1.5 in (Length/Depth x Height x Width)
- Weight : 0.855
- Certification : CE/UL-248-8 Guide JDDZ/CSA Class 1422-02
