JKS-12 - Eaton Bussmann Class J Fast Acting Fuse 12A 600V 1-Pole Rejection Style 200kA Interrupting Rating

JKS-12

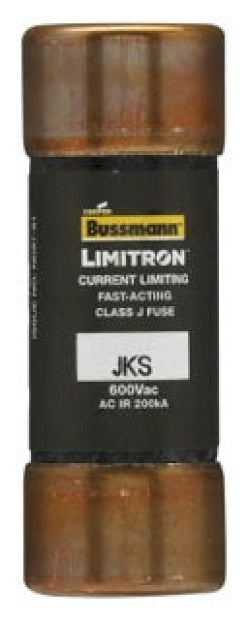

JKS-12 is an Eaton Bussmann Class J fast-acting, current-limiting fuse designed for reliable circuit protection.This 12 amp, 600 volt AC fuse features a rejection style mounting and provides a high interrupting rating of 200,000 amps at 600 VAC. It is UL listed to standard 248-8 and CSA certified, suitable for protecting lighting, heating, and other non-inductive loads in power distribution systems. The fuse has a compact physical size of 0.81" x 2.25" and is part of the Limitron JKS series known for fast-acting current limitation to protect equipment from short circuits and ground faults.

Key Specifications
• Amperage: 12 Amps
• Voltage Rating: 600 VAC
• Poles: 1
• Mounting Type: Rejection Style
• Interrupting Rating: 200,000 AIC RMS @ 600 VAC
• Series: Bussmann Limitron JKS
• Fuse Type: Fast Acting, Current Limiting
• Physical Size: 0.81" x 2.25"
• Certifications: UL Listed (Std. 248-8), CSA Certified (C22.2 No. 248.8)

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: JKS-12
• Manufacturer : Eaton
• Brand : Bussmann
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Family : LIMITRON
• Type : JKS
• Voltage : 600
• Amperage : 12
• AIC rating : 200kA@600V
• Diameter : 0.81
• Class Rating : J
• Barrels : 1

Product Data

• UPC : 051712630122
• GTIN : 00051712630122
• Dimensions : 2.25 in x 0.81 in x 0.81 in (Length/Depth x Height x Width)
• Weight : 1.15
• Certification : UL, CSA, CE
