2 Year Warranty Guaranteed
All items both Re-Certified, and New sold by Essential Electric include a 30 day return policy and a 2-year full warranty. This means that they are guaranteed to be free from defects for a full 2 years from the date that the product was shipped from our warehouse.
Product Questions? Contact Us
Product Info
- Manufacturer:Eaton
- Sub-Category:Low Voltage Fuse
Description
JKS-110

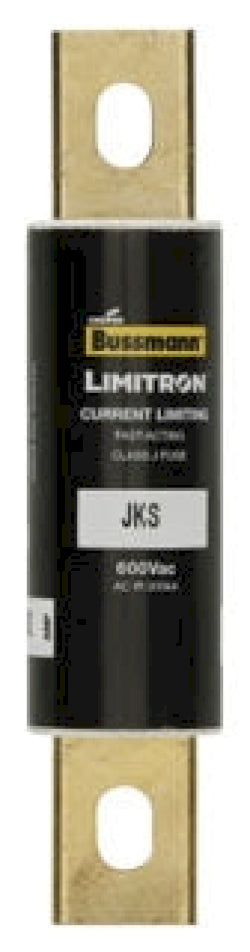

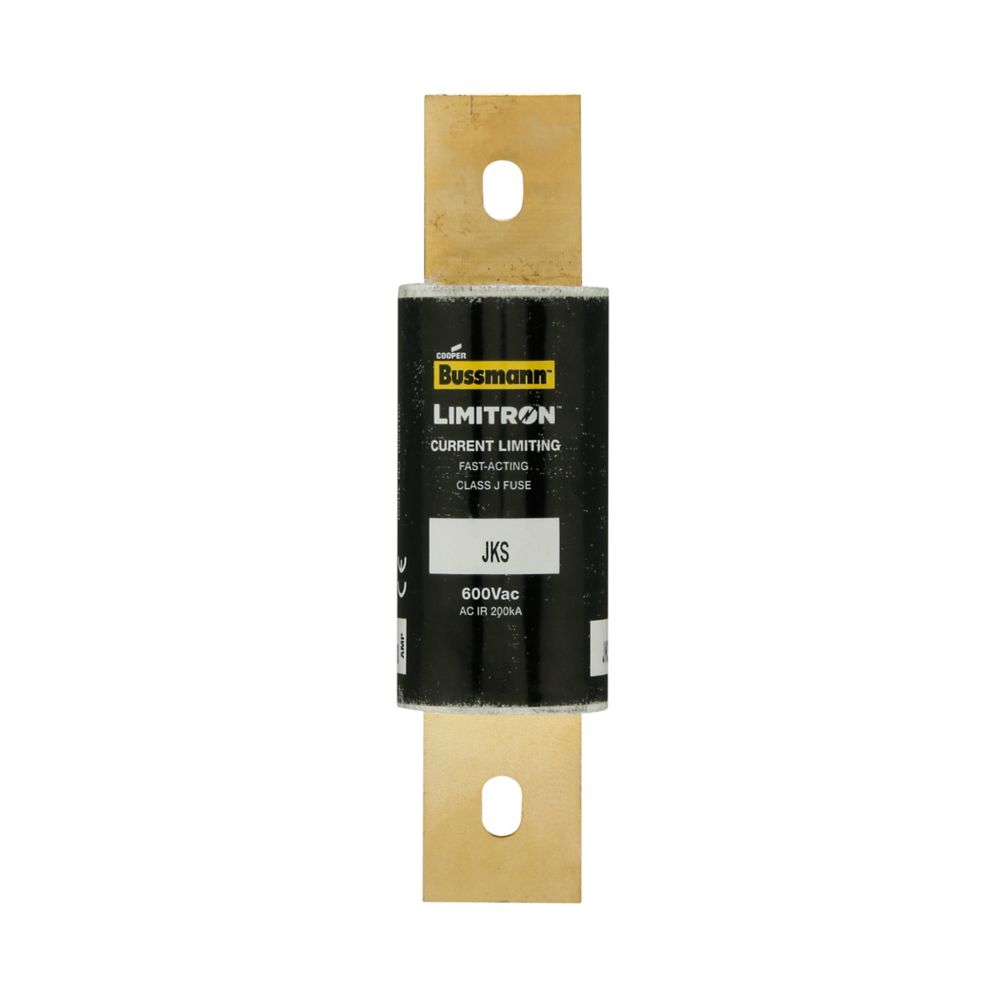

JKS-110 is an Eaton Bussmann Class J fast acting fuse designed for reliable circuit protection.This 110 ampere, 600 volt fuse features a single pole configuration with a bolted blade end connection. It offers a high interrupt rating of 200 kA at 600 VAC, ensuring safe interruption of fault currents. The JKS series is a Limitron fast-acting, current-limiting fuse suitable for power panelboards and machinery disconnects. It is non-indicating and RoHS compliant.
- Key Specifications
- Amperage: 110 A
- Voltage Rating: 600 V AC
- Poles: 1
- Interrupt Rating: 200 kA RMS Symmetrical
- Fuse Class: J
- Connection Type: Bolted blade end
- Fuse Type: Fast Acting, Current Limiting
- Indication: Non-indicating
- Series: Bussmann JKS
- Compliance: RoHS Compliant, UL Listed, CSA Certified, CE
- Part Number: JKS-110
- Manufacturer : Eaton
- Brand : Bussmann
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : LIMITRON
- Type : JKS
- Voltage : 600
- Amperage : 110
- AIC rating : 200kA@600V
- Diameter : 1.13
- Class Rating : J
- Barrels : 1
- UPC : 051712631105
- GTIN : 00051712631105
- Country of Origin : China
- Dimensions : 5.75 in x 1.5 in x 1.5 in (Length/Depth x Height x Width)
- Weight : 0.855
- Certification : CE/UL-248-8 Guide JDDZ/CSA Class 1422-02
