Product Info
- Manufacturer:Eaton
- Sub-Category:Medium Voltage Fuse
Description
JKS-10

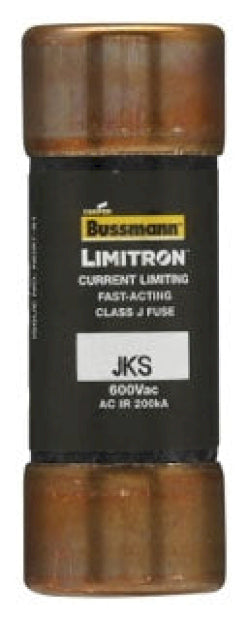

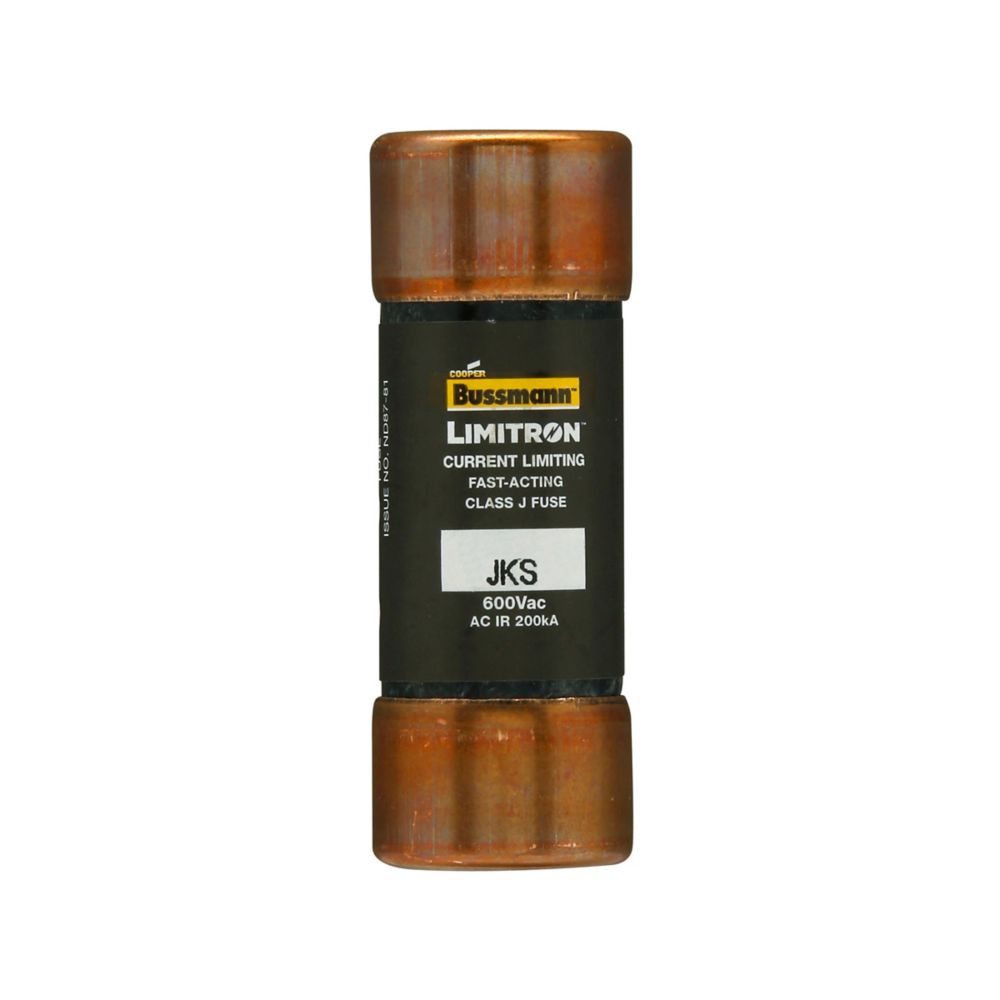

JKS-10 is a fast-acting, current-limiting Class J fuse from Eaton Bussmann, designed for reliable circuit protection in power panelboards and machinery disconnects.
This non-indicating, ferrule-end fuse offers advanced current limitation for non-inductive circuits, responding quickly to maximum ground fault and short-circuit conditions. It is suitable for applications up to 600V AC and provides economical protection for high-fault current circuits.
-
Key Specifications
- Part Number: JKS-10
- Manufacturer: Eaton Bussmann
- Amperage: 10A
- Voltage: 600V AC
- Poles: 1
- Mounting Type: Ferrule end (non-rejection style)
- Interrupt Rating: 200kA at 600V AC
- Series/Frame: JKS
- Trip Unit: Fast-acting, current-limiting
- Certifications: UL Listed, CSA Component Acceptance
- Body Style: Cylindrical
- Application: Power panelboards, machinery disconnects, lighting, and heating circuits
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Specifications
- Part Number: JKS-10
- Manufacturer : Eaton
- Brand : Bussmann
- Category : Fuse
- Item Subcategory : Medium Voltage Fuse
- Family : LIMITRON
- Type : JKS
- Voltage : 600
- Amperage : 10
- AIC rating : 200kA@600V
- Diameter : 0.81
- Class Rating : J
- Barrels : 1
Product Data
- UPC : 051712630108
- GTIN : 00051712630108
- Country of Origin : Mexico
- Dimensions : 2.25 in x 0.81 in x 0.81 in (Length/Depth x Height x Width)
- Weight : 1.15
- Certification : CE/UL-248-8 Guide JDDZ/CSA Class 1422-02
