JKS-1 - Eaton Bussmann 1A 600V Class J Fast-Acting Fuse, Current Limiting, 200kA Interrupt Rating

JKS-1

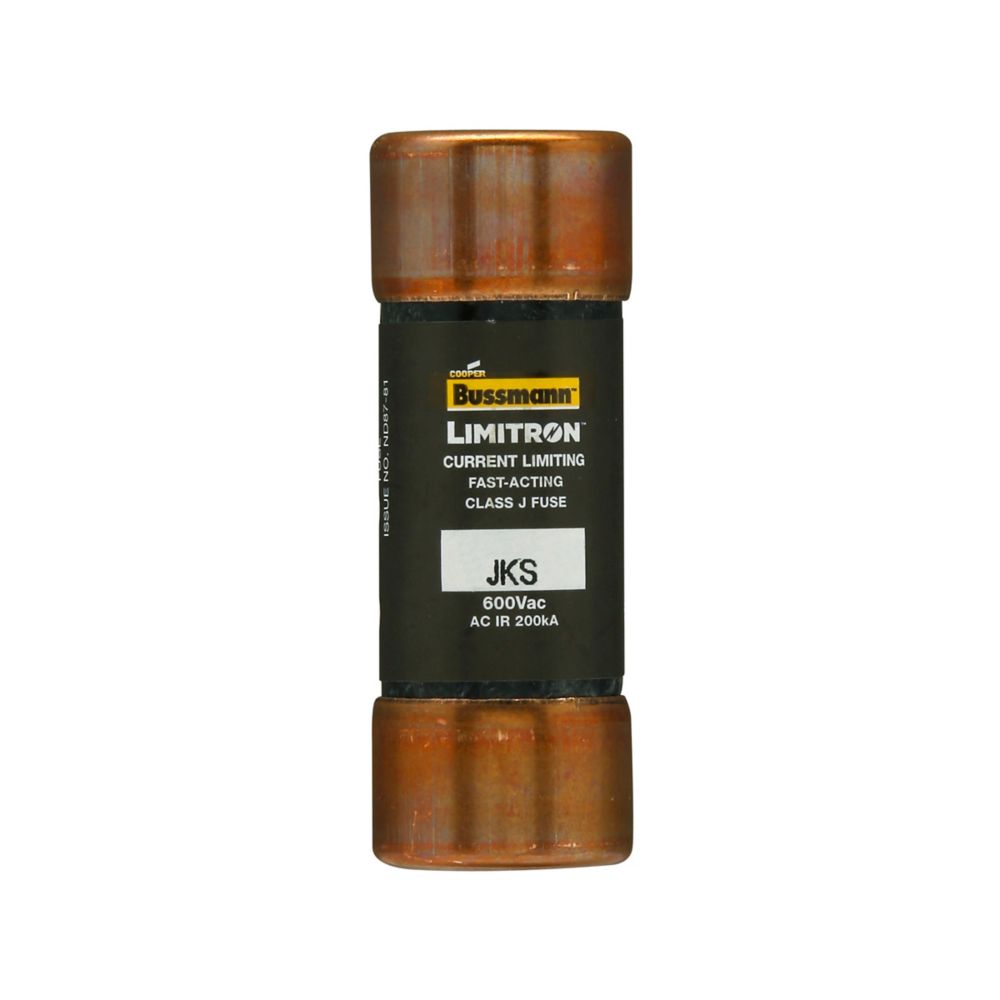

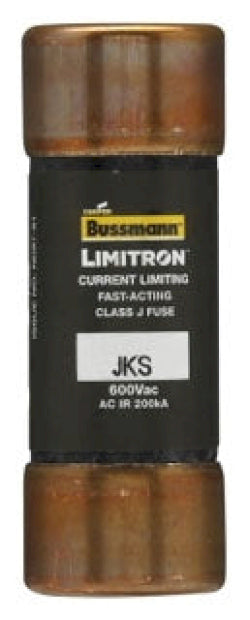

JKS-1 is an Eaton Bussmann Class J fast-acting fuse designed for reliable circuit protection.The JKS-1 fuse features a 1 ampere rating, 600 volts AC voltage rating, and a 200 kA interrupting rating, providing current-limiting protection for power panelboards and machinery disconnects. It is a single-pole, rejection style fuse with ferrule ends, suitable for use in high-fault current circuits requiring fast response.

Key Specifications
• Amperage: 1 A
• Voltage Rating: 600 VAC
• Poles: 1
• Mounting Type: Rejection style fuse
• Interrupting Rating: 200 kA RMS symmetrical
• Fuse Series: Bussmann JKS
• Fuse Type: Fast-acting, current-limiting
• Dimensions: Approximately 2.25 in length x 0.81 in diameter
• Certifications: UL Listed (Std. 248-8, Class J), CSA Certified, CE marked
• Application: Power panelboards, machinery disconnects

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: JKS-1
• Manufacturer : Eaton
• Brand : Bussmann
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Family : LIMITRON
• Type : JKS
• Voltage : 600
• Amperage : 1
• AIC rating : 200kA@600V
• Diameter : 0.81
• Class Rating : J
• Barrels : 1

Product Data

• UPC : 051712630016
• GTIN : 00051712630016
• Country of Origin : Mexico
• Dimensions : 2.25 in x 0.81 in x 0.81 in (Length/Depth x Height x Width)
• Weight : 0.095
• Certification : CE/UL-248-8 Guide JDDZ/CSA Class 1422-02
