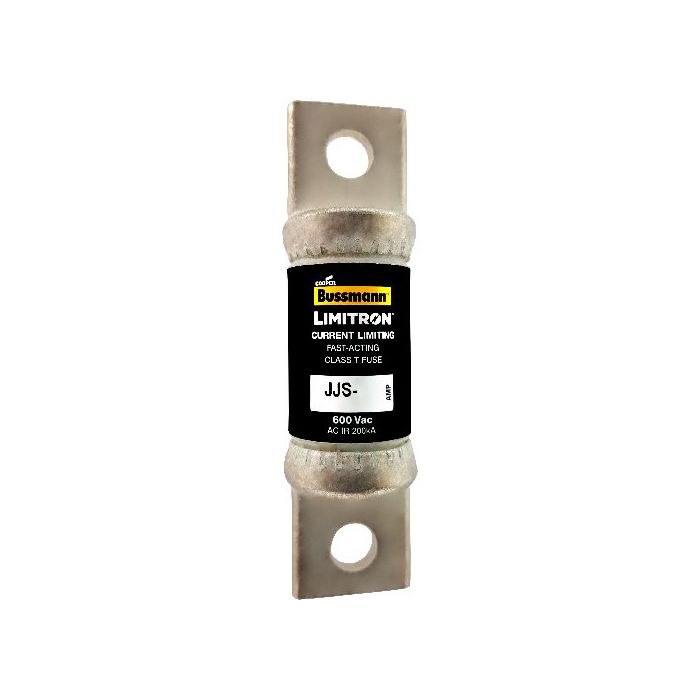

JJS-90 - Eaton Bussmann 90A 600V Class T Fast-Acting Current-Limiting Fuse, Bolted Blade Ends, 200kA Interrupt Rating

JJS-90

JJS-90 is a 90 amp, 600 volt Class T fast-acting current-limiting fuse from Eaton Bussmann designed for reliable circuit protection.This fuse features a bolted blade end to bolted blade end connection, a 200,000 amp interrupting rating at 600 VAC, and a compact small footprint ideal for VFD line protection and branch circuit applications. It is UL and CSA certified, RoHS compliant, and constructed with a melamine body for durability.

• Amperage: 90A
• Voltage: 600 VAC
• Class: T (Limitron)
• Fuse Type: Fast-Acting, Current-Limiting
• Interrupt Rating: 200kA RMS Symmetrical
• Connection: Bolted Blade End x Bolted Blade End
• Mounting Type: Bolt-On
• Body Material: Melamine
• Certifications: UL 248-15, CSA C22.2 No. 248.15, CE, RoHS
• Dimensions: Approx. 2.95 in length, 0.75 in diameter

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: JJS-90
• Manufacturer : Eaton
• Brand : Bussmann
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Family : T-Tron
• Type : JJS
• Voltage : 600
• Amperage : 90
• AIC rating : 200kA@600V
• Diameter : 0.75
• Class Rating : T
• Barrels : 1

Product Data

• UPC : 051712628907
• GTIN : 00051712628907
• Country of Origin : Mexico
• Dimensions : 2.95 in x 0.75 in x 0.75 in (Length/Depth x Height x Width)
• Weight : 0.11
• Certification : CE/UL-248-15 Guide JDDZ/CSA Class 1422-02
