Product Info
- Manufacturer:Eaton
- Sub-Category:Low Voltage Fuse
Description

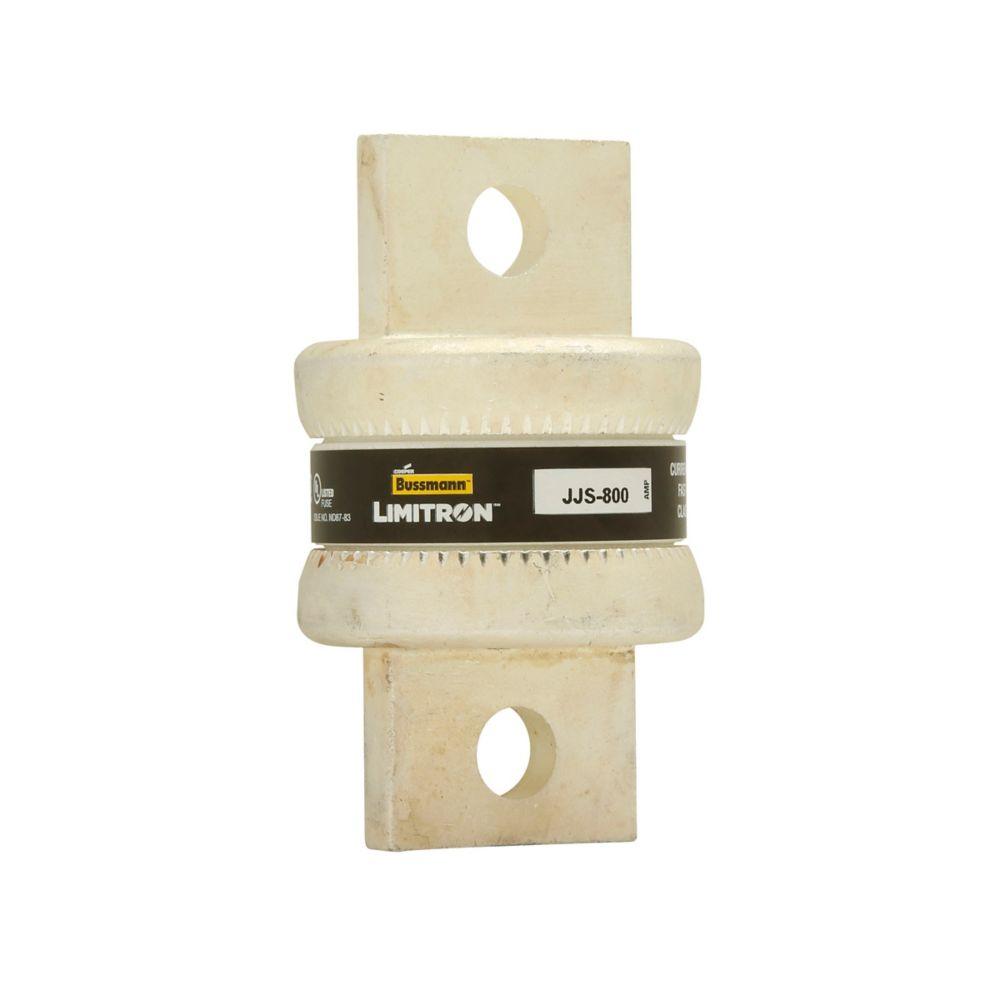

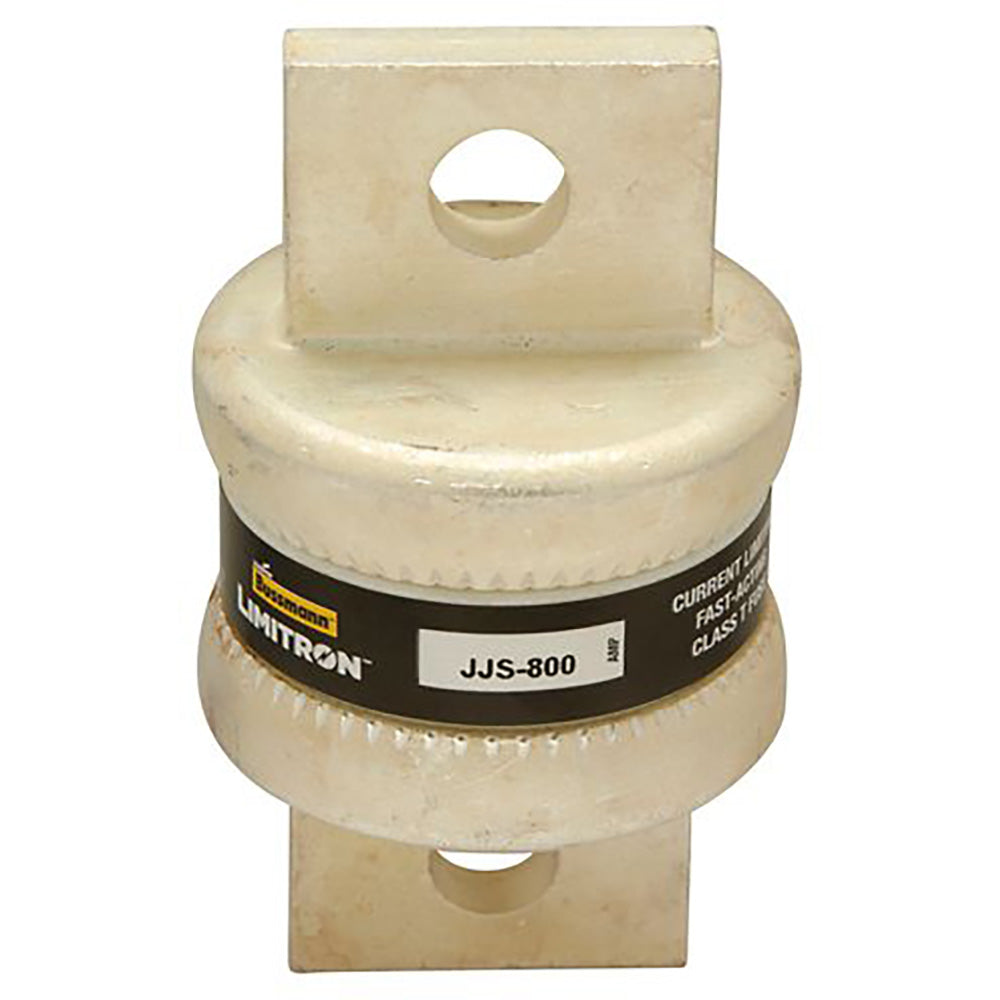

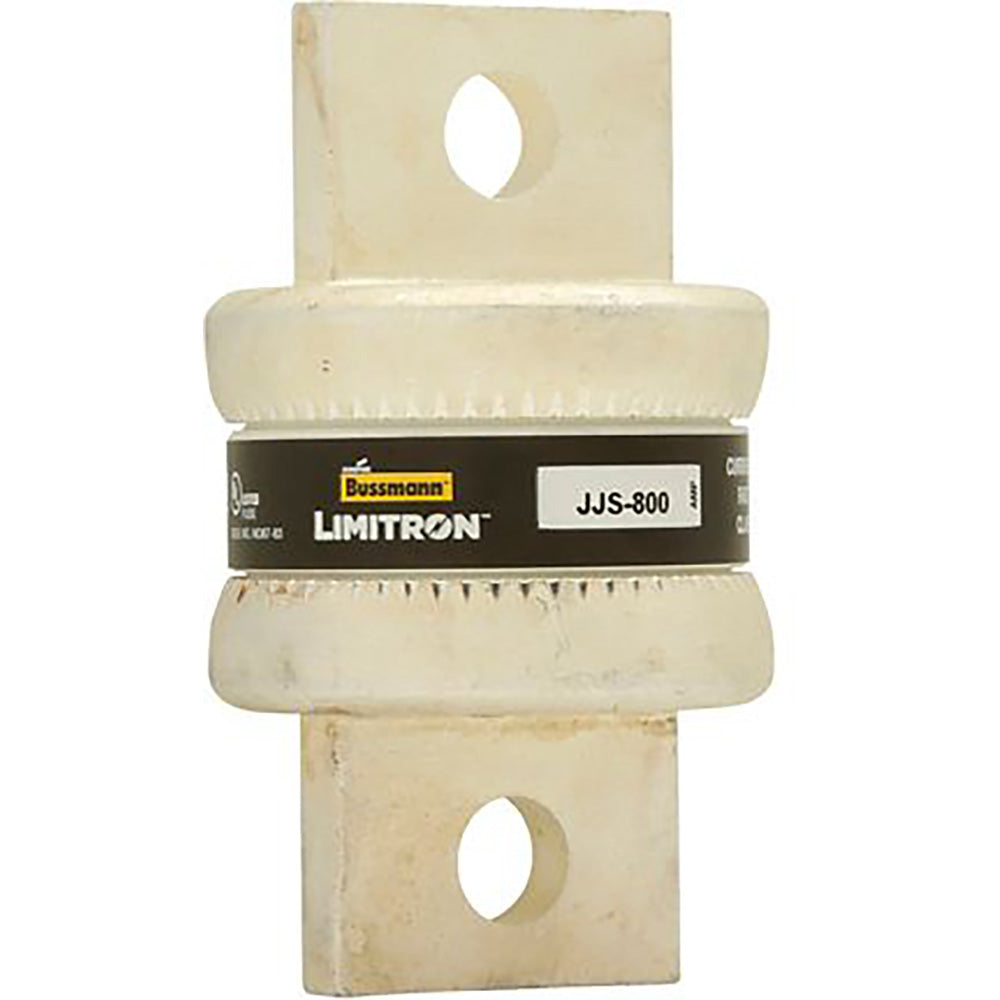

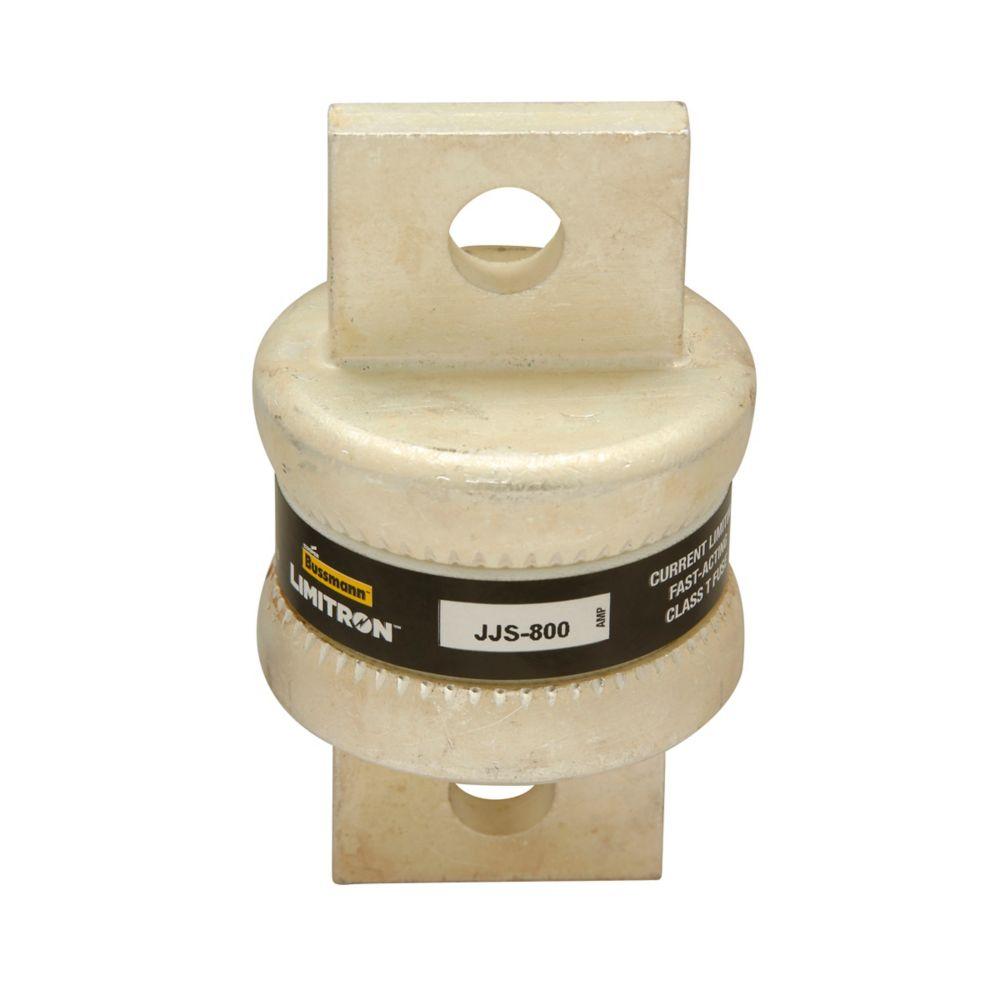

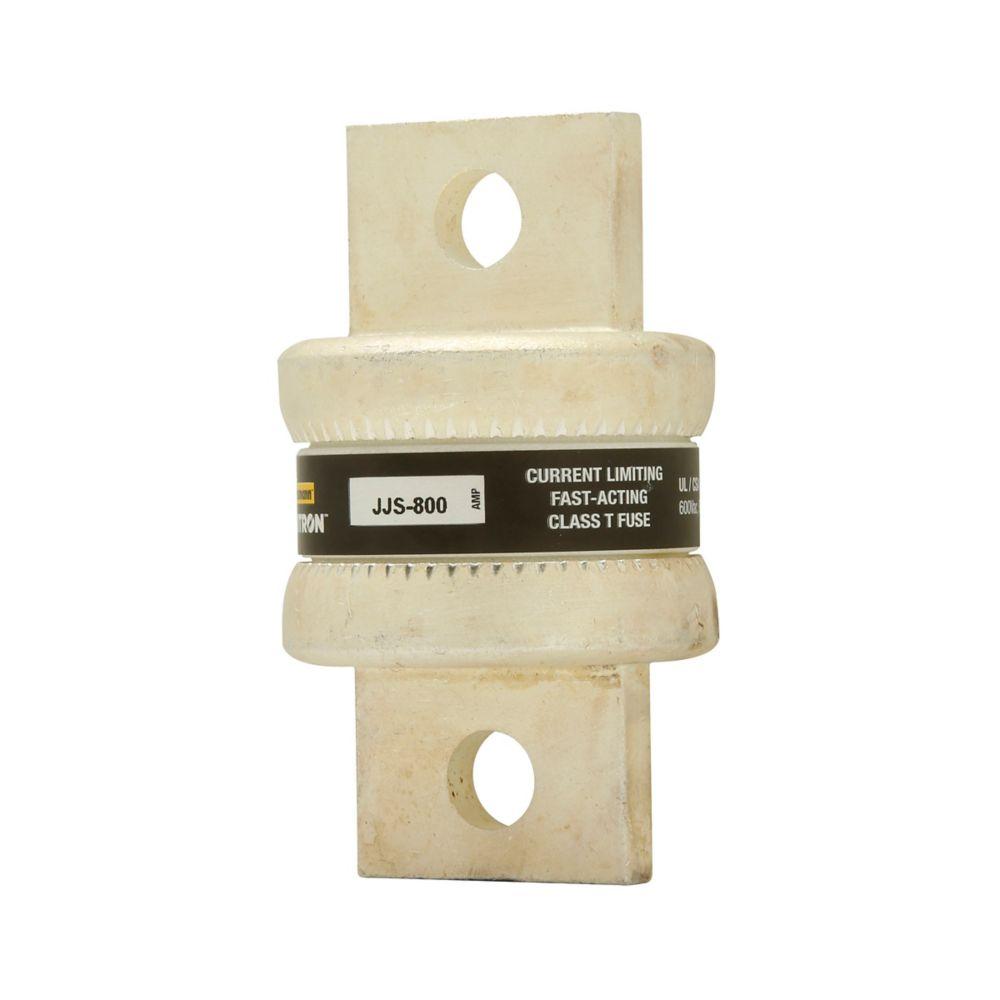

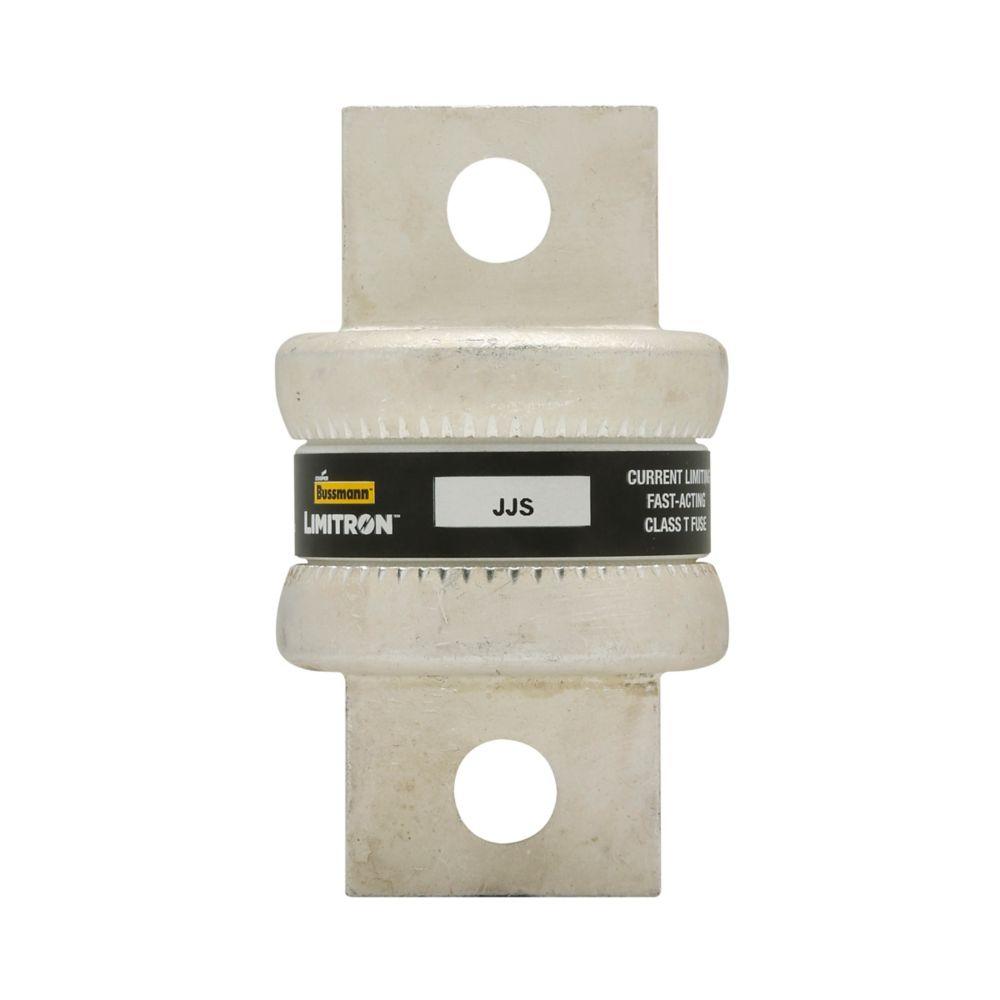

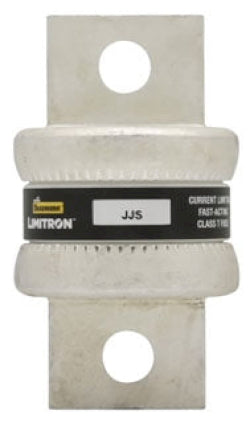

JJS-800
JJS-800 is a fast-acting, current-limiting Class T fuse from Eaton Bussmann, designed for robust circuit protection in demanding applications.
This fuse features a compact footprint, bolted blade connections, and a non-indicating design, making it ideal for VFD line protection and other high-current environments. It delivers very fast response to overcurrent conditions, minimizing potential damage to sensitive equipment.
-
Key Specifications
- Amperage: 800A
- Voltage: 600V AC
- Poles: 1
- Mounting Type: Bolted blade end x bolted blade end
- Interrupt Rating: 200,000A (200 kAIC at 600V)
- Series/Frame: Limitron, Class T
- Trip Unit: Non-indicating, very fast-acting
- Certifications: UL, CSA, CE, RoHS
- Dimensions: 4.33" L x 1.75" W x 1.75" H
- Weight: 1.7 lb
- Packaging: Standard
- Application: VFD line protection, current-limiting circuit protection
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Specifications
- Part Number: JJS-800
- Manufacturer : Eaton
- Brand : Bussmann
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : T-Tron
- Type : JJS
- Voltage : 600
- Amperage : 800
- AIC rating : 200kA@600V
- Diameter : 1.75
- Class Rating : T
- Barrels : 1
Product Data
- UPC : 051712628181
- GTIN : 00051712628181
- Country of Origin : Mexico
- Dimensions : 4.33 in x 1.75 in x 1.75 in (Length/Depth x Height x Width)
- Weight : 1.7
- Certification : CE/UL-248-15 Guide JDDZ/CSA Class 1422-02
