Product Info
- Manufacturer:Eaton
- Sub-Category:Low Voltage Fuse
Description
JJS-70

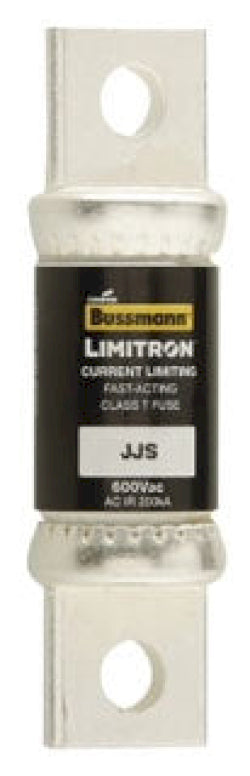

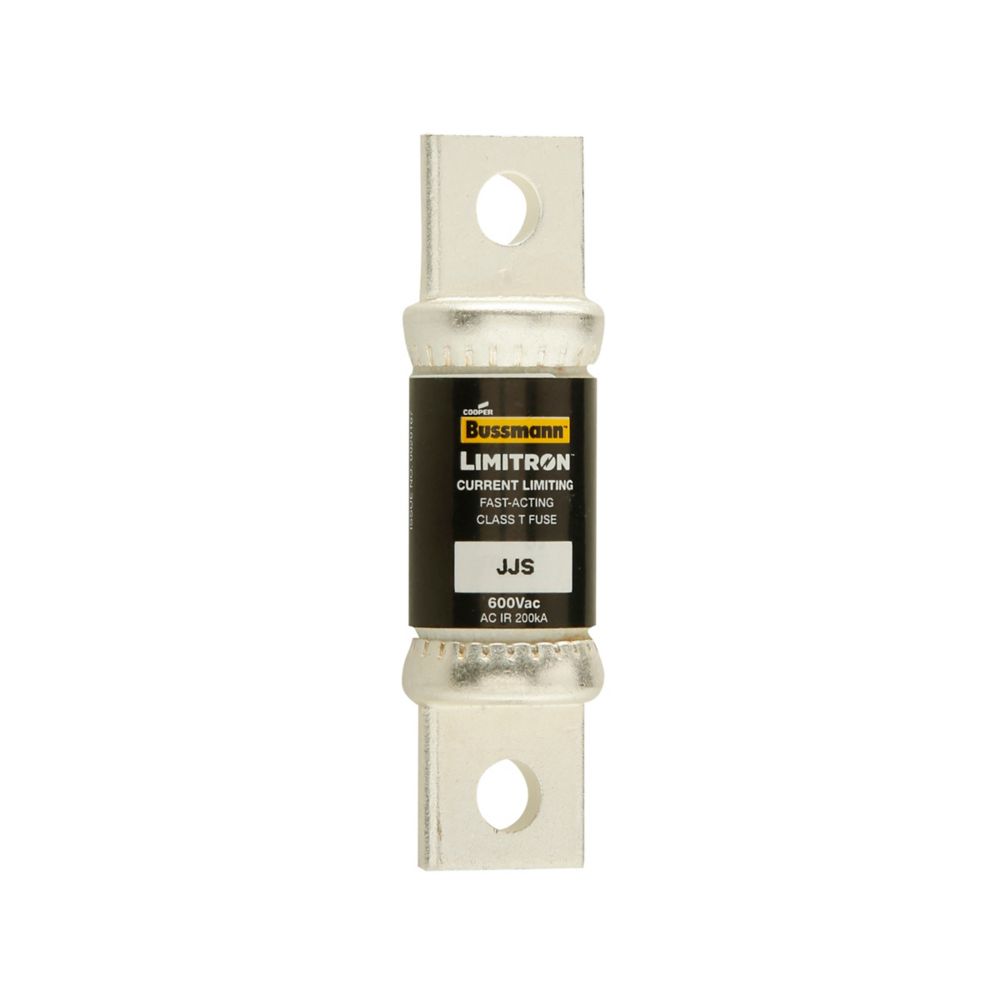

JJS-70 is a 70 Amp, 600 Volt AC, Class T fast-acting fuse from Bussmann Eaton designed for advanced circuit protection.
This current-limiting fuse features a small footprint and bolted blade end connections for reliable mounting and VFD line protection. It has an interrupting rating of 200,000 AIC at 600 VAC and is UL Listed and CSA Certified for safety and performance. The fuse is non-indicating and complies with UL Standard 248-15.
- Amperage: 70 Amps
- Voltage Rating: 600 Volts AC
- Class: T, Fast-Acting
- Interrupting Rating: 200,000 AIC RMS @ 600 VAC
- Mounting Type: Bolted Blade Ends
- Current Limiting
- Non-Indicating
- UL Listed (Std. 248-15, Guide JDDZ, File E4273)
- CSA Certified (C22.2 No. 248.15, Class 1422-02, File 53787)
- Small Footprint for VFD Line Protection
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Specifications
- Part Number: JJS-70
- Manufacturer : Eaton
- Brand : Bussmann
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : T-Tron
- Type : JJS
- Voltage : 600
- Amperage : 70
- AIC rating : 200kA@600V
- Diameter : 0.75
- Class Rating : T
- Barrels : 1
Product Data
- UPC : 051712628709
- GTIN : 00051712628709
- Country of Origin : Mexico
- Dimensions : 2.95 in x 0.75 in x 0.75 in (Length/Depth x Height x Width)
- Weight : 0.1
- Certification : CE/UL-248-15 Guide JDDZ/CSA Class 1422-02
