Product Info
- Manufacturer:Eaton
- Sub-Category:Low Voltage Fuse
Description
JJS-600

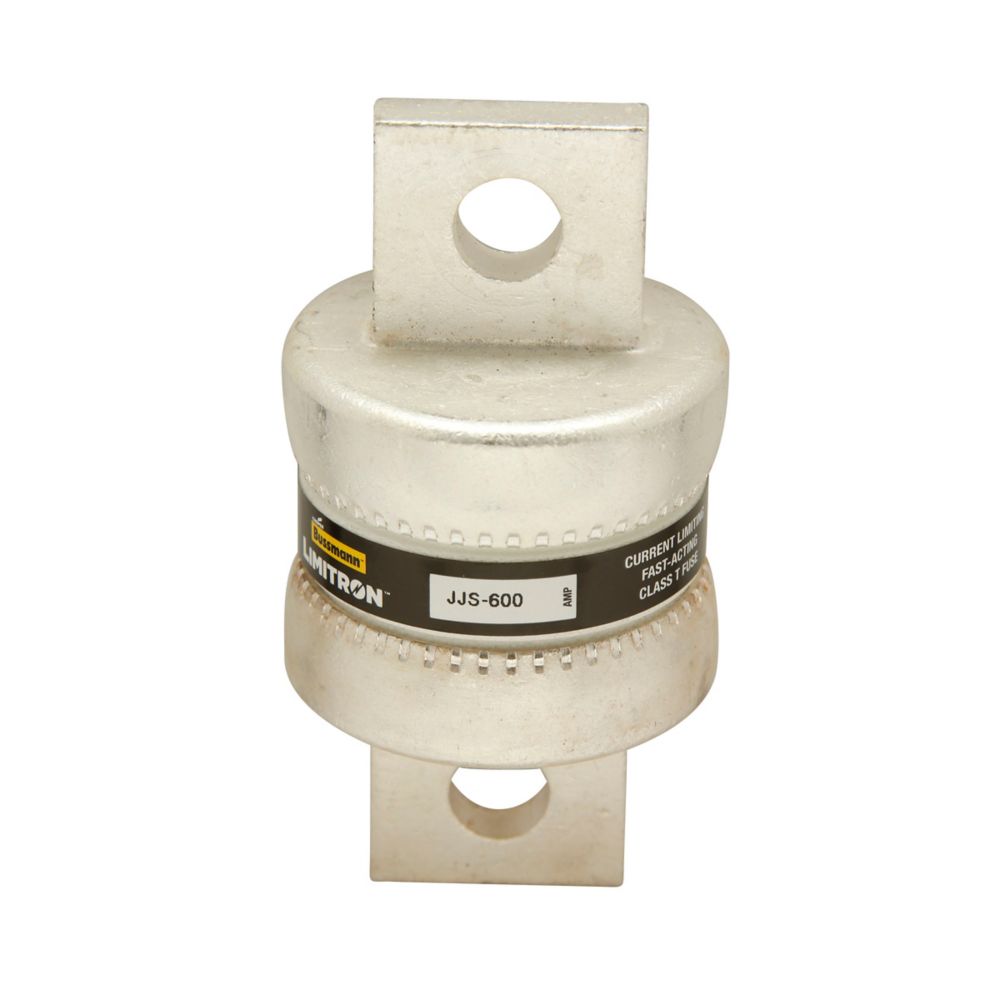

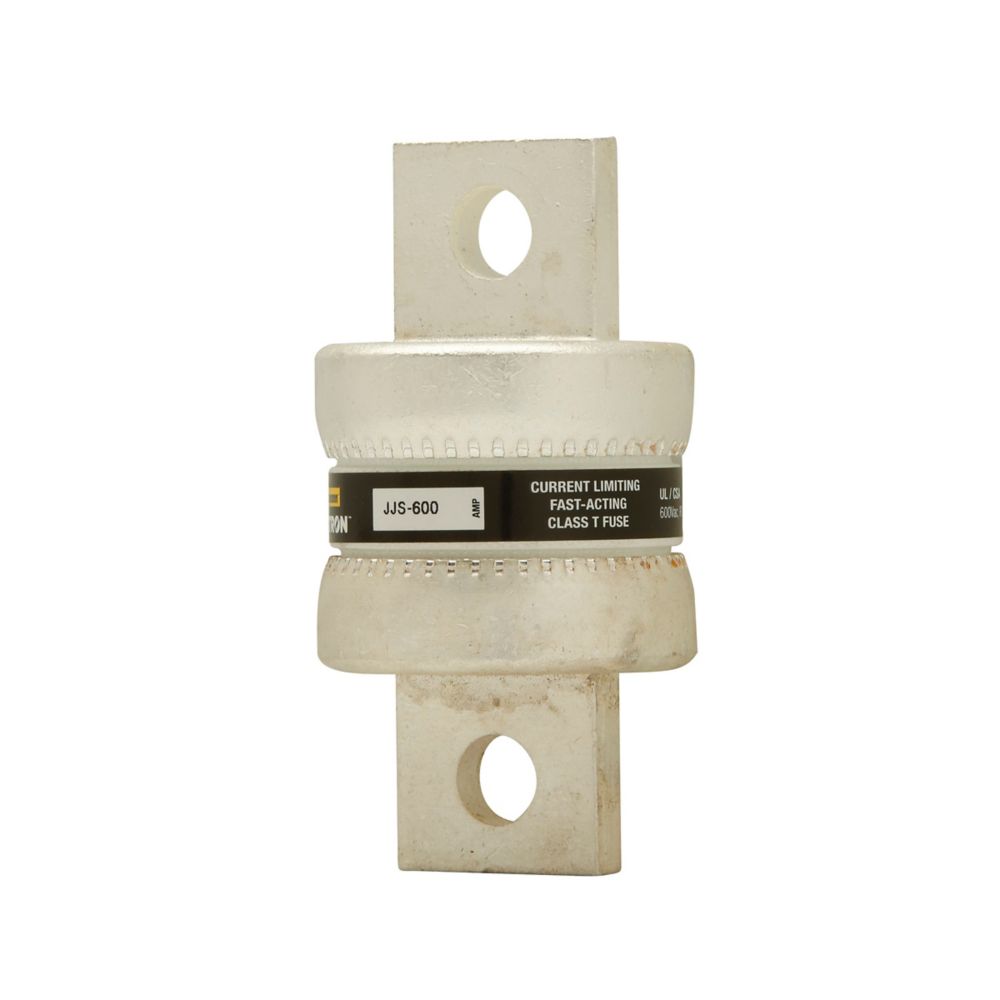

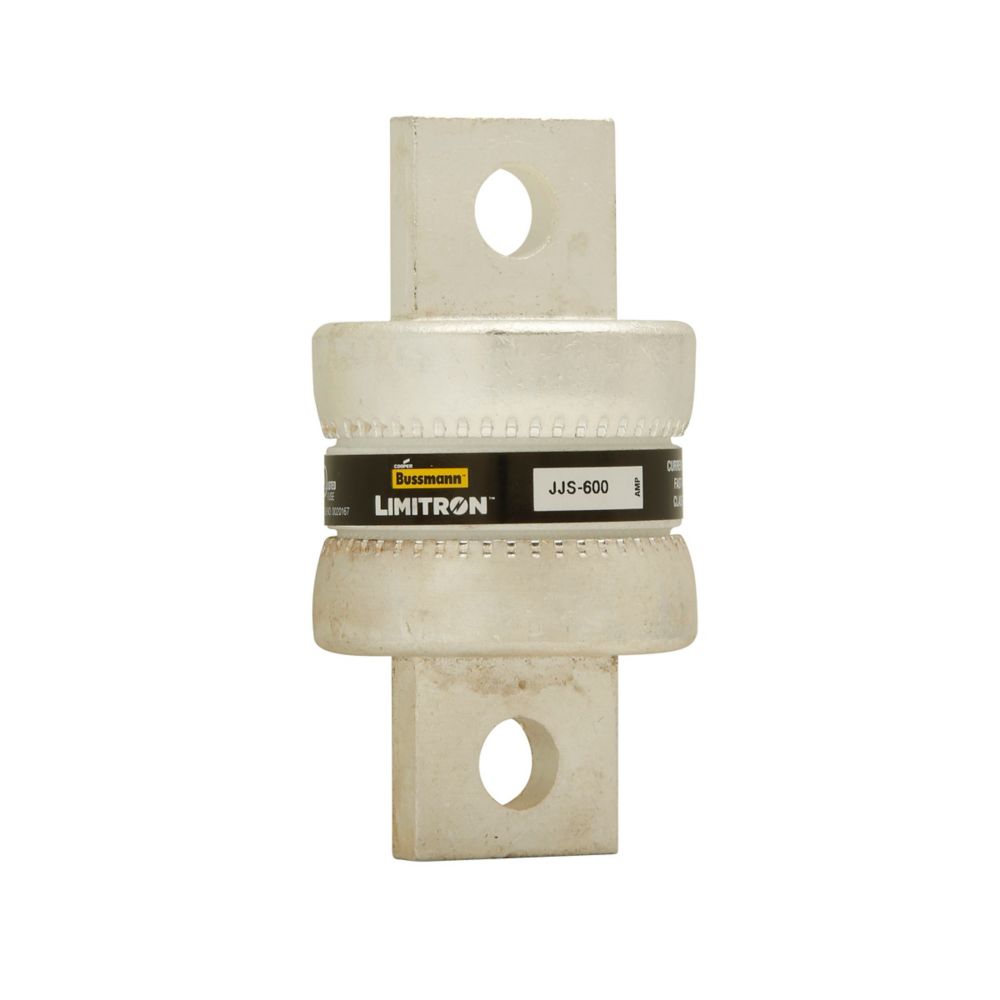

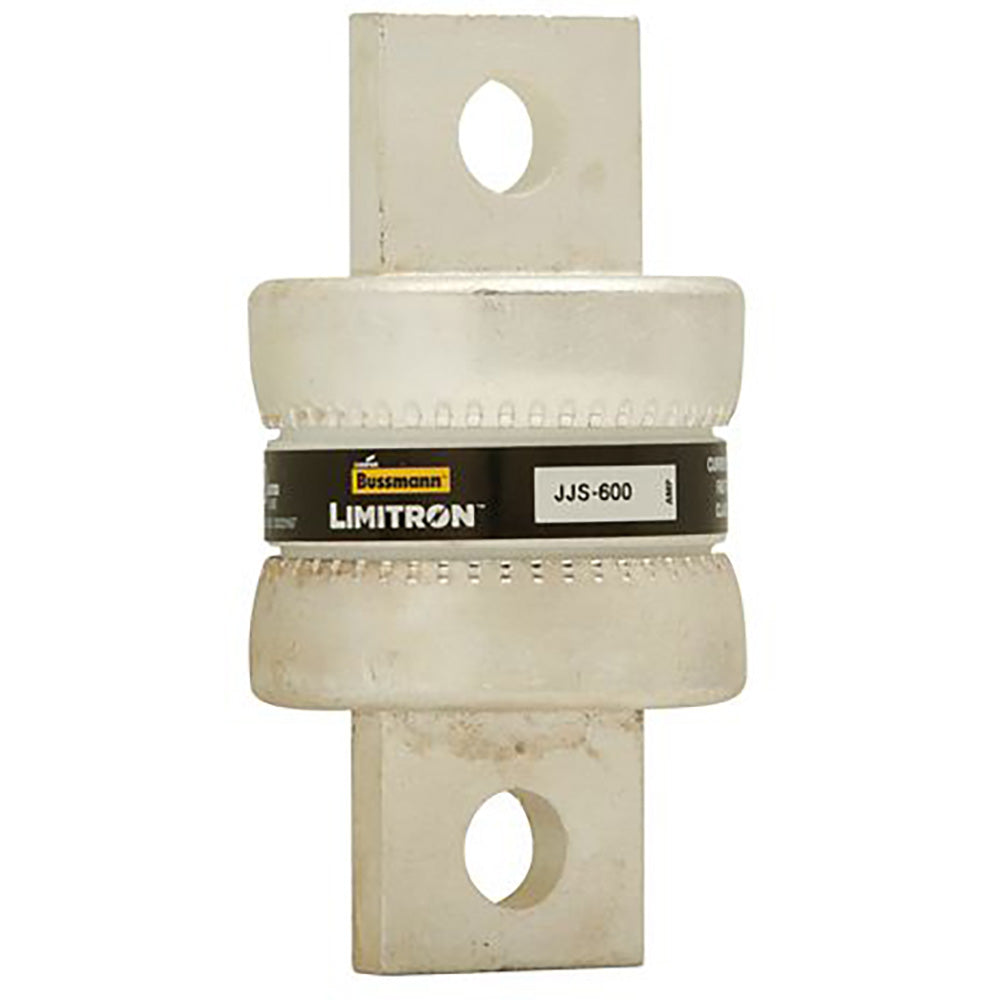

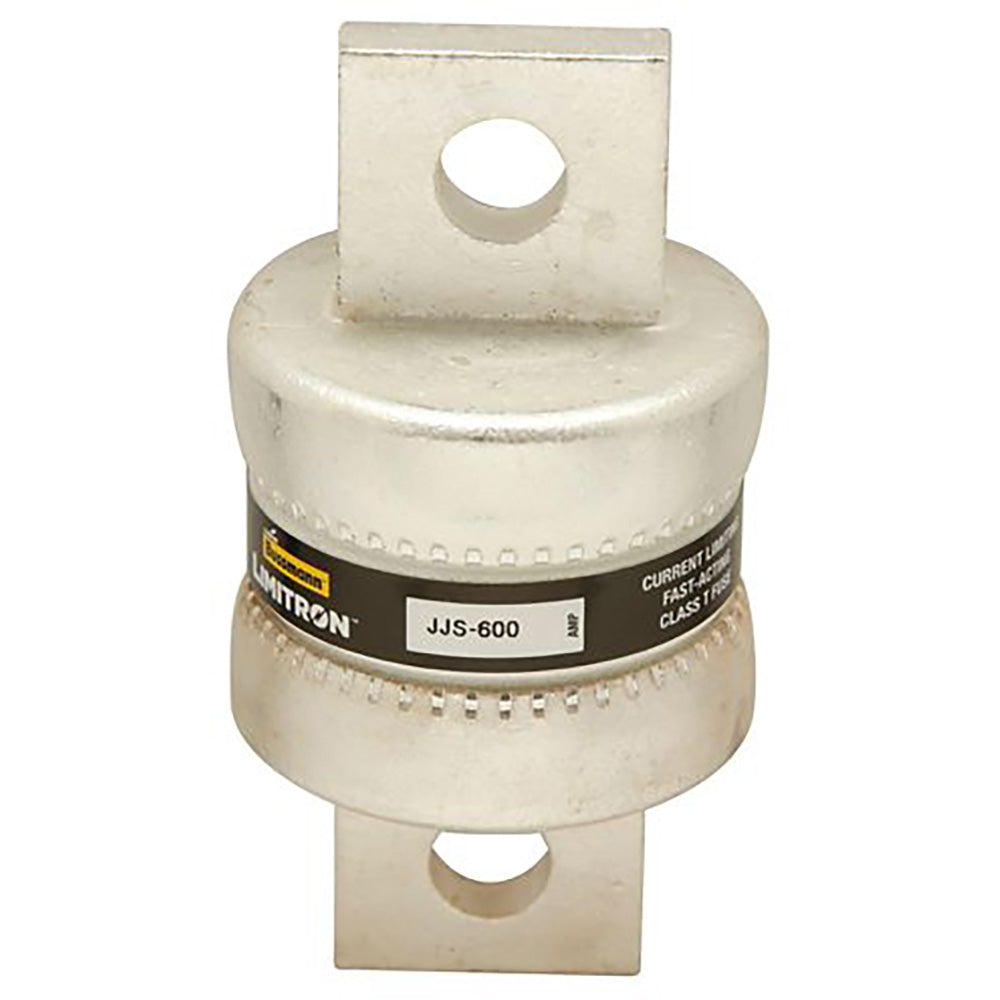

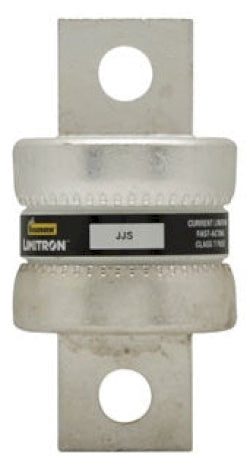

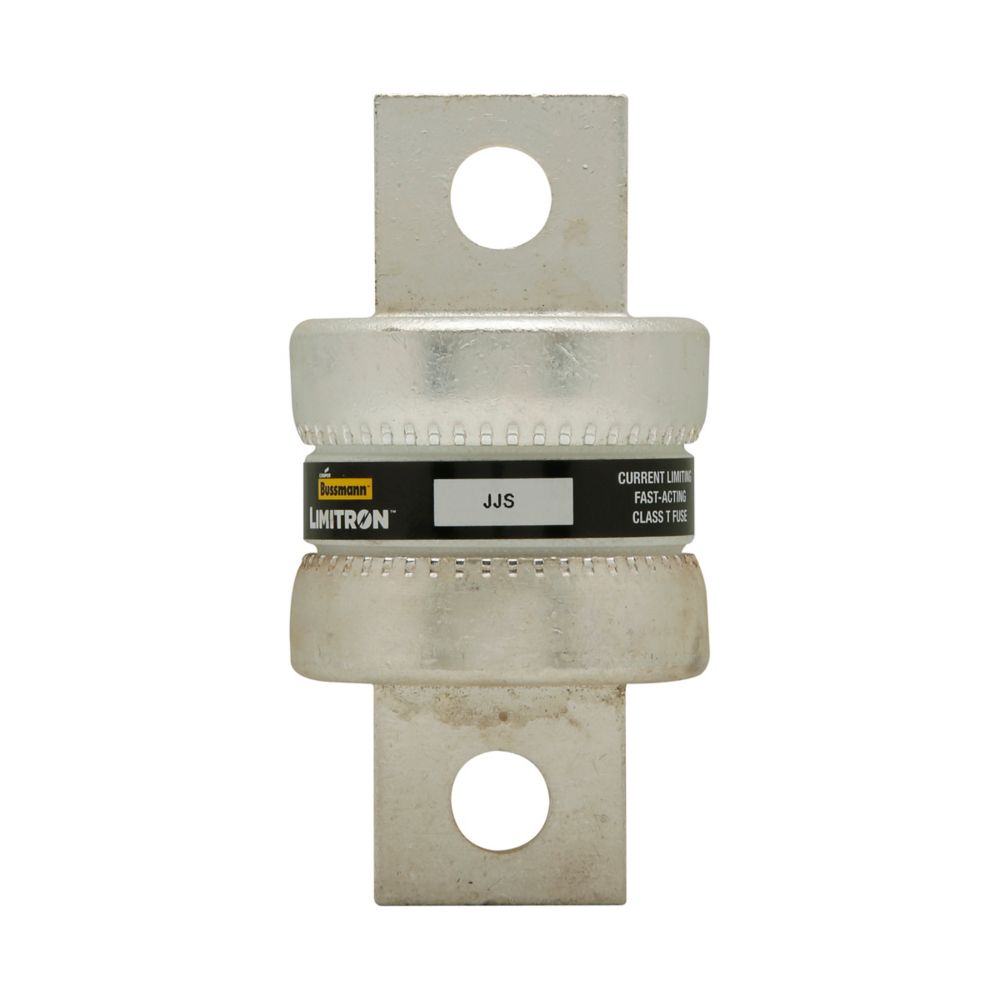

JJS-600 is a fast-acting, current-limiting Class T fuse from Eaton Bussmann Series, designed for reliable circuit protection in demanding applications.
This fuse offers advanced current-limiting performance, a compact footprint, and is ideal for VFD line protection. It features a non-indicating design with bolted blade ends for secure mounting and is recognized for its high interrupting capacity and robust construction.
Key Specifications
- Amperage: 600A
- Voltage: 600V AC
- Poles: 1
- Mounting Type: Bolted blade
- Interrupt Rating: 200,000 AIC RMS @ 600VAC
- Series/Frame: Bussmann Series JJS (Limitron)
- Trip Unit: Very fast-acting, current-limiting
- Certifications: UL Listed (Std. 248-15, Guide JDDZ, File E4273), CSA Certified (C22.2 No. 248.15, Class 1422-02, File 53787), CE Marked, RoHS Compliant
- Physical Size: 1.25" diameter x 3.98" length
- Non-indicating
- VFD line protection
- Small footprint
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Specifications
- Part Number: JJS-600
- Manufacturer : Eaton
- Brand : Bussmann
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : T-Tron
- Type : JJS
- Voltage : 600
- Amperage : 600
- AIC rating : 200kA@600V
- Diameter : 1.25
- Class Rating : T
- Barrels : 1
Product Data
- UPC : 051712628051
- GTIN : 00051712628051
- Country of Origin : Mexico
- Dimensions : 3.98 in x 1.25 in x 1.25 in (Length/Depth x Height x Width)
- Weight : 0.001
- Certification : CE/UL-248-15 Guide JDDZ/CSA Class 1422-02
