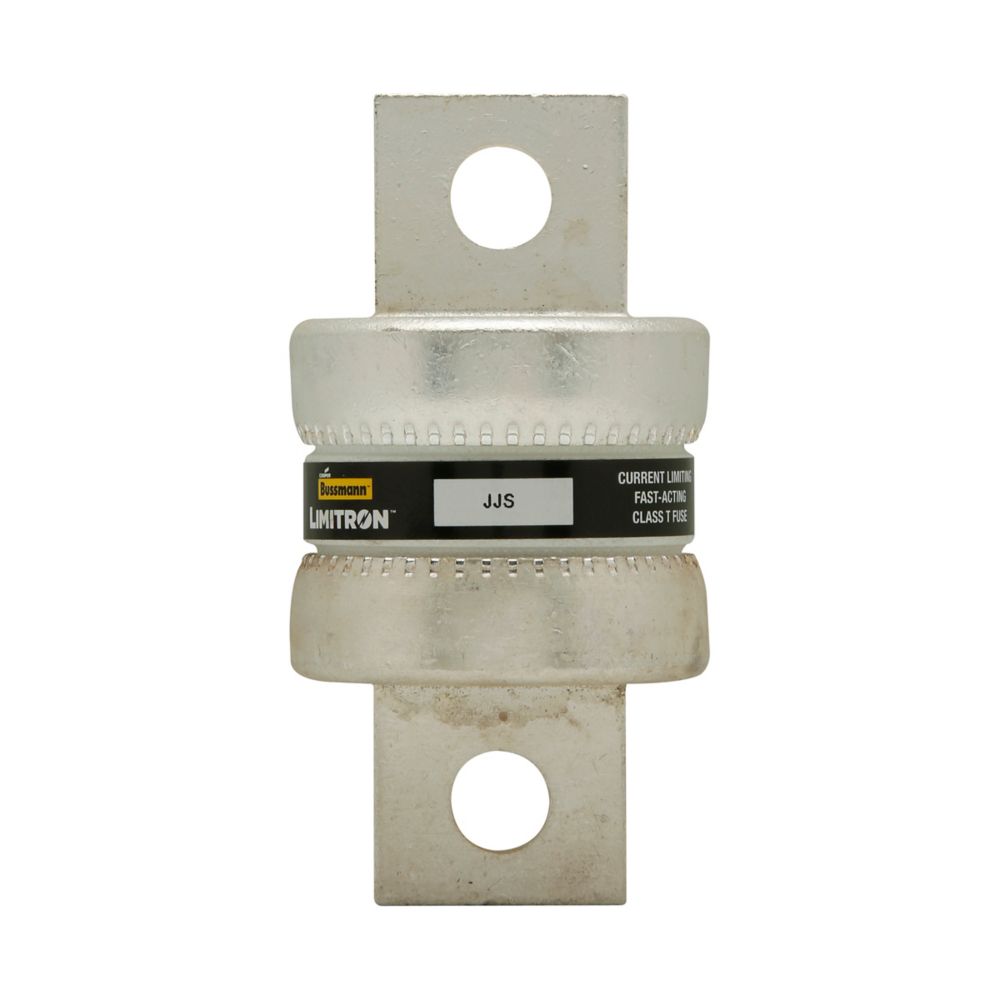

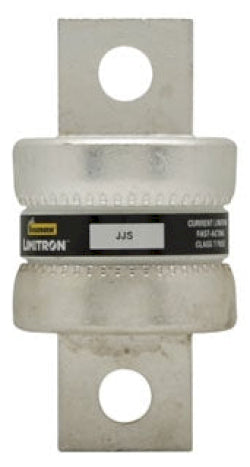

JJS-500 - Bussmann 500A 600V Class T Very Fast Acting Current-Limiting Fuse, Bolted Blade End, 200kAIC

JJS-500

JJS-500 is a 500 amp, 600 volt Class T very fast acting current-limiting fuse from Bussmann, designed for reliable circuit protection in compact applications.This Eaton Bussmann JJS series fuse features a bolted blade end connection, a 200,000 amp interrupting rating at 600 volts AC, and is non-indicating. It provides very fast acting protection with a small footprint ideal for VFD line protection and other demanding electrical environments. The fuse is UL and CSA certified and built to withstand high fault currents safely.

• Amperage: 500 A
• Voltage Rating: 600 VAC
• Fuse Class: T
• Characteristic: Very Fast Acting
• Interrupt Rating: 200 kA at 600 V
• Connection Type: Bolted Blade End x Bolted Blade End
• Series: JJS
• Trip Unit: Non-indicating
• Certifications: UL, CSA
• Mounting Type: Center Bolted
• Body Length: 3.98 inches
• Weight: 0.95 lbs

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: JJS-500
• Manufacturer : Eaton
• Brand : Bussmann
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Family : T-Tron
• Type : JJS
• Voltage : 600
• Amperage : 500
• AIC rating : 200kA@600V
• Diameter : 1.25
• Class Rating : T
• Barrels : 1

Product Data

• UPC : 051712628556
• GTIN : 00051712628556
• Country of Origin : Mexico
• Dimensions : 3.98 in x 1.25 in x 1.25 in (Length/Depth x Height x Width)
• Weight : 1
• Certification : CE/UL-248-15 Guide JDDZ/CSA Class 1422-02
