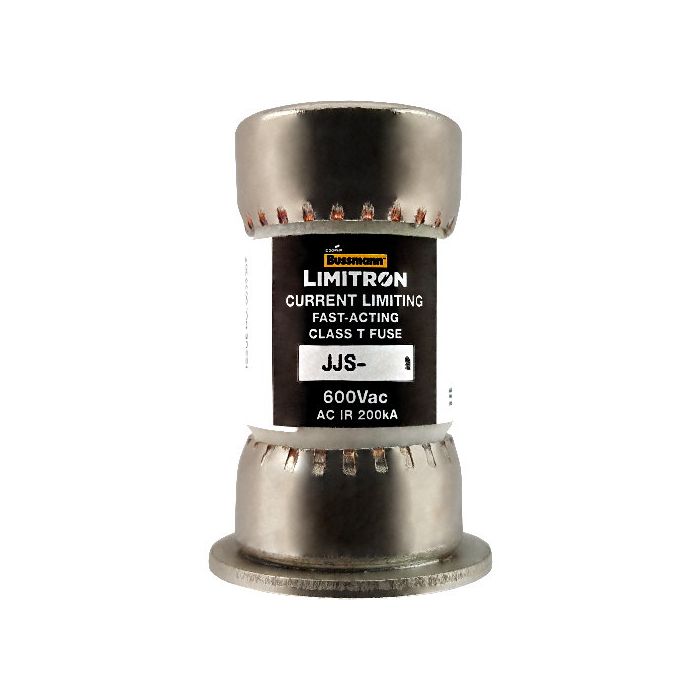

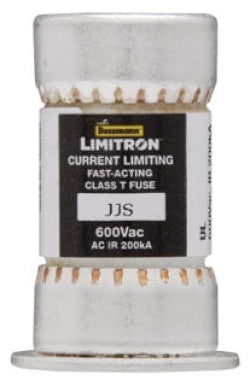

JJS-50 - Eaton Bussmann 50A 600V Class T Fast-Acting Fuse, 200kA Interrupt Rating, Ferrule End

JJS-50

JJS-50 is an Eaton Bussmann Class T fuse designed for fast-acting circuit protection with a 50 amp rating and 600 volt capacity.The JJS-50 fuse features a current-limiting, very fast-acting design ideal for VFD line protection and electric heat circuits. It has a small footprint with ferrule end connections and a high interrupt rating of 200 kAIC at 600 VAC. The fuse is non-indicating and constructed with a melamine body, compliant with CE and RoHS standards.

• Amperage Rating: 50 A
• Voltage Rating: 600 V AC
• Interrupt Rating: 200 kAIC at 600 VAC
• Class: T (Fast-Acting)
• Connection Type: Ferrule end x ferrule end
• Fuse Indicator: Non-indicating
• Body Material: Melamine
• Dimensions: Approximately 1.56 in length x 0.81 in width x 0.81 in height
• Series: Bussmann JJS
• Certifications: CE Marked, RoHS Compliant

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: JJS-50
• Manufacturer : Eaton
• Brand : Bussmann
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Family : T-Tron
• Type : JJS
• Voltage : 600
• Amperage : 50
• AIC rating : 200kA@600V
• Diameter : 0.81
• Class Rating : T
• Barrels : 1

Product Data

• UPC : 051712628501
• GTIN : 00051712628501
• Country of Origin : Mexico
• Dimensions : 1.56 in x 0.81 in x 0.81 in (Length/Depth x Height x Width)
• Weight : 0.05
• Certification : CE/UL-248-15 Guide JDDZ/CSA Class 1422-02
