Product Info
- Manufacturer:Eaton
- Sub-Category:Low Voltage Fuse
Description
JJS-450

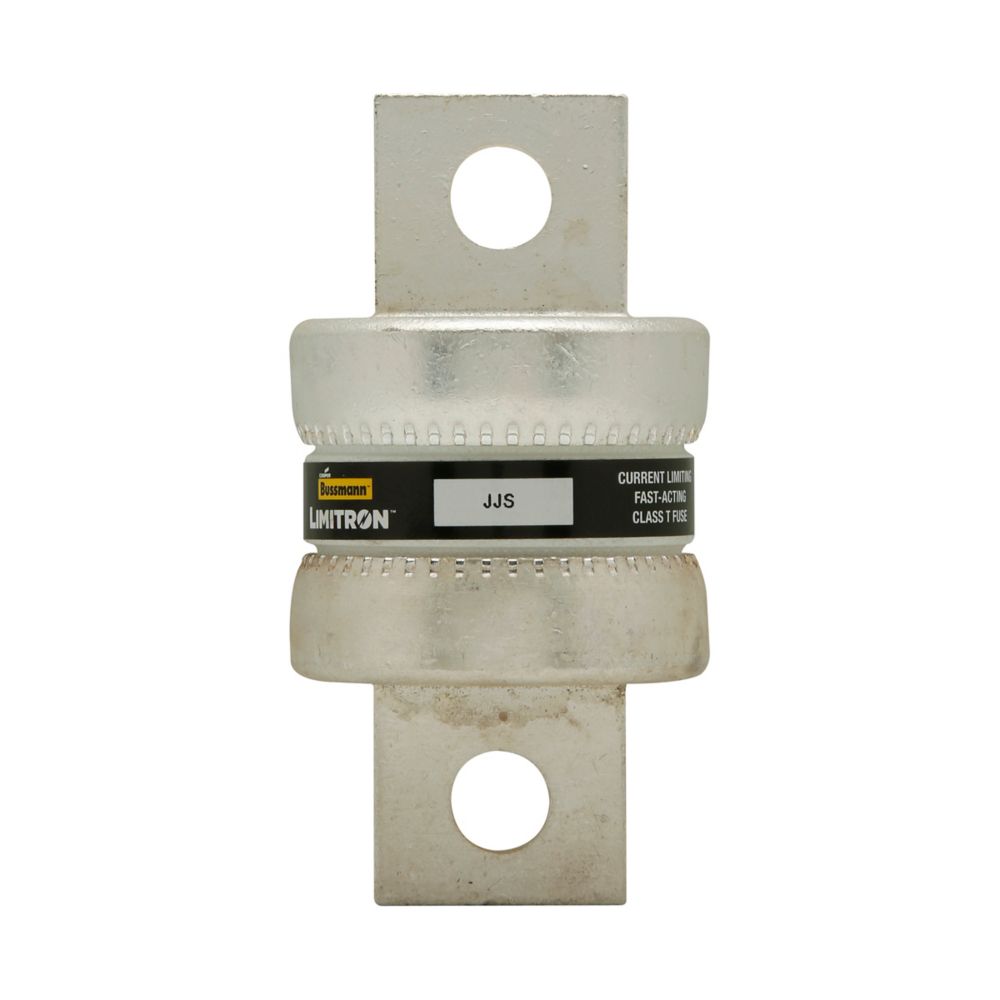

JJS-450 is an Eaton Bussmann Class T fast-acting fuse designed for 450 ampere and 600 volt applications.This current-limiting fuse features a small footprint with bolted blade end connections, providing reliable protection with a 200 kA interrupt rating at 600 VAC. It is non-indicating and suitable for VFD line protection and other industrial uses. The fuse is CE marked, RoHS compliant, and UL and CSA certified.
- Amperage Rating: 450 A
- Voltage Rating: 600 V AC
- Interrupt Rating: 200 kA at 600 VAC
- Class: Class T
- Connection Type: Bolted blade end x bolted blade end
- Fuse Indicator: Non-indicating
- Dimensions: 3.98 in length, 1.25 in diameter
- Compliance: CE Marked, RoHS Compliant, UL 248-15, CSA C22.2 No. 248.15
- Series: Bussmann JJS
- Mounting Type: Blade terminal
Specifications
- Part Number: JJS-450
- Manufacturer : Eaton
- Brand : Bussmann
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : T-Tron
- Type : JJS
- Voltage : 600
- Amperage : 450
- AIC rating : 200kA@600V
- Diameter : 1.25
- Class Rating : T
- Barrels : 1
Product Data
- UPC : 051712628211
- GTIN : 00051712628211
- Dimensions : 3.98 in x 1.25 in x 1.25 in (Length/Depth x Height x Width)
- Weight : 0.95
