JJS-45 - Eaton Bussmann 45A 600V Class T Fast Acting Fuse, Current Limiting, Ferrule End

JJS-45

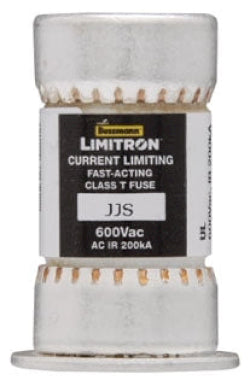

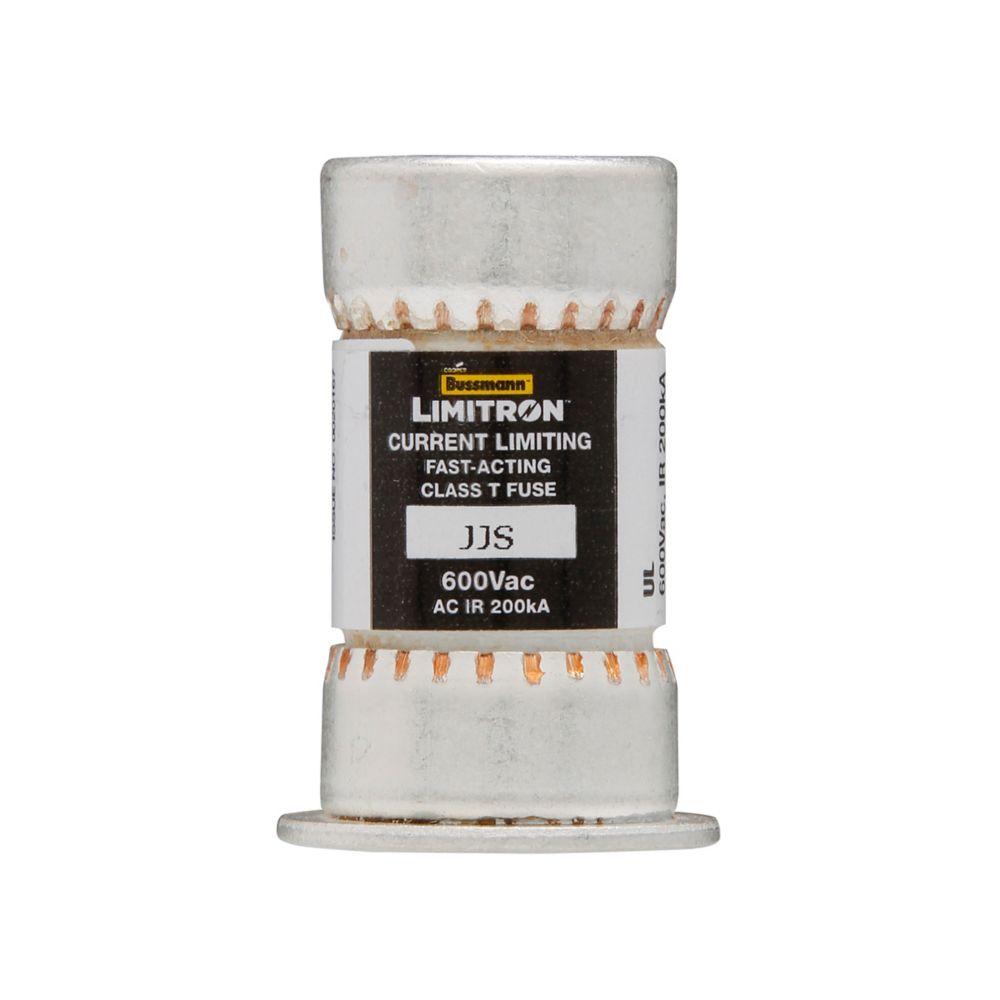

JJS-45 is a 45 amp, 600 volt AC, Class T fast acting fuse from Eaton Bussmann designed for current limiting protection.This fuse features a very fast-acting characteristic with a ferrule end connection, suitable for VFD line protection and control circuits. It has a high interrupting rating of 200 kAIC at 600 VAC, ensuring reliable protection in demanding electrical environments. The JJS-45 is non-indicating and compact in size, compliant with UL 248-15 and CSA standards.

• Amperage: 45 A
• Voltage Rating: 600 VAC
• Class: T (Limitron)
• Fuse Type: Fast Acting, Current Limiting
• Interrupting Rating: 200,000 AIC at 600 VAC
• End Type: Ferrule x Ferrule
• Non-indicating
• Dimensions: Approx. 1.56" length x 0.81" diameter
• Certifications: UL Listed, CSA Certified, CE Marked, RoHS Compliant
• Series: JJS
• Mounting: Standard fuse block (non-rejection style)

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: JJS-45
• Manufacturer : Eaton
• Brand : Bussmann
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Family : T-Tron
• Type : JJS
• Voltage : 600
• Amperage : 45
• AIC rating : 200kA@600V
• Diameter : 0.81
• Class Rating : T
• Barrels : 1

Product Data

• UPC : 051712628457
• GTIN : 00051712628457
• Country of Origin : Mexico
• Dimensions : 1.56 in x 0.81 in x 0.81 in (Length/Depth x Height x Width)
• Weight : 0.5
• Certification : CE/UL-248-15 Guide JDDZ/CSA Class 1422-02
