Product Info
- Manufacturer:Eaton
- Sub-Category:Low Voltage Fuse
Description

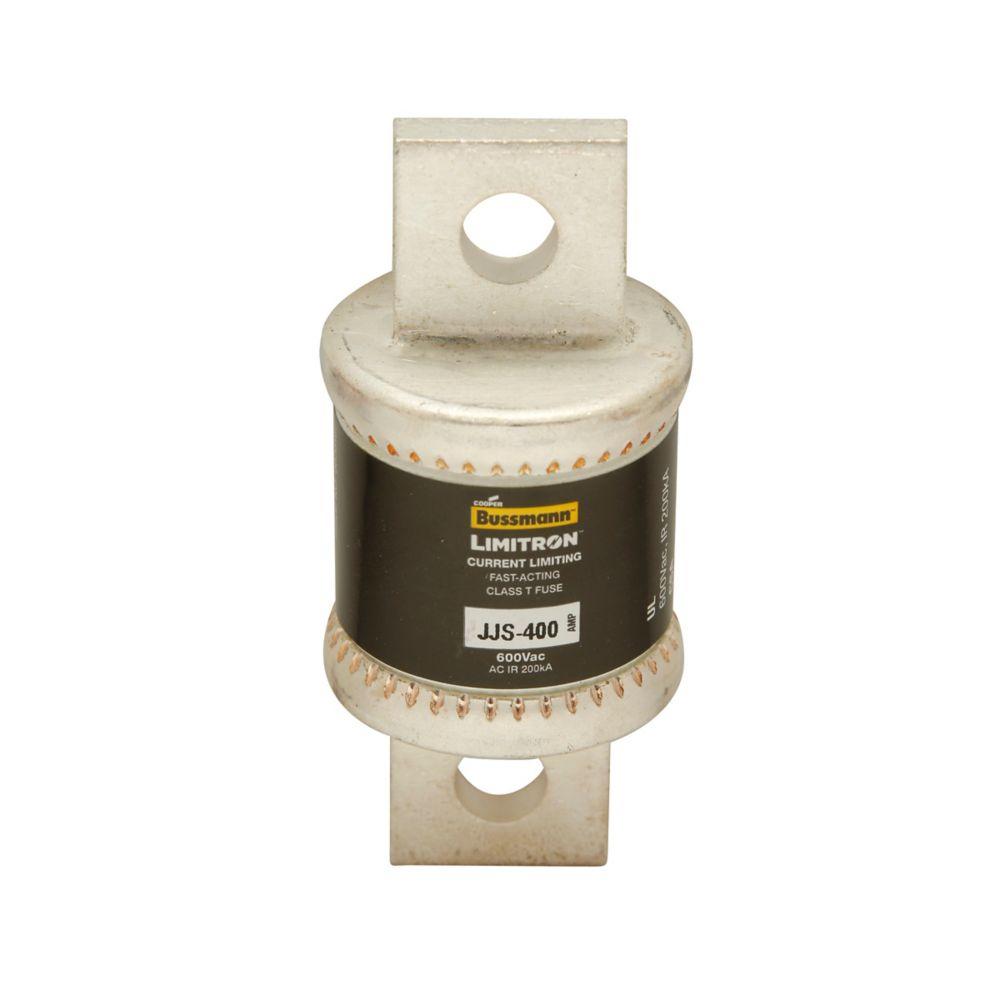

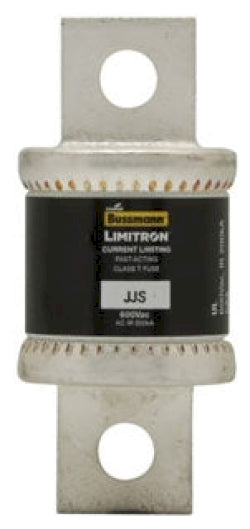

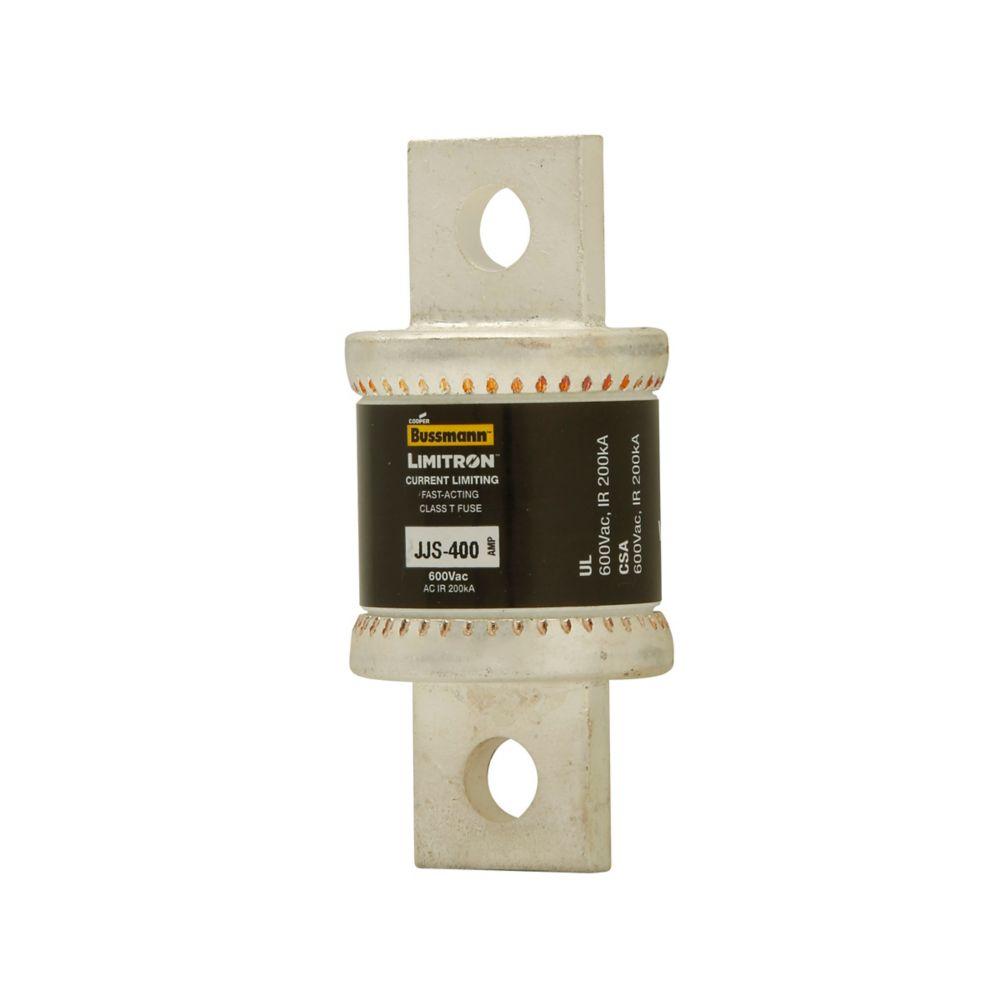

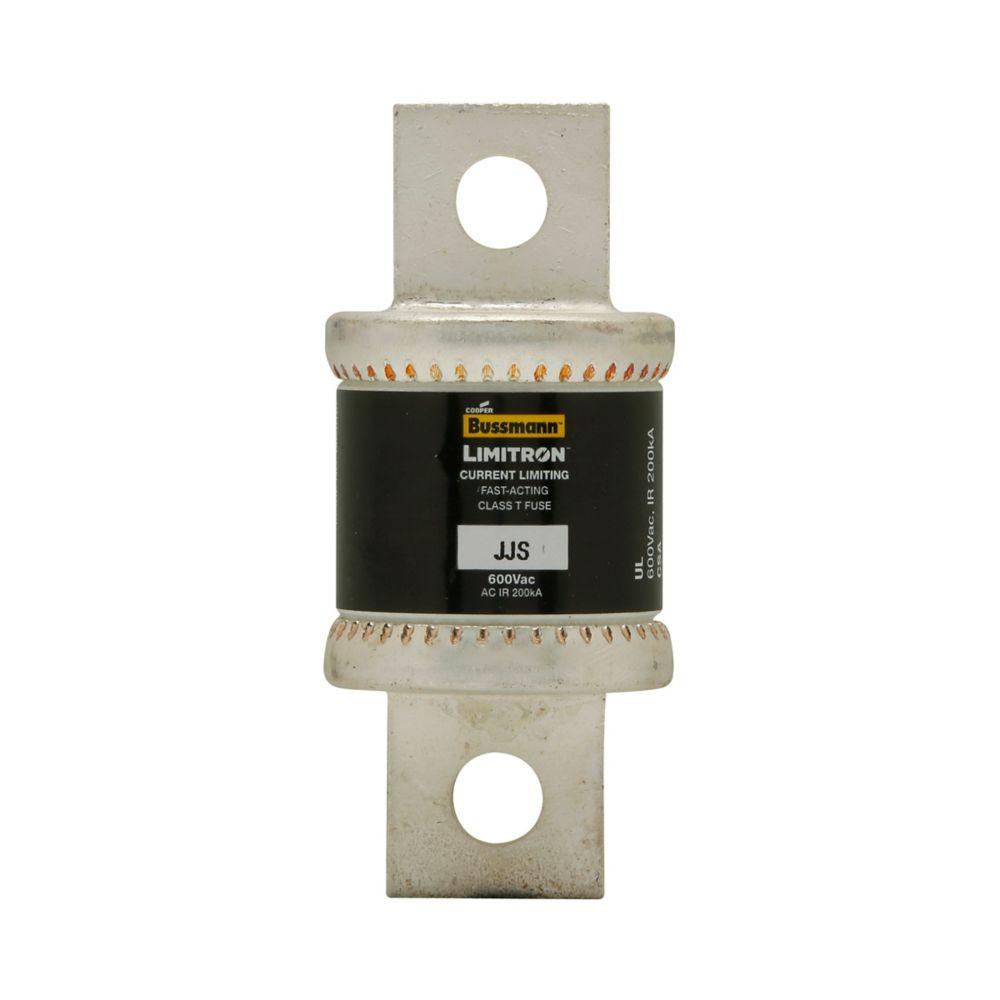

JJS-400
JJS-400 is a 400 ampere, 600 volt, Class T fast-acting fuse from Eaton Bussmann designed for advanced circuit protection.This current-limiting fuse features a bolted blade end connection on both sides, providing a secure and reliable fit. It offers a high interrupting rating of 200,000 amps at 600 volts AC, suitable for protecting control circuits, solenoids, and VFD line applications. The JJS series is known for its small footprint and fast-acting characteristics, ensuring quick response to overcurrent conditions. This fuse is non-indicating and UL Component Recognized under Guide JFHR2, File E56412.
- Key Specifications
- Amperage: 400 A
- Voltage Rating: 600 Vac
- Fuse Class: Class T
- Interrupting Rating: 200 kAIC at 600 V
- Connection Type: Bolted blade end x bolted blade end
- Fuse Type: Fast acting, current-limiting
- Series: JJS (Limitron)
- Non-indicating fuse
- UL Component Recognized (Guide JFHR2, File E56412)
- Small footprint design
- Application: Control and solenoid circuit protection, VFD line protection
Specifications
- Part Number: JJS-400
- Manufacturer : Eaton
- Brand : Bussmann
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : T-Tron
- Type : JJS
- Voltage : 600
- Amperage : 400
- AIC rating : 200kA@600V
- Diameter : 1
- Class Rating : T
- Barrels : 1
Product Data
- UPC : 051712628044
- GTIN : 00051712628044
- Country of Origin : Mexico
- Dimensions : 3.63 in x 1 in x 1 in (Length/Depth x Height x Width)
- Weight : 0.5
- Certification : CE/UL-248-15 Guide JDDZ/CSA Class 1422-02
