Product Info
- Manufacturer:Eaton
- Sub-Category:Low Voltage Fuse
Description
JJS-350

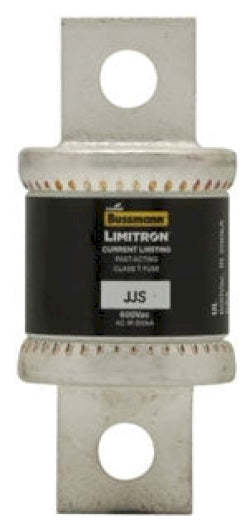

JJS-350 is a 350 amp, 600 volt Class T fast acting fuse from Eaton Bussmann designed for reliable circuit protection.This current-limiting fuse features a bolted blade end connection on both sides, a 200 kA interrupt rating at 600 VAC, and a non-indicating design. It is ideal for VFD line protection and applications requiring a small footprint fuse with very fast acting characteristics. The fuse is UL 248-15, CSA, and CE certified and RoHS compliant.
- Key Specifications
- Amperage Rating: 350 A
- Voltage Rating: 600 V AC
- Interrupt Rating: 200 kAIC at 600 VAC
- Fuse Class: Class T
- Connection Type: Bolted blade end x bolted blade end
- Fuse Indicator: Non-indicating
- Mounting Type: Center bolted
- Approvals: UL, CSA, CE
- RoHS Compliant: Yes
- Product Dimensions: 3.63 in length, 1 in height, 1 in width
- Weight: 0.6 lb
Specifications
- Part Number: JJS-350
- Manufacturer : Eaton
- Brand : Bussmann
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : T-Tron
- Type : JJS
- Voltage : 600
- Amperage : 350
- AIC rating : 200kA@600V
- Diameter : 1
- Class Rating : T
- Barrels : 1
Product Data
- UPC : 051712628136
- GTIN : 00051712628136
- Country of Origin : Mexico
- Dimensions : 3.63 in x 1 in x 1 in (Length/Depth x Height x Width)
- Weight : 0.6
- Certification : CE/UL-248-15 Guide JDDZ/CSA Class 1422-02
