JJS-300 - Eaton Bussmann 300A 600V Class T Fast Acting Fuse, Bolted Blade End, 200kAIC Interrupt Rating

JJS-300

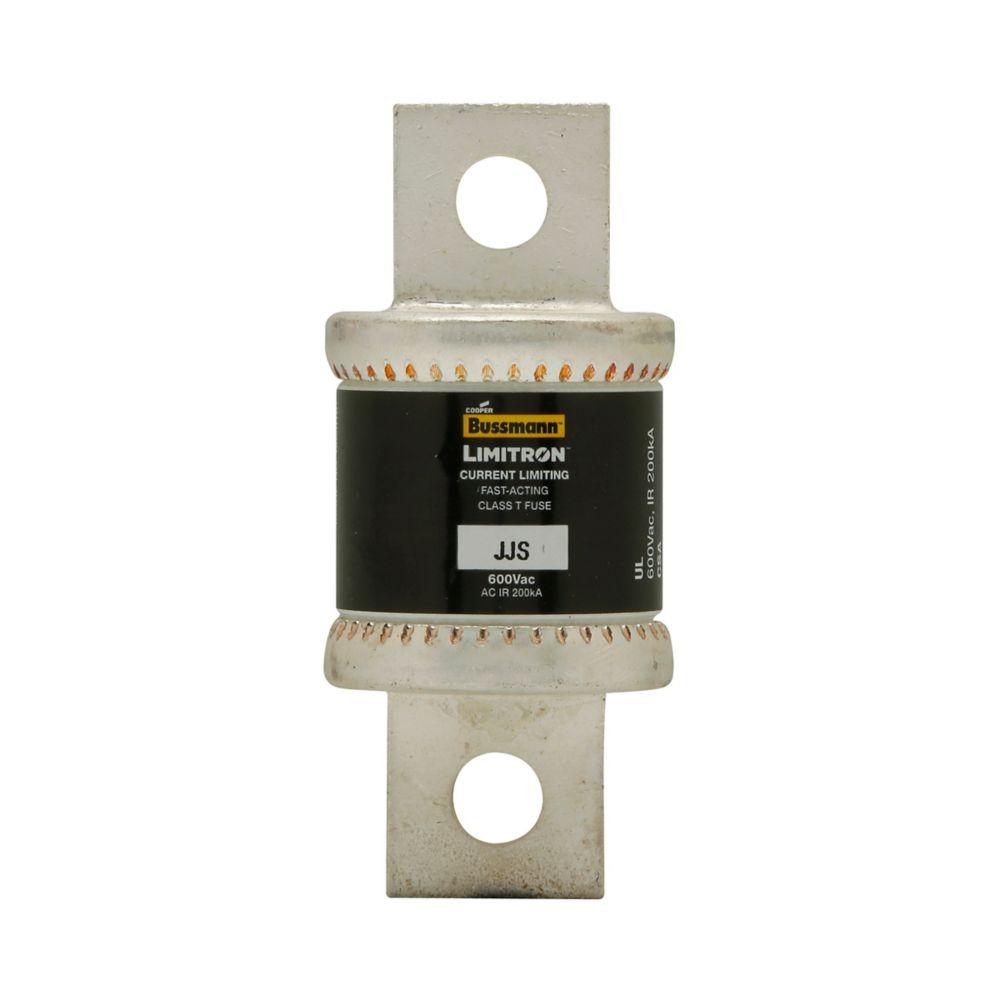

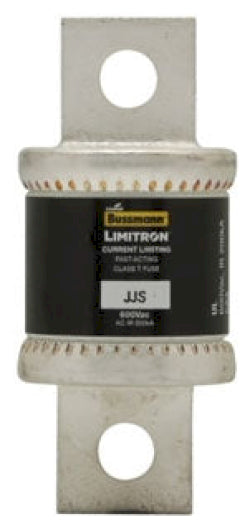

JJS-300 is an Eaton Bussmann series Class T fast-acting fuse rated for 300 amps and 600 volts AC with a 200 kA interrupt rating.This current-limiting fuse features a small footprint design with bolted blade end connections on both ends, providing reliable protection for VFD line applications. It is non-indicating and complies with CE marking and RoHS standards. The fuse is UL listed and CSA certified, suitable for industrial and commercial electrical circuit protection.

• Amperage Rating: 300 A
• Voltage Rating: 600 V AC
• Interrupt Rating: 200 kAIC at 600 Vac
• Class: Class T
• Connection Type: Bolted blade end x bolted blade end
• Fuse Indicator: Non-indicating
• Mounting Type: Standard
• Dimensions: 3.63 in length x 1 in width x 1 in height
• Compliance: CE Marked, RoHS Compliant
• Certifications: UL Listed, CSA Certified
• Special Features: Current-limiting, Very fast acting

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: JJS-300
• Manufacturer : Eaton
• Brand : Bussmann
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Family : T-Tron
• Type : JJS
• Voltage : 600
• Amperage : 300
• AIC rating : 200kA@600V
• Diameter : 1
• Class Rating : T
• Barrels : 1

Product Data

• UPC : 051712628303
• GTIN : 00051712628303
• Country of Origin : Mexico
• Dimensions : 3.63 in x 1 in x 1 in (Length/Depth x Height x Width)
• Weight : 0.5
• Certification : CE/UL-248-15 Guide JDDZ/CSA Class 1422-02
