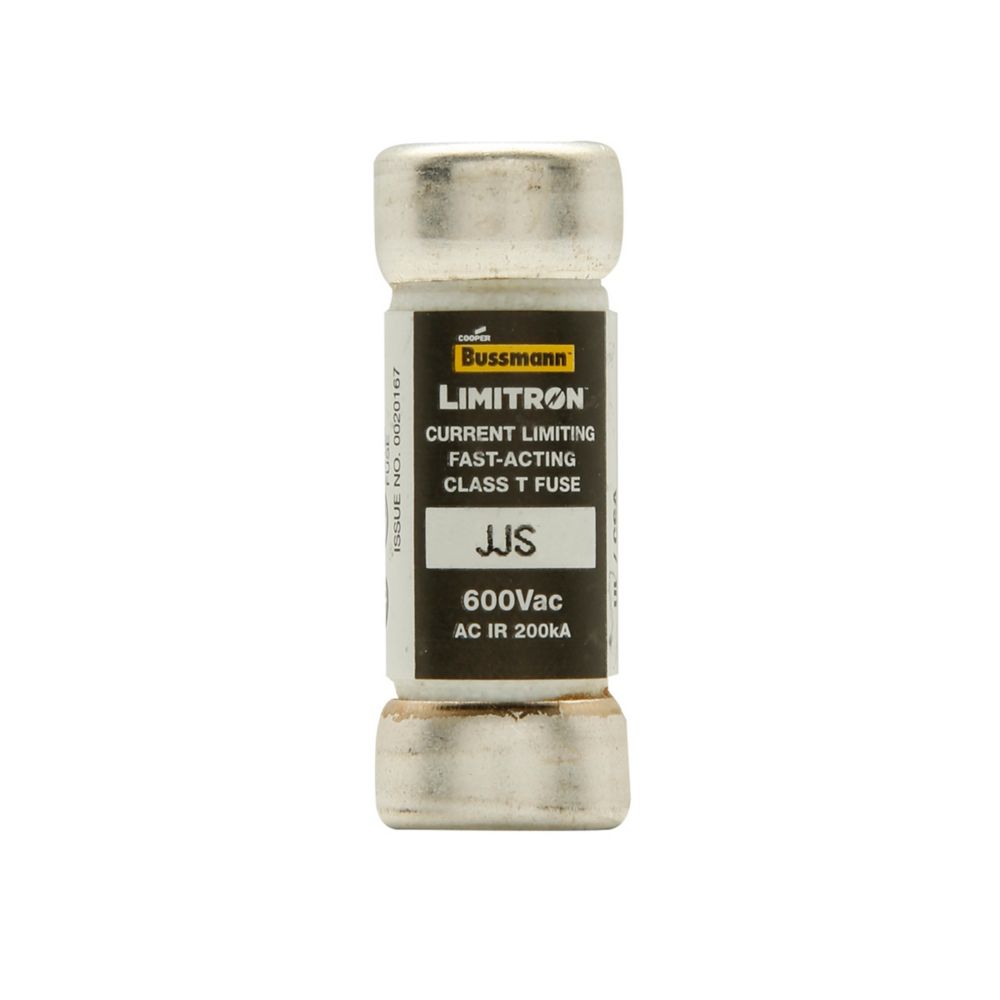

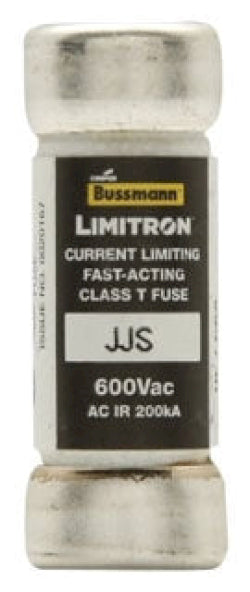

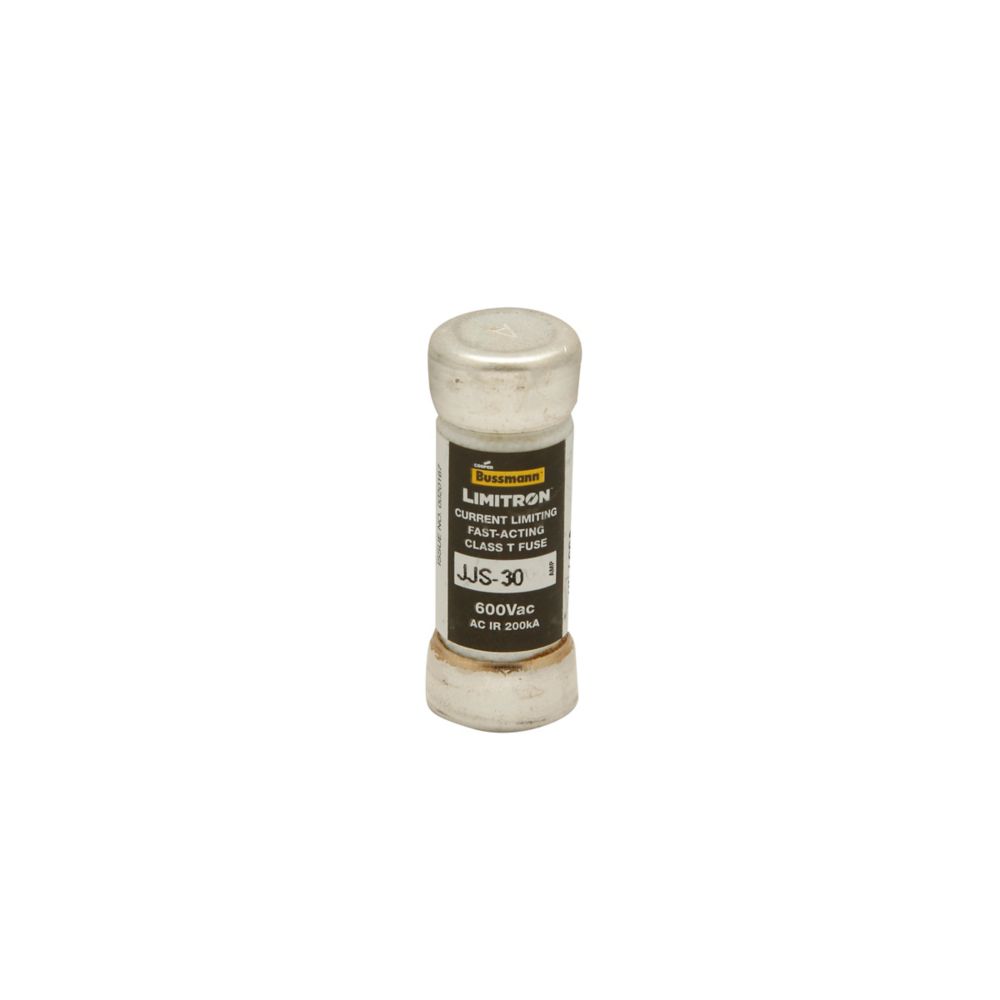

JJS-30 - Eaton Bussmann 30A 600V Class T Fast-Acting Current-Limiting Fuse

JJS-30

JJS-30 is a 30 amp, 600 volt Class T fast-acting current-limiting fuse from Eaton Bussmann designed for reliable circuit protection.This fuse features a compact cartridge design with ferrule end connections, a 200 kA interrupt rating at 600 VAC, and is UL Listed and CSA Certified. It provides very fast-acting protection ideal for VFD line applications and other sensitive equipment. The JJS series is RoHS compliant and CE marked, ensuring high safety and environmental standards.

• Amperage Rating: 30 A
• Voltage Rating: 600 V AC
• Interrupt Rating: 200 kAIC at 600 VAC
• Class: T (Limitron)
• Fuse Type: Fast-Acting, Current-Limiting
• Connection Type: Ferrule end x ferrule end
• Physical Size: 0.56" diameter x 1.5" length
• Non-indicating fuse
• Certifications: UL Listed, CSA Certified, CE Marked, RoHS Compliant
• Packaging: Standard

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: JJS-30
• Manufacturer : Eaton
• Brand : Bussmann
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Family : T-Tron
• Type : JJS
• Voltage : 600
• Amperage : 30
• AIC rating : 200kA@600V
• Diameter : 0.56
• Class Rating : T
• Barrels : 1

Product Data

• UPC : 051712628006
• GTIN : 00051712628006
• Country of Origin : Mexico
• Dimensions : 1.5 in x 0.56 in x 0.56 in (Length/Depth x Height x Width)
• Weight : 0.015
• Certification : CE/UL-248-15 Guide JDDZ/CSA Class 1422-02
