Product Info
- Manufacturer:Eaton
- Sub-Category:Low Voltage Fuse
Description
JJS-250

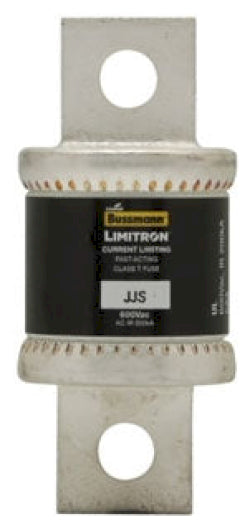

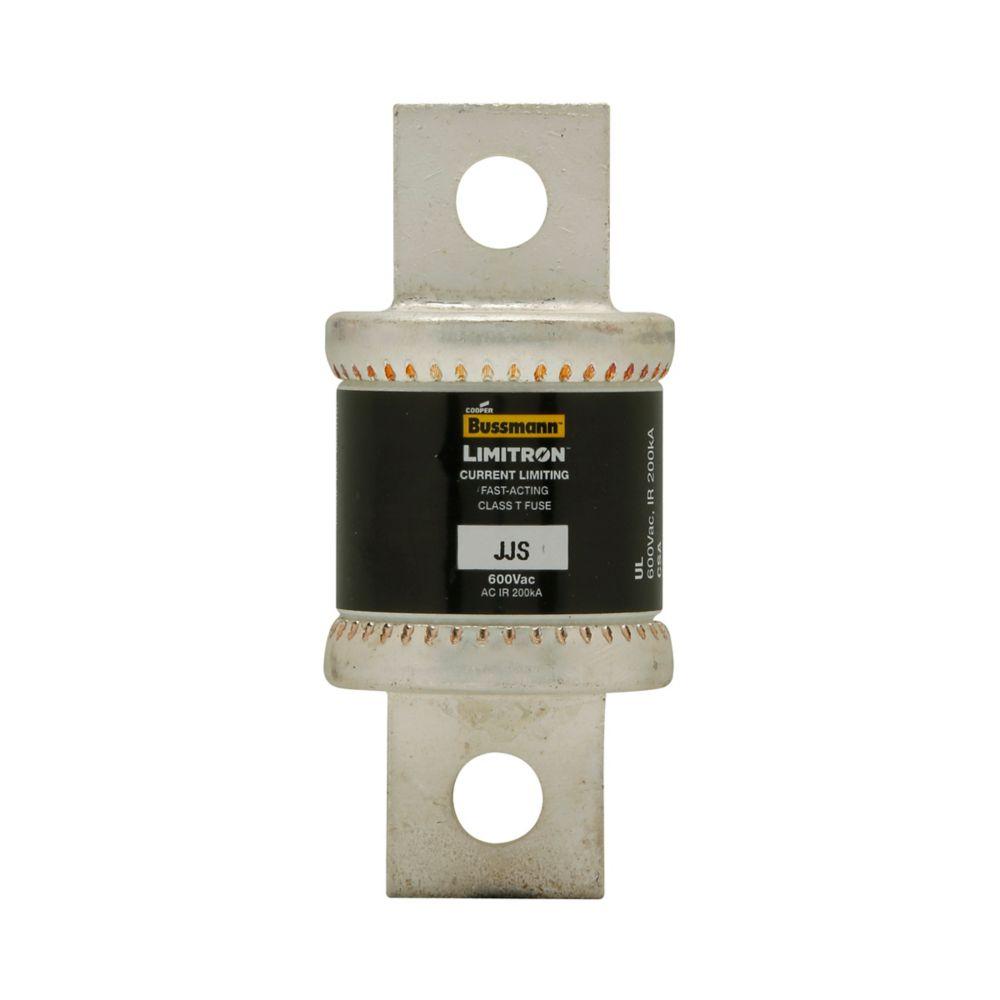

JJS-250 is a current-limiting, very fast acting Class T fuse designed for robust circuit protection in demanding applications.
This Eaton Bussmann series JJS fuse features a compact footprint, bolted blade mounting, and is engineered for VFD (Variable Frequency Drive) line protection. It offers high interrupting capacity and is suitable for use where fast response and current limitation are critical.
-
Key Specifications
- Part Number: JJS-250
- Manufacturer: Eaton Bussmann
- Category: Fuse
- Amperage: 250A
- Voltage: 600V
- Poles: 1
- Mounting Type: Bolted Blade
- Interrupt Rating: 200 kAIC at 600V AC
- Series/Frame: JJS
- Trip Unit: Non-indicating
- Certifications: CE Marked, RoHS Compliant
- Length: 3.63 in
- Diameter: 1 in
- Weight: 0.5 lb
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Specifications
- Part Number: JJS-250
- Manufacturer : Eaton
- Brand : Bussmann
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : T-Tron
- Type : JJS
- Voltage : 600
- Amperage : 250
- AIC rating : 200kA@600V
- Diameter : 1
- Class Rating : T
- Barrels : 1
Product Data
- UPC : 051712628099
- GTIN : 00051712628099
- Country of Origin : Mexico
- Dimensions : 3.63 in x 1 in x 1 in (Length/Depth x Height x Width)
- Weight : 0.5
- Certification : CE/UL-248-15 Guide JDDZ/CSA Class 1422-02
