Product Info
- Manufacturer:Eaton
- Sub-Category:Low Voltage Fuse
Description
JJS-25

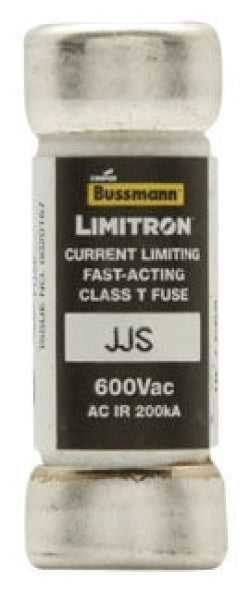

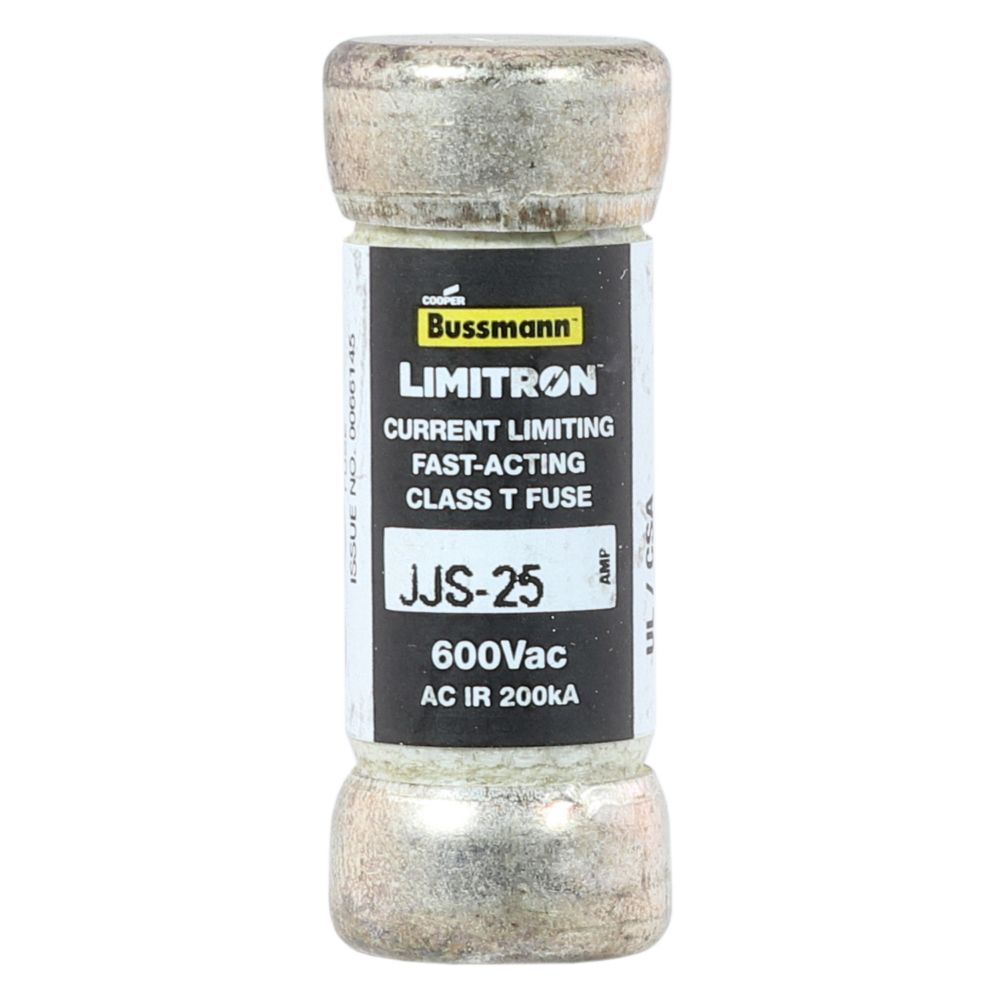

JJS-25 is a 25 amp, 600 volt Class T fast-acting fuse from Eaton Bussmann designed for advanced circuit protection.
This fuse features a small footprint with ferrule end to ferrule end mounting, providing current-limiting protection ideal for variable frequency drives (VFD) and electronic circuits. It is non-indicating and rated for 200,000 amperes interrupt capacity (kAIC) at 600 volts AC. The JJS series is UL Component Recognized and offers fast-acting characteristics to protect sensitive electronics and control circuits.
- Key Specifications
- Amperage: 25 A
- Voltage Rating: 600 VAC
- Fuse Class: T (Class T-Tron)
- Interrupt Rating: 200,000 AIC
- Mounting Type: Ferrule end x ferrule end
- Fuse Type: Fast-acting, current-limiting
- Non-indicating fuse
- UL Component Recognized (Guide JFHR2, File E56412)
- Small footprint design
- Suitable for VFD line protection
- Part Number: JJS-25
- Manufacturer : Eaton
- Brand : Bussmann
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : T-Tron
- Type : JJS
- Voltage : 600
- Amperage : 25
- AIC rating : 200kA@600V
- Diameter : 0.56
- Class Rating : T
- Barrels : 1
- UPC : 051712628259
- GTIN : 00051712628259
- Country of Origin : Mexico
- Dimensions : 1.5 in x 0.56 in x 0.56 in (Length/Depth x Height x Width)
- Weight : 0.035
- Certification : CE/UL-248-15 Guide JDDZ/CSA Class 1422-02
