Product Info
- Manufacturer:Eaton
- Sub-Category:Low Voltage Fuse
Description
JJS-225

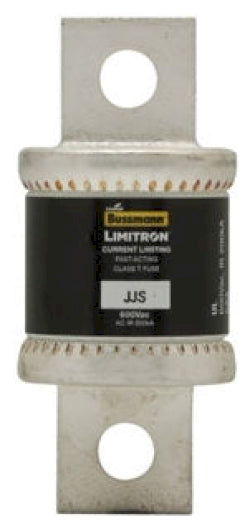

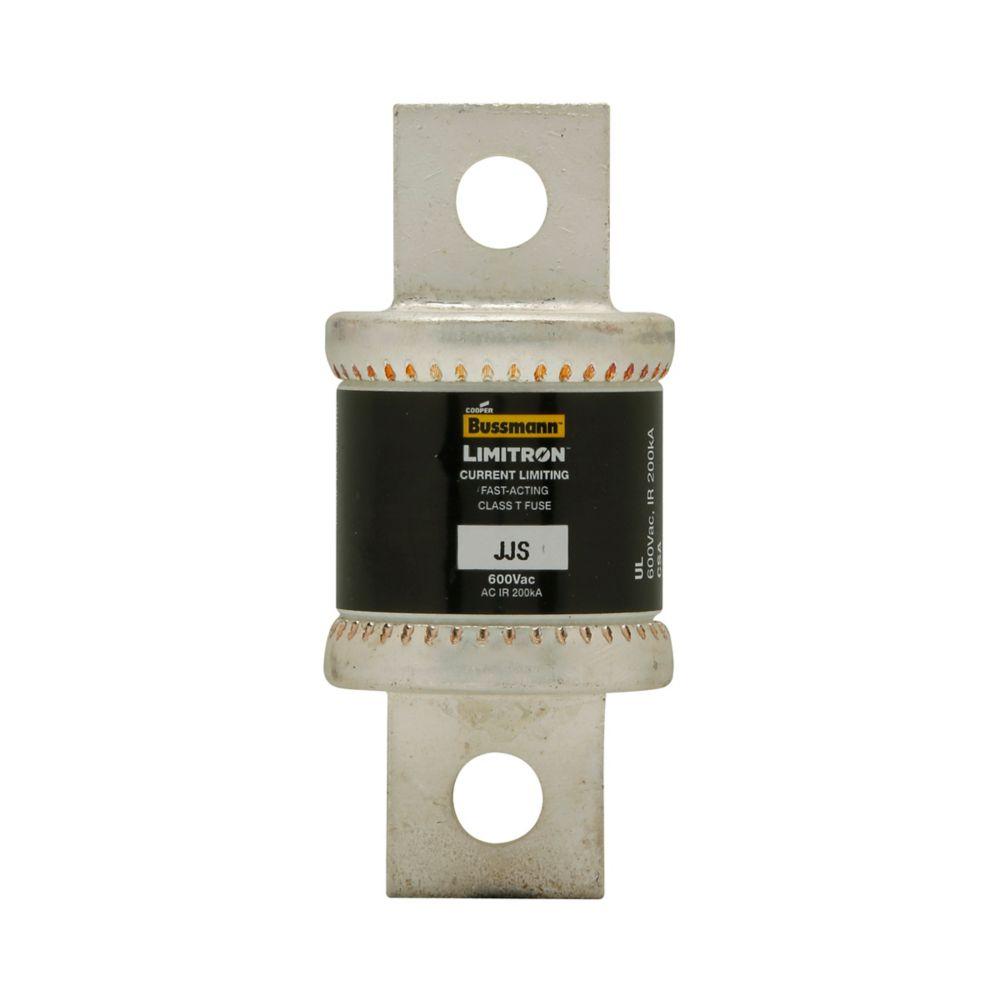

JJS-225 is a 225 ampere, 600 volt AC Class T fast acting fuse from Eaton Bussmann designed for reliable circuit protection.This current-limiting fuse features very fast acting characteristics with a high interrupting rating of 200,000 amperes RMS symmetrical at 600 VAC. It has a compact size of approximately 1 inch by 3.63 inches and is UL Listed and CSA Certified for safety and performance. The fuse is non-indicating with bolted blade end connections, suitable for protecting control or solenoid circuits and VFD line protection.
- Key Specifications
- Amperage: 225 A
- Voltage Rating: 600 VAC
- Fuse Class: Class T
- Interrupting Rating: 200,000 AIC RMS @ 600 VAC
- Fuse Type: Fast Acting, Current Limiting
- Poles: 1
- Mounting Type: Bolted blade end x bolted blade end
- Dimensions: Approx. 1" x 3.63"
- Certifications: UL Listed (Std. 248-15), CSA Certified (C22.2 No. 248.15)
- Series: JJS Limitron
Specifications
- Part Number: JJS-225
- Manufacturer : Eaton
- Brand : Bussmann
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : T-Tron
- Type : JJS
- Voltage : 600
- Amperage : 225
- AIC rating : 200kA@600V
- Diameter : 1
- Class Rating : T
- Barrels : 1
Product Data
- UPC : 051712628228
- GTIN : 00051712628228
- Country of Origin : Mexico
- Dimensions : 3.63 in x 1 in x 1 in (Length/Depth x Height x Width)
- Weight : 0.55
- Certification : CE/UL-248-15 Guide JDDZ/CSA Class 1422-02
