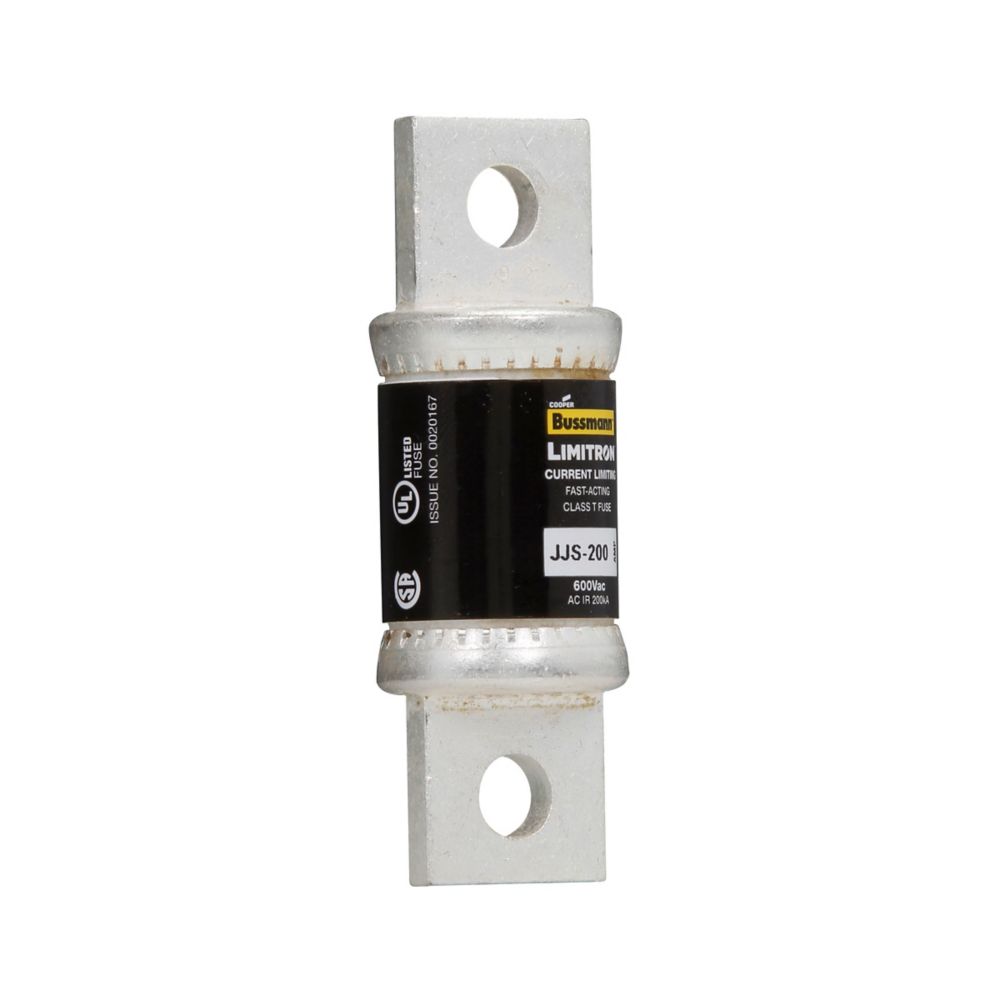

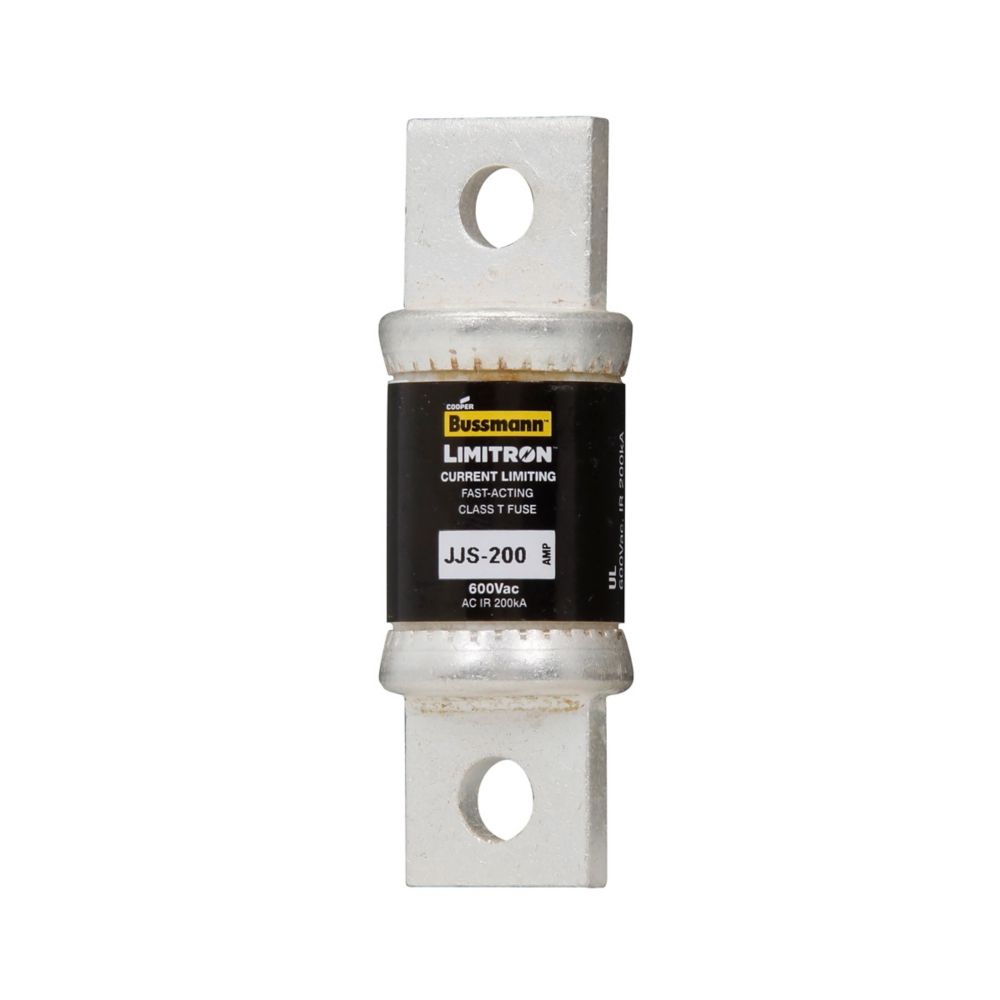

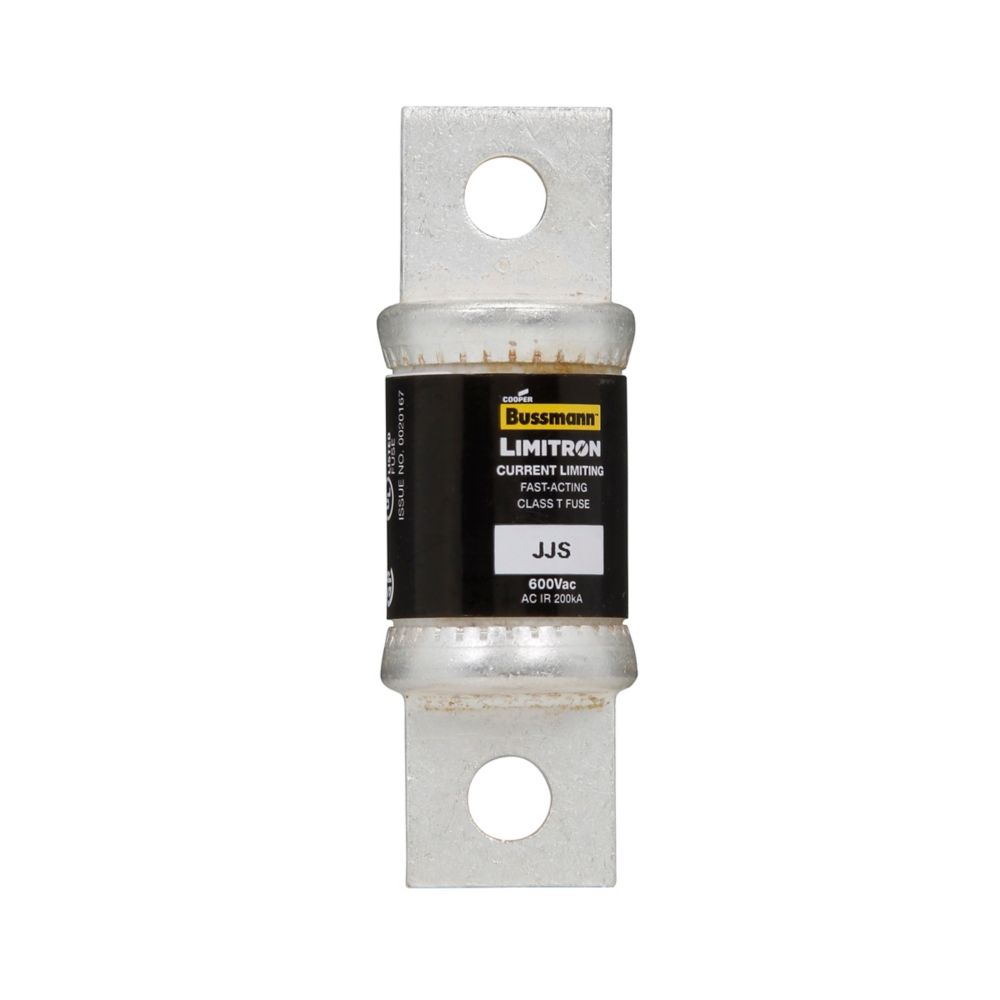

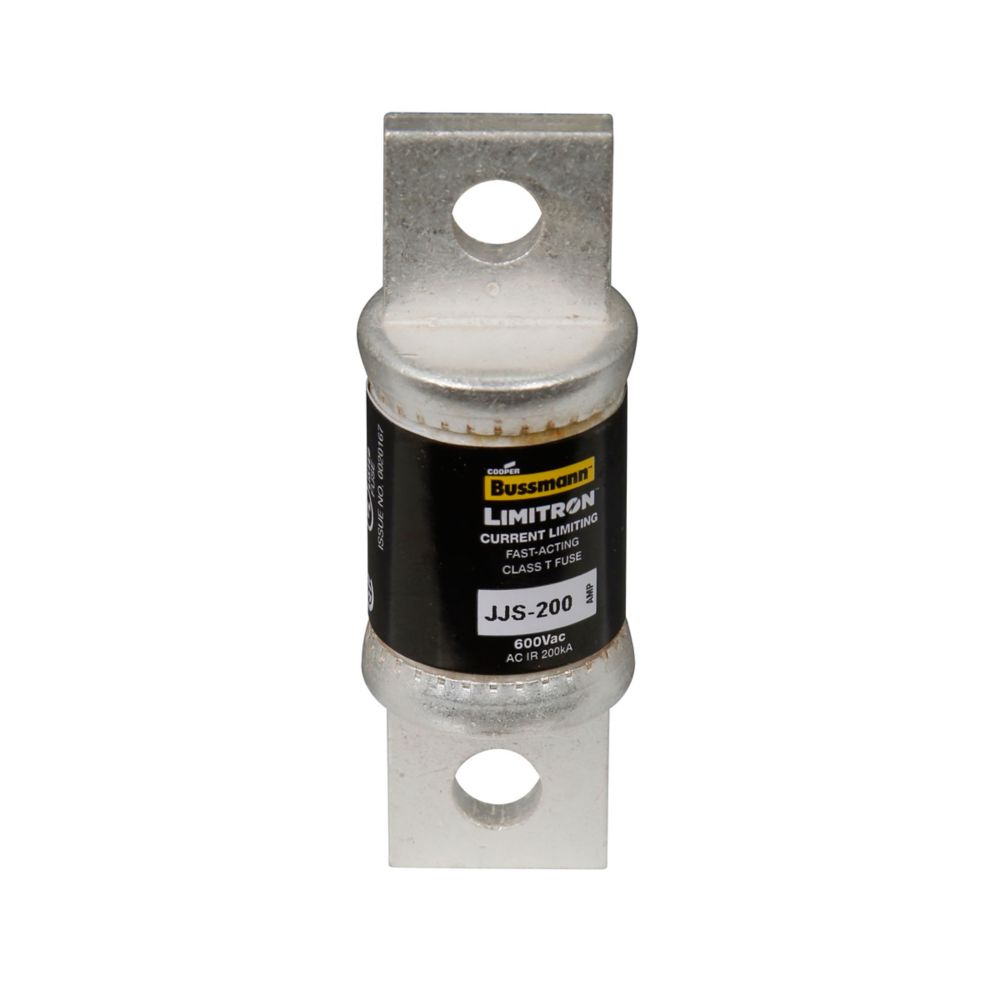

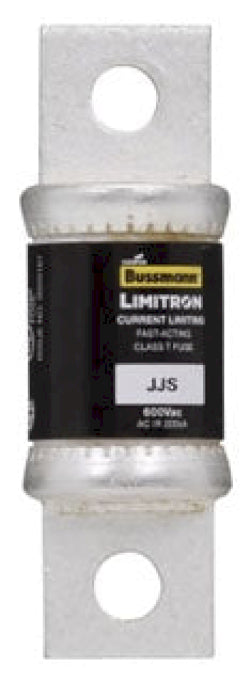

JJS-200 - Eaton Bussmann 200A 600V Class T Fast Acting Fuse, Bolted Blade End, 200kA Interrupt Rating

JJS-200

JJS-200 is a 200 amp, 600 volt Class T fast-acting fuse from Eaton Bussmann designed for reliable circuit protection.This current-limiting fuse features a small footprint and bolted blade end connections, providing very fast acting protection with a 200,000 amp interrupt rating at 600 volts AC. It is ideal for protecting control circuits and VFD line applications. The fuse is UL Component Recognized and RoHS compliant.

• Amperage: 200 A
• Voltage Rating: 600 V AC
• Fuse Type: Class T, JJS series
• Interrupt Rating: 200 kA at 600 V
• Mounting Type: Bolted blade end x bolted blade end
• Fast-acting, current-limiting
• Small footprint for compact installations
• Non-indicating fuse
• UL Component Recognized (Guide JFHR2, File E56412)
• RoHS Compliant
• Designed for VFD line protection

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: JJS-200
• Manufacturer : Eaton
• Brand : Bussmann
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Family : T-Tron
• Type : JJS
• Voltage : 600
• Amperage : 200
• AIC rating : 200kA@600V
• Diameter : 0.88
• Class Rating : T
• Barrels : 1

Product Data

• UPC : 051712628037
• GTIN : 00051712628037
• Country of Origin : Mexico
• Dimensions : 3.25 in x 0.88 in x 0.88 in (Length/Depth x Height x Width)
• Weight : 0.001
• Certification : CE/UL-248-15 Guide JDDZ/CSA Class 1422-02
