2 Year Warranty Guaranteed
All items both Re-Certified, and New sold by Essential Electric include a 30 day return policy and a 2-year full warranty. This means that they are guaranteed to be free from defects for a full 2 years from the date that the product was shipped from our warehouse.
Product Questions? Contact Us
Product Info
- Manufacturer:Eaton
- Sub-Category:Low Voltage Fuse
Description
JJS-20

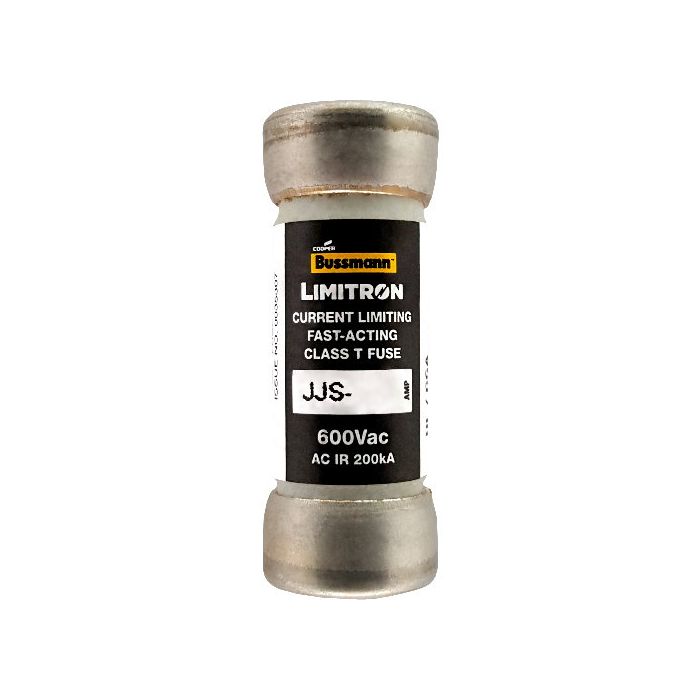

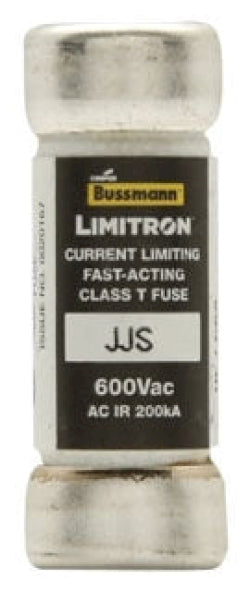

JJS-20 is a current-limiting, fast-acting Class T fuse from Eaton Bussmann, designed for VFD line protection and industrial automation applications.
This non-indicating fuse features a compact footprint, ferrule end connections, and a high interrupting rating for reliable circuit protection in demanding environments. It is ideal for applications requiring very fast response to overcurrent conditions.
-
Key Specifications
- Amperage: 20 A
- Voltage: 600 V
- Poles: 1
- Mounting Type: Ferrule end x ferrule end
- Interrupt Rating: 200 kAIC at 600 V
- Series/Frame: JJS, Class T
- Trip Unit: Fast-acting, current-limiting
- Certifications: UL recognized, CE marked, RoHS compliant
- Connection Type: Ferrule
- Fuse Indicator: Non-indicating
- Dimensions: 1.5 in L x 0.56 in W x 0.56 in H
- Weight: 0.035 lb
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Specifications
- Part Number: JJS-20
- Manufacturer : Eaton
- Brand : Bussmann
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : T-Tron
- Type : JJS
- Voltage : 600
- Amperage : 20
- AIC rating : 200kA@600V
- Diameter : 0.56
- Class Rating : T
- Barrels : 1
Product Data
- UPC : 051712628204
- GTIN : 00051712628204
- Country of Origin : Mexico
- Dimensions : 1.5 in x 0.56 in x 0.56 in (Length/Depth x Height x Width)
- Weight : 0.035
- Certification : CE/UL-248-15 Guide JDDZ/CSA Class 1422-02
