Product Info
- Manufacturer:Eaton
- Sub-Category:Low Voltage Fuse
Description
JJS-2

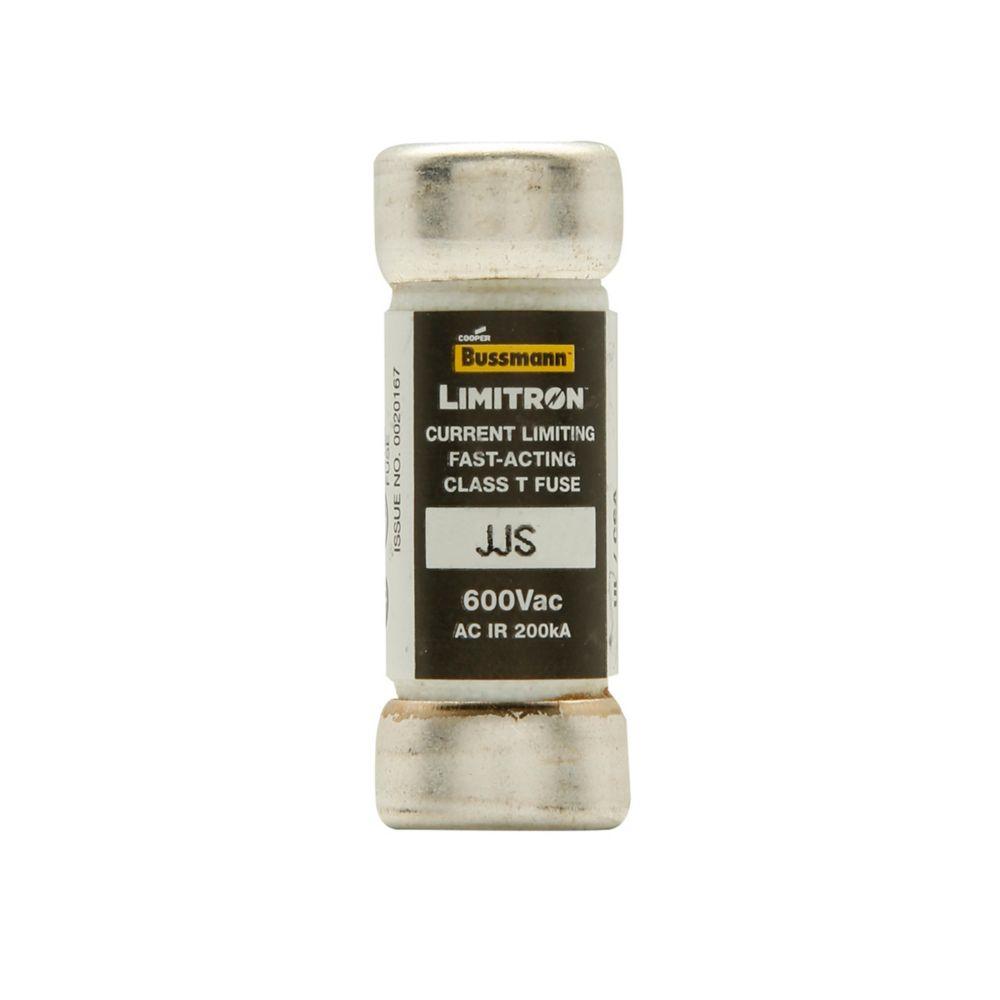

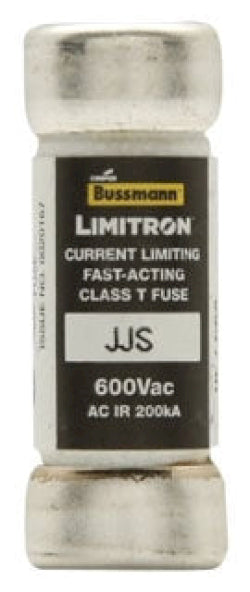

JJS-2 is a 2 amp, 600 volt Class T fast acting fuse from Eaton designed for current-limiting protection in compact electrical applications.This Eaton Bussmann series JJS fuse features very fast acting characteristics with a high interrupting rating of 200,000 amperes at 600 volts AC. It provides reliable protection for control circuits, solenoids, and other sensitive equipment in industrial and commercial environments. The fuse has a small footprint ideal for multi-family meter stacks, VFD line protection, and other space-constrained installations.
- Key Specifications
- Amperage: 2 A
- Voltage Rating: 600 V AC
- Fuse Class: T (Class T)
- Fuse Type: Fast Acting (Very Fast Acting)
- Interrupting Rating: 200 kA at 600 V AC
- Current Limiting: Yes
- Mounting Type: Terminal ferrule
- Series: JJS
- Agency Certifications: UL 248-15, cULus Listed, CSA C22.2 No. 248.15, CE, RoHS Compliant
- Part Number: JJS-2
- Manufacturer : Eaton
- Brand : Bussmann
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : T-Tron
- Type : JJS
- Voltage : 600
- Amperage : 2
- AIC rating : 200kA@600V
- Diameter : 0.56
- Class Rating : T
- Barrels : 1
- UPC : 051712628143
- GTIN : 00051712628143
- Country of Origin : Mexico
- Dimensions : 0.56 in x 0.4 in x 0.4 in (Length/Depth x Height x Width)
- Weight : 0.035
- Certification : CE/UL-248-15 Guide JDDZ/CSA Class 1422-02
