Product Info
- Manufacturer:Eaton
- Sub-Category:Low Voltage Fuse
Description

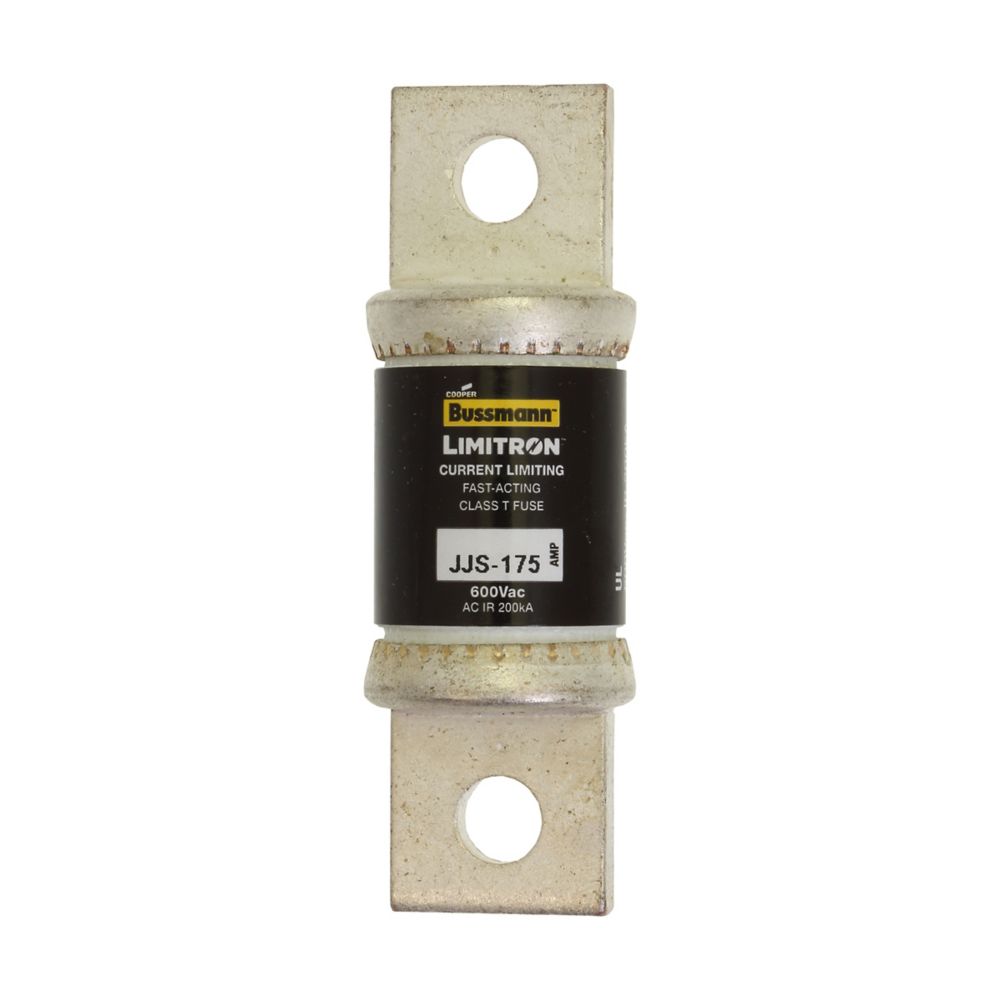

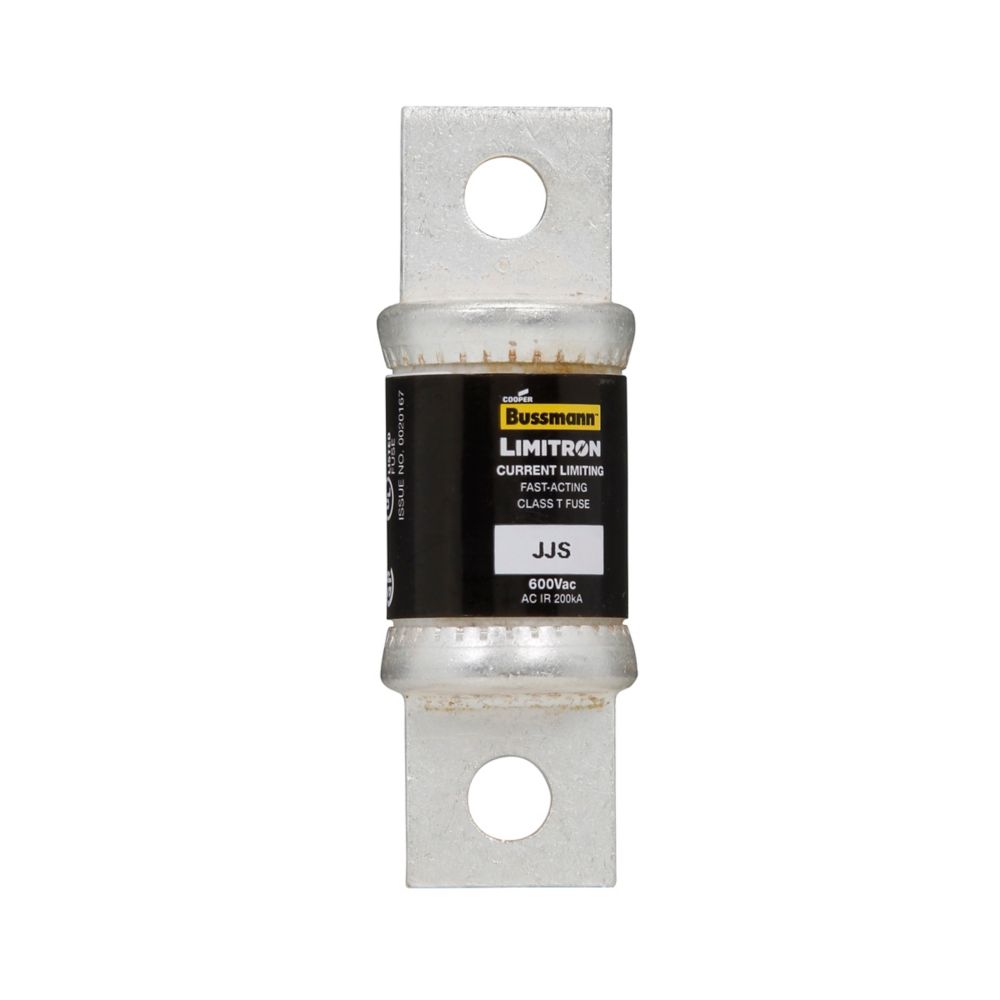

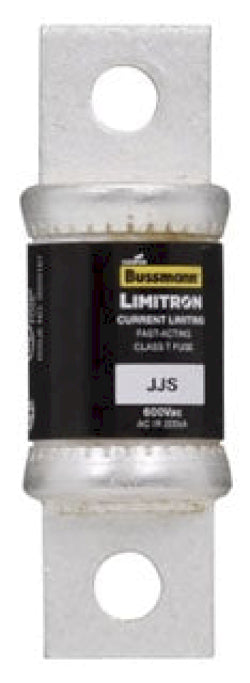

JJS-175
JJS-175 is a fast-acting, current-limiting, Class T fuse from Eaton Bussmann, designed for reliable circuit protection in demanding applications.
This fuse features a very fast response, current-limiting technology, and a compact design ideal for VFD line protection. It is non-indicating and uses bolted blade connections for secure installation.
-
Key Specifications
- Amperage: 175A
- Voltage: 600V
- Poles: 1
- Mounting Type: Bolted blade end x bolted blade end
- Interrupt Rating: 200 kAIC at 600V
- Series/Frame: JJS (T-Tron)
- Trip Unit: Not applicable (fuse)
- Certifications: CE Marked, RoHS Compliant, UL Listed (Std. 248-15, Class T)
- Product Length: 3.25 in
- Product Width/Height: 0.88 in
- Weight: 0.2 lb
- Special Features: Small footprint, VFD line protection, non-indicating
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Specifications
- Part Number: JJS-175
- Manufacturer : Eaton
- Brand : Bussmann
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : T-Tron
- Type : JJS
- Voltage : 600
- Amperage : 175
- AIC rating : 200kA@600V
- Diameter : 0.88
- Class Rating : T
- Barrels : 1
Product Data
- UPC : 051712628174
- GTIN : 00051712628174
- Country of Origin : Mexico
- Dimensions : 3.25 in x 0.88 in x 0.88 in (Length/Depth x Height x Width)
- Weight : 0.2
- Certification : CE/UL-248-15 Guide JDDZ/CSA Class 1422-02
