Product Info
- Manufacturer:Eaton
- Sub-Category:Low Voltage Fuse
Description
JJS-15

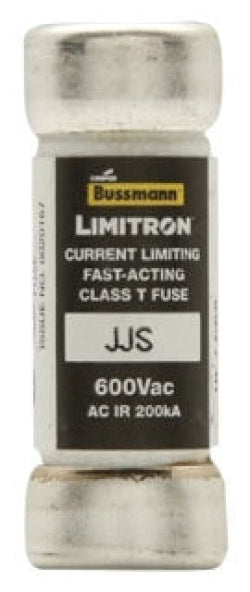

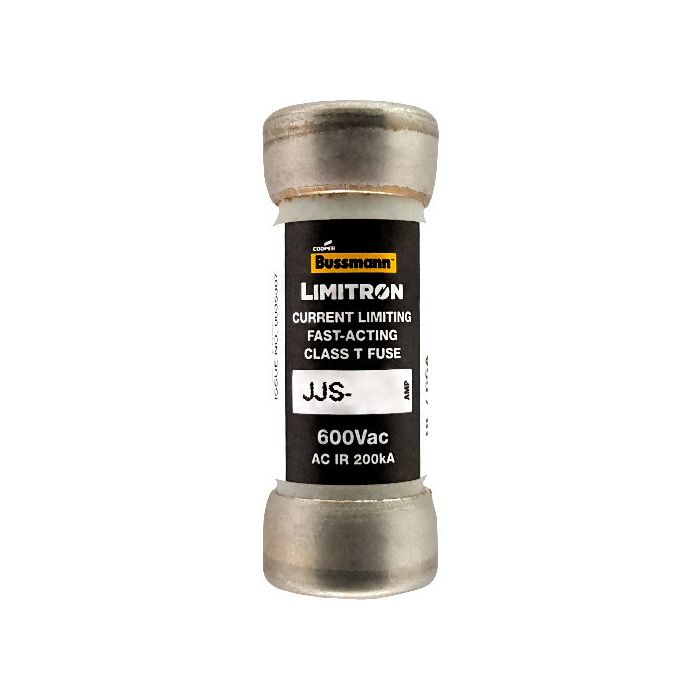

JJS-15 is a 15 amp, 600 volt Class T fast-acting fuse from Eaton Bussmann designed for advanced circuit protection.
This current-limiting fuse features a small footprint and ferrule end x ferrule end connection, rated for 200,000 amperes interrupting capacity (AIC) at 600 volts AC. It is UL Component Recognized and ideal for protecting variable frequency drives and other sensitive equipment requiring fast-acting fuse protection.
- Key Specifications
- Amperage: 15 A
- Voltage Rating: 600 Vac
- Interrupt Rating: 200 kAIC at 600 V
- Fuse Class: T (T-Tron)
- Fuse Type: Fast-Acting, Current-Limiting
- Connection Type: Ferrule end x ferrule end
- Mounting: Inline fuse holder compatible
- Certifications: UL Component Recognized (Guide JFHR2, File E56412)
- Series: Bussmann JJS Limitron
- Application: VFD line protection, electronic circuits
- Part Number: JJS-15
- Manufacturer : Eaton
- Brand : Bussmann
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : T-Tron
- Type : JJS
- Voltage : 600
- Amperage : 15
- AIC rating : 200kA@600V
- Diameter : 0.56
- Class Rating : T
- Barrels : 1
- UPC : 051712628150
- GTIN : 00051712628150
- Country of Origin : Mexico
- Dimensions : 1.5 in x 0.56 in x 0.56 in (Length/Depth x Height x Width)
- Weight : 0.159
- Certification : CE/UL-248-15 Guide JDDZ/CSA Class 1422-02
